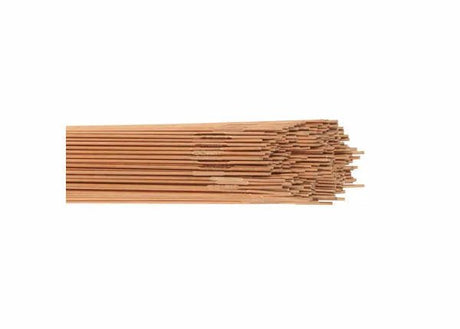

TIG Welding Rods & TIG Filler Rod

TIG filler rod for every base metal: carbon steel ER70S-2, stainless ER308L through ER316L, aluminum ER4043 and ER5356, chrome-moly, nickel alloys, titanium, and silicon bronze. WeldingMart stocks 608 TIG rods in diameters from .045 in. through 3/16 in. and tube quantities from 1-lb through 50-lb. TIG welding — Gas Tungsten Arc Welding (GTAW) — delivers the highest weld quality of any arc process: no spatter, full-fusion joints, and precise heat control that makes it the go-to process for code-quality root passes, thin-gauge precision fab, and exotic alloys. This hub connects you to the full TIG rod catalog and to the subcollections that focus the selection: TIG Cold Wire Feed Products and Aluminum TIG Rod. For the broader filler-metal catalog including MIG wire and sub-arc wire, see the Welding Wire & Filler Metals parent collection.

AC vs. DC: Choosing the Right Polarity for TIG

TIG welding polarity is determined by the base metal, not operator preference. DC electrode negative (DCEN) — also called straight polarity — is the standard for most TIG applications: carbon steel, stainless steel, chrome-moly, titanium, nickel alloys, and copper-based metals. DCEN concentrates approximately 70% of the arc's heat at the workpiece, producing deep penetration and efficient fusion. The tungsten runs cooler under DCEN, which allows the use of thoriated (EWTh-2) or ceriated (EWCe-2) tungsten with a pointed tip for precise arc starts and narrow bead profiles. AC (alternating current) is required for aluminum and magnesium. The electrode-positive half-cycle of AC provides cathodic cleaning — it blasts the refractory aluminum oxide layer off the base metal surface, which would otherwise prevent fusion. Without AC's cleaning action, the oxide layer must be mechanically removed before every weld, and any missed spots cause cold-lap defects. Pure tungsten (EWP) was the traditional choice for AC TIG on aluminum, forming a balled tip that stabilizes the AC arc; modern zirconiated tungsten (EWZr) handles higher amperage and produces a more stable arc on AC than pure tungsten. Advanced inverter-based TIG machines allow operators to adjust AC frequency (40–200+ Hz) and AC balance (percentage of electrode-positive half-cycle): higher frequency produces a more focused arc and narrower bead; less cleaning (reduced electrode-positive) allows more penetration but may leave surface oxide.

Tungsten Electrode Pairing by Application

TIG filler rod selection cannot be separated from tungsten electrode selection — both must be correct for the process to work properly. For DCEN steel and stainless welding, 2% thoriated (EWTh-2, red-banded) is the industry workhorse: it handles high amperages, produces excellent arc starts, and maintains a pointed tip through extended use. However, thoriated tungsten is mildly radioactive, and some shops have moved to ceriated (EWCe-2, grey-banded) as a non-radioactive alternative with comparable or better arc start performance at low amperages — a significant advantage for root passes on thin-wall tubing. Lanthanated (EWLa-1.5, gold-banded; or EWLa-2, blue-banded) offers similar performance to ceriated and is widely used in European fabrication. For AC aluminum TIG, zirconiated (EWZr-8, white-banded) is preferred over pure tungsten for its superior current capacity and arc stability. The tungsten diameter must match the amperage range: 1/16 in. handles up to approximately 70A on DCEN, 3/32 in. covers 70–150A, and 1/8 in. handles up to 250A and above. Undersized tungsten causes arc wander, tungsten inclusions in the weld, and electrode contamination; oversized tungsten for the amperage produces poor arc starts and a wandering arc.

TIG Rod Alloy Families: ER70S, ER308L, ER4043, and Beyond

TIG filler rod classification follows the same AWS system as MIG wire, but the rods are cut to standard lengths (typically 36 in.) and packaged in tubes rather than on spools. Carbon steel (AWS A5.18): ER70S-2 is the preferred TIG rod for carbon steel because its triple-deoxidizer chemistry (titanium, zirconium, aluminum, in addition to silicon and manganese) produces cleaner welds with fewer porosity issues on a wider range of base metal conditions than ER70S-6. ER70S-6 is used in MIG because its high deoxidizers handle scale, but in TIG the base metal is typically cleaner and ER70S-2 produces a superior weld profile. Stainless steel (AWS A5.9): ER308L welds 304 and 308 stainless — the L designation (low carbon, ≤0.03%) is standard for welded joints to prevent sensitization. ER309L is used for dissimilar joints between stainless and carbon steel, and as a buttering layer in overlay applications. ER316L adds 2–3% molybdenum for improved corrosion resistance in chloride environments. Aluminum (AWS A5.10): ER4043 is the all-purpose aluminum alloy with 5% silicon — excellent fluidity, crack resistance, and lower sensitivity to hot cracking than ER5356. ER5356 (5% magnesium) is higher strength and required when the finished weld will be anodized, since ER4043 turns black under anodizing. Chrome-moly (AWS A5.28): ER80S-D2 for P91 and P22 chrome-moly pipe; ER70S-2 for lower-chrome work. The full classification range is available in the TIG Cold Wire Feed subcollection.

Cold Wire Feed vs. Hot Wire TIG

Manual TIG requires the welder to dip the rod into the leading edge of the weld pool by hand — a process that demands the coordination of torch angle, arc length, rod angle, travel speed, and foot pedal control simultaneously. Cold wire feed adds a motor-driven wire feeder that pushes rod into the weld pool at a set speed, leaving the welder to control only the torch and foot pedal. Cold wire feed is not heated — the rod feeds at room temperature and is melted by the arc. This significantly reduces operator fatigue on long continuous welds and improves deposition consistency, making it a strong choice for code-quality production TIG on pipe spools and pressure vessels. Hot wire TIG takes the next step: a resistance heating circuit preheats the filler wire before it enters the weld pool, dramatically increasing deposition rate (3–4× cold wire) while maintaining GTAW weld quality. Hot wire TIG is used in automated or semi-automated setups for heavy pipe overlay, boiler tube welding, and precision cladding operations. The TIG Cold Wire Feed Products subcollection covers the wire and equipment for machine-fed TIG applications.

Manual vs. Automated TIG: When Each Applies

Manual TIG is the dominant mode in most fabrication shops — it requires no special fixturing beyond a welding positioner, and a skilled TIG welder can adapt to joint access, fit-up variations, and position changes on the fly. The limitation is speed: a skilled TIG welder deposits 1–3 lb/hr of filler metal, compared to 8–15 lb/hr for MIG and 15–25 lb/hr for dual-shield flux-cored. This makes manual TIG economically justified only where weld quality requirements or material constraints rule out faster processes — thin-wall stainless tubing, titanium aerospace components, code-quality pressure vessel root passes, and precision aluminum fabrication. Automated TIG (orbital welding, fixed-head mechanized GTAW) removes the operator variability from consistent joints: pipe root passes, tube-to-tubesheet connections, and pharmaceutical-grade sanitary tubing are common automated TIG applications. Automated systems use continuous wire on a spool through a cold or hot wire feeder rather than cut-length rods. Orbital welding heads from Lincoln Electric and other suppliers accept standard 0.030–0.062 in. TIG wire in spool form for closed-head tube welding. If your application involves consistent joint geometry and a repeatable procedure, automated TIG can achieve code-quality results at deposition rates approaching MIG while maintaining GTAW metallurgical quality.

TIG Rod Diameters: Matching Rod to Joint and Amperage

TIG rod diameter should be approximately equal to or slightly smaller than the base metal thickness for thin-section work. On heavy sections welded in multi-pass, the rod diameter is matched to the bead size required per pass rather than the total section thickness. Standard cut-length TIG rod diameters and their typical application ranges: .045 in. (1.14 mm) — thin sheet (under 1/16 in.), instrumentation tubing, aerospace thin-wall, typically 20–80A. 1/16 in. (1.6 mm) — the most common all-purpose diameter for sheet and light structural, 3/32 in. through 1/4 in. base metal, typically 40–130A. 3/32 in. (2.4 mm) — medium plate and structural, 1/8 in. through 1/2 in. base metal, typically 75–200A. 1/8 in. (3.2 mm) — heavy plate and pipe, multi-pass fill and cap passes, typically 100–275A. 5/32 in. (4.0 mm) and 3/16 in. (4.8 mm) — heavy-section fill passes, high-deposition multi-pass procedures on thick structural work, 200A+. For aluminum, the rod diameter is typically one size larger than the tungsten electrode because aluminum requires higher heat input to melt the filler. For stainless root passes on pipe, 1/16 in. rod is standard regardless of pipe wall thickness — the root pass is small, and smaller rod gives better pool control.

Common Applications by Industry

TIG welding dominates in industries where weld quality, aesthetics, and metallurgical integrity take priority over deposition rate. In aerospace and defense, TIG is the primary fusion process for aluminum airframes (ER4043, ER5356), titanium structural components (ERTi-2, ERTi-5), and Inconel engine components. In food and pharmaceutical, sanitary stainless tubing (ER316L, orbital TIG) requires full-penetration welds with no crevices for bacteria to harbor — orbital automated TIG is the standard process. In power generation, chrome-moly boiler tube joints (ER80S-D2, ER90S-B3) require PWHT and full-penetration TIG root passes verified by radiography. In oil and gas, TIG root passes with MIG or flux-cored fill and cap (the "TIG root, MIG fill" procedure) are specified for corrosion-service piping where root quality is paramount. In motorsports and custom fabrication, TIG is preferred for chromoly tube chassis (ER70S-2, ER80S-D2), aluminum intake and exhaust components (ER4043), and stainless exhaust systems (ER308L) where bead appearance is as important as structural performance. In HVAC and architectural, TIG on stainless and aluminum structural elements produces welds clean enough to polish to a mirror finish without post-weld grinding.

Brands Carried at WeldingMart

WeldingMart's TIG rod catalog centers on Lincoln Electric, the largest domestic TIG rod manufacturer. Lincoln's GTAW rod line covers every AWS A5.18, A5.9, A5.10, and A5.28 classification in standard diameters and spool/tube quantities — from ER70S-2 for carbon steel to ER4043 and ER5356 for aluminum, and the stainless ER308L through ER316L line. Harris Products Group provides an alternative source for stainless and specialty TIG rods, with particular depth in silicon bronze (ERCuSi-A) and aluminum alloys for HVAC and plumbing applications. ESAB OK Tigrod and Tigrod Autrod lines cover the full stainless and low-alloy range, and are preferred by shops that have standardized on ESAB welding systems for process consistency. For exotic alloys — titanium, Inconel, Hastelloy, duplex stainless — specialty suppliers are available on request. All TIG rod is manufactured to AWS classification standards and carries heat-and-lot traceability for code-quality work.

Frequently Asked Questions

What TIG filler rod should I use for welding mild steel?

ER70S-2 is the standard recommendation for manual TIG on mild carbon steel. Its triple-deoxidizer formulation (zirconium, titanium, and aluminum added on top of silicon and manganese) tolerates a wider range of base metal surface conditions than ER70S-6 and produces a cleaner, more consistent weld profile in the GTAW process. ER70S-6 is occasionally used in TIG when the base metal is particularly contaminated, but ER70S-2 is the default classification for structural and precision carbon steel TIG work per AWS D1.1 and related codes.

Do I need AC or DC for TIG welding aluminum?

AC is required for TIG welding aluminum and magnesium. The electrode-positive half-cycle of the AC wave provides cathodic cleaning — it continuously blasts the refractory aluminum oxide (Al₂O₃) layer off the base metal surface. Without this cleaning action, the oxide layer prevents the weld pool from wetting the base metal, causing cold lap and incomplete fusion. Set your machine to AC, use 100% argon shielding gas, and select ER4043 or ER5356 filler depending on the alloy family and required properties. If your machine cannot produce AC output, it cannot TIG weld aluminum effectively without mechanical oxide removal between every pass.

What is the difference between ER4043 and ER5356 aluminum TIG rod?

ER4043 contains approximately 5% silicon, which gives it excellent fluidity, lower melting point, and good crack resistance. It is the general-purpose choice for most aluminum alloys in the 1xxx, 3xxx, 6xxx, and some 5xxx series. ER4043 welds produce a silver-grey color after anodizing, which makes them visible against natural anodized aluminum. ER5356 contains approximately 5% magnesium, providing higher tensile strength (35 ksi vs. 27 ksi for ER4043) and is required when the weldment will be anodized — ER5356 welds anodize to match the surrounding aluminum. ER5356 is not recommended for service above 150°F or in certain 5xxx base metal combinations where sensitization to stress corrosion cracking is a concern.

Can I use TIG rod in a MIG welder with a cold wire feeder?

Cold wire TIG feeders accept wire on a spool — the same diameter wire used as cut-length TIG rod but wound on a reel. This is not the same as running TIG rod through a MIG gun. A cold wire TIG feeder is a separate motor-driven mechanism that feeds wire into the TIG weld pool at the leading edge, controlled by foot pedal or torch trigger. Standard MIG wire (on spools) in the correct AWS classification can be used in a cold wire TIG feeder if the wire diameter and alloy match the TIG procedure requirements. The TIG Cold Wire Feed Products subcollection covers the wire and feeder equipment for this application.

How do I prevent tungsten contamination when TIG welding?

Tungsten contamination — tungsten inclusions in the weld deposit — typically occurs when the tungsten electrode contacts the weld pool or the filler rod. Maintain arc length at approximately equal to the tungsten electrode diameter: too short causes dip, too long causes arc wander. On DCEN, a pointed tungsten tip provides the tightest arc focus and lowest contamination risk. If contamination occurs, stop welding immediately: the contaminated tungsten must be re-ground or fractured and a clean tip re-established, and the weld zone must be inspected for inclusions. On AC aluminum welding, a small balled tip is normal and expected — the balling stabilizes the AC arc. A ball larger than 1.5× the electrode diameter indicates the tungsten is undersized for the amperage; increase tungsten diameter or reduce amperage.

What shielding gas is correct for TIG welding stainless steel?

100% argon is the standard shielding gas for TIG welding stainless steel. Some specifications call for helium additions (25–75% He balanced with Ar) to increase heat input and improve fusion on heavier sections. CO₂ or oxygen additions are avoided — even small amounts attack chromium and degrade the corrosion resistance of stainless. For pipe root passes on stainless, back-purging with 100% argon is critical: atmospheric oxygen on the inside of the pipe oxidizes the root and creates sugaring (granular, oxidized metal) that weakens the joint and can be a corrosion initiation site. Back-purge flow rate, oxygen content at the root, and purge duration are all procedurally controlled on code-quality stainless work.

What diameter TIG rod should I use for root passes on stainless pipe?

For stainless pipe root passes, 1/16 in. (1.6 mm) ER308L or ER316L is the standard choice regardless of pipe wall thickness. The root pass is a single thin bead — smaller rod diameter gives better puddle control in the keyhole technique (full-penetration open root) and reduces the risk of incomplete fusion at the root. Travel speed, arc length, and heat input are the critical variables in root pass TIG; rod diameter matters less than rod feed rate and consistency. For fill and cap passes on heavier wall pipe, step up to 3/32 in. to increase deposition rate.

Is TIG welding stronger than MIG welding?

Weld strength is a function of the filler metal's mechanical properties and the soundness of the joint — not the process name. A properly made MIG weld with ER70S-6 and a properly made TIG weld with ER70S-2 both produce weld metal with tensile strength exceeding 70 ksi, which exceeds common mild steel base metal. TIG's advantage is joint quality: lower spatter, better fusion control, less porosity risk, and the ability to weld exotic alloys that MIG cannot handle. In structurally critical applications where radiographic inspection is specified, TIG root passes are preferred because the process allows the welder to visually inspect the puddle and keyhole from above as the weld progresses, making complete-penetration roots more achievable than with MIG.
