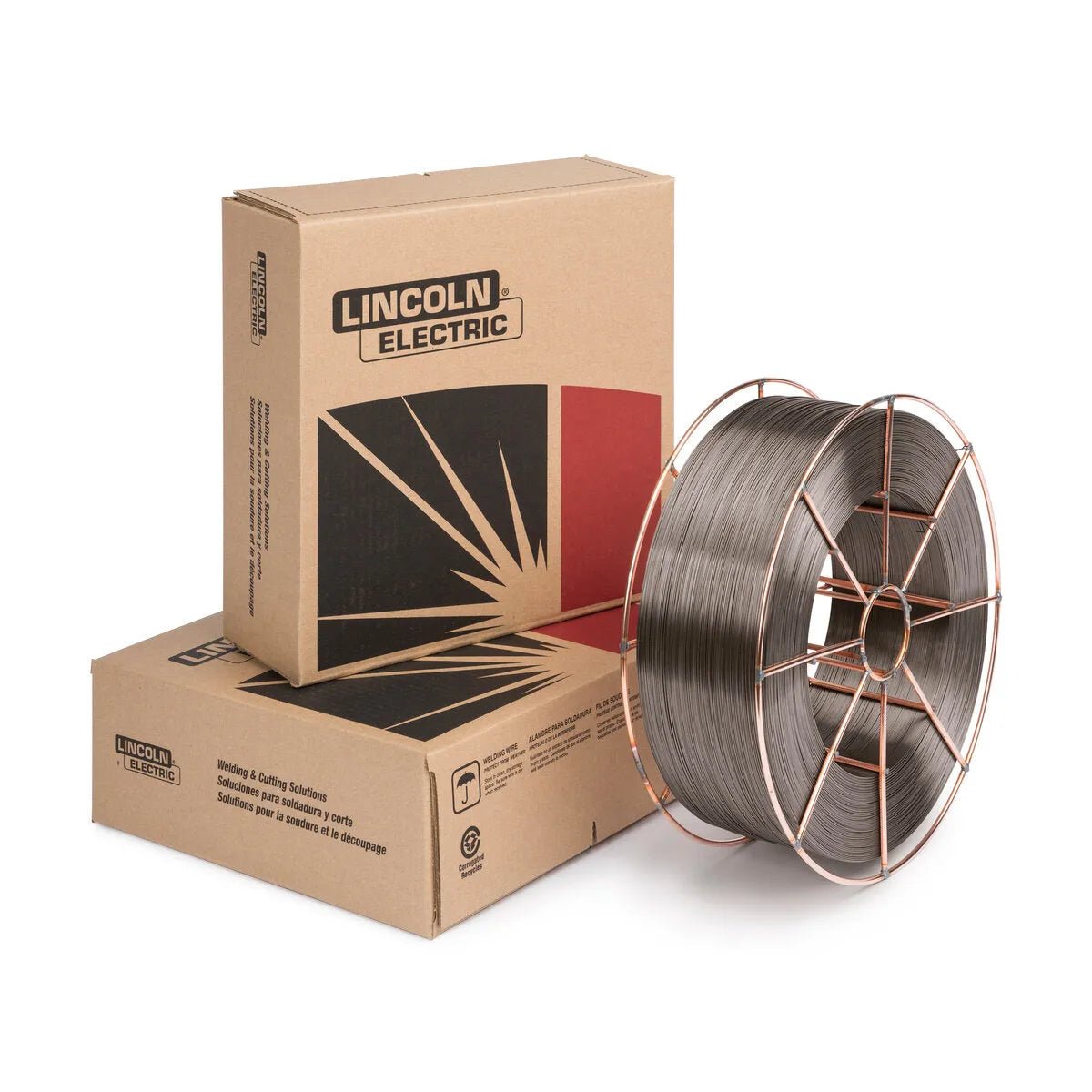

Lincoln ED031116 Lincore 33 Flux-Cored (FCAW-S) Welding Wire, 0.045 in, 25 lb Steel Spool

SKU: ED031116
$358.63 $393.25
Lincoln Elite Dealer
Free Shipping
Lowest Price
LINCORE® 33 Flux-Cored Wire is ideal for rebuilding worn parts to near final dimensions before applying final hardfacing layers which are more wear resistant, Use for build-up of steel mill parts such as rougher couplings and Build-up deposit on carbon steel and low alloy steel base metals (Build-Up)
AWS / Classification: EN/ISO: T Fe1
Overview

LINCORE® 33 0.045 inch welding wire is ideal for rebuilding worn parts to near final dimensions before applying final hardfacing layers which are more wear resistant on tractor rolls and idlers, shovel parts, mine car wheels, mill and crusher hammers and dredge pumps applications offers unlimited layers with proper preheat and interpass temperatures and procedures.

Features
  • Delivers tough machinable deposits for build-up or final overlay intended for metal-to-metal wear
  • Use for build-up of steel mill parts such as rougher couplings
  • Build-up deposit on carbon steel and low alloy steel base metals
  • It is ideal for rebuilding worn parts to near final dimensions before applying final hardfacing layers which are more wear resistant

Typical Applications

  • Tractor rolls and idlers
  • Shovel parts
  • Mine car wheels
  • Mill and crusher hammers
  • Dredge pumps

Welding Positions

  • Flat/Horizontal

Specifications
FeatureValue
Classification Number of layerHardness Rockwell C
Typical Result 1 Layer14-30
Typical Result 2 Layers26-32
Typical Result 3 Layers25-34
Typical Result, Work-hardened 1 Layer28-34
Typical Result, Work-hardened 2 Layers32-36
Typical Result, Work-hardened 3 Layers35-38
Typical Result, Flame-hardened 2 Layers38-42
Classification Product Size%Al%C%Cr%Mn%P%S%Si
Typical Result .045" (1.1 mm)1.6-1.90.11-0.181.2-1.41.8-2.10.004-0.0120.002-0.0050.50-0.75
Typical Result 1/16" (1.6 mm)1.6-1.90.11-0.181.2-1.41.8-2.10.004-0.0120.002-0.0050.50-0.75
Typical Result 5/64" (2.0 mm)1.4-1.70.13-0.151.1-1.42.1-2.30.004-0.0080.002-0.0050.45-0.60
Typical Result 7/64" (2.8 mm)1.4-1.70.13-0.151.1-1.42.1-2.30.004-0.0080.002-0.0050.45-0.60
Diameter PolarityESO, mm (in.)Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsDeposition Rate, kg/hr (lb/hr)
0.045 in (1.1 mm) DC+45 (1 3/4)5.1 (200)25801.5 (3.3)
0.045 in (1.1 mm) DC+45 (1 3/4)8.9 (350)281302.7 (6.0)
0.045 in (1.1 mm) DC+45 (1 3/4)12.7 (500)311503.9 (8.7)
1/16 in (1.6 mm) DC+45 (1 3/4)3.8 (150)261252.1 (4.6)
1/16 in (1.6 mm) DC+45 (1 3/4)6.4 (250)291803.5 (7.8)
1/16 in (1.6 mm) DC+45 (1 3/4)8.9 (350)322255.0 (11.1)
5/64 in (2.0 mm) DC+50 (2)3.2 (125)232003.1 (6.9)
5/64 in (2.0 mm) DC+50 (2)5.1 (200)272904.9 (10.8)
5/64 in (2.0 mm) DC+50 (2)6.4 (250)293256.1 (21.1)
7/64 in (2.8 mm) DC+64 (2 1/2)3.4 (135)263605.7 (12.6)
7/64 in (2.8 mm) DC+64 (2 1/2)4.4 (175)284207.3 (16.0)
7/64 in (2.8 mm) DC+64 (2 1/2)6.0 (235)304709.6 (21.1)
LECO Diameter 0.045 in (1.1 mm)
LECO Package 25 lb Steel Spool
Diameter (in) 0.045
Downloads
Includes
  • (1) 25 lb Steel Spool
