What power source and gun is the Lincoln Activ8X Pipe (Tweco) K4717-1 compatible with?

Wire feeders are compatible with MIG guns and welding power sources that match the feeder's amperage rating and connector type. Lincoln Electric wire feeders are engineered to work with Lincoln power sources using Lincoln Magnum guns and consumables. Third-party compatibility may require adapter cables — contact us to confirm compatibility before ordering.

How do I select the right drive rolls for the Lincoln Activ8X Pipe (Tweco) K4717-1?

Drive roll selection depends on wire type and diameter: use knurled (serrated) drive rolls for flux-core and metal-core wire, and V-groove (smooth) drive rolls for solid MIG wire. Common wire diameters — .023 in, .030 in, .035 in, .045 in — each require matched drive rolls. Using the wrong drive roll type can crush flux-core wire or slip on solid wire.

How do I set wire feed speed on the Lincoln Activ8X Pipe (Tweco) K4717-1?

Wire feed speed (WFS) is one of the primary variables controlling heat input and bead profile in MIG welding. Higher WFS increases deposition rate and amperage (in constant-voltage mode). For .035 in ER70S-6 on 1/8 in mild steel, a starting WFS of 200–350 in/min at 18–21V is a common baseline. Fine-tune to achieve a steady arc sound without spatter or porosity.

What routine maintenance does the Lincoln Activ8X Pipe (Tweco) K4717-1 require?

Regular wire feeder maintenance includes: clean the wire conduit/liner every 3–6 months (or when wire feed becomes erratic), replace the liner when it shows kinks or buildup that cleaning cannot clear, inspect and clean the drive rolls monthly, and check all connection points for corrosion or looseness. A consistent, clean wire path is the most important factor in stable arc performance.

What warranty does the Lincoln Activ8X Pipe (Tweco) K4717-1 carry?

The Lincoln Activ8X Pipe (Tweco) K4717-1 carries a 3 years warranty. Keep your purchase receipt and register the product with Lincoln Electric for warranty service. Warranty covers manufacturing defects; consumable items such as liners, drive rolls, and contact tips are excluded.

1 9

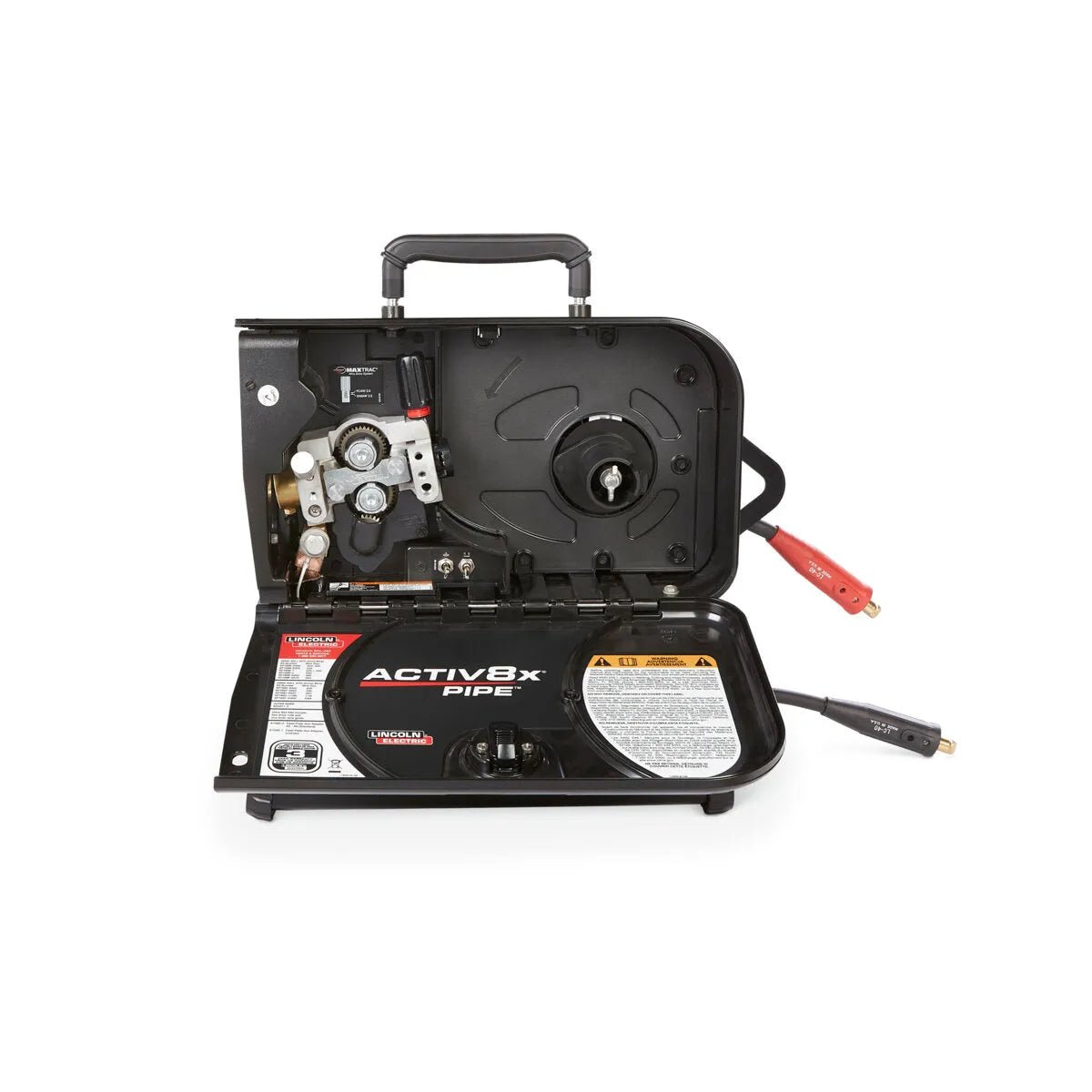

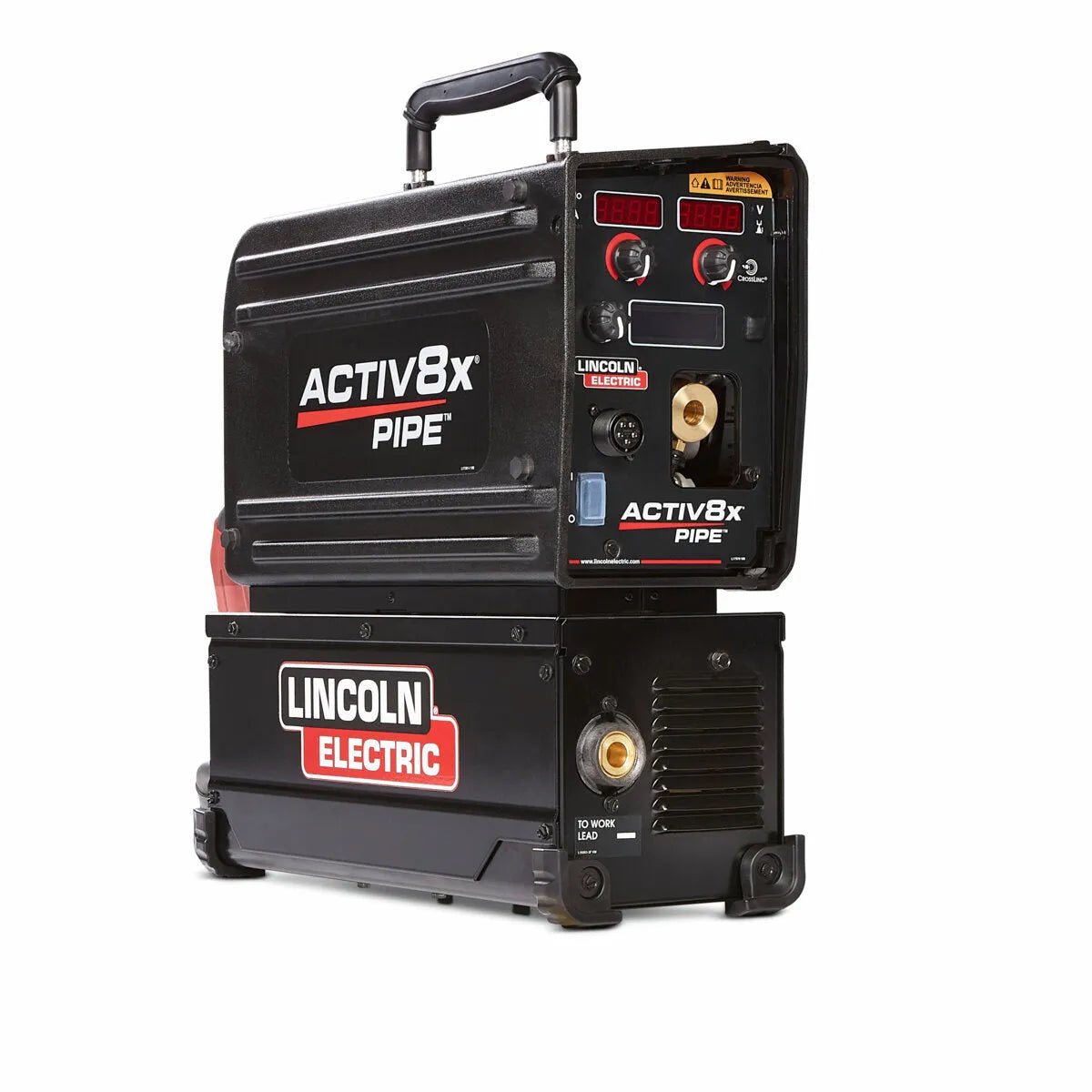

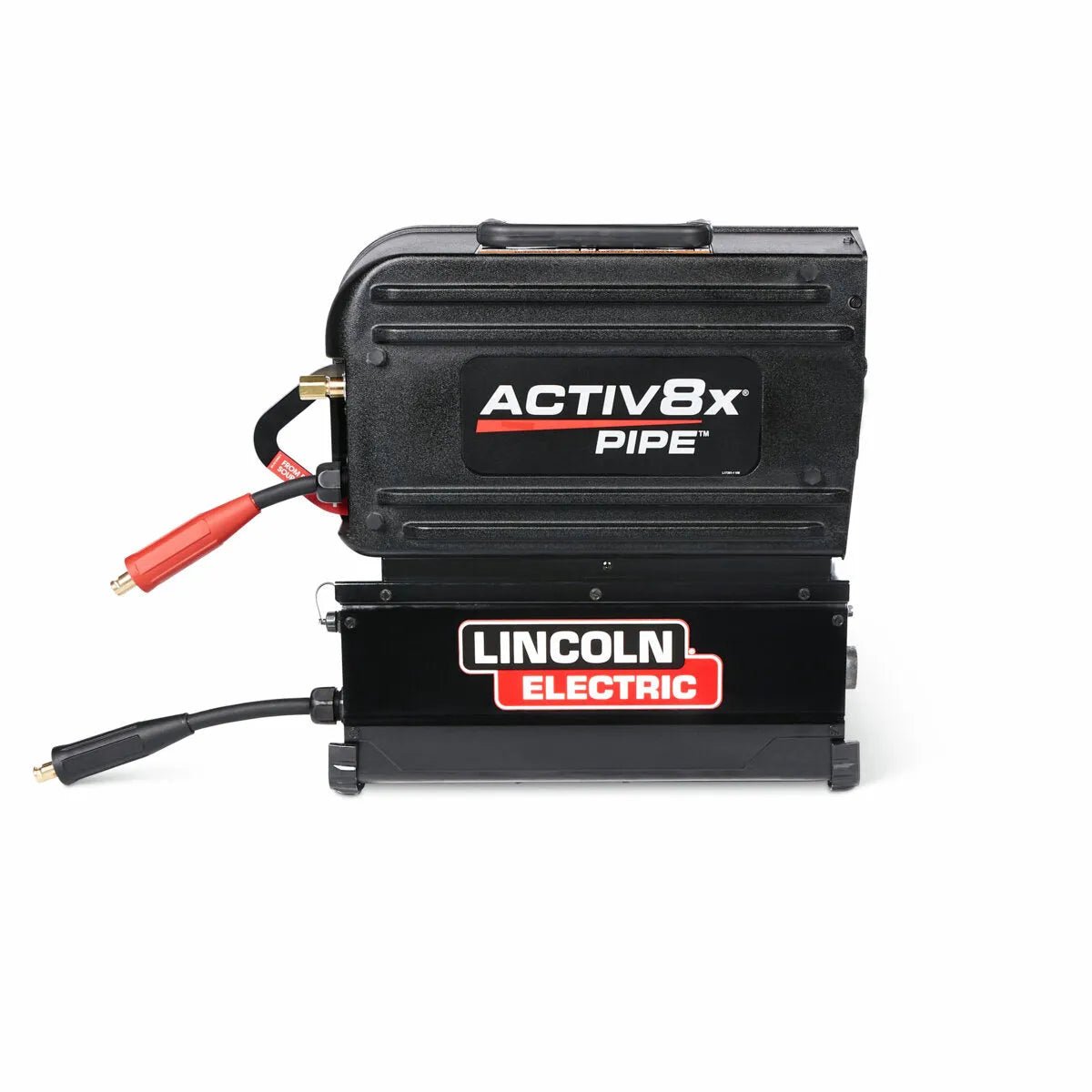

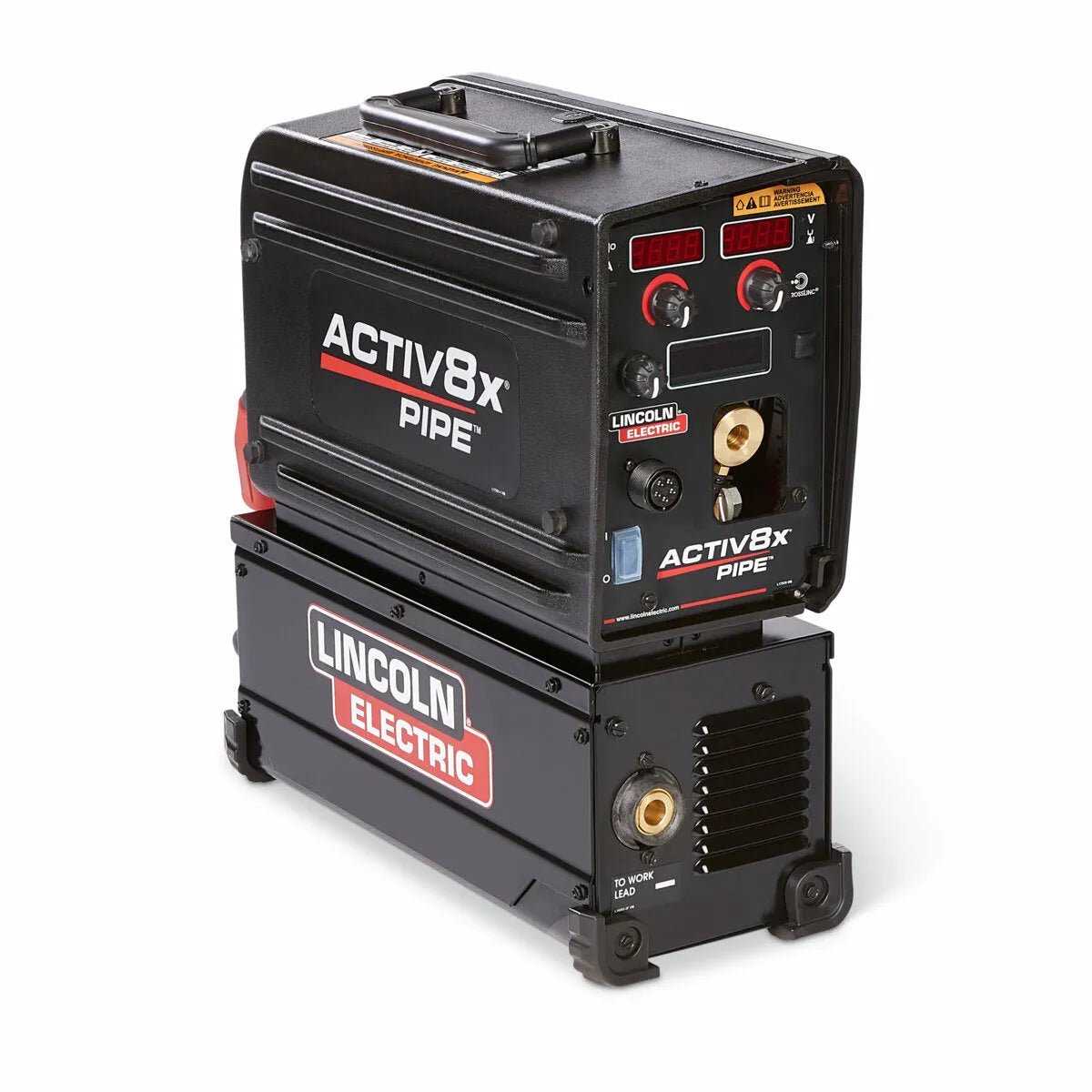

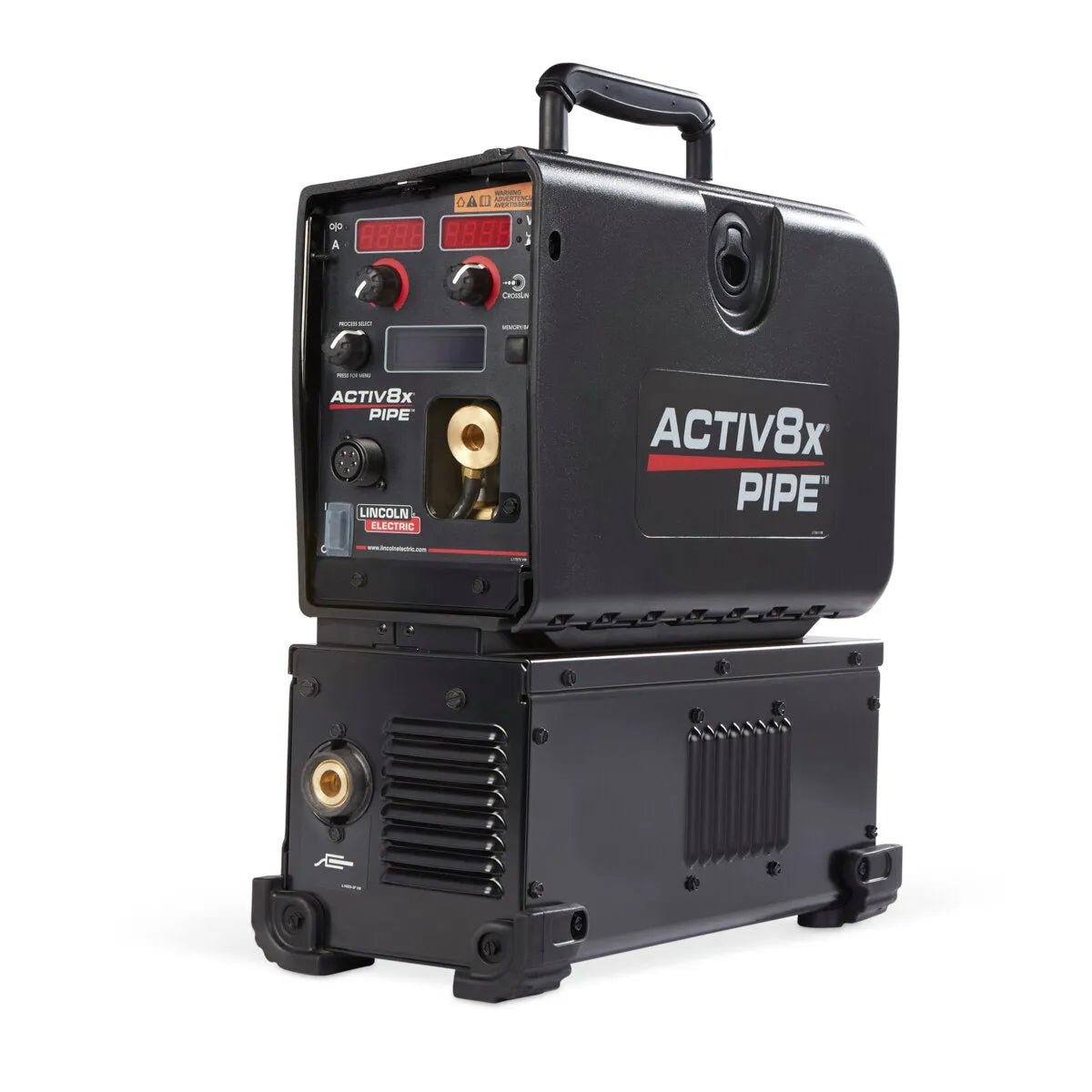

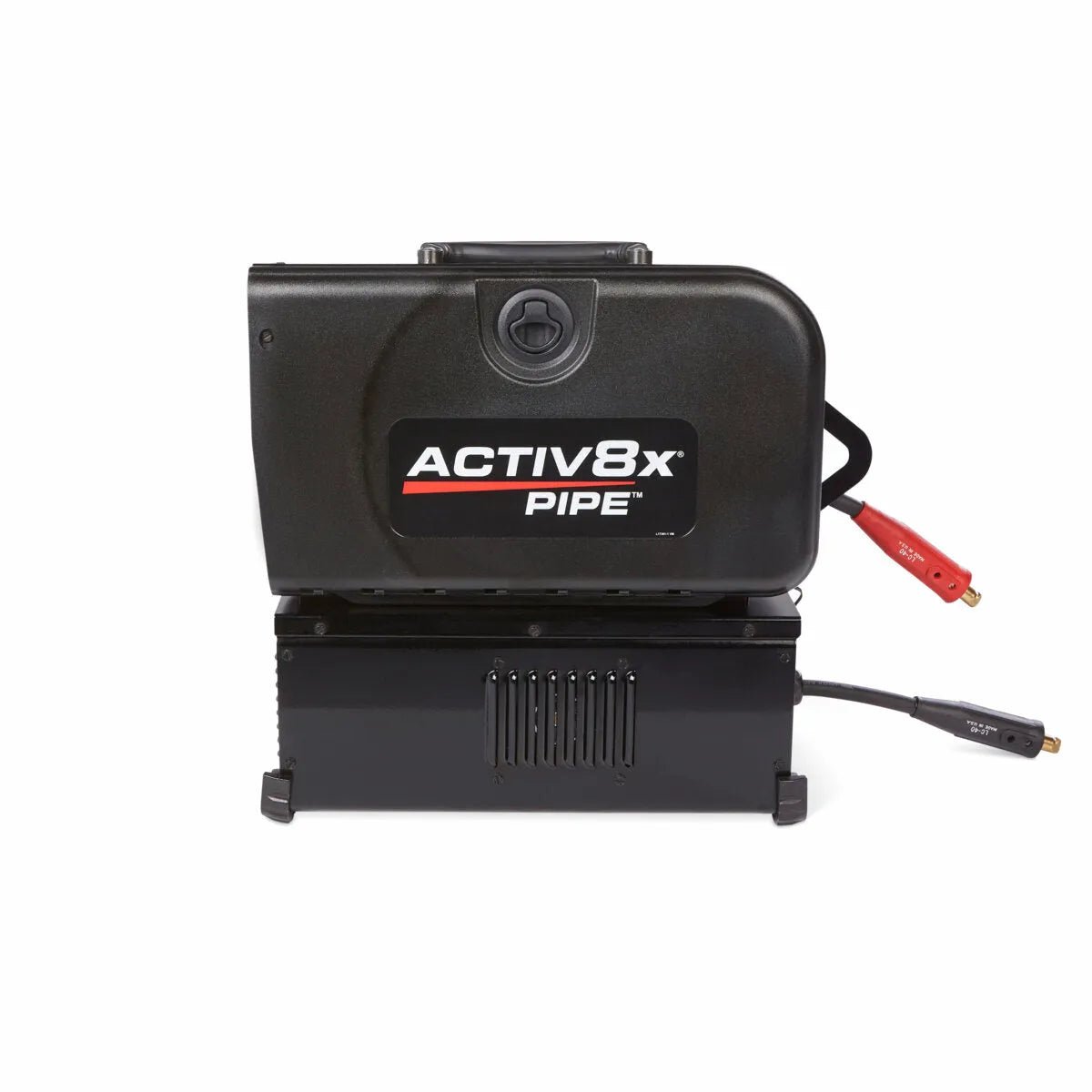

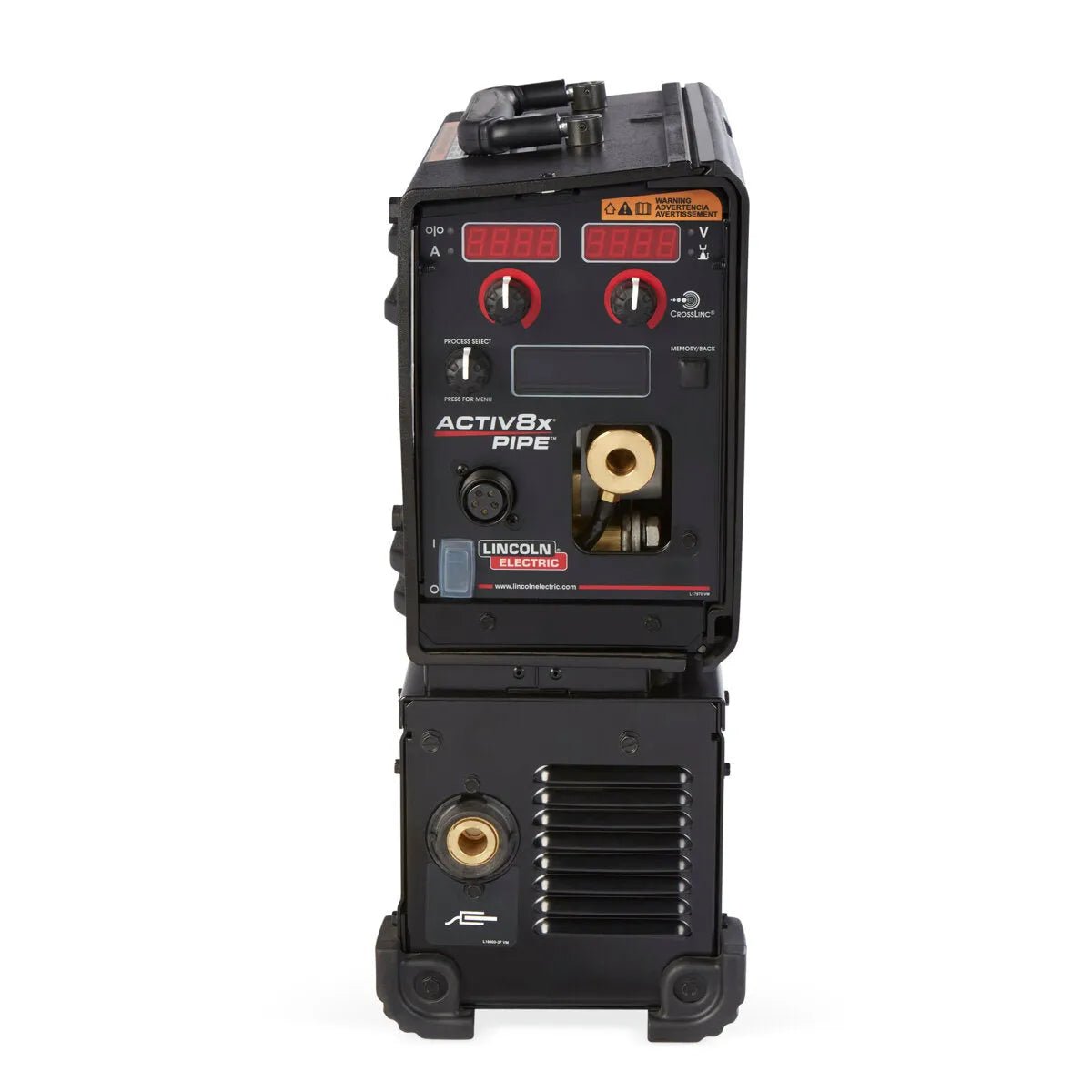

Lincoln Activ8X Pipe (Tweco) K4717-1

SKU: K4717-1

$7,893.01 ~~$8,629.92~~

Lincoln Elite Dealer

Free Shipping

Lowest Price

The Activ8X Pipe Wire Feeder is the ideal field solution for GMAW and FCAW welding applications out on the pipeline.

Overview

Lincoln Activ8X Pipe (Tweco) K4717-1

Perfectly Tuned for Pipe Welding Applications The Activ8X Pipe Wire Feeder is the ideal field solution for GMAW and FCAW welding applications out on the pipeline. With weld processes specifically optimized for cross country pipe welding, the Activ8X Pipe allows you to take Lincoln’s industry-leading root-to-cap weld processes – including STT and Pulsed MIG – right out to the field. In addition, the rugged and compact design provides durability to withstand the harshest conditions, from mud and rain, to extreme heat or cold, delivering the reliability you need to perform in the toughest welding applications.

Features

Excellent Arc Performance Optimized arc performance designed specifically for root-to-cap pipe welds, including STT (Surface Tension Transfer) Field and CV/Pulse modes for excellent sidewall fusion, backbead reinforcement, and overall bead profile.
Optimized Weld Modes Loaded with weld modes optimized specifically for field pipe welding applications, the Activ 8X Pipe delivers fine-tuned weld modes for maximum performance based on the industry's common filler metal, wire diameters, and gas mixtures.
CrossLinc Technology – Enables voltage or current control at the arc without a control cable to help improve safety, quality, and productivity with less trips to the power source and reduced jobsite clutter.
Cable View Technology Continuously monitors cable inductance and adjusts the waveform to maintain consistent arc performance without the need for an additional sense lead.
Rugged & Portable Design Built on Lincoln's proven portable feeder platform. The Activ8X Pipe delivers a lightweight, yet dependable solution that can withstand the extreme conditions of field construction applications.

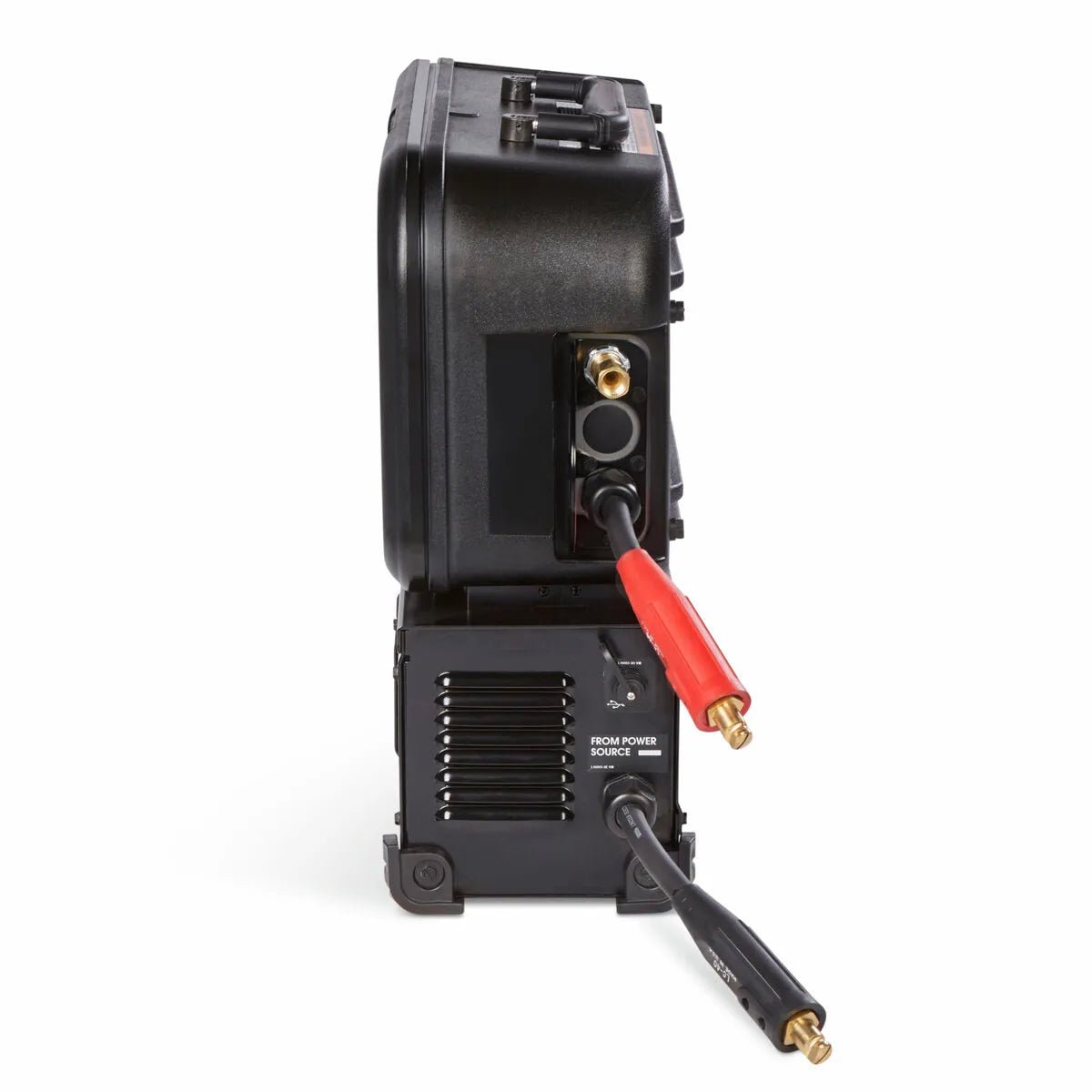

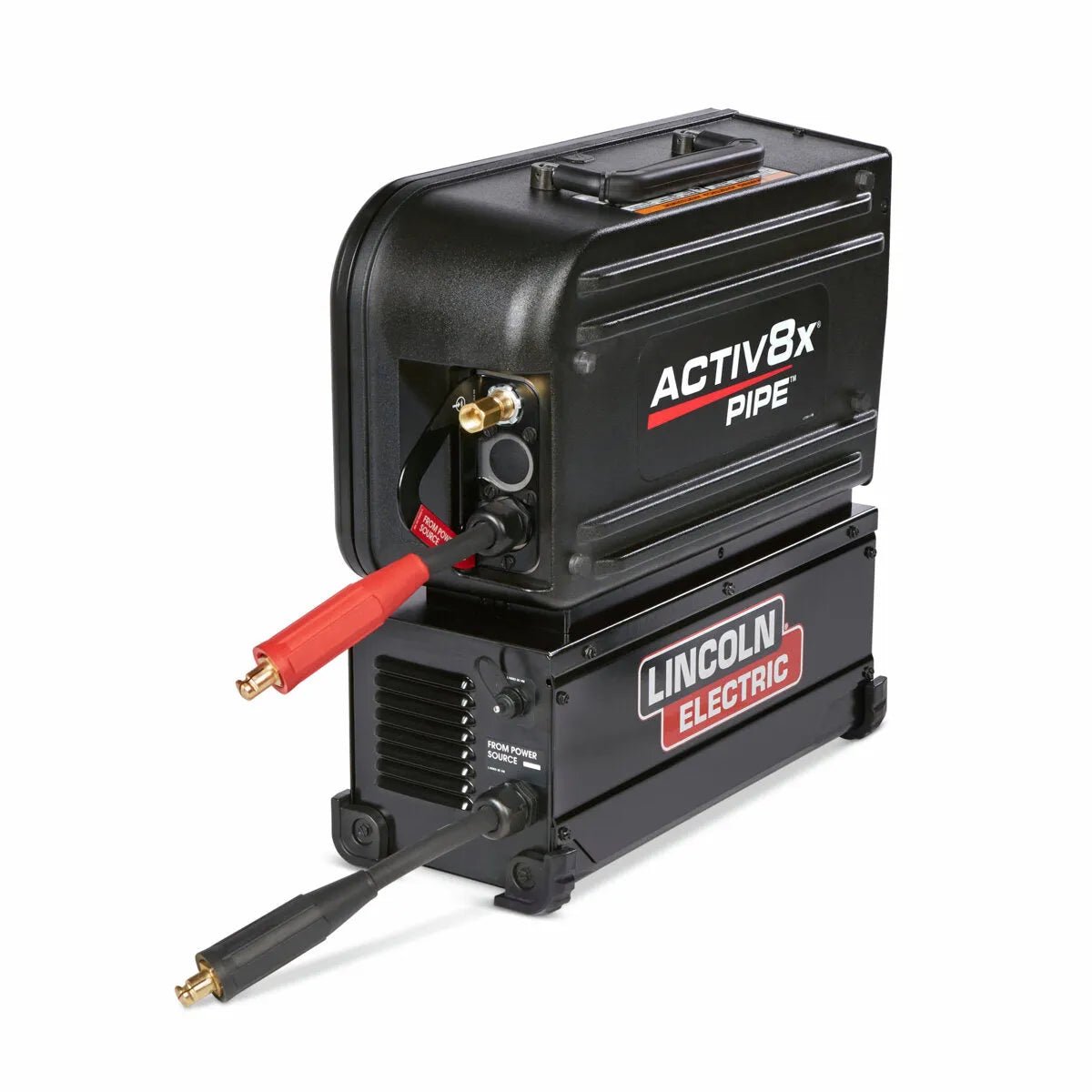

Straightforward Setup From truck to ditch, setup is fast and easy. Connection between the Activ8X Pipe and power source is as simple as two standard quick-connect weld cables.
Memory Options Easily store and select up to four memories for quick process change between root, fill, and cap passes.

Specifications

Feature	Value
Typical Applications	Cross Country Pipeline LPG & LNG Storage Vessels Pipeline & Offshore Piping Power Generation Process Piping Shipbuilding
Processes	MIG (GMAW) Pulsed MIG (GMAW-P) Flux-Cored Gas-Shielded (FCAW-G) GMAW-STT
Equipment Classification	Heavy Industrial
Welding Technology	Inverter/Chopper
Product Height (in)	18
Product Height (mm)	457
Product Width (in)	8
Product Width (mm)	203
Product Length (in)	19
Product Length (mm)	483
Product Weight (lb)	49
Product Weight (kg)	22.2
Machines Processes	MIG (GMAW);Pulsed MIG (GMAW-P);Flux-Cored Gas-Shielded (FCAW-G);GMAW-STT
Input Voltage	60-90 VDC
Polarity	DC+
Rated Output	275A@60%

Includes

(1) Activ8X Pipe Wire Feeder
(1) KP1696-1 Drive Roll Kit 0.035/0.045 in
