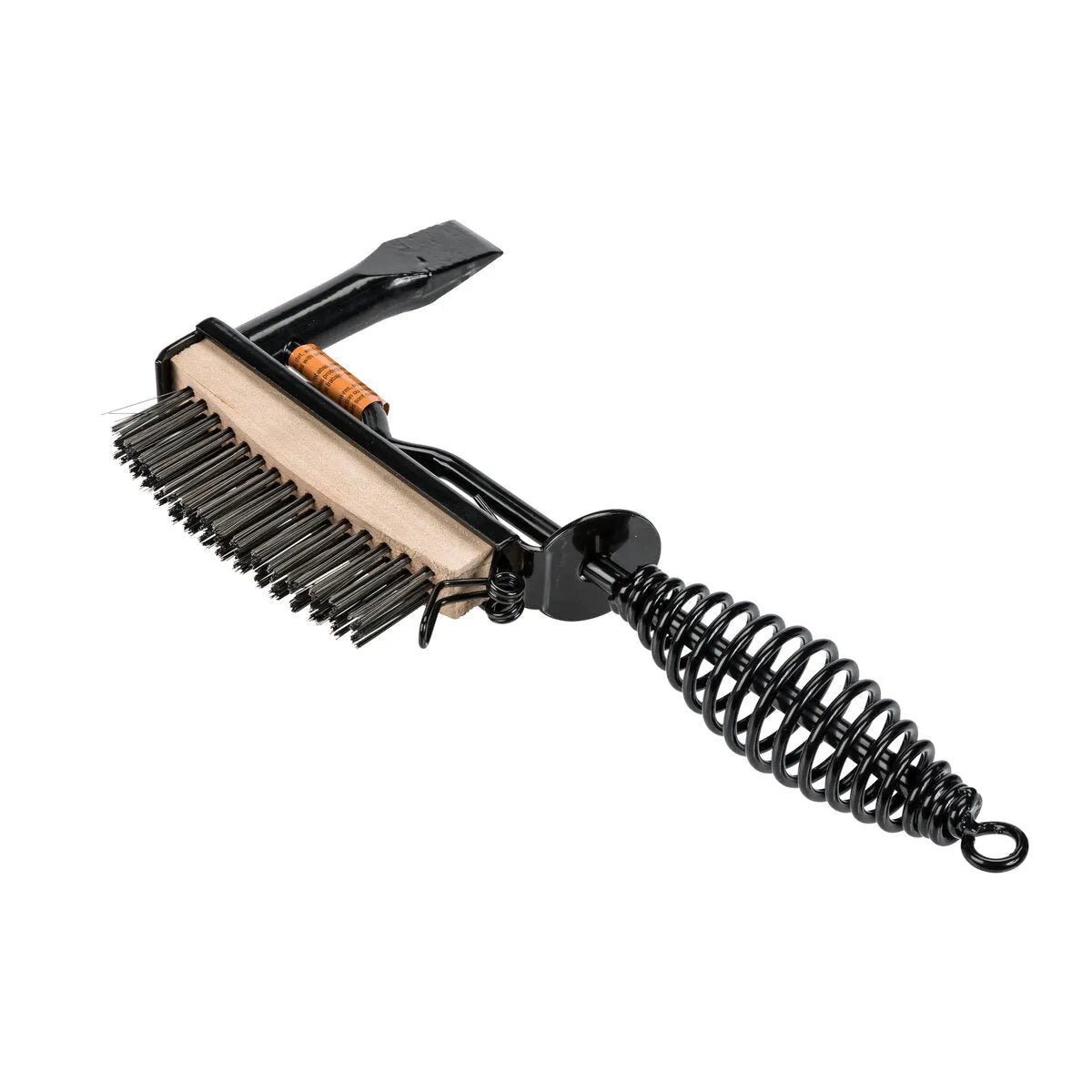

The Lincoln Electric Chipping Hammer & Wire Brush Combo (K4021-1) is a two-in-one post-weld cleaning tool that combines a hardened steel chipping hammer with a stiff wire brush in a single ergonomic handle. Designed for SMAW (Stick), FCAW (Flux-Core), and SAW welders who need fast, effective slag removal and weld bead cleaning between passes, this combo tool eliminates the need to swap between separate tools mid-weld — improving workflow efficiency in both shop and field environments.
Lincoln Electric engineered the K4021-1 with a cone-shaped chipping point on one end for tight-corner and root bead access, and a chisel-edge hammer head on the other for flat surface slag removal. The coil spring handle provides vibration damping, reducing hand fatigue during extended multi-pass welding operations. The wire brush rows are cut from 0.014 in carbon steel wire set in a phenolic-resin block bonded to the handle shaft — providing bristle stiffness sufficient to remove slag residue, light oxidation, and flux ash without scratch-loading the weld bead surface.
| Overall Length | 11.5 in (292 mm) |
|---|---|
| Hammer Head Material | High-carbon steel, hardened and tempered |
| Wire Brush Bristle Material | 0.014 in carbon steel wire, crimped rows |
| Handle Type | Coil spring handle with vinyl grip sleeve |
| Chipping Points | Cone point + chisel edge (dual-face) |
| Weight | 0.68 lb (308 g) |
| Lincoln Part Number | K4021-1 |
| Brush Width | 1.5 in (38 mm) |
| Compatible Processes | SMAW, FCAW, SAW, GMAW (for inter-pass cleaning) |
- SMAW multi-pass structural welding: Every stick weld pass produces slag that must be fully removed before the next pass to prevent slag inclusion defects. The K4021-1's chisel edge efficiently removes slag crusts on flat and horizontal welds, while the cone point reaches into weld toes on fillet welds and inside corners.
- FCAW inter-pass cleaning: FCAW (flux-cored arc welding) produces heavier slag than SMAW in many cases, particularly with self-shielded wires. The K4021-1's heavy wire brush removes residual slag film after the hammer portion clears the bulk deposit.
- Pipeline field repair: Pipeline maintenance welders running E6010 root passes and E7018 fill/cap passes rely on chipping hammers between each pass. The coil spring handle's vibration damping allows sustained use during multi-hour pipeline joint completions.
- SAW post-run cleaning: Submerged arc welding produces thick slag cakes that require energetic chipping to free from the weld surface. The K4021-1's hardened chisel edge is well-suited for SAW slag, though its lighter weight (vs. heavier dedicated SAW hammers) means more strikes per pass on heavy cakes.
- Maintenance welding and hardfacing: Hardfacing electrodes produce exceptionally tough, adherent slag. The K4021-1's hardened tip concentrates impact force on small areas, fracturing hardfacing slag without requiring heavy hammering that could crack the base metal deposit.
- Allow initial cooling: Wait 5–10 seconds after extinguishing the arc before chipping. Immediate impact on red-hot slag can cause it to shatter and fly rather than fracture cleanly, creating eye/skin hazard.
- Always wear chipping goggles or a full face shield. ANSI Z87.1 rated safety glasses are minimum — hot slag chips are unpredictable in direction and velocity.
- Use the chisel edge for flat surfaces, horizontal welds, and large slag cakes. Strike at approximately 45° to the weld surface to lever slag free rather than driving it into the bead.
- Use the cone point for inside corners, weld toes, and narrow root beads where the chisel edge cannot reach. Short, sharp taps with 6–8 in strokes are more effective than heavy swings in confined geometry.
- Brush immediately after chipping to remove slag dust, flux residue, and fine particles that could be drawn into the next pass. Use the wire brush in a brisk back-and-forth motion aligned with the weld axis.
- Inspect the weld surface for porosity, undercut, or cold lap before restarting the arc. Clean slag removal is also a visual inspection opportunity.
- Works with all SMAW, FCAW, and SAW welding applications across all Lincoln Electric welding machines
- Coil spring handle diameter fits standard tool holders and belt loops
- See also: Harris Welper YS-50 MIG Welding Pliers for MIG gun maintenance and Lincoln Gas Cylinder Holder K3592-1 for cylinder safety
- Hammer head inspection: Inspect the chipping points weekly for chipping or deformation. A mushroomed chipping point indicates the steel has been over-tempered from repeated heat exposure. Replace when the point can no longer concentrate impact force on small areas.
- Wire brush replacement: The wire brush rows on the K4021-1 are bonded to the handle and not independently replaceable. When bristles flatten to less than 1/4 of their original height (typically after 200–400 hours of use), clean-up effectiveness drops. Replace the entire unit at that point.
- Handle inspection: The coil spring handle can develop stress fractures at the coil attachment points if subjected to lateral bending forces (e.g., using the hammer as a pry bar). Inspect the coil-to-hammer junction monthly. Do not use as a lever.
- Grip sleeve: The vinyl grip sleeve protects against handle heat. Replace it with standard 5/8 in vinyl grip sleeve material if it tears or melts from repeated contact with hot slag.
Q: What personal protective equipment should I use when chipping slag?
A: At minimum: ANSI Z87.1 safety glasses or chipping goggles with side shields, heat-resistant welding gloves, and a leather welding jacket or sleeves. A full face shield (Lincoln Electric K2800 series) is strongly recommended for overhead chipping where hot slag falls unpredictably. Never chip slag without eye protection — hot slag fragments cause thousands of eye injuries annually.
Q: Can the K4021-1 handle the heavy slag from self-shielded FCAW wires like Lincoln NR-211?
A: Yes, though NR-211 and similar self-shielded wires produce a fluid, glassy slag that often releases cleanly with minimal effort. The cone point is particularly effective for NR-211 weld toe slag, which can freeze tightly against the base metal. For extremely heavy slag from high-deposition FCAW wires (e.g., 5/64 in NR-232), a heavier dedicated chipping hammer (1 lb+) will be faster per unit area.
Q: Does the coil spring handle reduce fatigue noticeably compared to solid rod handles?
A: Yes. The coil spring absorbs approximately 30–40% of the return shock energy that would otherwise transmit to the wrist and forearm during chipping. Over a 2–4 hour multi-pass weld, this reduction accumulates to meaningful fatigue reduction — particularly important for welders with repetitive strain concerns or in occupational health contexts.
Q: Can I use the wire brush portion to clean a TIG tungsten after contamination?
A: For carbon steel contamination on a DC tungsten, a light touch with the stiff brush can remove surface oxide. However, for TIG tungsten regrinding and contamination removal, a dedicated tungsten grinder or contamination removal kit provides cleaner results without risk of embedding wire brush bristles in the tungsten surface.
Q: Is the Lincoln K4021-1 approved for use in nuclear or pressure vessel fabrication?
A: The K4021-1 is a general-purpose commercial welding tool with no specific ASME, AWS, or nuclear QA code certifications. For nuclear, ASME Section III, or API fabrication environments, your welding procedure specification (WPS) and quality plan govern acceptable cleaning tools. Consult your QA/QC engineer before using non-certified tools in qualified production.
Q: What is the difference between a chipping hammer and a slag breaker?
A: The terms are used interchangeably, but "slag breaker" sometimes refers to heavier, longer-handled tools (12–16 oz head) used in heavy plate fabrication, while "chipping hammer" covers the standard 6–8 oz range of the K4021-1. For light fabrication, structural steel, and maintenance work, the K4021-1's weight is appropriate. For heavy SAW or large-diameter pipe welding, consider a heavier-duty tool.
Q: Does Lincoln sell the chipping hammer and wire brush as separate items?
A: Lincoln Electric sells the Lincoln Radius Chipping Hammer (K4022-1) as a standalone hammer with a more ergonomic angled head for vertical and overhead positions. The K4021-1 combo is the value-priced, general-purpose option sold to shops that want both tools in one for everyday structural and maintenance welding.
