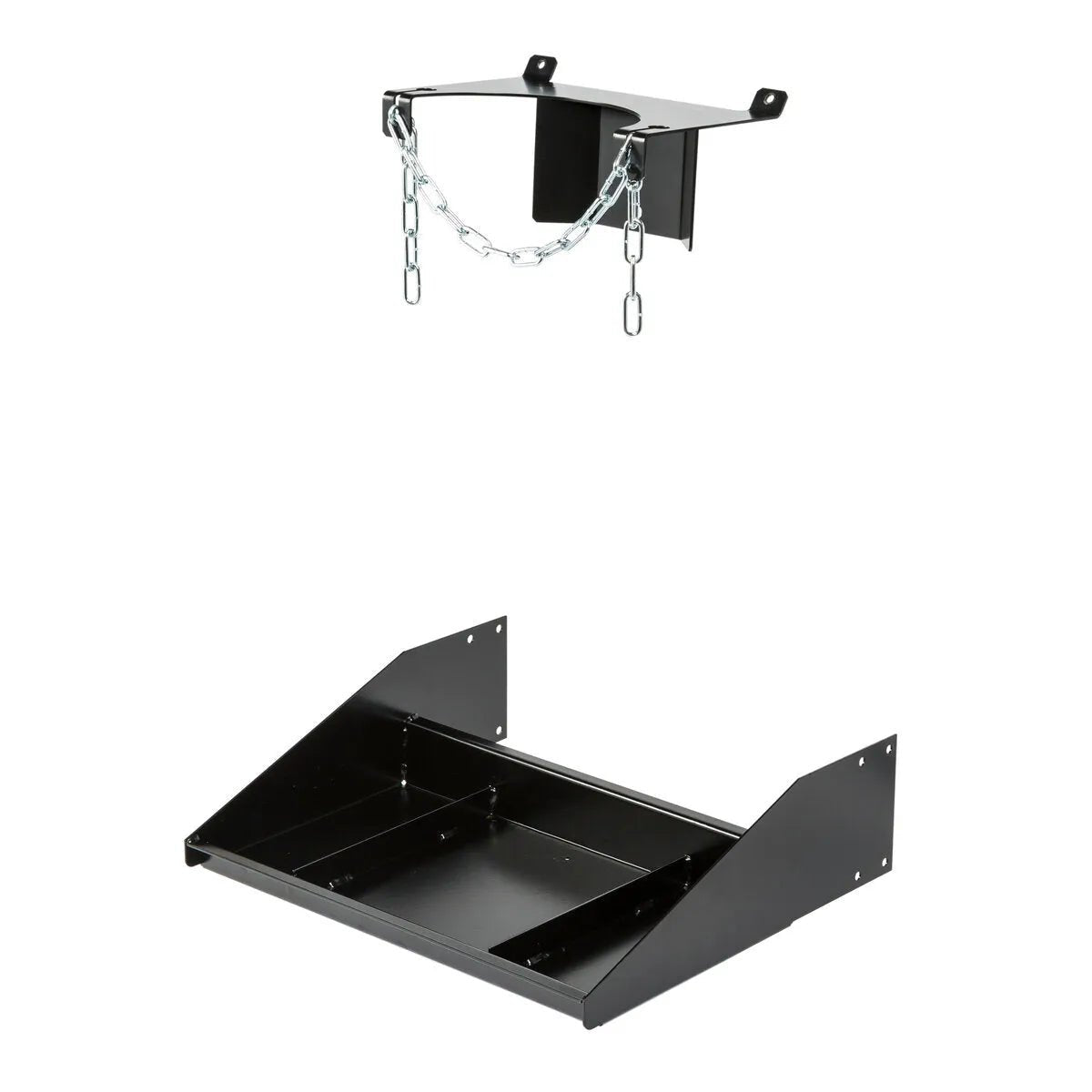

The Lincoln Electric Gas Cylinder Holder (K3592-1) is a heavy-duty, wall-mounted bracket designed to safely secure compressed gas cylinders in welding shops, fabrication facilities, and storage areas. Built from 14-gauge formed steel with a powder-coat finish, the K3592-1 prevents cylinder tip-over — the primary safety hazard associated with unsecured compressed gas cylinders — by anchoring the cylinder to a wall or structural post via a dual-bolt mounting pattern and a adjustable retaining chain or strap.
OSHA 29 CFR 1910.253(b)(2)(ii) requires that compressed gas cylinders be secured upright to prevent them from falling. The Lincoln K3592-1 satisfies this requirement for cylinders commonly used in welding operations: Argon, CO₂, Argon/CO₂ mixes, O₂, and Acetylene cylinders from standard CGA size families. The bracket's open-front design allows rapid cylinder swap without tools, while the mounting geometry ensures the cylinder remains plumb and accessible for regulator attachment.
| Bracket Material | 14-gauge cold-rolled steel |
|---|---|
| Finish | Powder coat, black |
| Mounting Type | Wall-mount, two-bolt pattern (3/8 in bolts) |
| Cylinder Size Range | T, K, R, and Q cylinder sizes (4–9 in OD) |
| Retaining Method | Adjustable chain or strap (included) |
| Max Cylinder Weight | 250 lb (113 kg) |
| Mounting Hole Spacing | 6 in center-to-center vertical |
| Lincoln Part Number | K3592-1 |
| Compatible Cylinders | Argon, CO₂, Ar/CO₂ mix, O₂, Acetylene, Nitrogen |
- Welding shop cylinder stations: Each MIG, TIG, or plasma cutting station should have a dedicated cylinder holder. The K3592-1 mounts at the welding station or on a central cylinder storage wall, keeping cylinders upright and accessible without occupying floor space that operators need for workpiece movement.
- Cylinder storage rooms: Code-compliant storage areas require all cylinders to be secured, including empties. The K3592-1 allows both full and empty cylinders to be chained in sequence along a wall, simplifying inventory management and OSHA compliance audits.

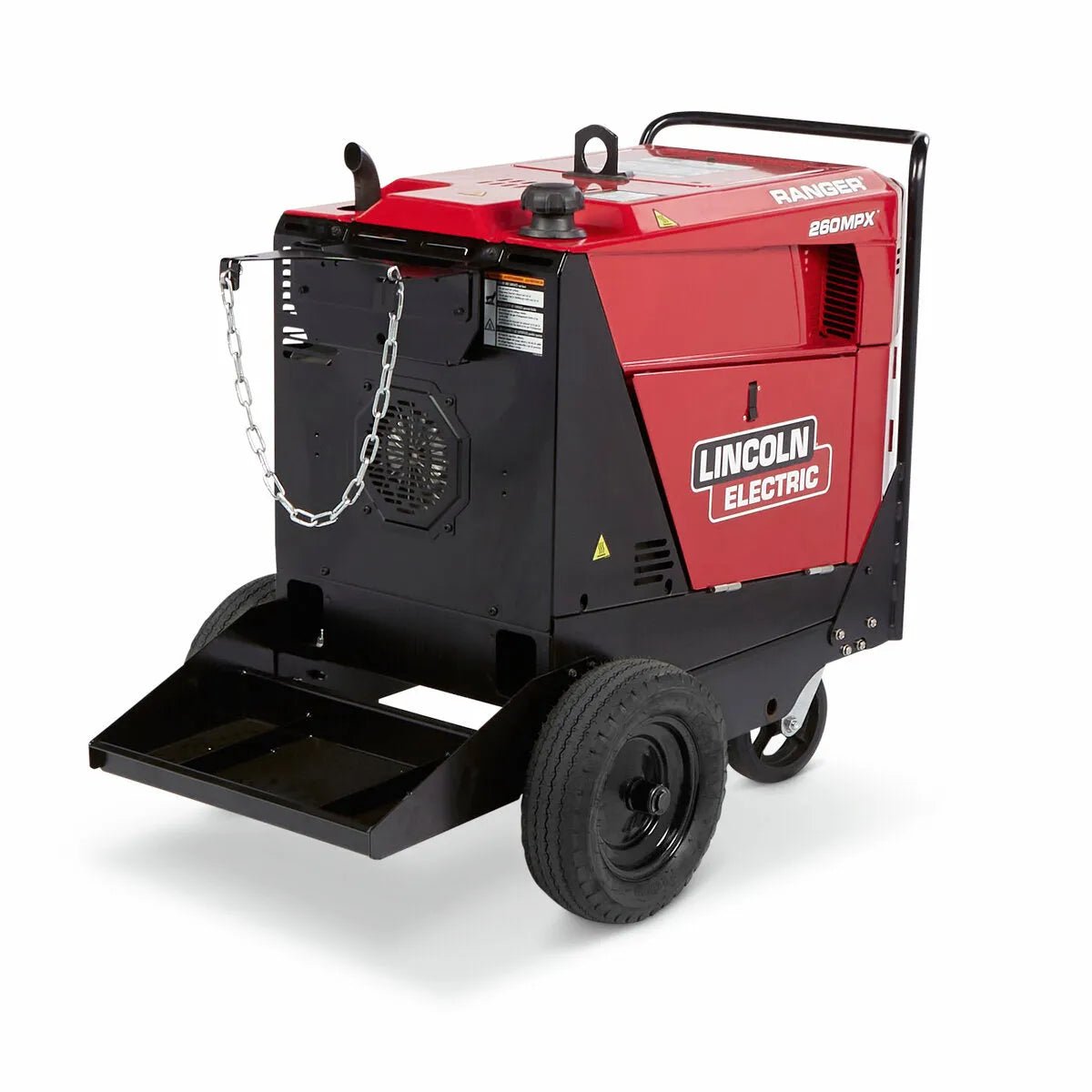

- Mobile welding carts: While the K3592-1 is primarily wall-mounted, its mounting pattern is compatible with the flat uprights of Lincoln's mig cart line and many aftermarket welding carts, providing a semi-permanent cylinder holding solution that travels with the welder.
- Compressed gas distributors: Cylinder fill stations and gas distributor warehouses use multiple K3592-1 brackets in rows to organize and secure large cylinder inventories during storage, exchange, and transport staging.
- Educational welding labs: High school and community college welding programs install cylinder holders at every student welding station to teach safe cylinder handling practices from day one — an important component of welding safety curricula aligned with AWS and OSHA standards.
- Select mounting location: Choose a wall or structural post capable of supporting 250 lb. For drywall installations, anchoring into wall studs (16 in or 24 in on center) is required — drywall anchors alone cannot support a full compressed gas cylinder. Mark stud locations with a stud finder before drilling.
- Mount the bracket: Use 3/8 in × 2 in lag bolts (or through-bolts with backing plate for hollow walls). Tighten to 25 ft-lb torque. Verify the bracket is plumb (±2°) using a bubble level — a tilted bracket allows the cylinder to lean and may allow lateral slipping of the retaining chain.
- Insert the cylinder: Roll the cylinder into the bracket with the valve cap in place. Never lift cylinders by the valve. Use a cylinder hand truck for cylinders over 80 lb.
- Secure the retaining chain: Pass the chain around the cylinder at shoulder height (approximately 2/3 of the way up from the floor), not at the valve neck, which can damage the valve. Engage the chain hook and adjust for a snug fit — the cylinder should not be able to tip more than 10–15° in any direction.
- Remove the valve cap only when ready to connect the regulator. Never store cylinders with the regulator attached unless the cylinder is in active service. Replace the cap when the cylinder is moved.
- Compatible with standard T, K, R, Q, and S size compressed gas cylinders (4–9 in OD)
- Fits Lincoln welding cart uprights and most aftermarket welding cart frames
- Use with Lincoln argon/CO₂ flow regulators and Harris Products Group regulator lines
- See also: Lincoln Chipping Hammer & Wire Brush Combo K4021-1 for post-weld cleaning and Harris Welper YS-50 MIG Welding Pliers for MIG gun maintenance
- Annual chain inspection: Inspect the retaining chain or strap for elongation, cracked links, or corroded hooks. Replace if any link shows more than 5% stretch from original link length, or if any hook does not seat positively on the chain link.
- Mounting bolt re-torque: Re-torque mounting bolts to 25 ft-lb annually. Vibration from nearby equipment (hammering, forklift traffic) can loosen lag bolts in wood stud mounting applications over time.
- Powder coat touch-up: The black powder coat resists flux spatter and welding heat reasonably well. Touch up bare metal spots with a zinc-rich primer (Rust-Oleum 7769830 or equivalent) within 30 days of detecting bare metal to prevent rusting of the mounting flange.
- Load limit compliance: Never use the K3592-1 to secure cylinders heavier than the rated 250 lb. Large acetylene manifold cylinders (MC Acetylene cylinders exceeding this weight) require a heavier-duty bracket rated for higher loads.
Q: Does the Lincoln K3592-1 meet OSHA cylinder storage requirements?
A: The K3592-1, properly installed into structural wall members per the installation instructions, satisfies the OSHA 29 CFR 1910.253(b)(2)(ii) requirement to secure cylinders from falling. For formal OSHA compliance documentation, retain the installation photos and hardware specifications as proof of compliant installation during workplace inspections.
Q: Can I mount the K3592-1 on drywall only (no studs)?
A: No. Drywall anchors do not provide adequate pullout strength for a fully charged T-cylinder (typical Argon T-cylinder weighs 165 lb full). The mounting bolts must engage structural wood studs or steel framing. For masonry walls (concrete, CMU block), use wedge anchors or sleeve anchors rated at ≥500 lb pullout per anchor.
Q: Can the same bracket hold both Argon and Acetylene cylinders at different times?
A: Yes — the bracket itself is gas-agnostic. The bracket holds the cylinder by its exterior diameter, regardless of the gas inside. Always follow proper cylinder segregation practices (storing full/empty separately, separating oxidizers from fuels by 20 ft or a fire-rated barrier per NFPA 51) even if using the same bracket style for both gas families.
Q: What is the correct chain height on the cylinder?
A: Secure the retaining chain at the upper third of the cylinder body (approximately 2/3 from the floor), not at the neck or valve area. Chaining at the valve neck can damage the valve stem and create a high-pressure gas release hazard. The upper-third position provides maximum tip-over resistance with minimum stress on the valve assembly.
Q: Does Lincoln Electric offer a dual-cylinder holder version?
A: Lincoln's K3256-1 Dual Cylinder Cart is a freestanding two-cylinder holder for MIG setups that use both shielding gas and CO₂ backup. The K3592-1 is a single-cylinder wall bracket. For dual-cylinder wall mounting, two K3592-1 brackets installed side by side (minimum 18 in center-to-center) provide the equivalent function.
Q: Is a valve cap required even when the cylinder is mounted in the holder?
A: Yes, whenever the regulator is not attached. Per CGA C-7 guidelines and most compressed gas supplier agreements, valve protection caps must remain on cylinders whenever regulators are not connected — including during storage in wall-mounted brackets. The valve cap is the last line of defense against valve shear in a fall or impact event.
Q: How many K3592-1 brackets do I need for a typical 4-station welding shop?
A: As a minimum: one bracket per active cylinder in use (one per station = 4 brackets) plus one bracket per reserve cylinder stored at the station. Many shops also install brackets in a central cylinder exchange area. A 4-station shop typically needs 8–12 brackets total when accounting for both station and storage mounting positions.
