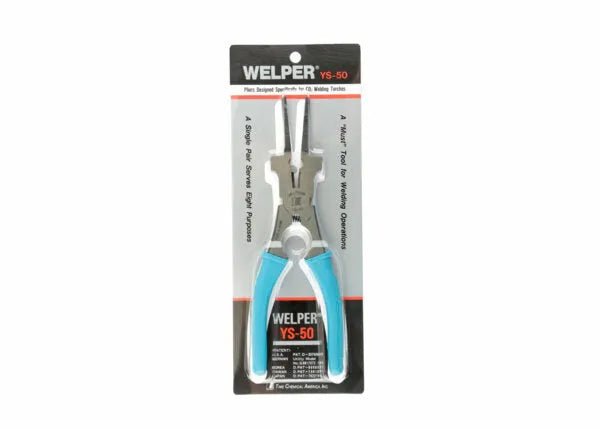

The Harris Welper YS-50 MIG Welding Pliers is a professional-grade 10-in-1 multi-function hand tool designed to handle the most common MIG welding maintenance tasks without switching tools. Manufactured by Harris Products Group — a Lincoln Electric company with deep roots in gas welding, brazing, and welding supplies — the Welper combines pliers, wire cutters, nozzle wrench, spatter scraper, contact tip remover, hammer, and insulated handles into a single ergonomic instrument that belongs in every MIG welder's back pocket or tool pouch.
Unlike generic combination pliers, the YS-50 is purpose-built for MIG gun maintenance. The offset jaw configuration clears the nozzle flare during spatter removal, and the integrated nozzle wrench fits the three most common Lincoln MIG gun nozzle thread sizes. The glass-filled nylon handle insulation is rated to withstand incidental contact with a live MIG electrode (up to 100 V), providing a meaningful safety buffer during gun servicing between arcs.
| Overall Length | 9.0 in (229 mm) |
|---|---|
| Body Material | Chrome vanadium steel, drop-forged |
| Handle Insulation | Glass-filled nylon, incidental contact rated |
| Wire Cutter Capacity | Up to 0.052 in (1.3 mm) solid MIG wire |
| Nozzle Wrench Sizes | Fits standard 5/8 in and 3/4 in MIG nozzle hex flats |
| Functions | 10: pliers, wire cutter, nozzle wrench, tip remover, tip reamer, spatter scraper, nozzle cleaner, hammer, wire straightener, bottle cap opener |
| Weight | 0.54 lb (245 g) |
| Country of Origin | Taiwan (Harris-sourced tooling) |
| Compatible Gun Types | Lincoln Magnum Pro, Magnum 100L, 200, 250; Harris MIG guns; most 3/8-24 contact tip thread guns |
The Harris Welper YS-50 is ideal for the following use cases:
- MIG gun nozzle maintenance between passes: Spatter builds up inside the nozzle after every 15–30 minutes of GMAW. The offset jaw and spatter scraper head allow rapid nozzle cleaning without removing the nozzle from the gun, minimizing downtime on production lines.
- Contact tip changes: The recessed tip remover jaw grips worn 3/8-24 contact tips, breaking the thread lock created by heat and spatter without damaging the diffuser body — a common failure mode with standard pliers.
- Wire cutting at the weld start: Cutting a fresh, ball-free wire end before each arc start significantly improves arc initiation. The precision wire cutting blade on the YS-50 makes a clean, perpendicular cut on up to 0.052 in solid wire.
- Field welding and pipeline construction: MIG welders working outdoors or in shipyards benefit from a single tool that eliminates the need to carry multiple wrenches and scrapers. The YS-50 fits in a standard tool pouch or clips to a belt loop.
- Welding training programs: Instructors equip students with the Welper as a first tool because it reinforces proper gun maintenance habits — cleaning, tip inspection, and wire trimming — as routine practices before every weld.
The Welper's 10 functions are accessed through different jaw orientations and grip positions:
- Nozzle wrench: Grip the nozzle hex with the flat jaw section and rotate counter-clockwise to loosen. Regrease the nozzle thread with anti-spatter compound before reinstalling.
- Contact tip remover: Insert the recessed jaw over the exposed contact tip thread. Counter-clockwise rotation (usually a quarter to a half turn) breaks the thread. Use light plier pressure — overtightening damages the diffuser threads.
- Spatter scraper: Use the offset scraper blade on the jaw's inner edge to scrape spatter from the interior nozzle bore. Work in a twisting motion rather than straight scraping to avoid gouging the nozzle's copper bore.
- Wire cutter: Position the wire in the cutting notch (not the plier jaw — the notch is slightly forward of the pivot). Apply firm, single-motion closure for a clean cut. Avoid rocking back and forth, which leaves a burr that impedes arc starts.
- Hammer face: The flat-faced heel of the handle is useful for light tapping — seating a stubborn nozzle or straightening a bent liner entry guide. Never use as a striking tool on hardened steel surfaces.
- Compatible with Lincoln Electric Magnum Pro 100L, 150, 200, 250, and Magnum 300 MIG guns
- Fits Harris MIG gun series and most competitive guns using 3/8-24 UNF contact tip thread
- Nozzle wrench jaw fits standard 5/8 in and 3/4 in nozzle hex
- Wire cutter handles solid wire up to 0.052 in and flux-cored wire up to 0.045 in
- See also: Harris MIG Nozzle Reamer/Cleaner 3060030 for power-tool nozzle cleaning, and Lincoln Chipping Hammer & Wire Brush Combo for post-weld slag removal
- Cutting edge longevity: The wire cutter blades are hardened chrome vanadium. Cutting flux-cored wire (FCAW) dulls the blades faster than solid wire due to the hard flux powder inside the sheath. Expect 6–12 months of daily use before the cut quality degrades noticeably on fine wires.
- Joint lubrication: Apply one drop of 3-in-1 oil or light machine oil to the pivot pin annually. Avoid heavy greases that attract spatter and weld dust, which can lock the pivot under heat.
- Handle inspection: Inspect the nylon handle insulation for cracks or chips before each shift. Cracked insulation no longer provides reliable electrical separation. Replace the tool immediately if handle damage is observed — do not tape or repair.
- Storage: Store in a dry tool roll or pouch. Avoid leaving the Welper on wet concrete or steel surfaces where condensation can cause surface rust on the blades over time. The drop-forged body does not have a corrosion-resistant coating on internal working surfaces.
Q: Does the Harris Welper YS-50 fit Lincoln Magnum Pro 100L contact tips?
A: Yes. The Lincoln Magnum Pro 100L and 150 series contact tips use 3/8-24 UNF threads, which the YS-50's tip remover jaw is designed to grip. Ensure the jaw seats fully on the tip flat before applying torque to avoid rounding the tip body.
Q: Is the YS-50 safe to use while the MIG machine is energized?
A: The glass-filled nylon handle insulation is rated for incidental contact only — not for sustained live-circuit work. Best practice is to set the MIG machine to standby (trigger released) before performing nozzle or tip maintenance. The insulation reduces risk from accidental contact with an energized electrode, not from intentional contact.
Q: Can the YS-50 cut flux-cored wire?
A: Yes, up to 0.045 in diameter FCAW wire. The hard flux core accelerates blade wear compared to solid wire. For shops running 0.052 in or larger flux-cored wire, a dedicated cable cutter provides better leverage and longer blade life.
Q: What size nozzle wrench does the Welper include?
A: The YS-50 jaw flat fits 5/8 in and 3/4 in nozzle hex flats — the two most common sizes on Lincoln Electric, Harris, and ESAB MIG guns. Metric nozzles with M16 × 1.5 thread (common on European guns) may not seat correctly in the jaw flat.
Q: Is there a replacement blade kit for the wire cutter?
A: The YS-50 uses an integral drop-forged cutter that is not field-replaceable. When the cutting performance degrades to the point that it leaves burrs or deforms wire ends, the tool should be replaced. At the Welper's price point, replacement is more economical than sourcing aftermarket blades.
Q: What distinguishes the Harris YS-50 from generic MIG pliers?
A: Three features separate the YS-50 from import MIG pliers: (1) drop-forged chrome vanadium steel body (not cast zinc or pot metal), providing superior durability and edge retention; (2) insulated handles rated for electrical separation; and (3) Harris Products Group quality control, which ensures consistent tip remover jaw dimensions across production batches — a critical factor for clean contact tip removal without diffuser damage.
Q: Can I use the hammer face for seating drive rolls in my wire feeder?
A: Not recommended. The hammer face on the Welper handle is suitable for light persuasion (e.g., seating a nozzle), but the impulse force is insufficient and poorly directed for drive roll seating. Use a rubber mallet or the appropriate Lincoln drive roll installation tool (reference K1649-1) for feeder work.
