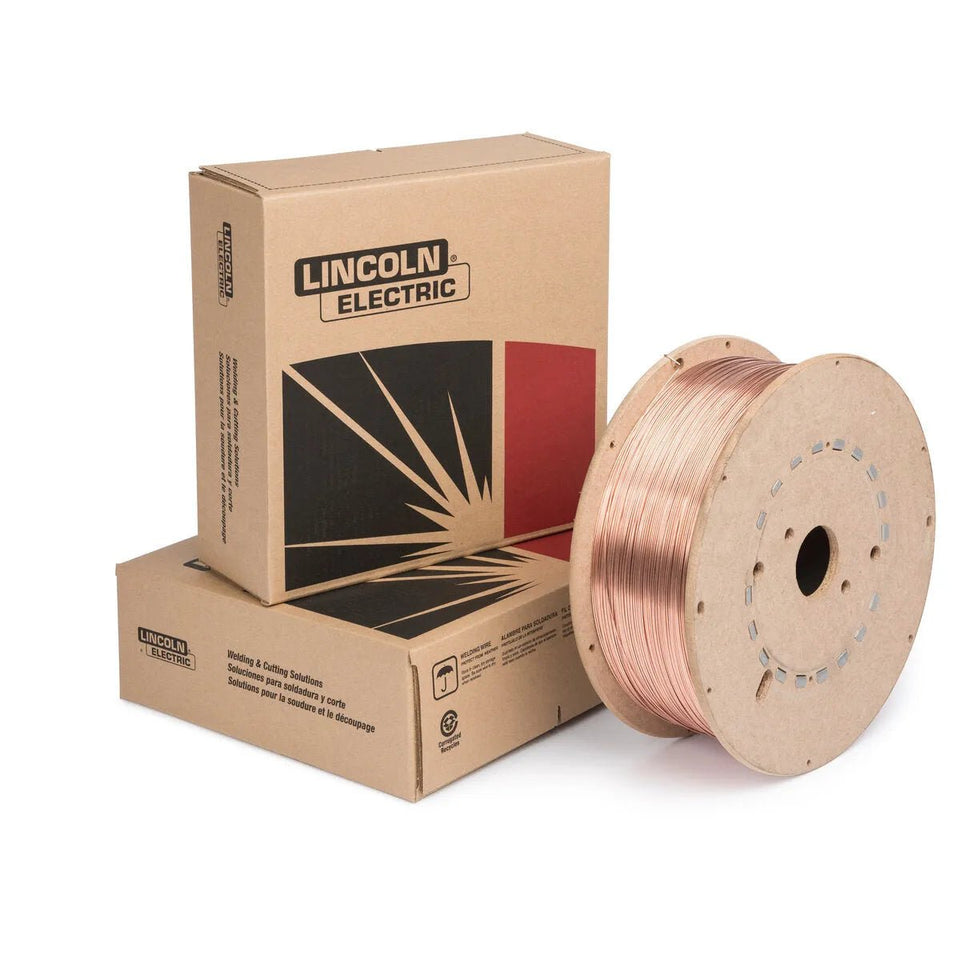

Lincoln ED034430 SuperArc L-59 MIG GMAW Mild Steel Welding Wire, 0....
SuperArc L-59 0.052 is a copper coated, mild steel, engineered alloy MIG wire that leads the industry in arc performance, wire feedability and consistency, as well as extending contact tip life.
| Feature | Value |
|---|---|
| CONFORMANCES | SPECIFICATIONCLASSIFICATION |
| AWS | AWS A5.18ER70S-6 |
| ABS | ABS - Part 23YSA H5 |
| BV | BV - Chapter 5SA3YHHH |
| CWB | CSA W48B-G 49A 3 C1 S6, B-G 49A 3 C1 S6 (B-G 49A 3 C G6) |
| DNV-GL | DNV - 2.9III Y40MS H5 |
| DB | ISO 14341-AG 42 3 C1 3Si1, G 46 4 M21 3Si1 |
| LR | LR - Chapter 113YS H5 |
| MIL | MIL-E-23765/1DMIL-70S-6 |
| Classification | Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)Charpy V-Notch, J (ft-lbs) @ -40°C (-40°F) |
| ER70S-6 Requirement | 100% CO2DC+400 (58) min.480 (70) min.22 min.27 (20) min. |
| Typical Result, As-welded | 100% CO2DC+430 (62)540-580 (78-83)2433-89 (24-66) |
| Typical Result, As-welded | 90% Ar, 10% CO2DC+500 (72)610 (88)2380-91 (59-67) |
| Classification | %C%Cr%Mn%Mo%Ni%P%S%Si%V%Total Cu |
| ER70S-6 Requirement | 0.06 - 0.150.15 max.1.40 - 1.850.15 max.0.15 max.0.025 max.0.035 max.0.80 - 1.150.03 max.0.50 max. |
| Typical Result | 0.07-0.100.02-0.051.42-1.490.010.01-0.020.005-0.0100.017-0.0270.81-0.890.005 max.0.12-0.23 |
| Diameter | Transfer ModeShielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr) |
| 0.035 in (0.9 mm) | Short Circuit Transfer ⁽²⁾75% Ar / 25% CO2DC+12 (1/2)2.5 (100)17800.7 (1.6) |
| 0.035 in (0.9 mm) | Short Circuit Transfer ⁽²⁾75% Ar / 25% CO2DC+12 (1/2)3.8 (150)181201.1 (2.4) |
| 0.035 in (0.9 mm) | Short Circuit Transfer ⁽²⁾75% Ar / 25% CO2DC+12 (1/2)6.4 (250)201751.8 (4.0) |
| 0.035 in (0.9 mm) | Spray Transfer90% Ar / 10% CO2DC+19 (3/4)9.5 (375)231952.7 (6.0) |
| 0.035 in (0.9 mm) | Spray Transfer90% Ar / 10% CO2DC+19 (3/4)12.7 (500)292303.6 (8.0) |
| 0.035 in (0.9 mm) | Spray Transfer90% Ar / 10% CO2DC+19 (3/4)15.2 (600)302754.4 (9.6) |
| 0.045 in (1.1 mm) | Short Circuit Transfer ⁽²⁾75% Ar / 25% CO2DC+12 (1/2)3.2 (125)181451.5 (3.4) |
| 0.045 in (1.1 mm) | Short Circuit Transfer ⁽²⁾75% Ar / 25% CO2DC+12 (1/2)3.8 (150)191651.8 (4.0) |
| 0.045 in (1.1 mm) | Short Circuit Transfer ⁽²⁾75% Ar / 25% CO2DC+12 (1/2)5.1 (200)202002.4 (5.4) |
| 0.045 in (1.1 mm) | Spray Transfer90% Ar / 10% CO2DC+19 (3/4)8.9 (350)272854.2 (9.2) |
| 0.045 in (1.1 mm) | Spray Transfer90% Ar / 10% CO2DC+19 (3/4)12.1 (475)303355.7 (12.5) |
| 0.045 in (1.1 mm) | Spray Transfer90% Ar / 10% CO2DC+19 (3/4)12.7 (500)303406.0 (13.2) |
| 0.052 in (1.3 mm) | Spray Transfer90% Ar / 10% CO2DC+19 (3/4)7.6 (300)303004.8 (10.6) |
| 0.052 in (1.3 mm) | Spray Transfer90% Ar / 10% CO2DC+19 (3/4)8.1 (320)303205.2 (11.5) |
| 0.052 in (1.3 mm) | Spray Transfer90% Ar / 10% CO2DC+19 (3/4)12.3 (485)324307.8 (17.1) |
| 1/16 in (1.6 mm) | Spray Transfer90% Ar / 10% CO2DC+19 (3/4)5.3 (210)253254.8 (10.7) |
| 1/16 in (1.6 mm) | Spray Transfer90% Ar / 10% CO2DC+19 (3/4)6.0 (235)273505.4 (12.0) |
| 1/16 in (1.6 mm) | Spray Transfer90% Ar / 10% CO2DC+19 (3/4)7.4 (290)284306.7 (14.8) |
| Note | |
| ⁽¹⁾ CTWD (Contact Tip to Work Distance). Subtract 1/4 in. (6.4 mm) to calculate Electrical Stickout. | |
| ⁽²⁾ Procedures in these areas are procedures for short circuiting mode using 75% Argon, 25% CO2. NOTE: For 100% CO2 procedures, add 1 to 2 volts for short circuit transfer and 2 to 3 volts for globular transfer. | |
| LECO Diameter | 0.052 in (1.3 mm) |
| LECO Package | 44 lb Spool |
| Diameter (in) | 0.052 |
