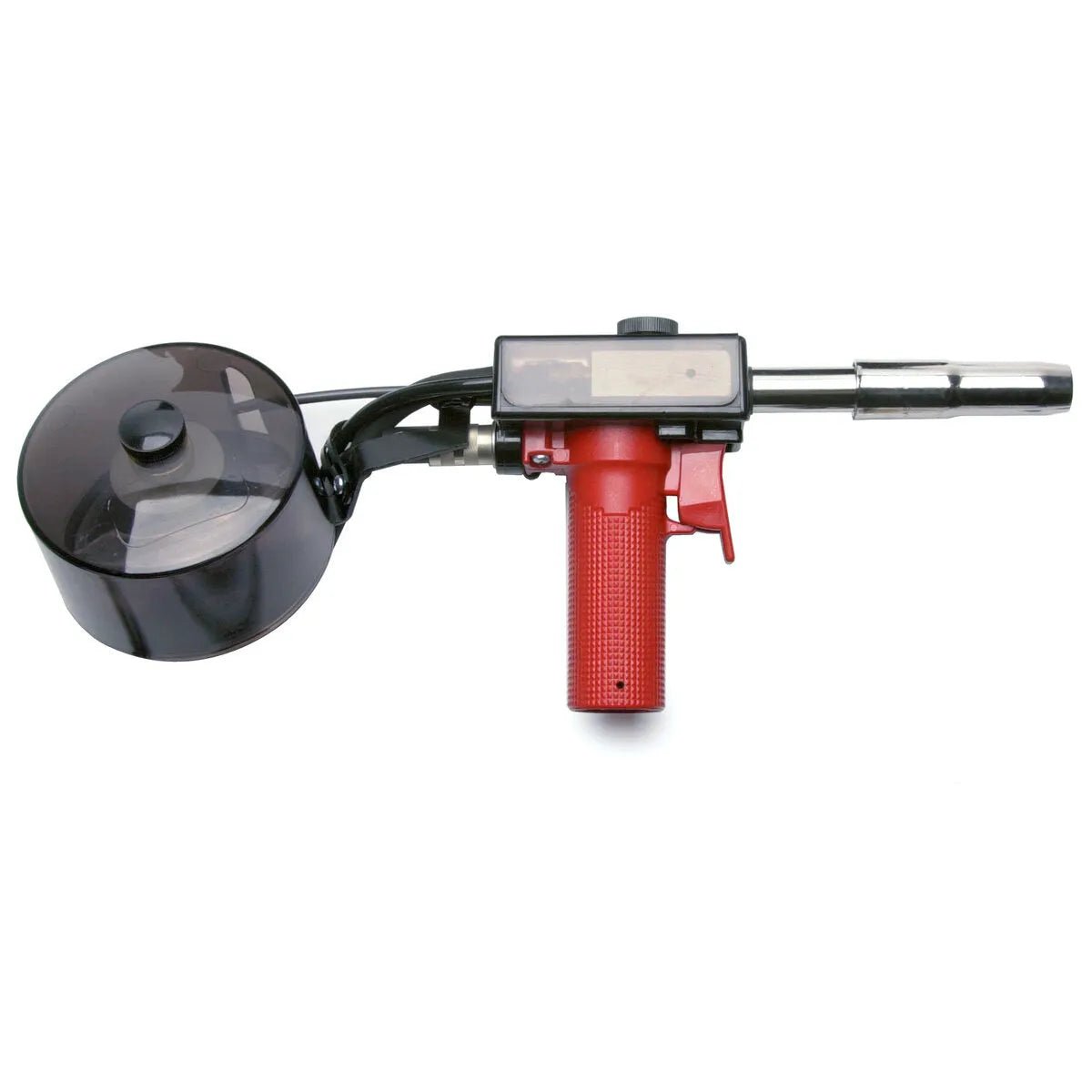

The Lincoln Electric Magnum SG Spool Gun Air-Cooled 25 ft (K487-25) is Lincoln’s classic air-cooled spool gun for aluminum wire welding, featuring a 25 ft cable that connects directly to compatible Lincoln wire feeders and MIG welders. The K487-25 has been a trusted platform for aluminum MIG welding in fabrication shops, shipyards, and field service applications for decades.
| Model | Magnum SG Spool Gun, Air-Cooled |
|---|---|
| Part Number | K487-25 |
| Cable Length | 25 ft (7.6 m) |
| Cooling | Air-cooled |
| Wire Diameter Range | 0.030 in – 3/64 in (0.8 – 1.2 mm) |
| Wire Capacity | 1 lb (4 in) small spools |
| Compatibility | Lincoln Electric wire feeders and MIG welders with Magnum SG gun receptacle |
| Connector Type | Lincoln Magnum SG connector (adapter may be required for some machines — see Compatibility) |
| Vendor | Lincoln Electric |
- Aluminum wire MIG welding: The K487-25 is purpose-built for 4000- and 5000-series aluminum wire. Wire feeds pull-style from a 1 lb spool at the gun, bypassing the long push liner entirely and delivering smooth, consistent arc performance on aluminum.
- Soft-alloy materials: Silicon-bronze, soft stainless, and other deformable wire alloys benefit from the same short-feed-path design, reducing the frustrating stop-and-trim cycles of conventional MIG gun setups.
- Marine, automotive, and HVAC fabrication: At 25 ft of cable length, the K487-25 gives fabricators working on large aluminum assemblies the room to move around the workpiece without repositioning the power source.
- Shops upgrading from standard MIG to aluminum capability: The K487-25 is often the first spool gun welders add to an existing Lincoln setup — it requires no new welder, only a compatible machine and the gun itself.
The K487-25 Magnum SG is designed for Lincoln Electric wire feeders and MIG welders equipped with the Magnum SG gun port. Common compatible platforms include the Lincoln LN-25 series wire feeders and select Power MIG models. An adapter cable (such as the one included in the K1809-1 kit) may be required for machines that do not have a native Magnum SG port.
If you are adding a spool gun to a Lincoln welder that currently runs a standard Magnum gun, confirm that your machine’s control board supports spool gun operation — some older models require a firmware update or adapter. WeldingMart’s team can help you verify this before purchase.
See all Lincoln and brand-compatible spool guns in our Spool Guns collection.
