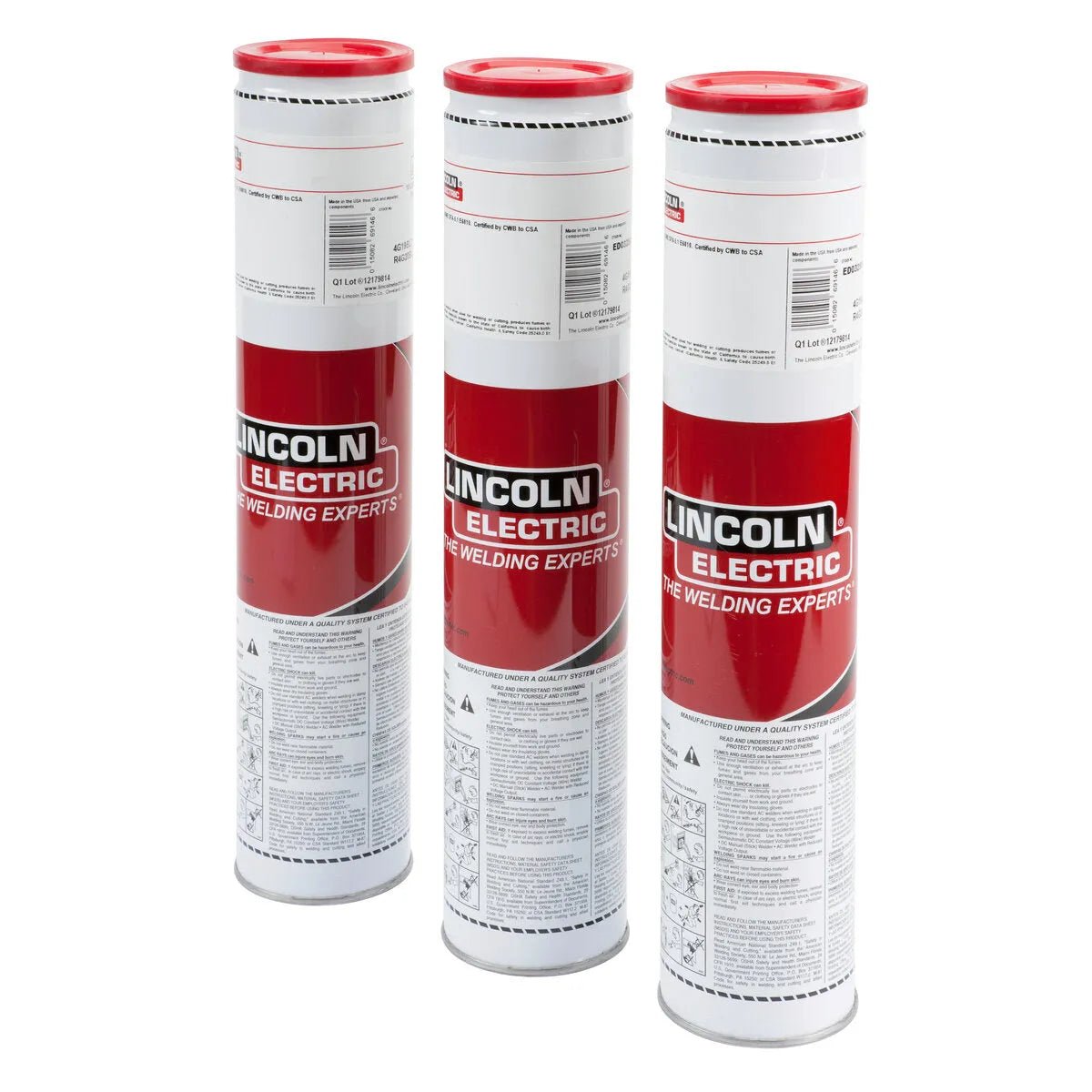

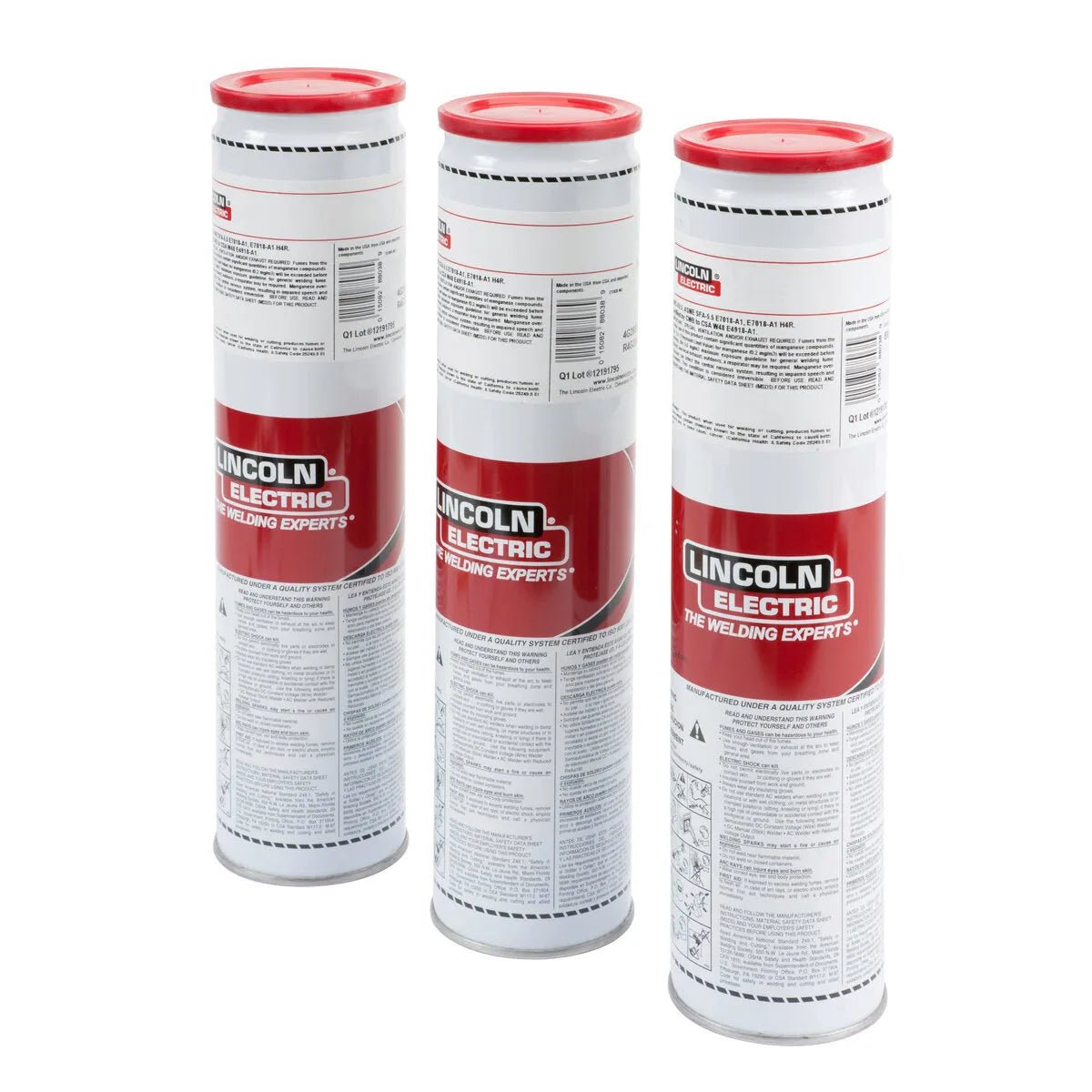

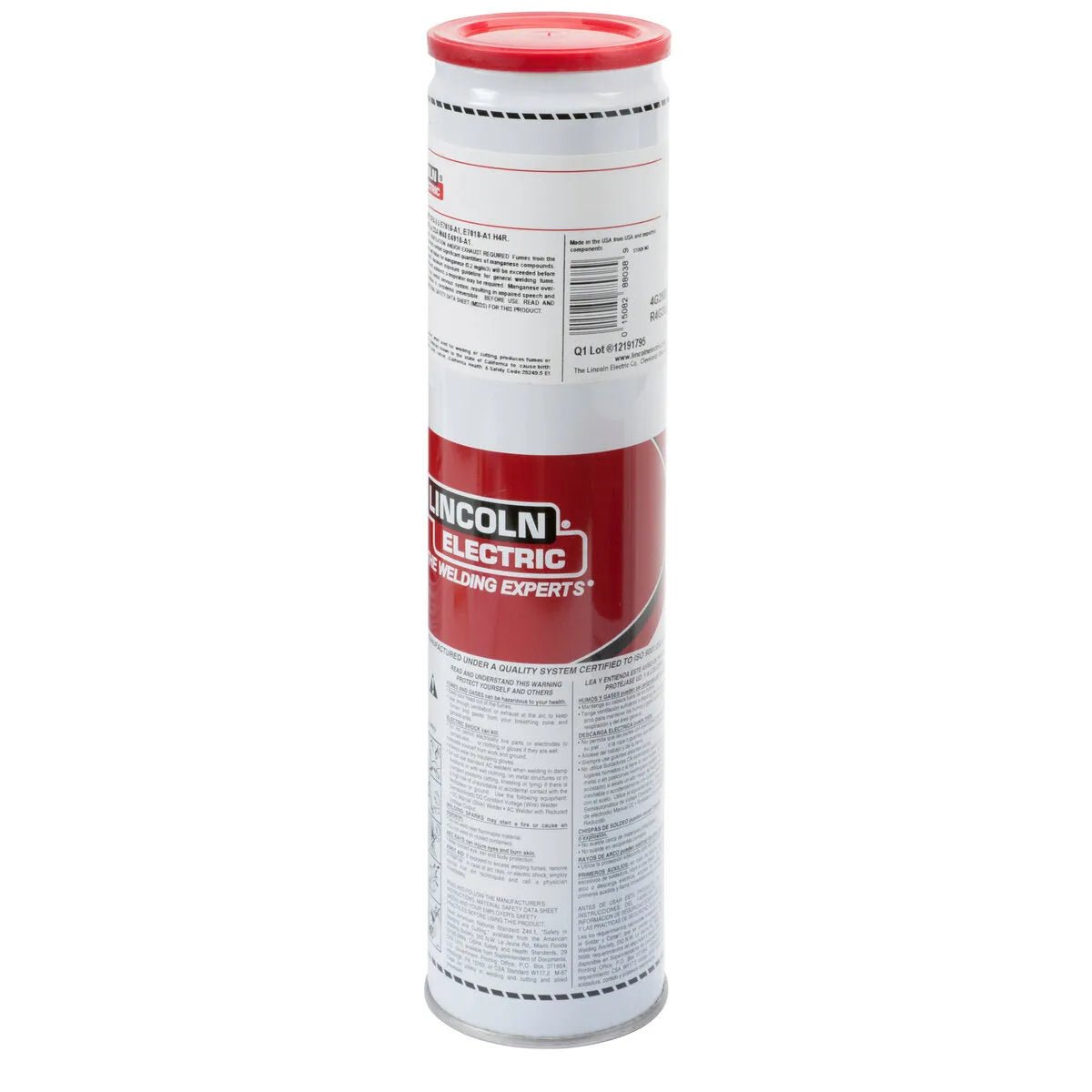

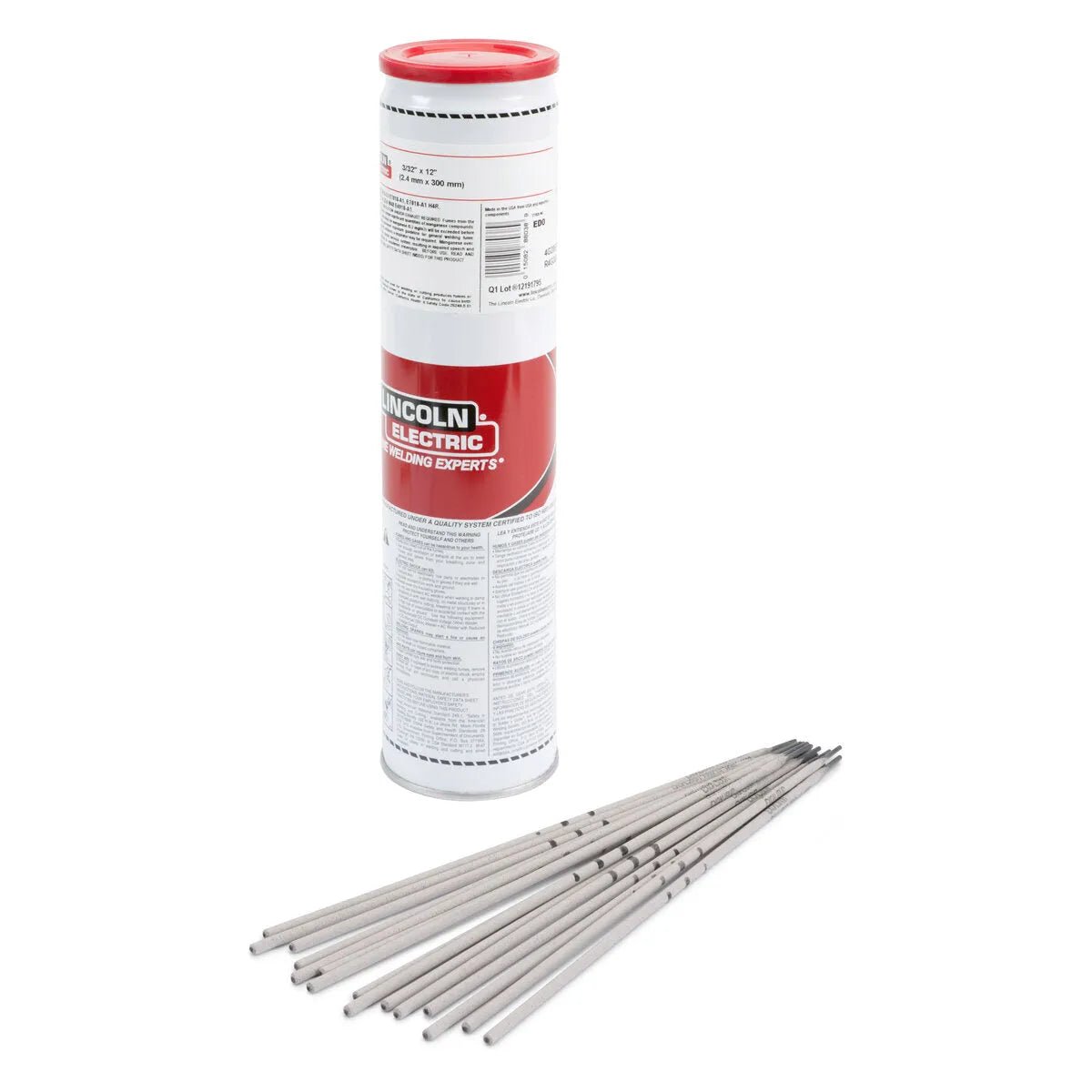

Lincoln Excalibur 309L is a premium low-carbon E309L-16 stainless steel welding rod engineered for welding dissimilar metal joints between stainless steel and carbon or low-alloy steel, as well as for stainless steel overlay cladding on carbon steel substrates. With its overalloyed 22–25 Cr / 12–14 Ni chemistry and extra-low carbon (≤ 0.04 %), Excalibur 309L provides the dilution buffer needed to maintain a corrosion-resistant austenitic weld metal even when significant carbon-steel base metal is melted into the joint. It is the E309L-16 stainless welding rod specified in virtually every dissimilar stainless-to-carbon-steel procedure and stainless overlay application.
Excalibur 309L is Lincoln Electric's E309L-16 SMAW electrode for dissimilar and overlay welding. The AWS designation E309L-16 means: "E" = electrode; "309L" = overalloyed 22-25 Cr / 12-14 Ni chemistry with low carbon (≤ 0.04 %); "-16" = rutile-basic flux with AC and DCEP operation in all positions. The 309 chemistry is intentionally richer in chromium and nickel than 308 or 316 — this over-alloying is deliberate: when you weld a 309L electrode across a dissimilar joint where carbon steel dilutes the pool, the excess Cr and Ni in the wire compensate for that dilution and maintain a final weld metal composition with adequate chromium for corrosion resistance and adequate nickel for austenite stability. Without this buffer, carbon-steel dilution into a 308-type filler would shift the weld metal into a martensitic or ferritic composition with poor corrosion resistance and potential for cracking. The "L" designation (≤ 0.04 % carbon) ensures that even multi-pass dissimilar welds and multiple overlay layers do not sensitize and corrode in service. Excalibur 309L is the workhorse of stainless clad vessel fabrication and dissimilar weld repair throughout chemical processing, nuclear, power generation, and offshore industries.
| Property | Specification |
|---|---|
| AWS Classification | E309L-16 |
| AWS Standard | AWS A5.4/A5.4M |
| Carbon (max) | 0.04% |
| Chromium | 22.0–25.0% |
| Nickel | 12.0–14.0% |
| Tensile Strength (min.) | 74,000 psi (510 MPa) |
| Yield Strength (min.) | 54,000 psi (372 MPa) |
| Elongation (min.) | 30% |
| Flux Type | Rutile-basic (-16) |
| Current | AC, DCEP |
| Positions | All |
| Diameters | 3/32, 1/8, 5/32, 3/16 in |
- Dissimilar welds: stainless steel to carbon steel — piping transitions, flanged connections, and structural stainless-to-carbon attachment welds.
- Stainless overlay cladding on carbon steel — corrosion-resistant lining on the internal surfaces of carbon steel pressure vessels, tanks, and reactors.
- Buttering layer before welding 304/316 stainless to carbon steel — E309L is applied as a buttering pass on the carbon steel side to create an austenitic transition layer before the final dissimilar joint weld.
- Repair welding on stainless-clad pressure vessels — restoring cladding integrity on corroded or cracked stainless overlay on carbon steel shells.
- High-temperature dissimilar welds (up to 800 °F service) — 309L provides adequate oxidation resistance and stability for moderate-temperature dissimilar service.
- Nuclear and power generation applications — E309L-16 is widely used for stainless-to-carbon dissimilar welds in nuclear island and balance-of-plant systems.
| Diameter | Amperage Range | Application |
|---|---|---|
| 3/32 in (2.4 mm) | 55–80 A | Thin wall, buttering passes |
| 1/8 in (3.2 mm) | 70–115 A | Standard dissimilar joints, overlay |
| 5/32 in (4.0 mm) | 100–145 A | Medium-section overlay, fill passes |
| 3/16 in (4.8 mm) | 130–175 A | Heavy overlay and fill passes |
Dilution control: For overlay applications, minimize penetration into the carbon steel base to reduce dilution. Use stringer beads at lower amperage rather than weave passes at higher amperage. Two layers of E309L overlay typically achieve the target final chemistry. Verify that the corrosion-critical top layer of a two-layer overlay system has acceptable chemistry by analytical check if required by the pressure vessel code.
Buttering sequence: For dissimilar butt joints, butter the carbon steel side with one or two passes of E309L-16, then full joint welding with E308L-16 or E316L-16 (depending on the stainless base metal). This isolation prevents carbon-steel dilution from reaching the final weld metal composition.
Interpass temperature: Keep below 300 °F as for all austenitic stainless electrodes.
- Sealed container storage: Original sealed Lincoln container in a dry area (below 70 % RH). Indefinite shelf life sealed.
- Re-drying: 300–350 °F for 1–2 hours if moisture-exposed. Do not exceed 400 °F.
- Production shops: Keep opened canisters in 200–250 °F holding oven. Avoid storing near carbon-steel electrode ovens — iron-rich dust from other rods can contaminate stainless electrode coverings.
- Dedicated tools: Use stainless wire brushes only. Carbon contamination of stainless welds causes iron rusting and loss of passivity.
Primary base metal combinations for Excalibur 309L:
- 304/304L stainless to A36, A516, A335, SA-516 carbon and low-alloy steel
- 316/316L stainless to carbon steel (first pass butter; complete with E316L-16)
- 321, 347 stabilized stainless to carbon steel (E309L is preferred over E308L for dilution control)
- Clad vessel repair: stainless cladding to carbon steel shell
Do not use E309L-16 as the sole filler for Type 309 base metal to Type 309 base metal joints — use E309-16 or E309L-16 per the applicable WPS. For austenitic-to-duplex or austenitic-to-ferritic stainless transitions, consult Lincoln's filler metal selection guide for the appropriate grade.
Q: Why do I need an overalloyed 309L filler for stainless-to-carbon-steel joints?
When you arc-weld across a dissimilar joint, the base metals on both sides melt into the weld pool. Carbon steel dilutes the Cr-Ni content of a standard 308-type filler, potentially shifting the weld metal composition toward a martensitic or ferritic structure with poor corrosion resistance and risk of cold cracking. The over-alloyed 309L chemistry (22–25 Cr, 12–14 Ni) compensates for this dilution, maintaining a corrosion-resistant austenitic weld metal composition even with 30–40 % carbon steel dilution.
Q: How many layers of E309L overlay do I need on carbon steel?
Two layers minimum is the industry standard for ensuring the top surface of the overlay has adequate chemistry to meet Type 304 or 316 corrosion resistance requirements. The first layer is heavily diluted by the carbon steel base; the second layer is deposited on the first overlay, minimizing carbon steel dilution in the final surface. Some codes specify a minimum 3/16 in finished overlay thickness and require chemical analysis of the surface layer.
Q: Can E309L-16 be used to weld 309 stainless base metal to itself?
Yes. E309L-16 is appropriate for 309 to 309 joints in ambient-temperature service. For high-temperature service above 1800 °F where 309 base metal's chromium oxide scale resistance is needed, verify with Lincoln's high-temperature stainless guide for the appropriate procedure.
Q: What is the role of buttering in dissimilar metal welding?
Buttering applies a thin (1–2 pass) layer of 309L weld metal to the carbon steel side of the joint before the final assembly weld. After PWHT of the carbon steel (if required), the joint is completed with a stainless filler. Buttering prevents the PWHT thermal cycle from sensitizing the dissimilar weld metal and isolates the carbon steel heat treatment from the stainless side.
Q: What interpass temperature applies for E309L on carbon steel base metal?
Interpass temperature is controlled by the more restrictive base metal requirement. For carbon-steel base metal, AWS D1.1 preheat requirements apply to the steel side. For the stainless side, keep below 300 °F as for all austenitic stainless welds. For dissimilar joints, the practical limit is usually controlled by the stainless steel: keep below 300 °F regardless.
Q: Is E309L-16 approved for ASME Section IX?
Yes. E309L-16 is an F5 group filler metal under ASME Section IX QW-432 and is approved for use in procedure qualifications on carbon steel (P1), low-alloy (P4/P5), and austenitic stainless (P8) base materials in dissimilar and overlay applications.
Q: Can I use E309L-16 instead of E309-16 to weld 309 stainless base metal?
Yes, E309L-16 is preferred over E309-16 for any application where heat input is significant or where post-weld sensitization is a concern. The L-grade is always conservative relative to the standard grade for ambient-temperature service.
Dissimilar metal welding between stainless steel and carbon steel is one of the most technically demanding welding operations in process industry fabrication. The fundamental challenge is managing dilution: when the molten pool simultaneously melts both stainless steel (austenitic) and carbon steel (ferritic/pearlitic), the resulting weld metal composition is a blend of both. If a standard 308L-type filler is used without compensation, carbon steel dilution shifts the weld metal out of the austenitic field into a duplex or martensitic microstructure — potentially brittle and certainly lacking the corrosion resistance needed for stainless service. Excalibur 309L's overalloyed chemistry (22–25% Cr, 12–14% Ni) is specifically designed to withstand 30–40% carbon steel dilution while remaining in the austenitic field on the Schaeffler or WRC-1992 constitution diagram. For engineers calculating expected dilution and predicting final weld metal composition, Lincoln provides Excalibur 309L's nominal deposit chemistry and a recommendation to consult the WRC-1992 diagram for specific dilution scenarios. Ferrite Number (FN) prediction from the diagram helps confirm that the final weld metal will have sufficient ferrite (FN 3–10) to resist hot cracking without excessive ferrite that would reduce toughness or corrosion resistance. The E309L-16 classification under AWS A5.4 ensures Lincoln's production chemistry control maintains this predictable behavior lot-to-lot.
