Lincoln Fleetweld 180 is the AC-stabilized E6011 stick electrode built for small AC welders, low open-circuit-voltage (OCV) power sources, and any job where the base metal is plated, painted, dirty, or greasy. The potassium-stabilized cellulosic flux strikes and re-strikes cleanly on AC power as low as 50V OCV — the operating range that makes most general-purpose E6010 electrodes refuse to arc. With 60,000 psi minimum tensile strength, 22% elongation, and all-position (1G, 2F, 3G, 3F, 4G, 4F) capability, Fleetweld 180 is the small-shop, farm, and maintenance E6011 of choice in Lincoln Electric's lineup. Per Lincoln's official C2.10 Stick Electrode catalog, every Fleetweld 180 lot is manufactured under an ISO 9001-certified quality system.
Fleetweld 180 is Lincoln Electric's AC-optimized E6011 cellulosic SMAW electrode. AWS classification E6011: "E" = electrode; "60" = 60,000 psi minimum tensile; "1" = all-position; "1" = high-cellulose potassium flux, AC + DC± compatible. The potassium-based cellulosic covering re-ionizes quickly enough on each AC half-cycle to sustain a stable arc on low-OCV (50V) AC power sources — the practical difference between E6011 and the sodium-stabilized E6010 (which is DCEP-only). Fleetweld 180 produces a deep-penetrating, fast-freeze arc with light, easy-to-remove slag, making it the standard choice for small AC transformer welders ("buzz boxes"), low-OCV inverters, farm and maintenance work, and any field repair on contaminated steel. Within Lincoln's E6011 family, Fleetweld 180 is specifically positioned for small AC welders and low-OCV starting — distinct from Fleetweld 35 (general-purpose E6011 with x-ray quality) and Fleetweld 35LS (E6011 optimized for tack welds under Innershield deposits).
| Property | Specification |
|---|---|
| AWS Classification | AWS A5.1/A5.1M E6011 (ASME SFA-5.1 E6011; CSA W48 E4311) |
| Tensile Strength (min.) | 60,000 psi (414 MPa) |
| Yield Strength (min.) | 48,000 psi (331 MPa) |
| Elongation (min.) | 22% |
| Charpy V-Notch (min.) | 20 ft·lbf at -20°F (27 J at -29°C) |
| Flux Type | High-cellulose potassium |
| Current | AC, DC+, DC- |
| Position | All (1G, 2F, 3G, 3F, 4G, 4F) |
| Diameters | 3/32, 1/8, 5/32 in |
| Standard | AWS A5.1/A5.1M |
The defining technical feature of Fleetweld 180: it strikes and sustains a stable arc on AC power sources as low as 50V open-circuit voltage. Most general-purpose stick electrodes (including E6010 and many E7018 variants) require 70–80V OCV minimum. If you own a small AC transformer welder, a buzz box, or an inverter with a low OCV rating, Fleetweld 180 is the E-classification engineered to work on that machine. As-welded test results in Lincoln's catalog show tensile of 60,000–84,000 psi, yield of 48,000–70,000 psi, and elongation of 22–35% — well above AWS A5.1 minimums.
- Small AC transformer welders (buzz boxes) — Fleetweld 180 is the Lincoln catalog's literal recommendation: "Got a small AC welder? Here's your electrode!" Arc starts and stays stable on 50V OCV power.
- Plated, painted, dirty, or greasy steel — the deep-penetrating cellulosic arc burns through galvanized zinc, paint, light surface rust, and oil contamination that would defeat low-hydrogen or titania electrodes.
- Sheet metal welding on edge, corner, and butt joints — the all-position capability and controllable amperage range make Fleetweld 180 effective on thinner gauge mild steel without burn-through.
- Farm equipment and agricultural maintenance — implement repair, hitch welding, trailer fabrication, and on-farm steel work where the available power is a single-phase 220V AC welder.
- General fabrication and maintenance — light to medium plate work, fillet welds, and structural repair on mild steel up to roughly 3/8 in thickness using 5/32 in electrodes.
- Vertical-up and overhead welding — light slag with minimal interference and fast-freeze characteristic hold the puddle in position even in 4G overhead and 3G vertical-up positions.
- Field repair on rusty or weathered steel — outdoor maintenance welding where joint cleanup is impractical and a self-cleaning electrode is required.
| Diameter | AC Amperage | DC+ Amperage | DC- Amperage | Application |
|---|---|---|---|---|
| 3/32 in (2.4 mm) | 40–90 A | 40–80 A | 40–80 A | Sheet metal, thin gauge fillet welds |
| 1/8 in (3.2 mm) | 60–120 A | 55–110 A | 55–110 A | General fabrication, all-position |
| 5/32 in (4.0 mm) | 115–150 A | 105–135 A | 105–135 A | Fill passes, medium plate, heavy fillet welds |
Polarity: AC is the preferred polarity for Fleetweld 180 — this is the defining difference vs. E6010. The potassium-based cellulosic flux re-ionizes quickly enough to sustain a stable arc through every AC half-cycle. DC+ (DCEP) and DC- (DCEN) are also supported, with amperage reduced approximately 10 A below the AC range. For out-of-position (vertical-up, overhead) work, run at the lower half of the amperage range for the given diameter.
Striking the arc on low-OCV machines: The advantage of Fleetweld 180 is its ability to start cleanly on power sources as low as 50V OCV. Touch the electrode tip to the workpiece, drag a short distance, and lift to establish the arc. Maintain an arc length of about 1× to 1.5× the core wire diameter for stable burn-off. If the arc stutters on first strike, the issue is almost always cold base metal or a corroded clamp connection — not the electrode itself.
Whip technique for vertical-up: For 3G vertical-up fillet or groove welds, use a slight whip motion to let the puddle freeze between advances. Fleetweld 180's fast-freeze slag holds the puddle in position. For 4G overhead, keep the arc length tight and travel speed steady — light slag means less interference at the puddle edge.
E6011 cellulosic electrodes require specific moisture content — NOT over-dried:
- Never over-dry: Do NOT bake Fleetweld 180 at the 250–300°F cycles used for E7018 low-hydrogen electrodes. The cellulosic flux's organic binders are what generate the gas shield and the fast-freeze arc — over-drying destroys this mechanism and makes the electrode functionally useless.

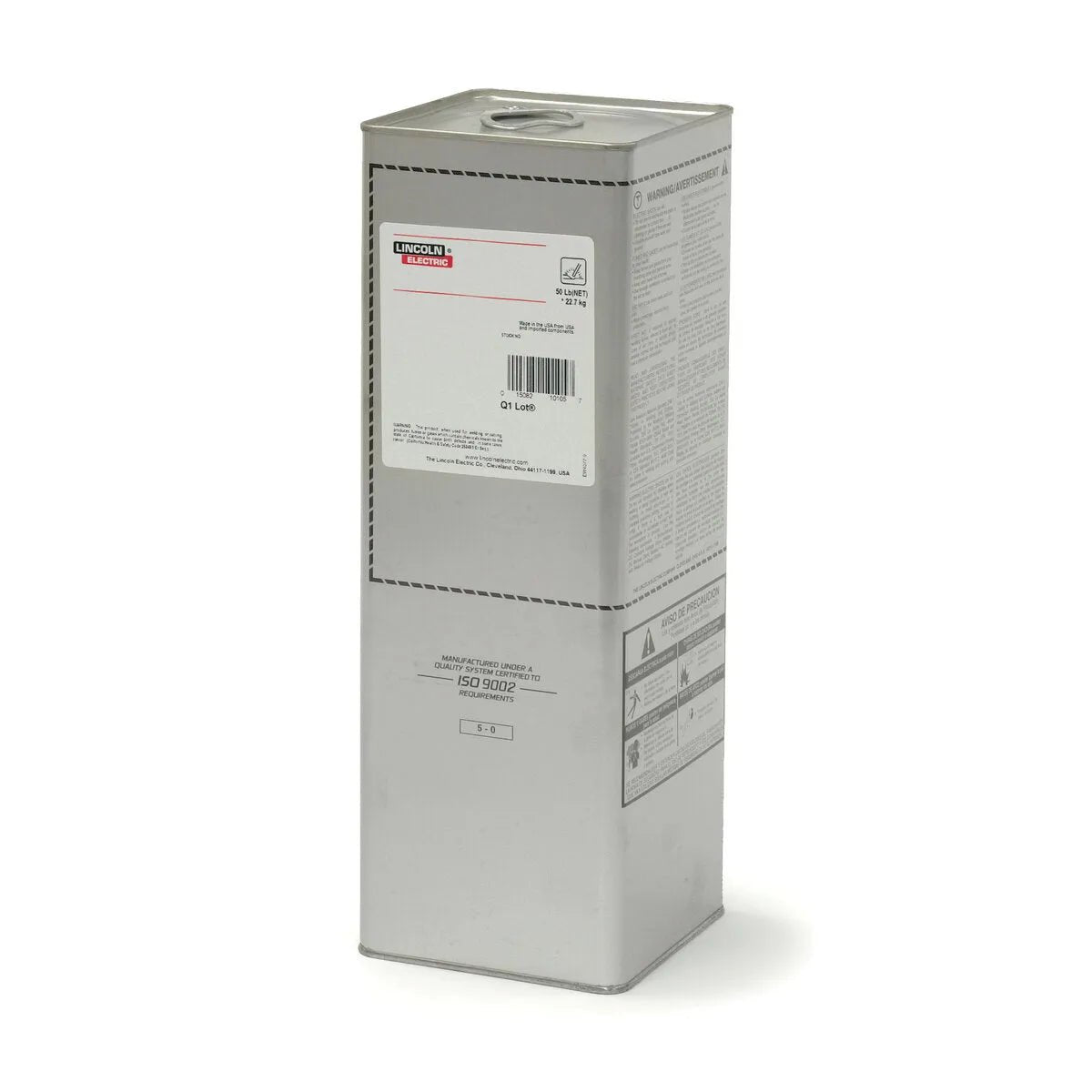

- Store in sealed original containers in a dry area at 40–120°F. Lincoln's Easy Open Cans maintain the correct moisture balance for years of shelf storage.
- If wetted: Discard heavily wetted electrodes — moisture restoration is impractical in the field and over-baking will destroy the flux.
- Handle with care: The cellulosic coating is relatively brittle. Dropped or bent electrodes often crack the flux at the bend, causing arc instability and penetration loss in the affected section.
Fleetweld 180 is designed for mild steel and low-carbon steel:
- ASTM A36 structural steel
- SAE 1018, 1020 carbon steel
- Light-gauge sheet metal (16-gauge and heavier with 3/32 in electrode at low amperage)
- ASTM A53 pipe (light maintenance — not API code pipeline work)
Not for stainless steel, cast iron, aluminum, or alloy steels requiring controlled hydrogen. For pipeline work governed by API 1104, use the E6010 Pipeliner 5P+ or 6P+ instead. For low-hydrogen structural work on higher-strength steels (A572 Grade 50, A992), use E7018 (Excalibur 7018 or Jet-LH MR).
Q: What is Lincoln Fleetweld 180 used for?
Fleetweld 180 is an E6011 all-position stick electrode designed for small AC welders, low-OCV power sources, general maintenance, farm repair, and fabrication on mild steel. It is specifically optimized for small AC transformer welders (buzz boxes) and situations where the base metal is galvanized, rusty, painted, or otherwise not fully cleaned.
Q: What AWS classification is Fleetweld 180?
Fleetweld 180 is classified as AWS A5.1/A5.1M E6011 (also ASME SFA-5.1 E6011 and CSA W48-06 E4311). It is a high-cellulose potassium, fast-freeze electrode for mild steel with 60,000 psi minimum tensile strength.
Q: Does Fleetweld 180 run on AC or DC?
AC is the preferred polarity for Fleetweld 180 — this is what distinguishes it from the similar E6010. It also runs on DC+ and DC- (reduce amperage ~10 A below the AC range). It is specifically engineered for low-OCV AC welders (50V minimum) where E6010 cannot sustain a stable arc.
Q: Can I weld galvanized steel with Fleetweld 180?
Yes — the deep-penetrating cellulosic arc burns through galvanized zinc coatings, paint, and surface contaminants effectively. Always weld in a well-ventilated area or wear respiratory protection, as zinc fume from burning galvanized coatings is hazardous (zinc oxide can cause metal fume fever).
Q: What amperage should I set for Fleetweld 180?
For AC welding: 3/32 in → 40–90 A; 1/8 in → 60–120 A; 5/32 in → 115–150 A. For DC±, subtract approximately 10 A from the AC range. For out-of-position (vertical, overhead) work, use the lower half of the range for the given diameter. For thin sheet metal, start at the low end and increase gradually.
Q: What is the difference between Fleetweld 180 and Fleetweld 35?
Both are E6011 electrodes, but they serve different niches. Fleetweld 180 is specifically optimized for small AC welders and low open-circuit voltage (50V OCV) starting — the "buzz box" electrode. Fleetweld 35 is a general-purpose E6011 with x-ray quality weld capability, used for AC pipe welding, sheet metal, and broader fabrication work on standard-OCV machines. Choose Fleetweld 180 when you own a small AC transformer welder; choose Fleetweld 35 for general-purpose E6011 work on a full-size AC or AC/DC machine.
Q: How does Fleetweld 180 (E6011) compare to Fleetweld 5P+ (E6010)?
Both are cellulosic fast-freeze electrodes designed for dirty or contaminated steel. The key difference is the flux stabilizer: Fleetweld 180 uses potassium (E6011) for AC compatibility; Fleetweld 5P+ uses sodium (E6010) and runs DCEP only. Fleetweld 5P+ is the cross-country pipeline standard with API 1104 qualification. Fleetweld 180 is the practical choice when only AC power is available or when working on a low-OCV welder.
Q: Does Fleetweld 180 meet ASME Section IX requirements?
Yes — E6011 is listed as an F3 group filler metal under ASME Section IX QW-432 and is approved for carbon steel weld procedures under P1 base metals. Confirm your specific WPS qualification for the exact base metal, thickness, and position combination. For pressure vessel or boiler work governed by ASME code, verify your shop's WPS covers E6011 specifically.
The E6011 welding rod is the AC-stabilized counterpart to E6010 — same family, same deep-penetrating cellulosic arc, same all-position capability — but engineered with potassium-based flux for stable AC arc behavior. Lincoln Fleetweld 180 is the lineup's small-AC-welder specialist: easy starting on low open-circuit voltage (50V OCV) power sources that defeat most other electrodes. It is the practical choice for hobbyists, farms, light-duty maintenance shops, and any field repair where the available welder is a small single-phase AC transformer. Within Lincoln's broader stick electrode portfolio, the selection logic is: choose Fleetweld 180 when you need AC compatibility on a low-OCV machine; choose Fleetweld 35 for general-purpose E6011 work on a standard-OCV AC or AC/DC machine; choose Fleetweld 5P or 5P+ (E6010) when DCEP power is available and pipeline-grade qualification is required; choose Excalibur 7018 or Jet-LH MR (E7018) for low-hydrogen structural code work on higher-strength steels. E6011 is listed in AWS D1.1 Annex I as a prequalified electrode for Group I and II structural steels. Under ASME Section IX, E6011 qualifies as F3 group filler metal for carbon steel P1 base materials. AWS A5.1 specifies the complete mechanical property and chemical composition requirements for all E6011 production lots — Lincoln's ISO 9001-certified quality system ensures every Fleetweld 180 lot is tested to these requirements before shipment.
