What power source and gun is the Lincoln Wire Drive for NA-3SF and NA-4F (142:1) (3/32-7/32) K209A compatible with?

Wire feeders are compatible with MIG guns and welding power sources that match the feeder's amperage rating and connector type. Lincoln Electric wire feeders are engineered to work with Lincoln power sources using Lincoln Magnum guns and consumables. Third-party compatibility may require adapter cables — contact us to confirm compatibility before ordering.

How do I select the right drive rolls for the Lincoln Wire Drive for NA-3SF and NA-4F (142:1) (3/32-7/32) K209A?

Drive roll selection depends on wire type and diameter: use knurled (serrated) drive rolls for flux-core and metal-core wire, and V-groove (smooth) drive rolls for solid MIG wire. Common wire diameters — .023 in, .030 in, .035 in, .045 in — each require matched drive rolls. Using the wrong drive roll type can crush flux-core wire or slip on solid wire.

How do I set wire feed speed on the Lincoln Wire Drive for NA-3SF and NA-4F (142:1) (3/32-7/32) K209A?

Wire feed speed (WFS) is one of the primary variables controlling heat input and bead profile in MIG welding. Higher WFS increases deposition rate and amperage (in constant-voltage mode). For .035 in ER70S-6 on 1/8 in mild steel, a starting WFS of 200–350 in/min at 18–21V is a common baseline. Fine-tune to achieve a steady arc sound without spatter or porosity.

What routine maintenance does the Lincoln Wire Drive for NA-3SF and NA-4F (142:1) (3/32-7/32) K209A require?

Regular wire feeder maintenance includes: clean the wire conduit/liner every 3–6 months (or when wire feed becomes erratic), replace the liner when it shows kinks or buildup that cleaning cannot clear, inspect and clean the drive rolls monthly, and check all connection points for corrosion or looseness. A consistent, clean wire path is the most important factor in stable arc performance.

What warranty does the Lincoln Wire Drive for NA-3SF and NA-4F (142:1) (3/32-7/32) K209A carry?

The Lincoln Wire Drive for NA-3SF and NA-4F (142:1) (3/32-7/32) K209A carries a 3 Years warranty. Keep your purchase receipt and register the product with Lincoln Electric for warranty service. Warranty covers manufacturing defects; consumable items such as liners, drive rolls, and contact tips are excluded.

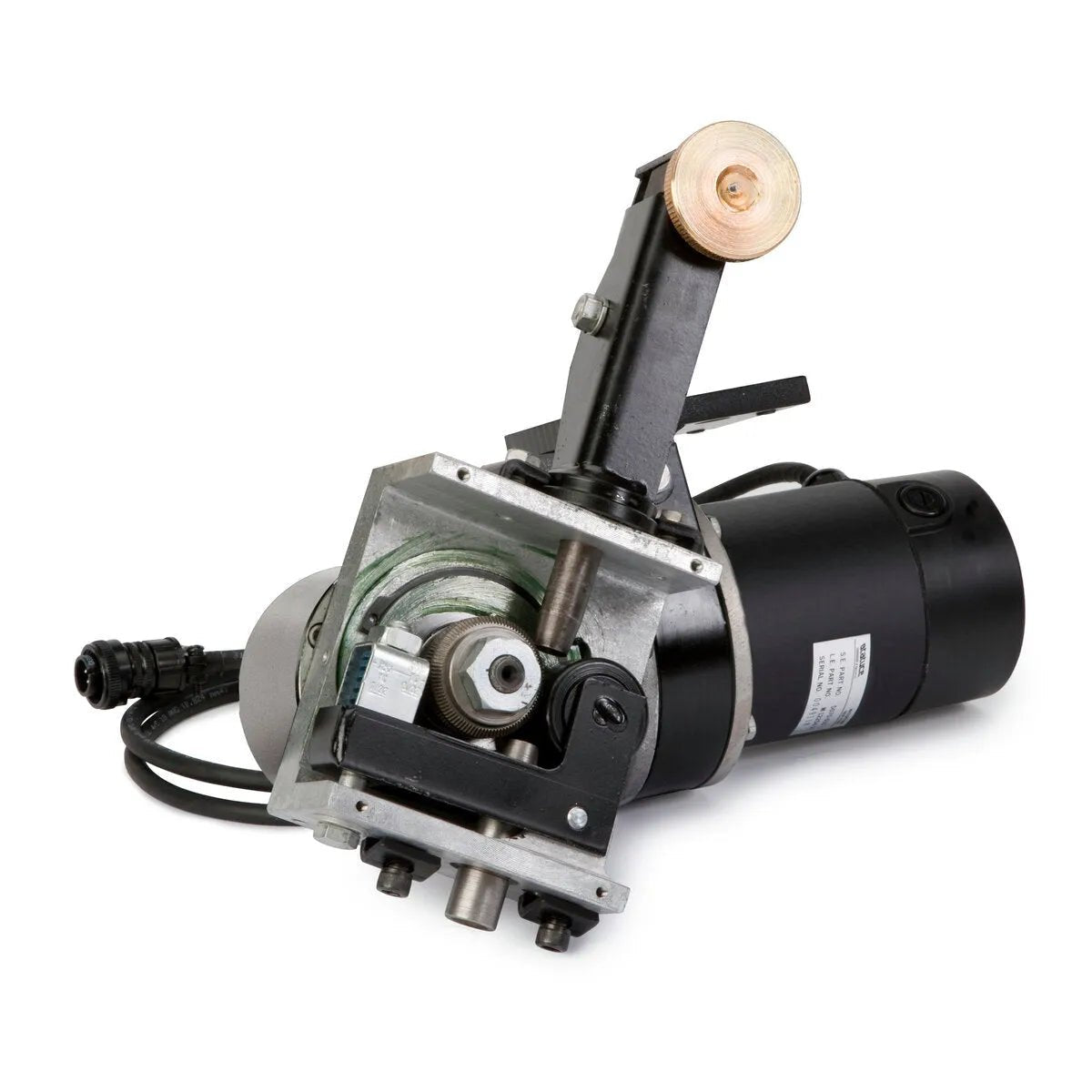

Lincoln Wire Drive for NA-3SF and NA-4F (142:1) (3/32-7/32) K209A

SKU: K209A

$4,574.99 ~~$4,755.92~~

Lincoln Elite Dealer

Free Shipping

Lowest Price

Wire Drive for NA-3SF and NA-4F automatic wire feeders for 3/32-7/32 in. (2.4-5.6 mm) solid electrode wires with 142:1 gear ratio.. Comes without high frequency insulation.

Overview

Lincoln Wire Drive for NA-3SF and NA-4F (142:1) (3/32-7/32) K209A

Automatic Welding Systems Improve productivity with the NA-3S or NA-4 automatic wire feeders. These systems have been specially designed to deposit more weld metal at fast travel speeds which eliminates bottlenecks and cuts costs.

Features

Operating Versatility Easily adapt to a wide range of wire feed speeds and wire sizes.
Compact Units With Excellent Flexibility Fit into simple fixtures or the most complex automated production lines.
Rugged Construction Minimize downtime and maintenance costs.
The NA-3S Wire Feeder is compatible with the following Lincoln Power Sources: Idealarc DC-60, DC-655, DC-1000 and DC-1500.
The NA-4 Wire Feeder is compatible with the Idealarc AC-1200.

Specifications

Feature	Value
Typical Applications	Heavy Fabrication
Processes	Submerged Arc (SAW)
Equipment Classification	Heavy Industrial
Product Height (in)	13.5
Product Height (mm)	343
Product Width (in)	11
Product Width (mm)	279
Product Length (in)	13.5
Product Length (mm)	343
Product Weight (lb)	30
Product Weight (kg)	13.6
Input Voltage	115 VAC
Input Hertz	50/60

Includes

(1) NA-3S/ NA-4 Wire Drive Head
(1) 4 ft (1.2 m) Motor Cable
(1) Drive Roll Kit
