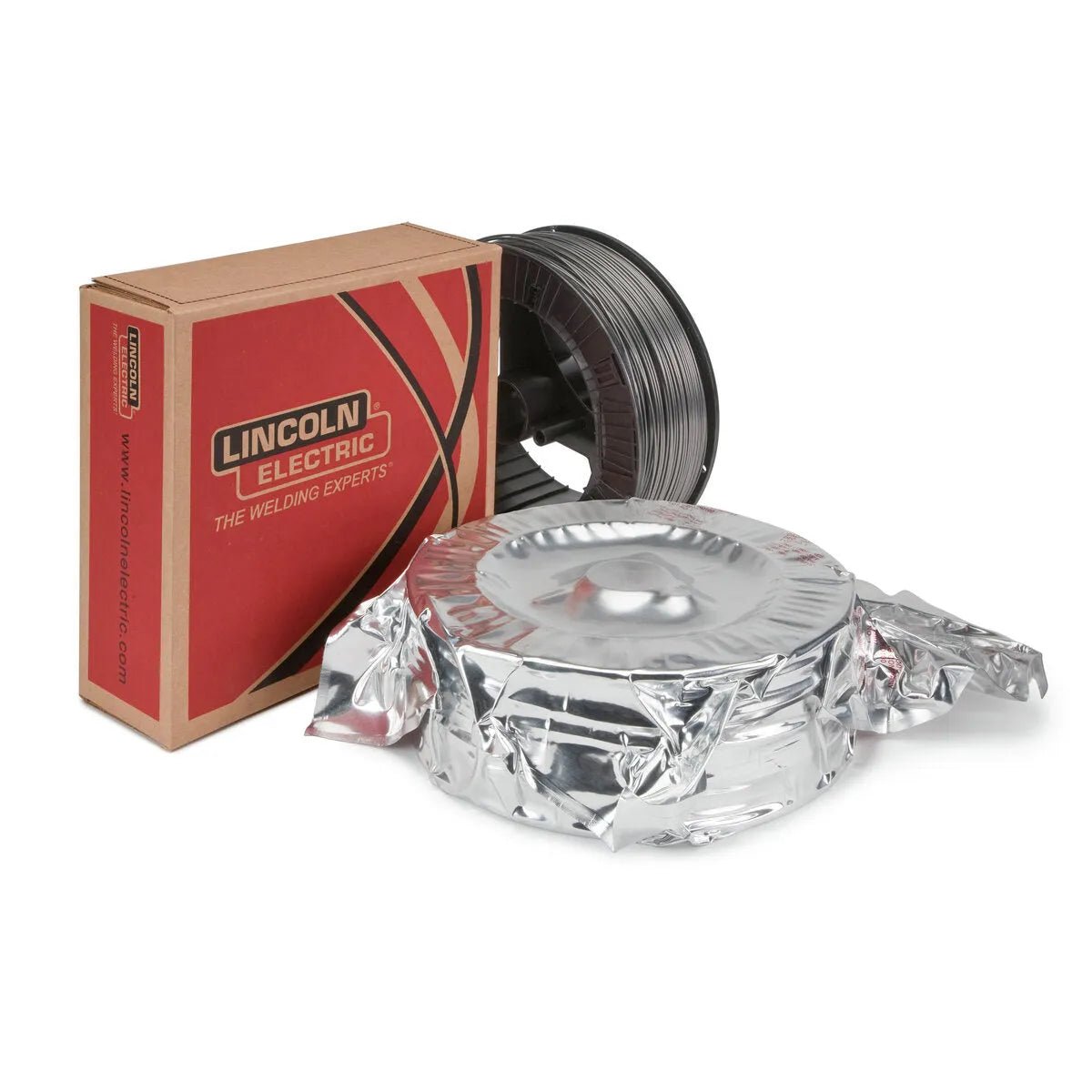

Lincoln Electric UltraCore 81Ni1A75-H 0.045 in Flux-Cored Welding Wire (AWS A5.29 classification E81T1-Ni1M-JH4) is a gas-shielded flux-cored wire designed for welding high-strength low-alloy (HSLA) and carbon-manganese steels in applications that require a minimum tensile strength of 80 ksi combined with excellent low-temperature notch toughness. The "Ni1" designation indicates a nominal 1% nickel addition to the alloy chemistry, which is the most cost-effective approach to achieving Charpy V-notch (CVN) impact energy requirements at temperatures as low as –40 °F (–40 °C). The "H4" suffix specifies that the wire is classified as a low-diffusible-hydrogen product, with maximum 4 mL hydrogen per 100 g weld metal — the most stringent hydrogen control classification in the FCAW-G category.
UltraCore 81Ni1A75-H is optimized for the 75–85% Argon / balance CO₂ shielding gas range, delivering a smooth, low-spatter spray transfer with minimal slag volume — reducing post-weld cleanup time in high-production environments. The "H" product suffix indicates that Lincoln Electric subjects this wire to heightened process controls — including wire surface cleanliness, flux moisture content, and package integrity — to maintain the H4 diffusible hydrogen classification throughout the product's shelf life.
- AWS Classification: E81T1-Ni1M-JH4 per AWS A5.29/A5.29M
- Designator breakdown: E=electrode, 81=80 ksi class, T1=flux-cored single pass or multi-pass, Ni1=~1% Ni, M=mixed gas, J=CVN impact toughness required at –40 °F (–40 °C), H4=maximum 4 mL/100 g diffusible hydrogen
- Carbon: 0.08% max
- Manganese: 1.25–1.75%
- Silicon: 0.50% max
- Nickel: 0.80–1.10%
- Diameter: 0.045 in (1.14 mm)
- Tensile Strength (as-welded): ≥80,000 psi (552 MPa)
- Yield Strength: ≥68,000 psi (469 MPa)
- Elongation: ≥19%
- CVN Impact (–40 °F / –40 °C): ≥20 ft-lbf (27 J) — "J" toughness designation
- Diffusible Hydrogen: ≤4 mL/100 g — H4 classification (lowest possible for FCAW)
- Shielding Gas: 75–85% Ar / 15–25% CO₂ (M designation)
- Offshore Platform Fabrication: Jacket legs, brace joints, and deck plates in API 2H Grade 50 and Grade 60 offshore structural steel. CVN at –40 °F is a standard offshore structural specification in accordance with API RP 2A and AWS D1.1 Annex I prequalified joint tables.
- Arctic Pipeline and Piping Systems: Pipe spool fabrication and field repair in ASTM A53 Grade B, API 5L Grade X52–X65 carbon steel pipe in arctic climate environments where design temperature can reach –40 °F or below during pressure testing.
- Shipbuilding and Marine Structures: Hull plate welding on vessels classified under ABS, DNV GL, and Bureau Veritas rules requiring Grade A–E or Grade A36–A131 structural steel with CVN toughness at –20 °F to –40 °F. The H4 diffusible hydrogen classification satisfies most class society requirements for preheat reduction on higher-strength steels.
- Bridge Fabrication and Structural Steel: ASTM A572 Grade 50 and A709 Grade 50W weathering steel bridges in northern climate zones where AASHTO impact test zone requirements mandate CVN at –40 °F for fracture critical members (FCM).
- Pressure Vessel and Boiler Fabrication: ASME Section VIII Div. 1 and Div. 2 pressure vessel shells in ASTM A516 Grade 70 carbon-manganese steel for low-temperature service, where UG-84 Charpy impact testing requirements at –40 °F require a low-hydrogen, high-toughness filler metal.
- Military and Defense Fabrication: HY-80 and HY-100 compatible applications where hydrogen control (H4) and low-temperature toughness are specified in the welding procedure qualification.
- Required shielding gas: 75–85% Ar / 15–25% CO₂. This is the "M" gas designation in the AWS classification — using 100% CO₂ (C1) with this wire disqualifies the T1-M classification and will likely produce a less-smooth arc with more spatter, but the wire remains functional for less-critical work if pre-qualified.
- Flow rate: 35–50 CFH. The Ar-rich blend requires adequate shielding to maintain CO₂ concentration uniformity at the arc — insufficient flow causes fluctuating arc characteristics.
-
Preheat per AWS D1.1:
- Material to 3/4 in (19 mm): 50 °F (10 °C) minimum (hydrogen control from H4 reduces preheat requirement)
- 3/4–1-1/2 in (19–38 mm): 150 °F (66 °C)
- Over 1-1/2 in (38 mm): 225 °F (107 °C)
- Maximum interpass temperature: 450 °F (232 °C) for HSLA steels; 350 °F (177 °C) for quenched-and-tempered grades.
- Flat/Horizontal (1F, 2F, 1G, 2G): 26–30 V / WFS 280–380 ipm
- Vertical-Up (3G, 3F): 24–26 V / WFS 200–250 ipm. Use a triangular weave pattern, pausing briefly at each toe to ensure fusion before advancing upward.
- Overhead (4G, 4F): 23–26 V / WFS 180–230 ipm. Use short stringer beads in the overhead position.
- CTWD: 3/4–1-1/4 in (19–32 mm)
- UltraCore 81Ni1A75-H is an H4-classified low-hydrogen wire — storage conditions directly affect the diffusible hydrogen level in the weld deposit. Store in original moisture-barrier packaging with desiccant. Do not store in areas with humidity above 60% RH or temperatures that cycle through dew point.
- Once opened, use within 8 hours of exposure in normal shop conditions (below 70% RH). If the opened spool is not used within 8 hours, reseal in the original bag with fresh desiccant or place in a holding oven at 100–250 °F (38–121 °C).
- Do not use wire from a package that has been wetted or exposed to rain. Re-baking of flux-cored wire to restore hydrogen classification is not recommended — discard and replace.
- Visually inspect the wire surface before use: clean, bright steel surface = acceptable; rusty, oxidized, or wet surface = discard and replace to maintain H4 integrity.
UltraCore 81Ni1A75-H requires a CV MIG/FCAW power source with adequate output for the 0.045 in diameter at the recommended parameters. Lincoln Electric platforms:
- Lincoln Power Wave S350 and S500 (waveform-controlled output for smooth FCAW)
- Lincoln Power Wave R350 and R450 (robotic welding cells)
- Lincoln Invertec V350-Pro and V450-Pro
- Lincoln Power MIG 256 and 350MP
- Lincoln Idealarc CV-400
Primary base metals:
- API 2H Grade 50 and 60 offshore structural steel
- API 5L Grade X52–X65 pipeline steel
- ASTM A572 Grade 50 HSLA structural steel
- ASTM A516 Grade 70 pressure vessel steel
- ASTM A709 Grade 50/50W weathering bridge steel
- ASTM A633 Grade C/D normalized HSLA structural steel
Q1: What does the H4 hydrogen designation mean for UltraCore 81Ni1A75-H?
A: The H4 designation means the wire produces a maximum of 4 mL of diffusible hydrogen per 100 g of deposited weld metal when tested per AWS A4.3. This is the most stringent hydrogen classification available in the FCAW-G category (H16, H8, H4 in descending order of hydrogen). H4 filler metals allow reduced preheat temperatures on higher-strength and thicker steels compared to H8 or H16 products, because lower hydrogen in the deposit reduces the risk of hydrogen-induced cracking (cold cracking) in the weld and HAZ.
Q2: Can UltraCore 81Ni1A75-H be used with 100% CO₂ shielding gas?
A: The wire is classified for Ar/CO₂ mixed gas (M designation). Using 100% CO₂ will change the arc characteristics (more spray unstable, higher spatter) and technically disqualifies the T1-M classification. For most structural applications, 100% CO₂ produces an acceptable if slightly less smooth deposit, but the welder should confirm this substitution is acceptable to the applicable welding procedure specification and code before using it on code work.
Q3: Why is nickel added to E81T1 flux-cored wire?
A: Nickel lowers the ductile-to-brittle transition temperature of the weld metal, allowing the deposit to absorb impact energy (measured by Charpy V-notch test) at temperatures well below 0 °F. Without nickel, an 80 ksi-class carbon steel deposit typically meets CVN requirements only down to –20 °F. The ~1% nickel addition shifts the transition temperature to approximately –40 °F, satisfying the "J" toughness designation requirement in AWS A5.29.
Q4: What is the maximum heat input allowed for UltraCore 81Ni1A75-H on HSLA steel?
A: For API 2H Grade 50 offshore structural steel, most WPS specifications limit heat input to 65–80 kJ/in (25–31 kJ/cm) per pass to maintain adequate HAZ toughness per API RP 2A Section 10. Heat input = (V × A × 60) / (travel speed in ipm). For A572 Grade 50 bridges under AASHTO, heat input limits vary by member type — consult the applicable project specification. Exceeding heat input limits on HSLA steels causes grain coarsening in the HAZ and degraded CVN impact values, even with nickel-bearing filler metal.
Q5: Does the 1% nickel in this wire make it usable for chrome-moly (P5, P11) steel?
A: No — E81T1-Ni1M-JH4 is designed for carbon and HSLA steel (P1 and P2 groups). For chrome-moly steels (P5 = 5Cr-0.5Mo, P11 = 1.25Cr-0.5Mo, P22 = 2.25Cr-1Mo), use chromium-molybdenum classified FCAW wire (E91T1-B3M for P22, etc.). Applying 81Ni1 wire on chrome-moly creates a compositional mismatch that will fail creep service at elevated temperature.
Q6: How does UltraCore 81Ni1A75-H compare to Lincoln Pipeliner 81Ni1 electrode for pipeline work?
A: They target the same application niche (pipeline root/fill at 80 ksi with Ni1 toughness) but are different processes. UltraCore 81Ni1A75-H is FCAW-G (flux-cored, gas-shielded) — used in semi-automatic or automatic mechanized welding. Lincoln Pipeliner 81Ni1 is SMAW (stick) — the standard for manual open-air pipeline field welding where running external shielding gas is impractical. In pipe shops with controlled environments, FCAW-G provides higher deposition rates and lower hydrogen than SMAW, making UltraCore the preferred choice for spool fabrication.
Q7: How should UltraCore 81Ni1A75-H wire be stored to maintain H4 classification?
A: Keep in original sealed moisture-barrier bag with desiccant until immediately before use. Once opened, use within 8 hours in ambient conditions. Do not leave on the wire feeder overnight — reseal or store in a holding oven at 100–250 °F (38–121 °C). Never use wire from wetted packages. If in doubt about wire condition, the wire will retain H4 status only if it has been kept consistently dry in accordance with Lincoln Electric storage guidelines published on the package.
