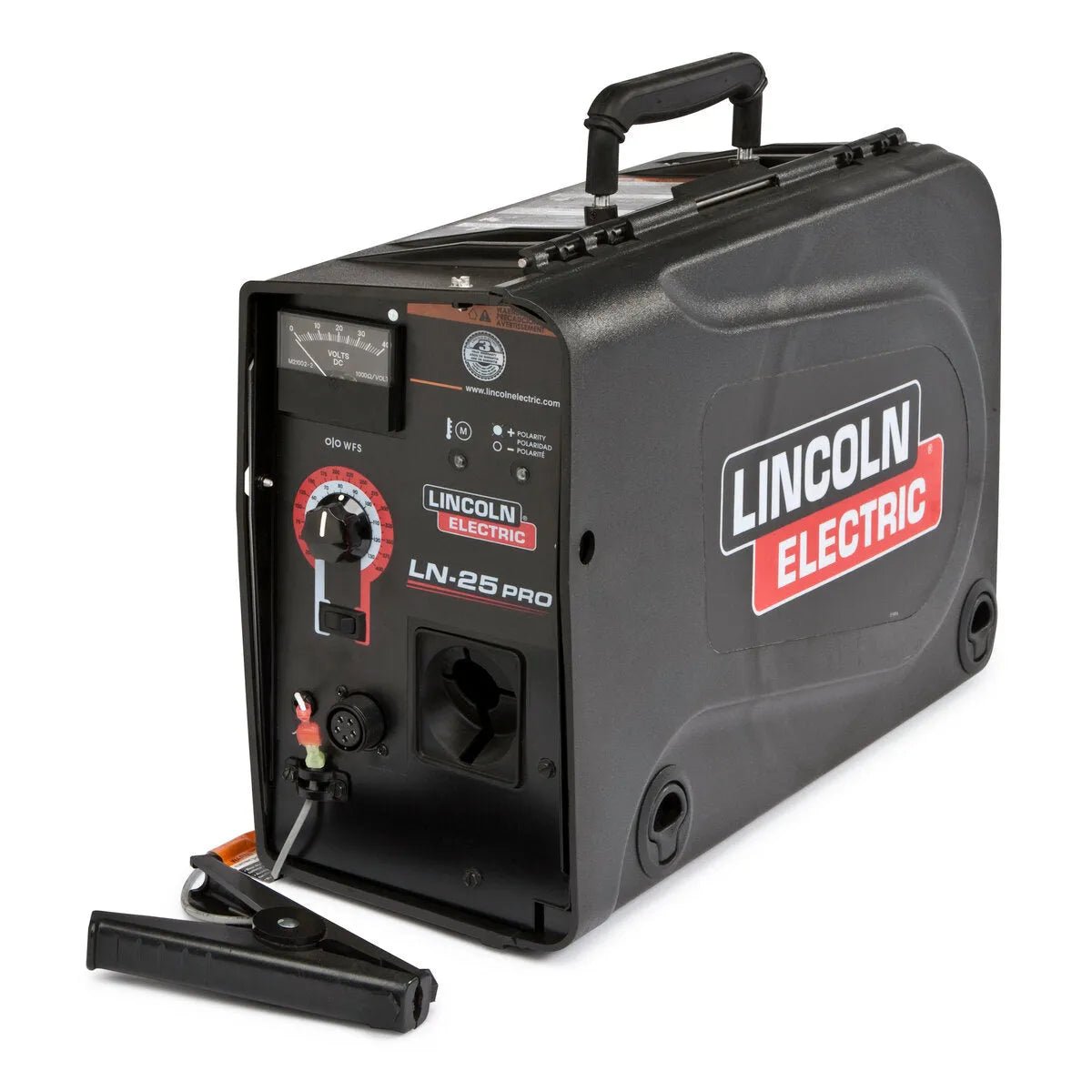

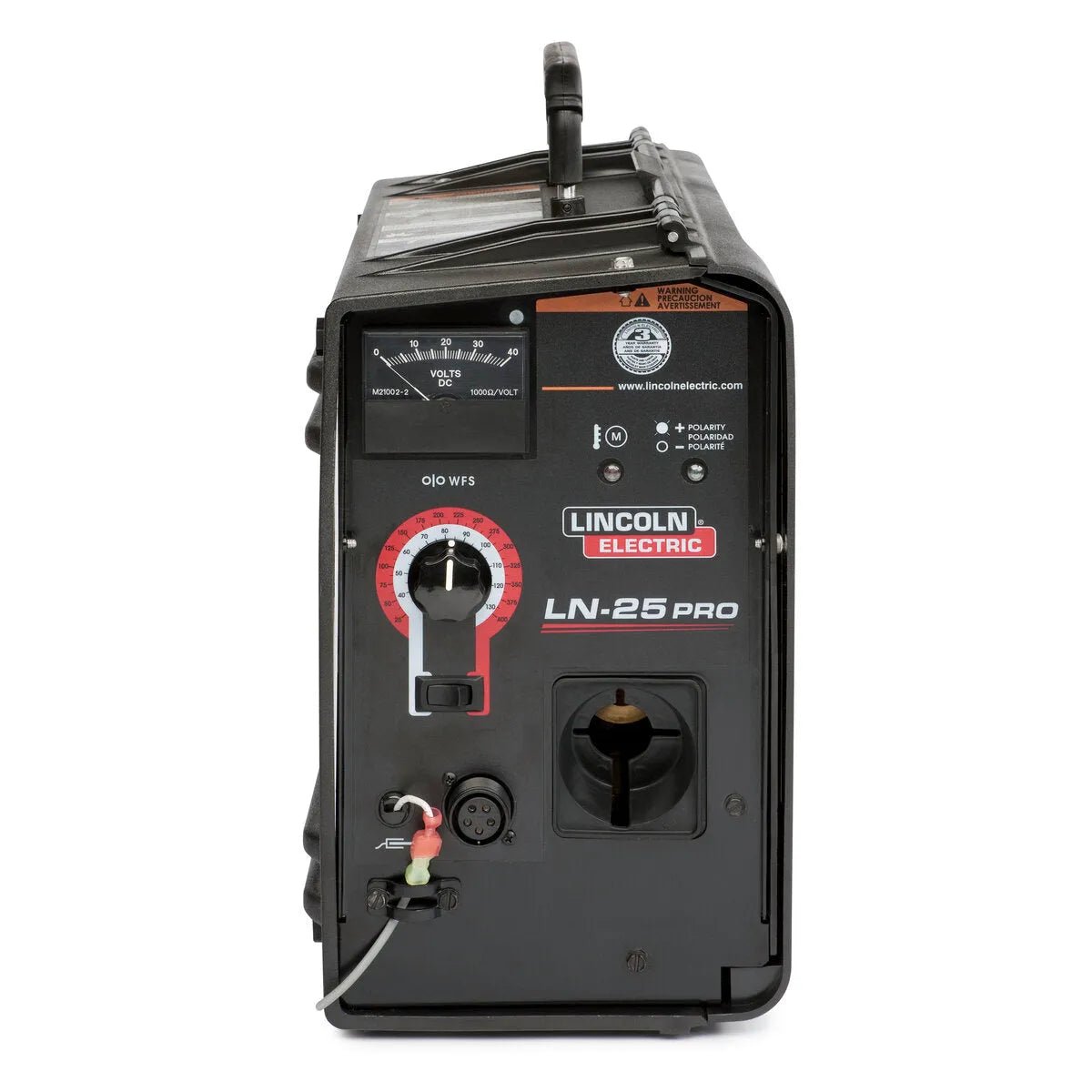

The Lincoln LN-25 PRO Standard Wire Feeder (K2613-5) is a heavy-duty portable industrial wire feeder that accepts spools up to 45 lb, feeds wire diameters from .023 in. to 1/16 in., and operates across-the-arc on any CV power source delivering 15–110 V DC — no separate control cable required. It pairs with the Lincoln Flextec, Ranger, Vantage, CV, and Idealarc welder families, making it one of the most versatile suitcase feeders on the jobsite.
| Specification | Detail |
|---|---|
| Model | LN-25 PRO Standard Wire Feeder |
| Part Number | K2613-5 |
| Spool Capacity | Up to 45 lb (20.4 kg), 12 in. (305 mm) diameter |
| Wire Diameter Range | .023–1/16 in. (0.6–1.6 mm) solid steel and stainless; .030–5/64 in. (0.8–2.0 mm) cored; .035–1/16 in. (0.9–1.6 mm) aluminum |
| Voltage Source | Across-the-arc CV power source; 15–110 V DC at studs (no control cable required) |
| Drive Roll Type | 2-roll Maxtrac™ heavy-duty cast aluminum wire drive system |
| Compatible Welder Series | Lincoln Flextec, Ranger Engine Drive, Vantage Engine Drive, CV Family, Idealarc Family |
| Cable / Reach | Arc sensing lead & clip: 15 ft (4.5 m); max FCAW gun: 15 ft; max GMAW gun: 25 ft |
| Duty Cycle | 450 A / 60%; 325 A / 100% |
| Wire Feed Speed | 50–700 in./min (1.3–17.7 m/min) |
| Welding Processes | MIG (GMAW), Flux-Cored Gas-Shielded (FCAW-G), Flux-Cored Self-Shielded (FCAW-S) |
| Weight | 37 lb (16 kg) |
| Dimensions (H × W × L) | 15 × 8.7 × 23.2 in. (381 × 221 × 589 mm) |
The LN-25 PRO is Lincoln Electric's flagship portable wire feeder for heavy industrial and field welding. Its across-the-arc power design means no separate control cable is needed — the feeder draws power directly from the welding arc, giving crews maximum portability without tethering to a control box.
- Structural fabrication and field erection: The rugged, flame-resistant case and 45 lb spool capacity keep ironworkers productive without frequent spool changes on large structural weldments.
- Pipeline and heavy construction: The dual-range wire feed speed delivers precise low-end control for root passes and fill passes on pipe, while the 450 A / 60% duty cycle handles sustained heavy deposition rates.
- Shipbuilding: Compatibility with a wide wire diameter range — from .023 in. solid steel up to 3/32 in. cored wire — lets shipyard crews run multiple wire products from a single feeder.
- Engine drive generator applications: Pairs directly with Ranger and Vantage engine-driven welders for remote pipeline or infrastructure work where utility power is unavailable.
- General and heavy fabrication shops: When paired with a CV power source such as the Flextec or Idealarc, the LN-25 PRO functions as a dependable benchtop or cart-mounted feeder for production MIG and flux-cored work.
The LN-25 PRO Standard (K2613-5) is an across-the-arc feeder powered entirely by the welding arc voltage — any machine that delivers 15–110 V DC at the output studs can drive it. Lincoln Electric's recommended power source families include:
- Flextec Family — multi-process CV/CC power sources ideal for pairing with the LN-25 PRO in fabrication shop environments.
- Ranger Engine Drive Welders — portable engine-driven generators for remote field use.
- Vantage Engine Driven Welders — heavy-duty engine drives for pipeline and structural work.
- CV Family (Classic CV, Idealarc CV) — traditional constant-voltage power sources used in shops and light industrial applications.
- Idealarc Family — Lincoln's long-running CV/AC transformer-rectifier line, compatible across the full voltage range.
Because no control cable is needed, the LN-25 PRO works with any compliant third-party CV power source as well, provided it supplies 15–110 V DC at the studs. Browse compatible wire feed welders and power sources to find the right match for your application.
