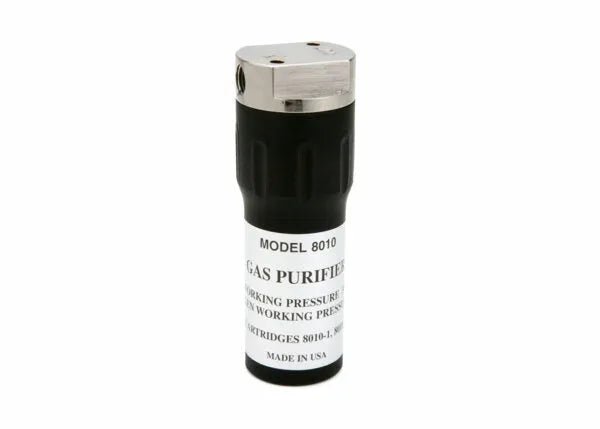

Harris Model 8010 Gas Purifier - 4302792
Model 8010 gas purifier protects the gas system from contamination of oil and water found in some industrial gases and occasionally in specialty carrier gases. The small daily operating costs more than justify the prevention of a system shut-down and the subsequent cleaning and/or repair costs. The Model 8010 purifier shell must be used with a specially designed replaceable cartridge.
Features
- Aluminum anodized body
- Chrome plated solid brass head
- Buna N seal
- 2000 PSIG (500 PSIG for oxygen) maximum operating pressure
- 40◦F to 165◦F (4ºC to 74°C) operating temperature range
- 100◦F (38◦C) dew point achievable
- 1/4" FNPT inlet and outlet ports
- 2" diameter x 5 3/4" long
- Weight with cartridge is 1.5 lbs.
