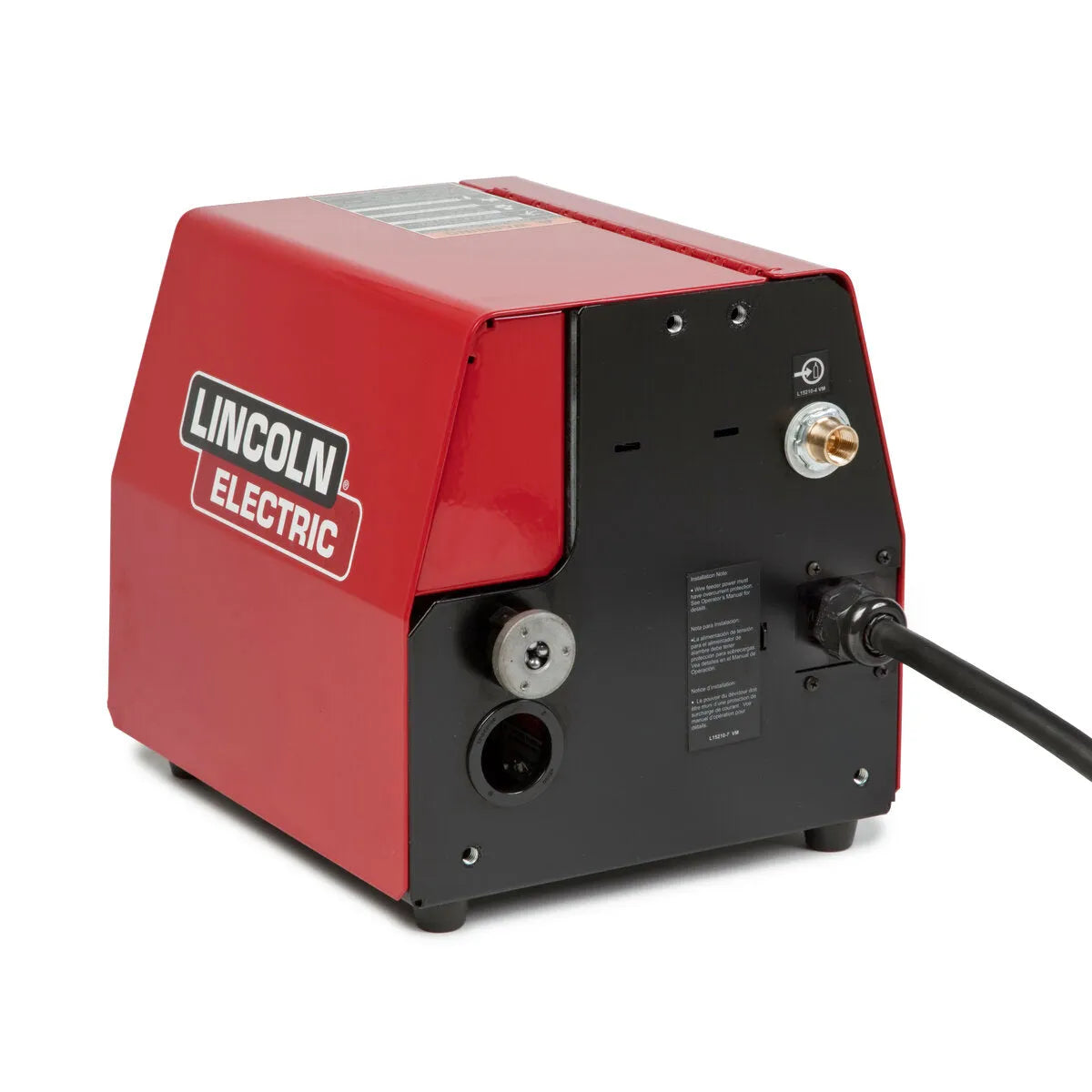

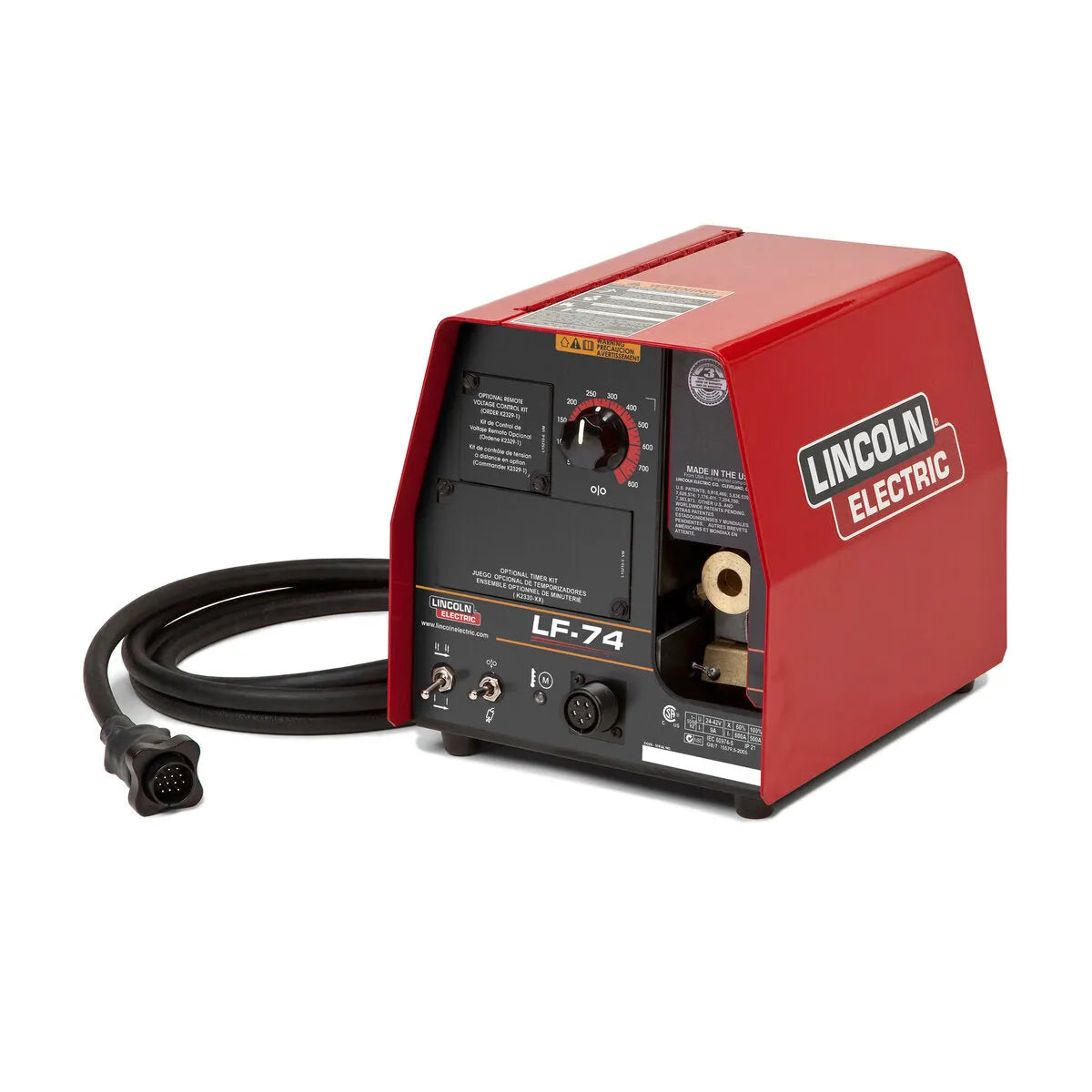

The Lincoln Electric LF-74 Wire Feeder Base Model (K2426-4) is a 4-roll heavy-duty semiautomatic wire feeder built for MIG (GMAW) and flux-cored (FCAW) welding in job shop and production manufacturing environments. The LF-74 features Lincoln's patented MAXTRAC heavy-duty cast aluminum drive system, brass-to-brass gun connections for low-resistance electrical conductivity, and fully tool-less drive roll and wire guide installation. The base model configuration provides straightforward, operator-friendly controls suited for single-operator bench or boom setups where digital network features are not required.
| Parameter | Value |
|---|---|
| Model / SKU | LF-74 Wire Feeder, Base Model / K2426-4 |
| Drive Roll Configuration | 4-roll MAXTRAC heavy-duty cast aluminum |
| Wire Diameter Range (Solid) | 0.025–3/32 in. (0.6–2.4 mm) |
| Wire Diameter Range (Cored) | 0.030–3/32 in. (0.8–2.4 mm) |
| Wire Feed Speed Range | 50–780 IPM (1.3–19.8 m/min) |
| Gun Connection | Brass-to-brass for maximum electrical conductivity |
| Drive Roll Installation | Tool-less; gear-driven rolls slide on/off |
| Wire Guide Installation | Tool-less |

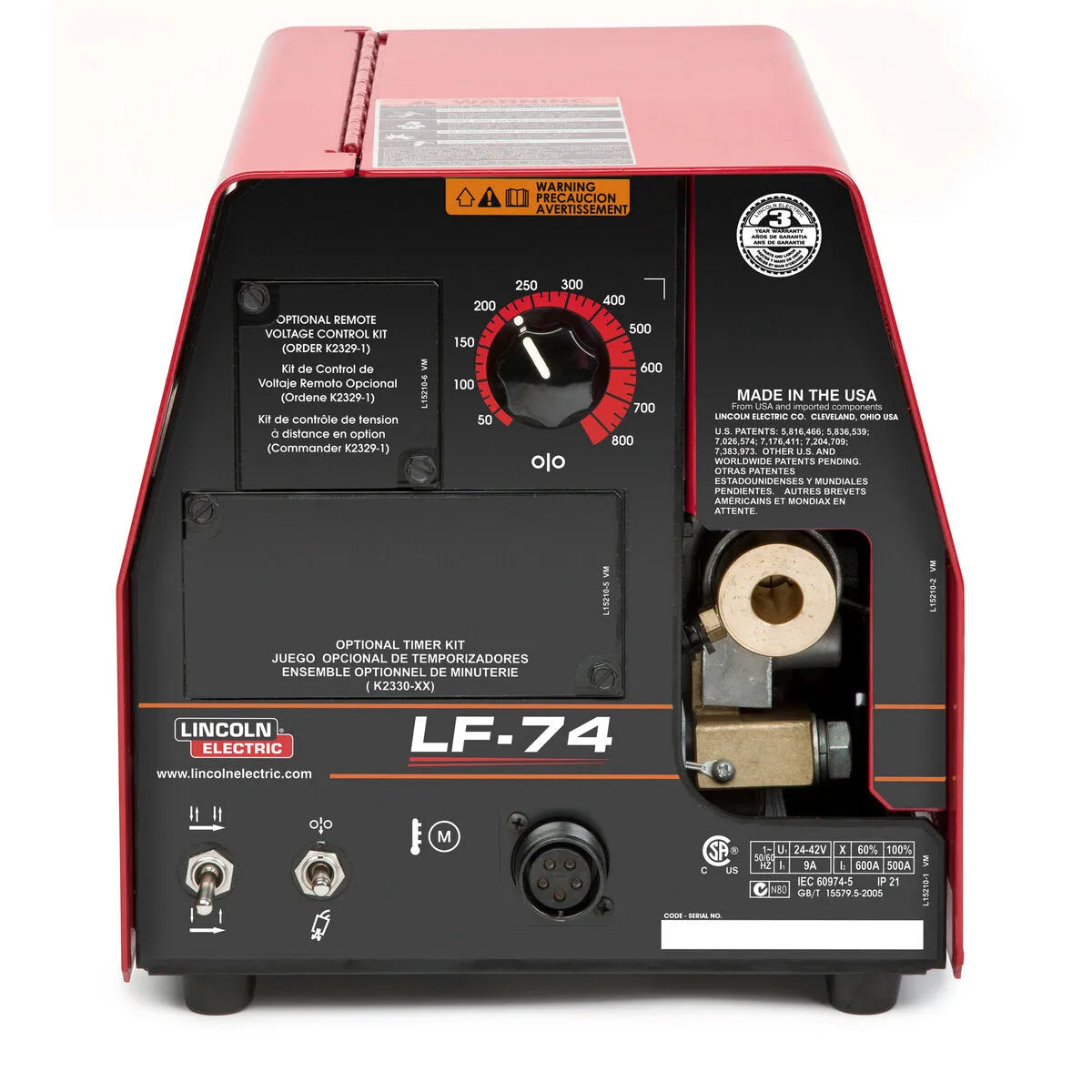

| Wire Feed Speed Control | Calibrated dial for precise settings |
| Wire Spool Capacity | Up to 44 lb (20 kg) spools |
| Compatible Power Sources | FLEXTEC 450/500, Power Wave 455M/S500, Idealarc CV series, most analog CV sources |
| Configuration | Base model — no digital U/I; suitable for bench or boom mounting |
The LF-74 K2426-4 serves job shops and production fabricators that need a reliable, high-volume wire feeder without complex digital controls:
- Job shop fabrication — All-day MIG and FCAW operation on mild steel, stainless, and aluminum with fast, tool-less drive roll swaps between material changes.
- Structural and heavy plate fabrication — Handles cored wire up to 3/32 in. for fillet and groove welds on structural members and plate work.
- Manufacturing and production lines — Calibrated wire feed speed dial and 4-roll drive ensure consistent feed rate through long production runs.
- Maintenance and repair operations (MRO) — Tool-less wire guide and drive roll installation minimizes changeover time between jobs or material types.
- Pipeline fabrication support — LF-74 handles FCAW-S and FCAW-G wire sizes used in downhill and uphill pipe welding on small to medium pipeline projects.
The LF-74 K2426-4 delivers reliable performance through proven mechanical design rather than electronic complexity:
- Patented MAXTRAC 4-Roll Drive — Heavy-duty cast aluminum drive housing accepts four drive rolls that contact the wire at four points, providing even grip and reliable feeding on smooth wire, knurled wire, and flux-cored constructions without bird-nesting or slipping.
- Gear-Driven Drive Rolls — Drive rolls are gear-indexed to the motor shaft rather than friction-coupled, preventing slip under back-pressure from tight conduit or long gun liners.
- Brass-to-Brass Gun Connection — The gun receptacle and gun neck use matched brass contact surfaces for minimal electrical resistance at the gun connection point, contributing to stable arc starts and reduced spatter.
- Tool-Less Drive Roll and Wire Guide Installation — Drive rolls release with finger pressure on the locking levers; wire guides pull out without tools. Material changeovers that required a wrench on older feeders are now under 60 seconds.
- Calibrated Wire Feed Speed Dial — The feed speed control is marked in IPM, enabling operators to return to documented WPS parameters precisely without trial-and-error adjustment.
- Large Spool Capacity — The spool hub accommodates standard production spools up to 44 lb, reducing spool change frequency on high-volume runs.
The LF-74 K2426-4 is an analog feeder compatible with a wide range of CV (constant-voltage) power sources:
- Lincoln 4-Pack Rack FLEXTEC 450 (K2956-2) — Direct bench feeder companion for FLEXTEC multi-operator rack systems.
- Lincoln LF-74 Bench Model, Heavy Duty (K2426-5) — Heavy-duty bench variant for permanent installation; compare for bench-mount applications.
- Lincoln Idealarc CV-305 and CV-400 — Classic analog CV power sources fully compatible with LF-74 analog control interface.
- Magnum PRO and Magnum 300/400 guns — Lincoln-rated gun families compatible with the LF-74 brass gun connection.
Browse the complete Lincoln wire feeder and welding equipment lineup at WeldingMart.
What is the difference between the LF-74 Base Model (K2426-4) and the Heavy Duty Bench Model (K2426-5)?
The K2426-4 base model is designed for general bench and boom applications with standard mounting hardware. The K2426-5 heavy-duty bench model adds reinforced mounting provisions and heavier-duty construction intended for permanent high-cycle bench installations. Both share the same MAXTRAC drive system and wire capacity.
Is the LF-74 K2426-4 compatible with digital ArcLink power sources?
The LF-74 is an analog wire feeder and communicates via conventional voltage/wire-speed analog signals. It does not support ArcLink digital protocol. For full digital communication with Power Wave power sources, consider the Power Feed 84 family instead.
How do I change drive rolls on the LF-74?
The LF-74 uses tool-less gear-driven drive rolls. Release the pressure arm, slide the rolls off the gear shaft with finger pressure, and snap replacement rolls onto the shaft — no wrenches needed. The entire process takes under one minute with practice.
What is the maximum wire spool size the LF-74 K2426-4 accepts?
The LF-74 accepts wire spools up to 44 lb (20 kg) on its spool hub, covering standard production reels of MIG wire and flux-cored wire commonly used in job shop environments.
What cored wire diameter does the LF-74 handle?
The LF-74 K2426-4 feeds flux-cored wire from 0.030 to 3/32 in. (0.8–2.4 mm). The 4-roll MAXTRAC system provides sufficient drive force for the larger cored wire diameters used in structural FCAW without slipping or bird-nesting.
Is the LF-74 suitable for aluminum wire?
With appropriate U-groove aluminum drive rolls and a push-pull or Spool-On gun for aluminum alloys, the LF-74 can feed aluminum wire. For dedicated aluminum wire feeding applications, verify drive roll groove profile and liner material compatibility with the wire diameter being used.
