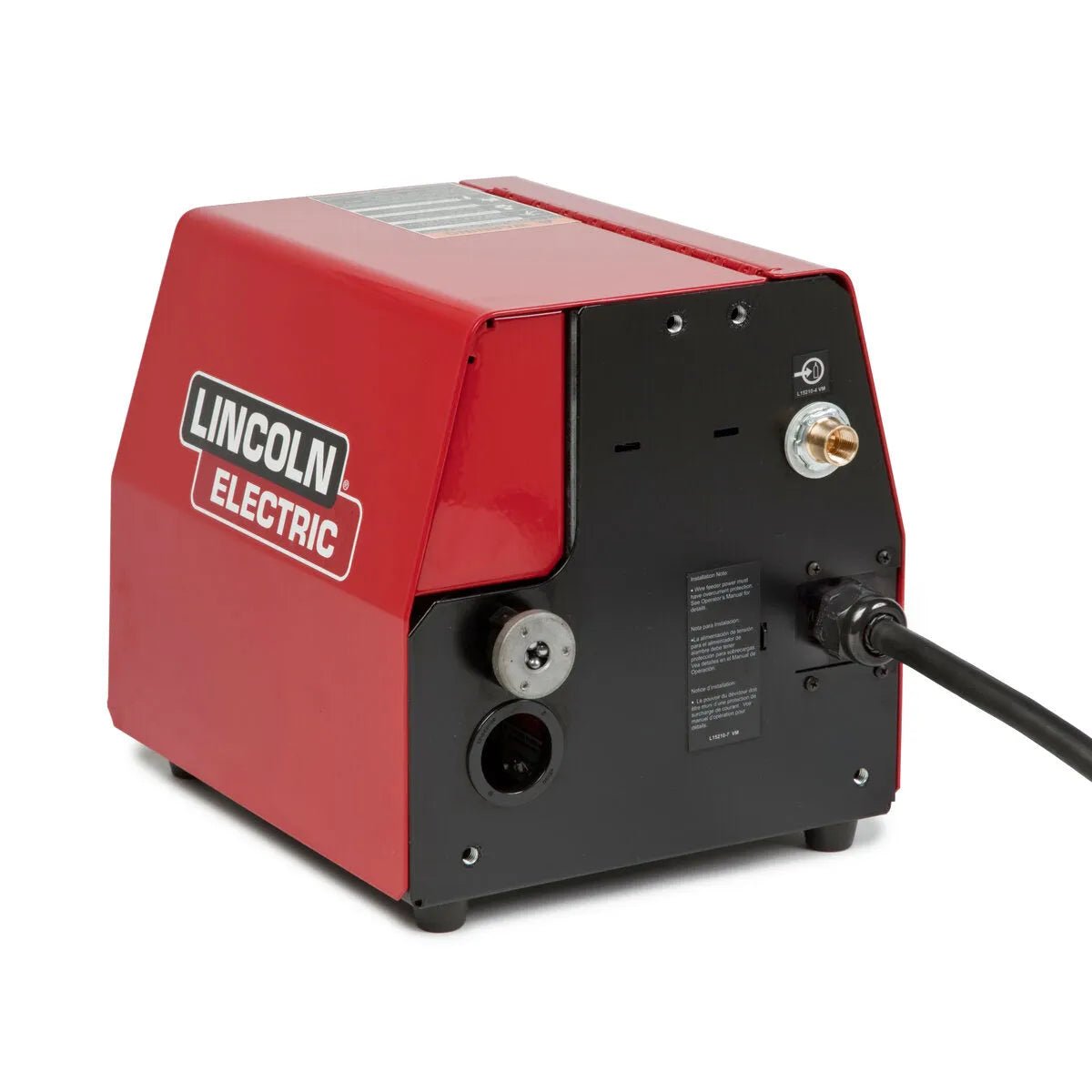

The Lincoln Electric LF-74 Wire Feeder Bench Model, Heavy Duty (K2426-5) is a permanently-mounted, 4-roll semiautomatic wire feeder engineered for high-cycle MIG (GMAW) and flux-cored (FCAW) production welding in manufacturing and job shop bench environments. Building on the same MAXTRAC heavy-duty cast aluminum drive platform as the standard LF-74, the heavy-duty bench model adds reinforced mounting provisions and construction designed to withstand the rigors of continuous, high-throughput production use. Brass-to-brass gun connections and tool-less drive roll installation are standard across the LF-74 family.
| Parameter | Value |
|---|---|
| Model / SKU | LF-74 Wire Feeder, Bench Model, Heavy Duty / K2426-5 |
| Drive Roll Configuration | 4-roll MAXTRAC heavy-duty cast aluminum |
| Wire Diameter Range (Solid) | 0.025–3/32 in. (0.6–2.4 mm) |
| Wire Diameter Range (Cored) | 0.030–3/32 in. (0.8–2.4 mm) |
| Wire Feed Speed Range | 50–780 IPM (1.3–19.8 m/min) |
| Gun Connection | Brass-to-brass |
| Drive Roll Installation | Tool-less; gear-driven rolls slide on/off |
| Wire Guide Installation | Tool-less |
| Wire Feed Speed Control | Calibrated dial |

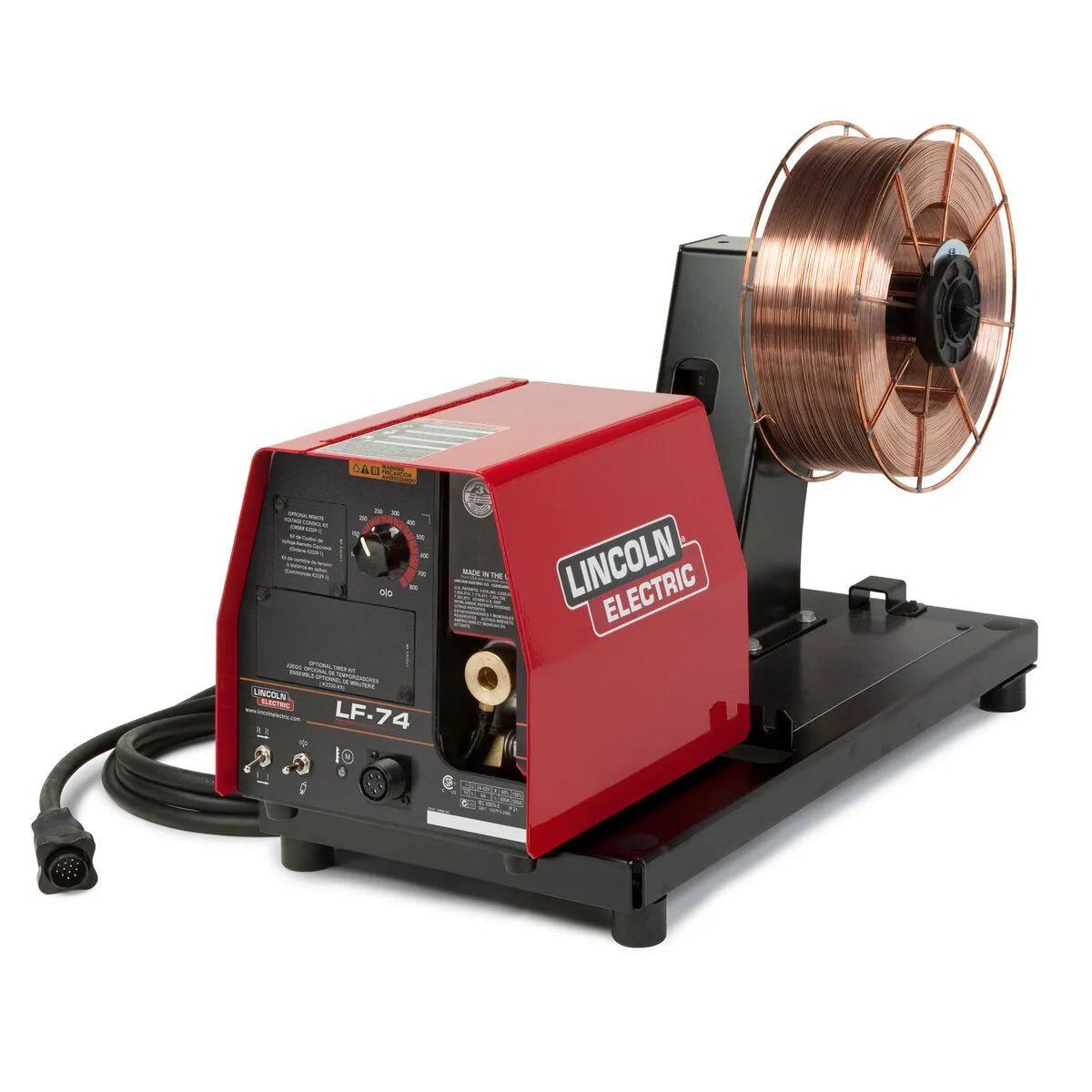

| Mounting | Heavy-duty bench mount with reinforced provisions |
| Wire Spool Capacity | Up to 44 lb (20 kg) spools |
| Compatible Power Sources | FLEXTEC 450/500, Power Wave 455M/S500, Idealarc CV series, analog CV sources |
The LF-74 K2426-5 is the right choice when the feeder will remain in a fixed bench position through long production runs:
- Production manufacturing and fabrication lines — Fixed bench welding stations benefit from the heavy-duty mounting provisions and continuous-duty construction for shift-long operation.
- Structural steel fabrication — Handles 3/32 in. FCAW wire on large fillet and groove welds on beam lines and plate work without drive roll slippage.
- Stainless and specialty alloy fabrication — Tool-less drive roll swaps enable fast transition between mild steel and stainless drive roll sets without service calls.
- Pressure vessel and tank fabrication — Consistent calibrated feed speed dial supports WPS compliance on code-governed pressure vessel welds.
- Automotive and tier-one suppliers — High-cycle bench welding on fixtures; gear-driven rolls maintain consistent feed rate through high part count runs.
The K2426-5 adds heavy-duty bench installation capability to the proven LF-74 platform:
- Patented 4-Drive-Roll MAXTRAC System — Heavy-duty cast aluminum drive housing with 4 drive rolls delivers positive wire grip on both smooth solid wire and serrated flux-cored constructions. Four-point contact significantly reduces the likelihood of wire deformation or slippage on heavy cored wire.
- Heavy-Duty Bench Mount — Reinforced mounting provisions allow the feeder to be bolted securely to a production bench or fixture without flex or vibration from the drive motor, which can affect feed consistency in high-cycle applications.
- Gear-Driven Drive Rolls — Rolls are gear-coupled to the motor shaft, not friction-slip coupled, so wire feed speed remains accurate under varying back-pressure conditions from conduit bends or long gun liners.
- Brass-to-Brass Gun Connection — Matched brass contact surfaces at the gun receptacle minimize connection resistance, supporting stable arc performance across long production runs on bench-mounted welding stations.
- Tool-Less Drive Roll and Wire Guide Installation — Identical tool-less convenience as the base model: release, slide, snap — no tools, under 60 seconds per changeover.

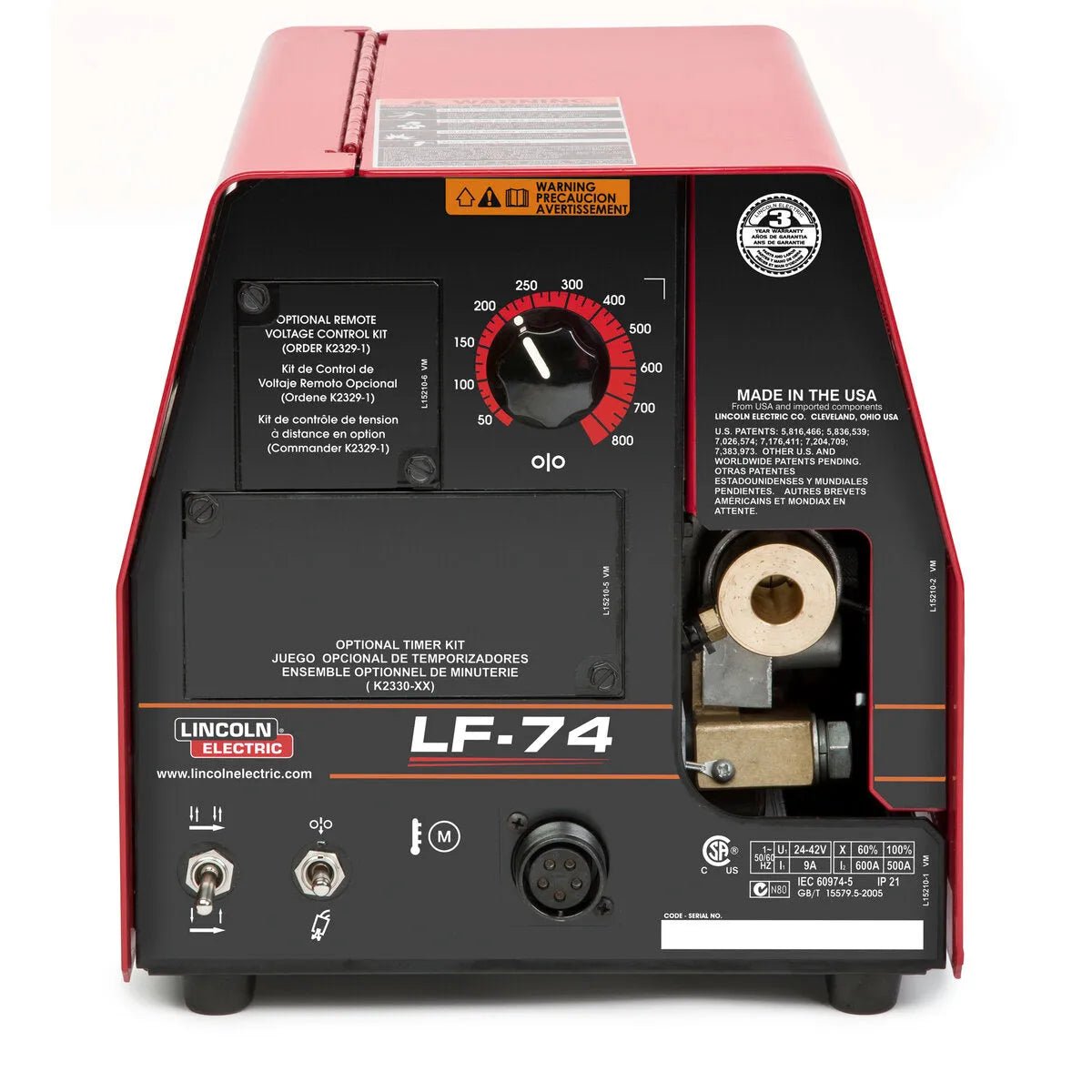

- Calibrated Wire Feed Speed Dial — IPM-marked speed control supports return to qualified procedure parameters after material changes without re-qualification.
The LF-74 K2426-5 operates with the same power source compatibility as the base model:
- Lincoln LF-74 Base Model (K2426-4) — Standard mounting variant; compare for mobile or boom applications where heavy-duty bench provisions are not required.
- Lincoln 4-Pack Rack FLEXTEC 450 (K2956-2) — Multi-operator rack power source compatible with LF-74 bench feeders.
- Lincoln Idealarc CV-305 and CV-400 — Classic analog CV power sources fully compatible with LF-74 analog interface.
- Magnum PRO 300 and Magnum PRO 400 guns — Rated for continuous bench production at 300–400 A duty cycles; compatible with LF-74 brass gun connector.
See the full Lincoln LF-74 family and welding accessories at WeldingMart.
How does the LF-74 Heavy Duty Bench Model (K2426-5) differ from the Base Model (K2426-4)?
The K2426-5 adds heavy-duty reinforced bench mounting provisions compared to the standard K2426-4 base model. Both share the same MAXTRAC 4-roll drive, tool-less drive roll system, brass-to-brass gun connection, and 44 lb spool capacity. The K2426-5 is specified for permanent, fixed bench installations subject to continuous high-cycle production use.
Is the LF-74 K2426-5 compatible with digital Power Wave power sources?
The LF-74 is an analog wire feeder using conventional voltage and wire-speed analog control signals. It does not support ArcLink digital communication. For digital integration with Power Wave 455M or S500 power sources, the Power Feed 84 family is the appropriate feeder choice.
What drive roll types are available for the LF-74?
Lincoln offers a full range of drive rolls for the LF-74 MAXTRAC system including V-groove rolls for solid wire, knurled V-groove rolls for flux-cored wire, and U-groove rolls for aluminum wire. Drive rolls are designated by wire diameter and groove type and are available as part of Lincoln's consumable accessories program.
What is the maximum feed speed of the LF-74?
The LF-74 feeds wire at up to 780 IPM (19.8 m/min), which covers the full speed range required for high-deposition FCAW-G and high-speed thin-gauge GMAW applications.
Can the LF-74 bench model be used with a push-pull gun for aluminum?
The LF-74 is a push-only feeder and does not natively support push-pull gun operation. For aluminum welding requiring push-pull capability, a feeder platform with push-pull motor control output is recommended. The LF-74 can feed aluminum with a standard U-groove drive roll and Teflon-lined gun liner in shorter gun lengths.
