MIG Welding Nozzles

Lincoln Electric MIG Welding Nozzles for Magnum PRO Guns

MIG welding nozzles direct shielding gas around the weld puddle and protect the contact tip from spatter. Every nozzle in this collection is a genuine Lincoln Electric Magnum PRO replacement part—built to fit the Magnum PRO 100L, 175L, 350A, 550A, and water-cooled robotic gun families. Choosing the right nozzle bore diameter, recess depth, and attachment style eliminates porosity, extends consumable life, and keeps your MIG gun running at rated amperage.

Nozzle Attachment Types: Thread-On vs. Slip-On

Magnum PRO nozzles ship in two attachment configurations. Thread-on nozzles (the KP2742-1, KP2743-1, KP3075-1, KP3160-1, KP3161-1, KP3359-1, KP3617-1, KP3583-1, and KP4523 series) thread directly onto the diffuser body. The positive thread lock reduces the chance of nozzle blow-off under high-amperage GMAW passes. Slip-on nozzles (the KP5130-2 series for 550A guns and KP2742-2 for 350A guns) friction-fit onto the diffuser without threading—preferred by fabricators who replace nozzles frequently mid-weld because they swap in seconds without tools. Both styles are available in single-pack and economical 25-pack quantities.

Bore Diameter and Recess Depth Explained

Nozzle inner diameter (ID) governs shielding gas coverage. Magnum PRO nozzles are catalogued in three standard bore sizes:

  • 3/8 in. (9.5 mm) ID — used on light-duty 100L/175L guns and tight-clearance applications
  • 1/2 in. (12.7 mm) ID — the most common size for 350A and 550A fabrication guns; excellent gas coverage for solid wire GMAW on mild and stainless steel
  • 5/8 in. (15.9 mm) ID — preferred for higher-heat passes, larger wire diameters, and flux-cored applications where extra gas envelope width reduces porosity risk
  • 3/4 in. (19.1 mm) ID — used on heavy-duty 550A guns for structural welding; maximizes shielding coverage on open-root and overhead passes

Recess depth refers to how far the contact tip sits inside the nozzle. A flush profile places the contact tip level with the nozzle end—maximizing wire visibility for short-circuit GMAW. A 1/8 in. recess shrouds the contact tip, reducing spatter accumulation on the tip face and improving tip life at spray-transfer amperages. A 1/8 in. stickout / standoff positions the tip slightly forward of the nozzle—useful on narrow-gap joints where the nozzle must travel close to a joint wall. Lincoln's Bottleneck geometry (KP3160, KP3161 series) adds a tapered front section that limits spatter entry and is popular in robotic and semi-automated cells.

Selecting by Gun Model and Amperage

Magnum PRO nozzles are gun-specific. Use the following guide to match nozzle series to your gun:

  • Magnum PRO 100L / 175L — KP3075-1 series (gas) and KP3084-1 (gasless/FCAW-S); 3/8 in. and 1/2 in. ID options

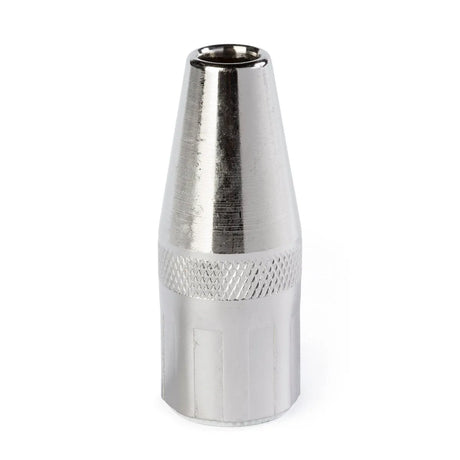

  • Magnum PRO 350A MIG Gun — KP2742-1 (thread-on), KP2742-2 (slip-on), KP3160-1 (bottleneck), KP3359-1 (extended reach), KP3617-1 (narrow gap); 3/8, 1/2, and 5/8 in. ID

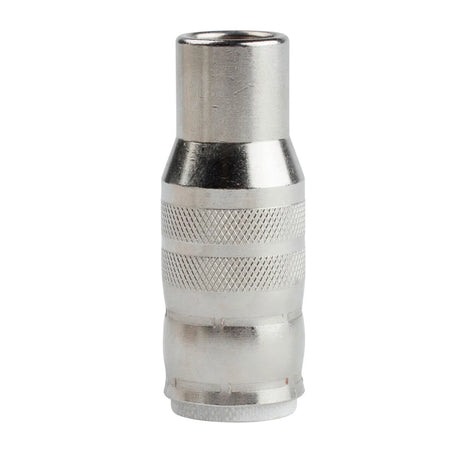

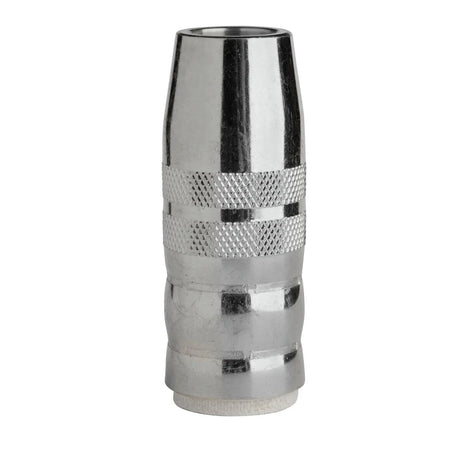

  • Magnum PRO 550A MIG Gun — KP2743-1 (thread-on), KP5130-2 (slip-on), KP3161-1 (bottleneck), KP3583-1 (heavy-duty front end), KP3582-1 (heavy-duty body); 3/8, 1/2, 5/8, and 3/4 in. ID
  • Magnum PRO Water-Cooled Guns — KP4523 series (standard water-cooled) and KP4120 series (robotic water-cooled); thread-on, 1/2, 5/8, and 3/4 in. ID
  • Magnum Gasless / FCAW-S — KP1939-1 (100A gasless) and KP3084-1 (100L/175L gasless) for flux-cored self-shielded wire where no shielding gas is used

If you are replacing a legacy KH835 nozzle, Lincoln Electric substitutes KP3075-1-50F as the current production equivalent.

Anti-Spatter Practice and Nozzle Service Life

Spatter accumulation is the primary cause of premature nozzle failure. Three practices extend service intervals:

  1. Anti-spatter compound — Apply a light coat of anti-spatter gel or spray to the nozzle interior before welding. Spatter beads up and falls free rather than bridging to form conductors between the nozzle and diffuser.
  2. Nozzle reaming — Clean the nozzle bore with a reamer or nozzle-cleaning station every 15–20 minutes of arc-on time in high-deposition applications. Do not use pliers or metal tools that deform the bore, narrowing gas flow.
  3. Proper stick-out — Maintaining the correct contact-tip-to-work distance (CTWD) per your procedure prevents the weld pool from flashing back into the nozzle. For solid wire short-circuit GMAW, target 3/8 in.–1/2 in. CTWD; for spray transfer, 5/8 in.–3/4 in.

Replace a nozzle when spatter bridges the bore by more than 50%, when the nozzle lip is visibly deformed, or when shielding gas flow becomes turbulent (indicated by porosity without a change in gas flow rate). Bulk 25-pack pricing on most KP2742 and KP2743 variants lowers the per-unit cost for high-volume production environments.

Brass vs. Copper Nozzle Construction

Lincoln Electric Magnum PRO nozzles are manufactured from copper or copper alloy (brass). Copper nozzles offer the highest thermal conductivity, dissipating heat quickly and resisting distortion at the nozzle lip during sustained high-amperage welding. Brass nozzles are slightly harder, which resists mechanical deformation from nozzle reaming and gun contact with fixturing. Both materials are compatible with standard anti-spatter compounds. For most 350A and 550A fabrication work the performance difference is negligible; the larger factor is selecting the correct bore diameter and recess depth for your specific joint geometry and transfer mode.

Ordering in Bulk: 25-Pack Options

The majority of Magnum PRO nozzle SKUs are available in 25-piece shop packs (identified by the -B25 suffix in the part number). The 25-pack unit price is lower than the single-pack equivalent and reduces receiving and inventory transactions in high-throughput shops. All B25 packs use the same part geometry as the single-pack version—there is no difference in dimension or material. Common bulk packs include KP2742-1-50F-B25, KP2742-1-62R-B25, KP2743-1-62F-B25, and KP2743-1-62R-B25 for the most frequently consumed 350A and 550A sizes.

— signed: SEO Silo-chat

Frequently Asked Questions

What size MIG nozzle do I need for my Lincoln Magnum PRO gun?

Match nozzle size to your gun's amperage rating and joint clearance. The Magnum PRO 350A gun uses 3/8, 1/2, or 5/8 in. ID nozzles (KP2742-1 series). The Magnum PRO 550A gun uses 3/8, 1/2, 5/8, or 3/4 in. ID nozzles (KP2743-1 and KP5130-2 series). The Magnum PRO 100L/175L uses 3/8 or 1/2 in. ID nozzles (KP3075-1 series). If your application is a tight joint or narrow-gap, choose a smaller bore for better access; for open flat or horizontal welds at high deposition rates, a larger bore improves gas coverage.
What is the difference between flush, recess, and stickout nozzle profiles?

The profile refers to contact-tip position inside the nozzle. A flush nozzle places the tip level with the nozzle end—best for short-circuit GMAW where you need maximum wire visibility. A 1/8 in. recess shrouds the tip inside the nozzle—reduces tip burn-back and spatter accumulation at spray-transfer amperages, extending tip life in production environments. A 1/8 in. stickout positions the tip slightly proud of the nozzle—useful when the nozzle must enter a narrow joint or when the joint configuration limits nozzle clearance.
How often should I replace my MIG welding nozzle?

Replace the nozzle when spatter bridges more than 50% of the bore diameter, when the nozzle lip is visibly distorted, or when porosity appears in the weld without any change in gas flow rate. In moderate-production shops (4–6 hours arc-on per day), a nozzle typically lasts 1–2 weeks. In high-deposition robotic or semi-automated cells, weekly or daily replacement is normal. Stocking 25-pack quantities (KP2742-1-50F-B25, KP2742-1-62R-B25, etc.) reduces per-unit cost and prevents production stoppages.
Should I use anti-spatter compound on my MIG nozzle?

Yes. Applying a light coat of anti-spatter gel or spray to the nozzle interior before welding causes spatter beads to release cleanly rather than adhering and bridging. This is particularly important above 200A (spray-transfer range) where spatter volume increases. Use anti-spatter compound rated for MIG welding—avoid petroleum-based lubricants that can contaminate the weld pool or cause porosity. Clean the nozzle with a reamer after every 15–20 minutes of arc-on time and reapply compound as needed.
What is the difference between a thread-on and slip-on MIG nozzle?

A thread-on nozzle screws onto the diffuser body—preferred where nozzle retention under vibration or high-amperage arc pressure is important (structural, overhead, and robotic applications). A slip-on nozzle friction-fits over the diffuser without threading—preferred in manual production welding where operators change nozzles frequently, because the swap takes seconds with no tool. Use thread-on (KP2742-1, KP2743-1) for long run times between changes; use slip-on (KP2742-2, KP5130-2) for rapid-change production environments.
Are Lincoln Magnum PRO nozzles compatible with older Magnum guns?

Magnum PRO nozzles (KP2742, KP2743, KP3075, KP5130 series) are designed specifically for the Magnum PRO gun family. They are not interchangeable with older Magnum 200 or Magnum 300 guns, which use different diffuser thread pitches and body diameters. If you are still running a legacy Magnum gun, check the gun part number on the handle label and cross-reference Lincoln Electric's consumable compatibility chart before ordering. The KH835 nozzle has been substituted by KP3075-1-50F for current production.
