Lincoln MIG Cable Liners for Every Gun Platform and Wire Diameter

The cable liner is the unsung workhorse of every MIG gun. Wire travels from the drive roll to the contact tip through a liner that spans the full length of the gun cable — typically 10, 15, or 25 feet. When that liner wears, kinks, or picks up contamination, wire feed becomes erratic, birdnesting becomes frequent, and arc stability collapses. Replacing the cable liner on a predictable maintenance schedule is one of the lowest-cost, highest-impact actions a shop can take to protect weld quality and reduce unplanned downtime.

WeldingMart stocks the complete Lincoln Electric cable liner catalog for Magnum and Magnum PRO gun platforms — from compact .023–.035 liners for light-gauge work to heavy 7/64–1/8 in liners for large-diameter flux-cored wire, and aluminum Teflon-style liners for 4043 and 5356 push-pull applications. Every liner ships same day on orders placed before 3 PM CT. Free freight on orders over $99.

Cable Liner Types and When to Use Each

Lincoln Electric manufactures cable liners across three primary construction families. Understanding the differences helps you select the right liner for your wire type, gun platform, and duty cycle.

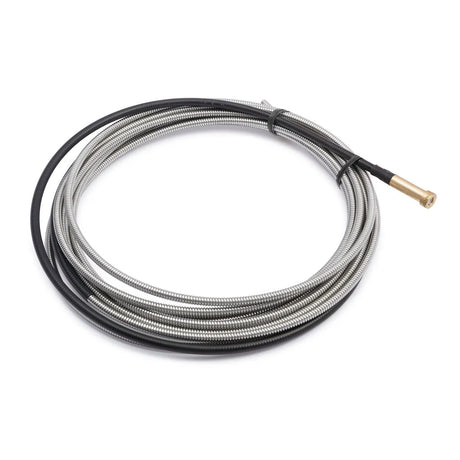

Steel Cable Liners (KP42, KP44, KP45 Series)

Steel liners are the standard choice for solid carbon steel wire (ER70S-6, ER70S-3) and most flux-cored wires (E71T-1, E71T-11). The KP44 and KP45 series are Lincoln's current-generation liners, featuring a tighter-tolerance helical coil that reduces drag and extends service life. The KP42 series covers legacy Magnum gun platforms and shares the same wire diameter ranges. Steel liners are identified by color — standard steel is silver-gray; the heavier-duty KP45H liners for large-diameter wire have a distinct profile.

Wire diameter ranges available: .023–.035 in, .025–.030 in, .030–.035 in, .035–.045 in, .052–1/16 in, 1/16–5/64 in, 5/64–3/32 in, and 7/64–1/8 in. Match the liner range to your actual wire diameter — a liner sized too large causes the wire to coil inside the gun and birdnest at the drive roll.

Aluminum Liners (KP44N, KP45N, KP1958, KP1959 Series)

Aluminum wire requires a Teflon or nylon inner tube liner because aluminum's softness causes it to gall against steel. Lincoln's aluminum liners feature a smooth Teflon inner tube inside a steel support coil. Aluminum liners are color-coded for identification: red designates 1/16 in aluminum liners (KP1958-4), while standard aluminum liners are white or natural Teflon color. These liners are required any time you run 4043 or 5356 aluminum wire — using a steel liner with aluminum wire causes rapid contamination, burnback incidents, and inconsistent arc starts.

Aluminum liner options available: .035 in (KP1959-1), .035–3/64 in (KP44N-3545-15, KP45N-3545-15), and 1/16 in (KP44N-116-15, KP45N-116-15).

Barrel Liners and Specialty Liners

Certain Magnum gun designs use a two-part liner system: a full-length cable liner runs to the gun body, and a short barrel liner covers the curved neck section. The Magnum 250LX uses a barrel liner (KP2521-1) that covers the .025–3/64 wire range. The KP2879-1 barrel liner covers 45° and 60° neck angles and accommodates .035–1/16 wire. The Magnum 100SG uses the KP2632-1 barrel liner. When replacing liners on guns with this two-part system, both sections must be replaced together for optimal wire feed performance.

Liner Length, Wire Diameter, and Compatibility Guide

Selecting the correct liner requires matching three variables simultaneously: gun cable length, wire diameter, and gun platform series. A common mistake is ordering a 15 ft liner for a 25 ft gun — the liner needs to extend 1–2 inches beyond the end of the cable to seat properly in the diffuser. Conversely, a liner that is too long causes a coil inside the gun body and creates drag.

Length Options Available

• 6 ft — Short liners for compact gun configurations and robotic welding cells (KP45-3545-6, KP42-3035-6)
• 10 ft — Available for select aluminum liner variants (KP44-116A-10, KP44N-116-15 cut to length)
• 15 ft — Standard length covering the majority of hand-held MIG gun applications
• 25 ft — Extended length for water-cooled guns, boom applications, and production cells with extended reach requirements

Gun Platform Compatibility

Lincoln Magnum and Magnum PRO guns share liner compatibility across most wire diameter ranges. The KP44 and KP45 series are interchangeable for most standard guns in the Magnum PRO 100L, 175L, 250L, 350A, and 550A platforms. The legacy KP42 liners cover guns like the Magnum 100, 200, and early 250L platforms. If your gun has a serial number and the original part number is worn off the gun tag, check the original documentation or use Lincoln's online parts lookup — confirm the cable length marked on the gun body before ordering.

Wire Diameter Selection Chart

When to Replace Your Cable Liner

Cable liners do not fail suddenly — they degrade gradually and the symptoms are easy to misdiagnose as wire feed motor problems, drive roll issues, or bad wire. Knowing when to pull and replace the liner saves troubleshooting time and prevents weld defects from going undetected.

Performance Symptoms That Indicate a Worn Liner

• Erratic arc starts — The wire hesitates or stutters leaving the contact tip, even with correct drive roll pressure and tension.
• Birdnesting at the drive roll — Wire bunches between the drive roll and the gun inlet guide. This is often the result of a kinked liner creating back-pressure that the drive roll can't overcome.
• Inconsistent wire feed speed — Measured wire speed at the tip varies even with constant WFS settings. Drag inside a worn liner creates intermittent slip.
• Burn-back incidents — The arc burns back into the contact tip. This can happen when wire feed speed drops momentarily due to liner drag, causing the arc to climb the wire.
• Spatter increase without other process changes — Contamination inside a steel liner (especially with aluminum wire) or spatter buildup at the diffuser end can transfer into the liner bore and create drag.

Scheduled Replacement Intervals

In production environments, replace cable liners on a fixed-interval schedule rather than waiting for symptoms. As a baseline: light-duty guns running solid wire at low amperage (under 150A) can go 3–6 months between liner changes; medium-duty guns running flux-cored at 200–300A should be inspected monthly and replaced every 1–3 months; heavy-duty continuous-run guns at 400A+ benefit from monthly liner inspection and replacement as often as every 4–8 weeks. Track liner replacements per gun as part of your preventive maintenance log. Consistent intervals eliminate variance in weld quality that comes from liners degraded at different rates across a multi-gun shop.

OEM Lincoln Liners vs. Aftermarket: Why the Difference Matters

Aftermarket cable liners are widely available at discount prices, and they appear dimensionally similar to OEM Lincoln liners at first inspection. The difference becomes apparent under sustained production conditions. Lincoln's tolerance specifications for liner inner diameter, helix pitch, and end-fitting geometry are tighter than aftermarket equivalents. A liner with a slightly undersized bore creates measurable drag that increases as wire speed increases — the effect is subtle at 150 ipm but becomes a real feed problem at 400 ipm. A liner with inconsistent end-fitting geometry can cause the liner to seat improperly in the diffuser, creating a gap where wire can coil and cause birdnesting.

For shops running production schedules where downtime has real cost, OEM Lincoln liners provide better total-cost-of-ownership even at a higher unit price. Consistent performance means fewer stops to troubleshoot wire feed problems, more predictable inter-pass weld quality, and reduced contact tip consumption (worn liners cause the wire to misalign in the tip bore, accelerating tip wear). WeldingMart stocks all current OEM Lincoln liner part numbers with same-day shipping on in-stock items.
