Harris  |  SKU: QC9680

Harris Model QC9680 Preformed Long-Loop Twin Tip with Brace - QC9680

$83.64 $92.93
Model QC9680 preformed twin tip for return bend brazing using alternate fuel gases.

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.




More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

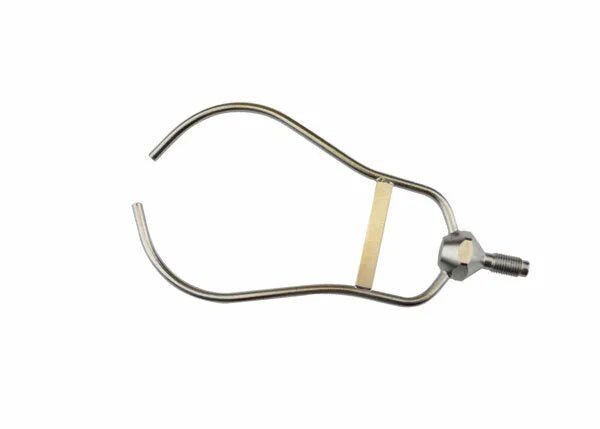

Harris Model QC9680 Preformed Long-Loop Twin Tip with Brace - QC9680

Model QC9680 is an electroless nickel-plated copper and brass preformed twin tip designed for medium diameter tube brazing. The long loop shape allows the tip to rest on the coil base plate protecting the plate and directing the flame onto the joint. The nickel cross bar allows for distance control and easy hang up. There is a 1 inch gap between the tips. This tip has a flat flame angle. Model QC9680 is primarily used for HVAC applications, but can also be used for other applications where space is limited and heat needs to be precisely directed. Used with low-cost alternate fuel gases.

Features

  • Electroless nickel-plated copper and brass preformed construction
  • Nickel cross-bar allows for distance between the tips will providing additional support.
  • Long loop shape allows the tip to rest on the coil base plate protecting the plate.
  • The tips produce a flat flame angle
  • Primarily used for medium diameter tube brazing, HVAC applications and other applications where heat needs to be precisely directed.
  • For use with low-cost alternate fuel gases - Natural Gas, Propane and Propylene.
  • 5/16 in. inlet connection
  • One year warranty

Harris Model QC9680 Preformed Long-Loop Twin Tip with Brace - QC9680

Model QC9680 is an electroless nickel-plated copper and brass preformed twin tip designed for medium diameter tube brazing. The long loop shape allows the tip to rest on the coil base plate protecting the plate and directing the flame onto the joint. The nickel cross bar allows for distance control and easy hang up. There is a 1 inch gap between the tips. This tip has a flat flame angle. Model QC9680 is primarily used for HVAC applications, but can also be used for other applications where space is limited and heat needs to be precisely directed. Used with low-cost alternate fuel gases.

Features

  • Electroless nickel-plated copper and brass preformed construction
  • Nickel cross-bar allows for distance between the tips will providing additional support.
  • Long loop shape allows the tip to rest on the coil base plate protecting the plate.
  • The tips produce a flat flame angle
  • Primarily used for medium diameter tube brazing, HVAC applications and other applications where heat needs to be precisely directed.
  • For use with low-cost alternate fuel gases - Natural Gas, Propane and Propylene.
  • 5/16 in. inlet connection
  • One year warranty

Harris Model QC9680 Preformed Long-Loop Twin Tip with Brace - QC9680

Model QC9680 is an electroless nickel-plated copper and brass preformed twin tip designed for medium diameter tube brazing. The long loop shape allows the tip to rest on the coil base plate protecting the plate and directing the flame onto the joint. The nickel cross bar allows for distance control and easy hang up. There is a 1 inch gap between the tips. This tip has a flat flame angle. Model QC9680 is primarily used for HVAC applications, but can also be used for other applications where space is limited and heat needs to be precisely directed. Used with low-cost alternate fuel gases.

Features

  • Electroless nickel-plated copper and brass preformed construction
  • Nickel cross-bar allows for distance between the tips will providing additional support.
  • Long loop shape allows the tip to rest on the coil base plate protecting the plate.
  • The tips produce a flat flame angle
  • Primarily used for medium diameter tube brazing, HVAC applications and other applications where heat needs to be precisely directed.
  • For use with low-cost alternate fuel gases - Natural Gas, Propane and Propylene.
  • 5/16 in. inlet connection
  • One year warranty

Harris Model QC9680 Preformed Long-Loop Twin Tip with Brace - QC9680

Model QC9680 is an electroless nickel-plated copper and brass preformed twin tip designed for medium diameter tube brazing. The long loop shape allows the tip to rest on the coil base plate protecting the plate and directing the flame onto the joint. The nickel cross bar allows for distance control and easy hang up. There is a 1 inch gap between the tips. This tip has a flat flame angle. Model QC9680 is primarily used for HVAC applications, but can also be used for other applications where space is limited and heat needs to be precisely directed. Used with low-cost alternate fuel gases.

Features

  • Electroless nickel-plated copper and brass preformed construction
  • Nickel cross-bar allows for distance between the tips will providing additional support.
  • Long loop shape allows the tip to rest on the coil base plate protecting the plate.
  • The tips produce a flat flame angle
  • Primarily used for medium diameter tube brazing, HVAC applications and other applications where heat needs to be precisely directed.
  • For use with low-cost alternate fuel gases - Natural Gas, Propane and Propylene.
  • 5/16 in. inlet connection
  • One year warranty
