Harris  |  SKU: 4400373

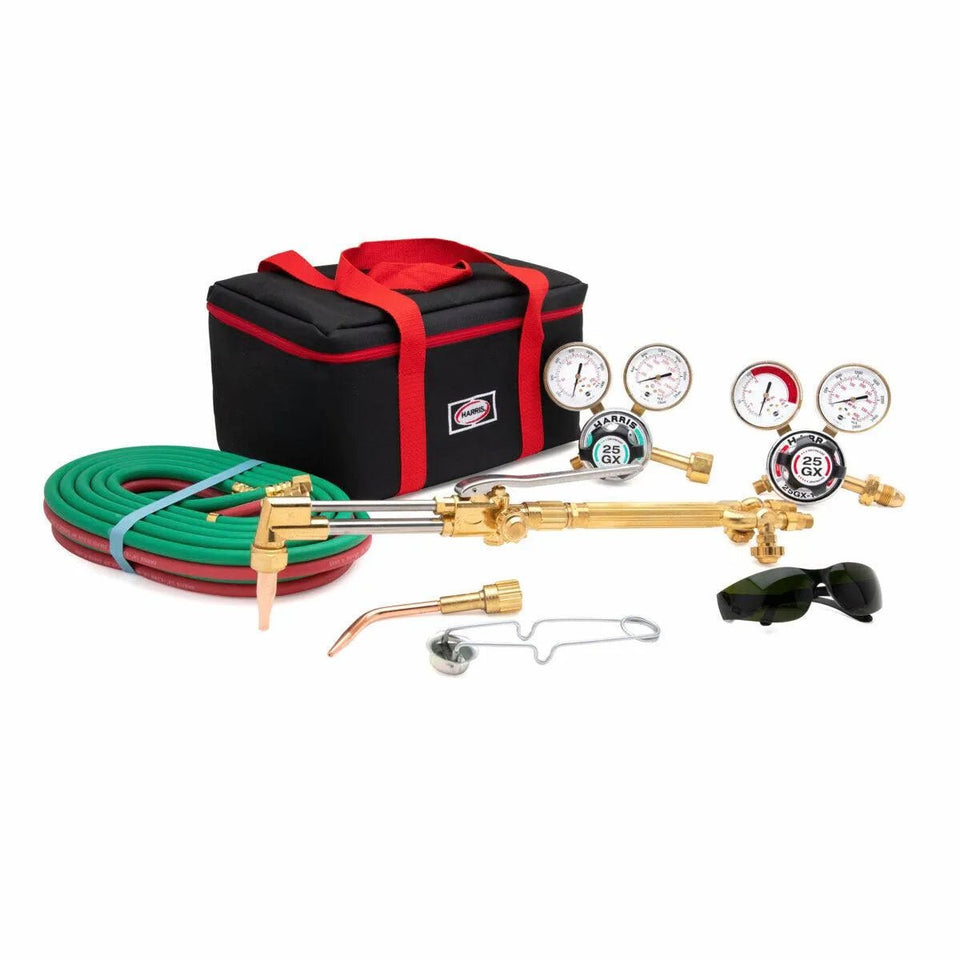

Harris VHD 25GX Deluxe Ironworker Acetylene Torch Kit for CGA 540/510 - 4400373

$283.87 $511.14
This outfit has the V-Series 2-tube cutting attachment design and thread. The fuel regulator cylinder connection is CGA 510. This outfit can cut up to 8 in., braze up to 6 in. copper tube and weld up to 1 in. plate.
Warranty: Regulators: 7 Years; All other components: 1 Year
Victor Cross Reference Model & Part #: Medalist G350-540/510 - 0384-2690

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.




More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Harris VHD 25GX Deluxe Ironworker Acetylene Torch Kit for CGA 540/510 - 4400373



Harris 450 Deluxe Ironworker acetylene torch kit contains quality equipment needed for cutting, brazing, and welding using oxygen and acetylene gases. The outfit can cut up 8 in. (203.2mm) and is supplied with a tip to cut up to 1 in. (25.4mm) plate. The kit can braze up to 6 in. (152.4) diameter copper tube and is supplied with a size tip for brazing copper up to 1 ½ in. (38.1mm) tube. The kit is capable of welding up to 1 in. (25.4mm) and is supplied with a tip that welds up to 1/16 in. (1.6mm) plate.

Features
  • Heavy Duty 2-tube design outfit to be used with oxygen and acetylene gases.
  • Regulator oxygen and acetylene Harris Model 25GX with easy-to-read dual scale 2.5 in. gauges, ergonomic plastic adjusting knob, neoprene diaphragms and our distinguished internal encapsulated seat filter. Oxygen Regulator that delivers up to 145 psi and acetylene Regulator delivers up to 15 psi.
  • Torch handle Harris Model VH31 that has tube-within-a-tube construction and is equipped with external replaceable FlashGuard check valves. This handle is the ideal choice for heavy heating applications.
  • Cutting attachment Harris Model Vh34 features a stainless-steel lever, an in-tube mixer, and threaded connections for easy repair.
  • Consumables included - V1-101-1 cutting tip, V-W mixer and 23A90-5 welding tip.
  • Accessories included - Shade 5 safety glasses (ANSI Z87.1 CE Weld);Handheld ignitor;1/4 in. x 20 ft. twin R-grade hose and Harris black and red insulated tool kit bag



Specifications

Cutting Attachment Model Number Vh34
Cutting Capacity Up to 8 in. (203.2mm) plate with optional tip(s)
Optional tip(s) sold separately
Cutting Tip Style - Acetylene-h3 (Size) V1-101-1
Duty Heavy
Equipped With FlashGuard check valves - handle
Fuel Gas Regulator Model Number 25GX-15-510
Gas / Gas Service Acetylene
Gauges 2.5 in. Steel dual scale - Regulators
Hose Connection/Fittings BxB
Hose Size 1/4 in. x 20 ft.
Hose Type Twin Oxygen-Acetylene R-grade
Included Accessories Shade 5 safety glasses (ANSI Z87.1 CE Weld)
Handheld ignitor
1/4 in. x 20 ft. twin BxB R-grade hose
Harris black and red insulated tool kit bag
Mixer Model Number V-W
Mixer Type E-Equal or positive pressure
Oxygen Regulator Model Number 25GX-145-540
Recommended Items/Accessories Steel Gauge Guard - Red (Fuel) - PN 4300238
Steel Gauge Guard - Green (Oxygen) - PN 4300239
Standard Tip Cleaner - Model C-9 - PN 9000156
Two-Piece Tip Cleaner - Model E-9 - PN 9000160
Seat PTFE Teflon - Regulators
Tank Connection CGA 540
CGA 510
Torch Handle Model Number VH31
Welding Capacity Up to 1/2 in. (12.7mm) plate with optional tip(s)
Optional tips sold separately
Welding/Brazing Tip Model Number - Acetylene 23A90-5

Harris VHD 25GX Deluxe Ironworker Acetylene Torch Kit for CGA 540/510 - 4400373



Harris 450 Deluxe Ironworker acetylene torch kit contains quality equipment needed for cutting, brazing, and welding using oxygen and acetylene gases. The outfit can cut up 8 in. (203.2mm) and is supplied with a tip to cut up to 1 in. (25.4mm) plate. The kit can braze up to 6 in. (152.4) diameter copper tube and is supplied with a size tip for brazing copper up to 1 ½ in. (38.1mm) tube. The kit is capable of welding up to 1 in. (25.4mm) and is supplied with a tip that welds up to 1/16 in. (1.6mm) plate.

Features
  • Heavy Duty 2-tube design outfit to be used with oxygen and acetylene gases.
  • Regulator oxygen and acetylene Harris Model 25GX with easy-to-read dual scale 2.5 in. gauges, ergonomic plastic adjusting knob, neoprene diaphragms and our distinguished internal encapsulated seat filter. Oxygen Regulator that delivers up to 145 psi and acetylene Regulator delivers up to 15 psi.
  • Torch handle Harris Model VH31 that has tube-within-a-tube construction and is equipped with external replaceable FlashGuard check valves. This handle is the ideal choice for heavy heating applications.
  • Cutting attachment Harris Model Vh34 features a stainless-steel lever, an in-tube mixer, and threaded connections for easy repair.
  • Consumables included - V1-101-1 cutting tip, V-W mixer and 23A90-5 welding tip.
  • Accessories included - Shade 5 safety glasses (ANSI Z87.1 CE Weld);Handheld ignitor;1/4 in. x 20 ft. twin R-grade hose and Harris black and red insulated tool kit bag



Specifications

Cutting Attachment Model Number Vh34
Cutting Capacity Up to 8 in. (203.2mm) plate with optional tip(s)
Optional tip(s) sold separately
Cutting Tip Style - Acetylene-h3 (Size) V1-101-1
Duty Heavy
Equipped With FlashGuard check valves - handle
Fuel Gas Regulator Model Number 25GX-15-510
Gas / Gas Service Acetylene
Gauges 2.5 in. Steel dual scale - Regulators
Hose Connection/Fittings BxB
Hose Size 1/4 in. x 20 ft.
Hose Type Twin Oxygen-Acetylene R-grade
Included Accessories Shade 5 safety glasses (ANSI Z87.1 CE Weld)
Handheld ignitor
1/4 in. x 20 ft. twin BxB R-grade hose
Harris black and red insulated tool kit bag
Mixer Model Number V-W
Mixer Type E-Equal or positive pressure
Oxygen Regulator Model Number 25GX-145-540
Recommended Items/Accessories Steel Gauge Guard - Red (Fuel) - PN 4300238
Steel Gauge Guard - Green (Oxygen) - PN 4300239
Standard Tip Cleaner - Model C-9 - PN 9000156
Two-Piece Tip Cleaner - Model E-9 - PN 9000160
Seat PTFE Teflon - Regulators
Tank Connection CGA 540
CGA 510
Torch Handle Model Number VH31
Welding Capacity Up to 1/2 in. (12.7mm) plate with optional tip(s)
Optional tips sold separately
Welding/Brazing Tip Model Number - Acetylene 23A90-5

Includes

What's Included
  • Harris - Model 25GX-15-510 Fuel Gas Regulator - 3000380
  • Harris - Model 25GX-145-540 Oxygen Regulator - 3000510
  • Harris - Model VH31 Torch Handle - 1400425
  • Harris - Model VH24 Cutting Attachment - 1300452
  • Harris - Model V-W Mixer Assembly - 9105214
  • Harris - Model V1-101-1 Cutting Tip - 1502091
  • Harris - Model 23A90-5 Welding Tip - 1600890
  • 1/4 in. x 20 ft. Twin B & B R-grade Oxy-Acetylene Hose - 4300591
  • Safety Glasses Shade 5 - 4303629
  • Handheld Ignitor - 9004486
  • Harris - Insulated Tool Kit Bag - 8855094
  • Trilingual Kit Manual - 9505643
  • V-Series Tip Chart - 9500688

Specifications

Gas / GasService Acetylene
Cutting Attachment Harris - Model Number VH24
Cutting Capacity Up to 8 in. (203.2mm) plate with optional tip(s); Optional tip(s) sold separately
Cutting Tip Style - Acetylene-H2 (Size) V1-101-1
Duty Heavy
Equipped With FlashGuard® check valves - handle
Fuel Gas Regulator Harris - Model Number 25GX-15-510
Gauges 2.5 in. Steel dual scale - regulators
Hose Connection/Fittings BxB
Hose Size 1/4 in. x 20 ft.
Hose Type Twin Oxygen-Acetylene R-grade
Mixer Harris - Model Number V-W
Mixer Type E-Equal or positive pressure
Oxygen Regulator Harris - Model Number 25GX-145-540
Seat PTFE Teflon® - regulators
Tank Connection CGA 540; CGA 510
Torch Handle Harris - Model Number VH31
Welding Capacity Up to 1/2 in. (12.7mm) plate with optional tip(s); Optional tips sold separately
