Lincoln Electric  |  SKU: ED022003

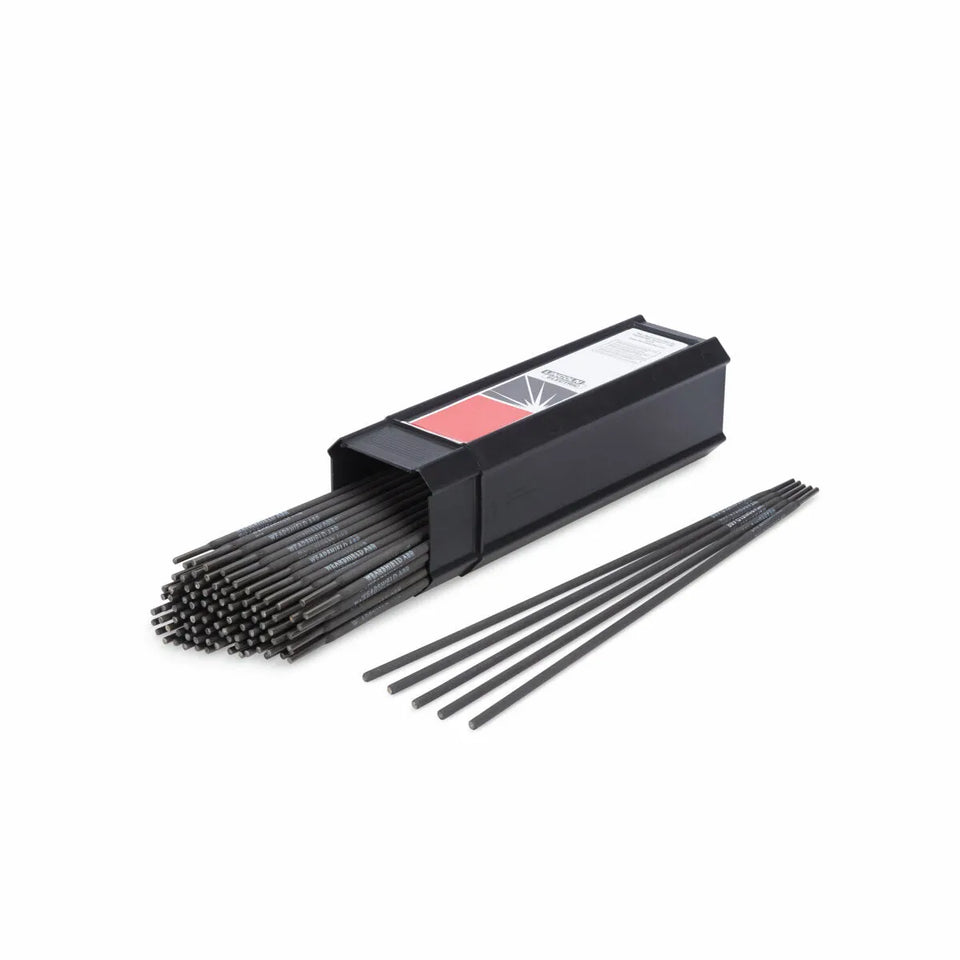

Lincoln ED022003 Wearshield MI Stick SMAW Welding Rod Electrode, 1/8 14 in, 410 lb Plastic Tube

$80.20
WEARSHIELD® MI stick electrode is ideal for hardfacing of carbon or low alloy steels such as conveyor screws, tractor grousers, ditcher teeth and lumber equipment. (Metal-to-Metal Wear)
Warranty: 1 Year

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.




More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Lincoln ED022003 Wearshield MI Stick SMAW Welding Rod Electrode, 1/8 14 in,  10 lb Plastic Tube

WEARSHIELD® MI stick electrode is ideal for hardfacing of carbon or low alloy steels requiring a martensitic deposit with considerable retained austenite. Typical applications include conveyor screws, tractor grousers, ditcher teeth and lumber equipment. Deposits tend to cross check crack and are usually best limited to two layers. It can be welded in all positions (except vertical down).

Features

  • Provides a martensitic deposit with considerable retained austenite
  • General purpose electrode, a good compromise for metal-to-metal wear, moderate impact and mild abrasion
  • Can be used on carbon and low alloy steel parts
  • Deposits tend to cross check crack and are usually best limited to two layers

Lincoln ED022003 Wearshield MI Stick SMAW Welding Rod Electrode, 1/8 14 in,  10 lb Plastic Tube

WEARSHIELD® MI stick electrode is ideal for hardfacing of carbon or low alloy steels requiring a martensitic deposit with considerable retained austenite. Typical applications include conveyor screws, tractor grousers, ditcher teeth and lumber equipment. Deposits tend to cross check crack and are usually best limited to two layers. It can be welded in all positions (except vertical down).

Features

  • Provides a martensitic deposit with considerable retained austenite
  • General purpose electrode, a good compromise for metal-to-metal wear, moderate impact and mild abrasion
  • Can be used on carbon and low alloy steel parts
  • Deposits tend to cross check crack and are usually best limited to two layers

Includes
What's Included
  • (4) 10 lb Plastic Tube

Specifications
MECHANICAL PROPERTIES
Classification Number of layer Hardness Rockwell C
Typical Result 1 Layer 50
Typical Result 2 Layers 54
DEPOSIT COMPOSITION
Classification Base Metal Number of layer %C %Cr %Mn %Mo %Si
Typical Result Mild Steel 2 Layers 0.9 9.5 0.4 0.6 0.4
TYPICAL OPERATING PROCEDURES
Diameter Polarity Current, Amps
1/8" (3.2 mm) AC 70-120
1/8" (3.2 mm) DC+ 70-120
5/32" (4.0 mm) AC 110-150
5/32" (4.0 mm) DC+ 110-150
3/16" (4.8 mm) AC 150-200
3/16" (4.8 mm) DC+ 150-200
LECO Diameter 1/8 x 14 in (3.2 x 350 mm)
LECO Package (4) 10 lb Plastic Tube
Diameter (in) 1/8
Length (in) 14
