Lincoln Electric  |  SKU: ED028283

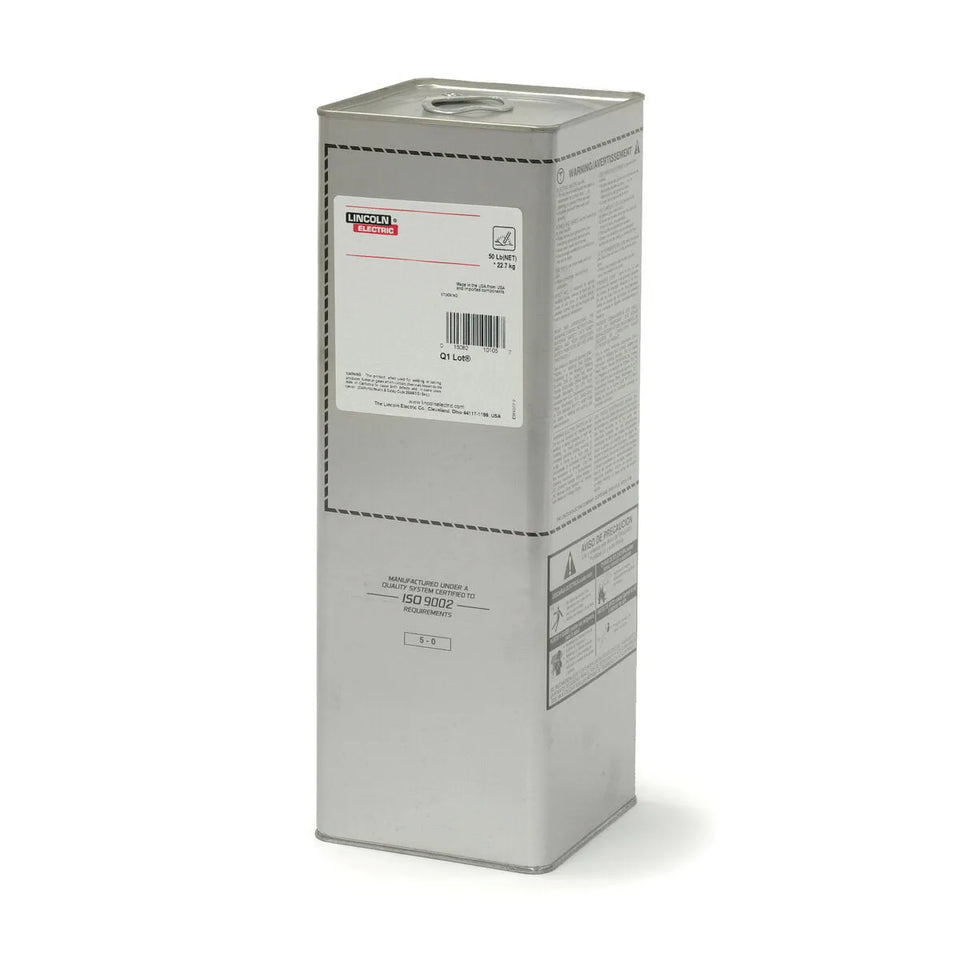

Lincoln ED028283 Excalibur 7018 MR Stick SMAW Welding Rod, 3/16 14 in, 50 lb Easy Open Can

$225.00
Excalibur 7018 MR is a mild steel, low hydrogen stick electrode that meets AWS E7018 H4R. Features premium arc performance, extreme bend ability and excellent mositure resistance.
Warranty: 1 Year
AWS / Classification: E7018 H4R

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.




More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Lincoln ED028283 Excalibur 7018 MR Stick SMAW Welding Rod, 3/16 14 in, 50 lb Easy Open Can

Excalibur 7018 MR is a mild steel, low hydrogen stick electrode that features improved coating integrity, extreme bend ability and 60% less mositure pickup versus competition. Typical applications include power generation, ship building, chemical processing structures, and pressure piping.

Features

• Premium arc performance
• Extreme bend ability
• Excellent moisture resistance
• Clean arc starts
• Clear puddle and a smooth arc
• Reduction of arc starting porosity

Lincoln ED028283 Excalibur 7018 MR Stick SMAW Welding Rod, 3/16 14 in, 50 lb Easy Open Can

Excalibur 7018 MR is a mild steel, low hydrogen stick electrode that features improved coating integrity, extreme bend ability and 60% less mositure pickup versus competition. Typical applications include power generation, ship building, chemical processing structures, and pressure piping.

Features

• Premium arc performance
• Extreme bend ability
• Excellent moisture resistance
• Clean arc starts
• Clear puddle and a smooth arc
• Reduction of arc starting porosity

Includes
What's Included
  • (1) 50 lb Easy Open Can

Specifications
CONFORMANCE
CONFORMANCES SPECIFICATION CLASSIFICATION
AWS AWS A5.1 E7018 H4R
ISO ISO 2560-B E4918 A H5
ABS ABS - Part 2 3YH5
BV BV - Chapter 5 3YHHH
CWB CSA W48 E4918
DNV-GL DNV - 2.9 3YH5
LR LR - Chapter 11 3YM H5
MECHANICAL PROPERTIES
Classification Yield Strength @ 0.2% Offset, MPa (ksi) Tensile Strength, MPa (ksi) Elongation, % Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F) Hardness Rockwell B
E7018 H4R Requirement 400 (58) min. 480 (70) min. 22 min. 27 (20) min.
Typical Result, As-welded 420-510 (60-74) 510-600 (74-87) 24-36 27-413 (20-304) 82-91
DEPOSIT COMPOSITION
Classification %C %Cr %Mn %Mo %Ni %P %S %Si %V %Mn+Ni+Cr+Mo+V Diffusible Hydrogen, mL/100g Weld Metal 1800F H2O - As received 1800F H2O - After 9 hrs at 80F/80%RH
E7018 H4R Requirement 0.15 max. 0.20 max. 1.60 max. 0.30 max. 0.30 max. 0.035 max. 0.035 max. 0.75 max. 0.08 max. 1.75 max. 4 max. 0.3 max. 0.4 max.
Typical Result 0.04-0.07 0.02-0.06 1.08-1.51 0.04 max. 0.01-0.05 0.009-0.016 0.004-0.011 0.41-0.66 0.01 max. 1.15-1.59 1-4 0.1 max. 0.2-0.4
TYPICAL OPERATING PROCEDURES
Diameter Polarity⁽¹⁾ Current, Amps
3/32 in (2.4 mm) DC+ 70-110
3/32 in (2.4 mm) AC 80-120
1/8 in (3.2 mm) DC+ 90-160
1/8 in (3.2 mm) AC 100-160
5/32 in (4.0 mm) DC+ 130-210
5/32 in (4.0 mm) AC 140-210
3/16 in (4.8 mm) DC+ 180-300
3/16 in (4.8 mm) AC 200-300
7/32 in (5.6 mm) DC+ 250-330
7/32 in (5.6 mm) AC 270-370
1/4 in (6.4 mm) DC+ 300-400
1/4 in (6.4 mm) AC 325-420
LECO Diameter 3/16 x 14 in (4.8 x 350 mm)
LECO Package 50 lb Easy Open Can
Diameter (in) 3/16
Length (in) 14

Lincoln ED028283 Excalibur 7018 MR Stick SMAW Welding Rod, 3/16 14 in, 50 lb Easy Open Can

Excalibur 7018 MR is a mild steel, low hydrogen stick electrode that features improved coating integrity, extreme bend ability and 60% less mositure pickup versus competition. Typical applications include power generation, ship building, chemical processing structures, and pressure piping.

Features

• Premium arc performance
• Extreme bend ability
• Excellent moisture resistance
• Clean arc starts
• Clear puddle and a smooth arc
• Reduction of arc starting porosity

Lincoln ED028283 Excalibur 7018 MR Stick SMAW Welding Rod, 3/16 14 in, 50 lb Easy Open Can

Excalibur 7018 MR is a mild steel, low hydrogen stick electrode that features improved coating integrity, extreme bend ability and 60% less mositure pickup versus competition. Typical applications include power generation, ship building, chemical processing structures, and pressure piping.

Features

• Premium arc performance
• Extreme bend ability
• Excellent moisture resistance
• Clean arc starts
• Clear puddle and a smooth arc
• Reduction of arc starting porosity
