Lincoln Electric  |  SKU: ED032609

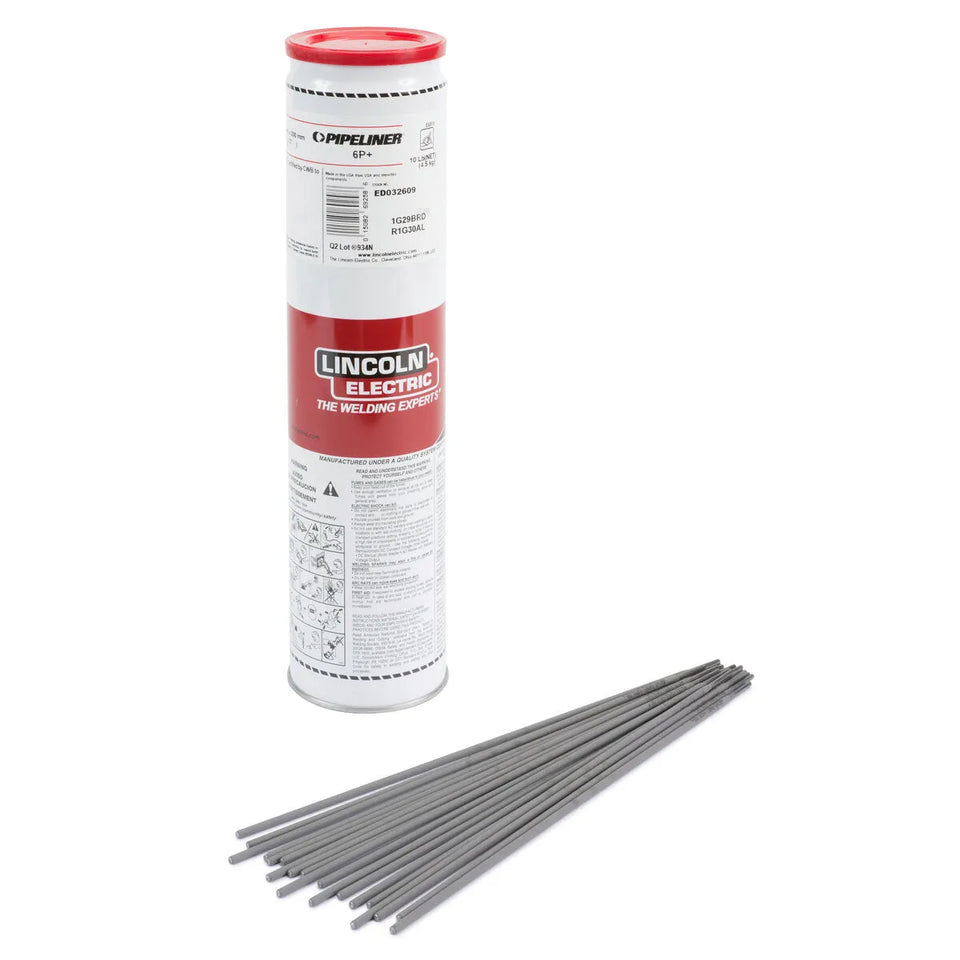

Lincoln ED032609 Pipeliner 6P+ Stick SMAW Welding Rod, 3/32 12 in, 3 10 lb Easy Open Cans

$218.10
Mild Steel, Cellulosic • AWS E6010
AWS / Classification: E6010

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.




More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Lincoln ED032609 Pipeliner 6P+ Stick SMAW Welding Rod, 3/32x12 in, 3 10 lb Easy Open Cans

Designed for vertical down welding of cross-country and in-plant pipe

Features

  • Q2 Lot® - Lot Controlled Chemistry and Mechanical Properties
  • Standard in the pipe welding industry for root pass
  • High operator appeal and control
  • Easy slag removal
  • Meets NACE MR0175 for sour gas applications
  • Test data available for SSC (NACE TM0177) & HIC (NACE TM0284)

Lincoln ED032609 Pipeliner 6P+ Stick SMAW Welding Rod, 3/32x12 in, 3 10 lb Easy Open Cans

Designed for vertical down welding of cross-country and in-plant pipe

Features

  • Q2 Lot® - Lot Controlled Chemistry and Mechanical Properties
  • Standard in the pipe welding industry for root pass
  • High operator appeal and control
  • Easy slag removal
  • Meets NACE MR0175 for sour gas applications
  • Test data available for SSC (NACE TM0177) & HIC (NACE TM0284)

Includes

What's Included
  • (3) 10 lb Easy Open Can

Specifications

CONFORMANCE
CONFORMANCES SPECIFICATION CLASSIFICATION
AWS AWS A5.1 E6010
ISO ISO 2560-A E 42 3 C 2 1
ABS AWS A5.1 E6010
CWB CSA W48 E4310
DNV-GL DNV - 2.9 3
MECHANICAL PROPERTIES
Classification Yield Strength @ 0.2% Offset, MPa (ksi) Tensile Strength, MPa (ksi) Elongation, % Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F) Hardness Rockwell B
E6010 Requirement 330 (48) min. 410 (60) min. 22 min. 27 (20) min.
Typical Result, As-welded 400-560 (59-81) 490-670 (72-98) 22-33 29-113 (21-83) 84-86
DEPOSIT COMPOSITION
Classification %C %Cr %Mn %Mo %Ni %P %S %Si %V
E6010 Requirement 0.20 max. 0.20 max. 1.20 max. 0.30 max. 0.30 max. 1.00 max. 0.08 max.
Typical Result 0.10-0.20 0.01-0.04 0.43-0.73 0.03 max. 0.07 max. 0.003-0.012 0.003-0.014 0.12-0.30 0.01 max.
TYPICAL OPERATING PROCEDURES
Diameter Polarity⁽¹⁾ Current, Amps
2.5 mm (3/32 in) DC+ 50-85
2.5 mm (3/32 in) DC- 50-85
3.2 mm (1/8 in) DC+ 75-135
3.2 mm (1/8 in) DC- 75-135
4.0 mm (5/32 in) DC+ 100-175
4.0 mm (5/32 in) DC- 100-175
LECO Diameter 2.5 x 305 mm (3/32 x 12 in)
LECO Package (3) 10 lb Easy Open Can
Diameter (in) 3/32
Length (in) 12
