Lincoln Electric  |  SKU: ED035179

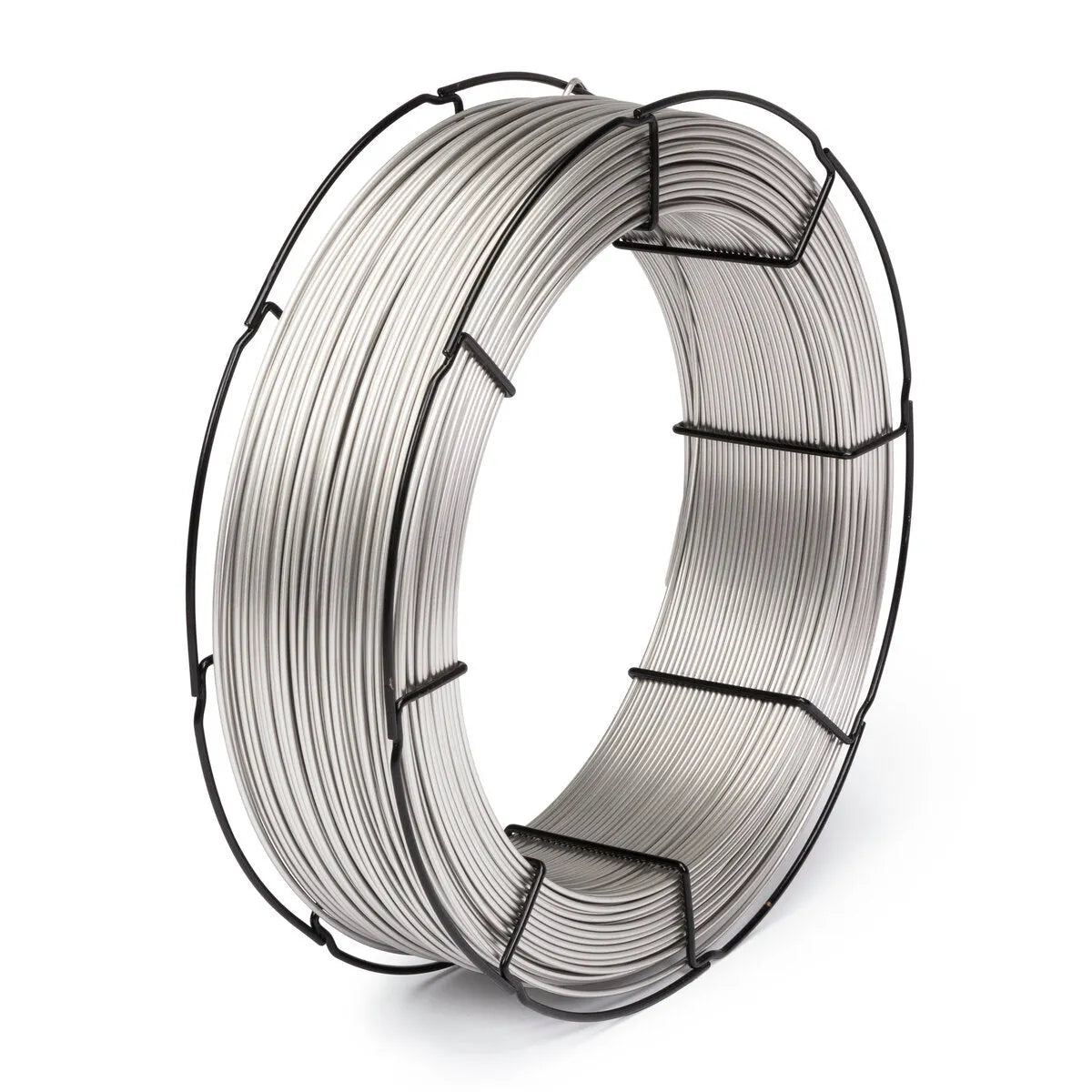

Lincoln ED035179 Lincolnweld 316/316L Submerged Arc SAW Welding Wire, 5/32 in, 55 lb Spool

$805.20
Designed to be used primarily with basic fluxes that recover nearly all of the wire chromium in the deposit
Warranty: 1 Year
AWS / Classification: AWS A5.9: ER316, AWS A5.9: ER316L

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.




More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Lincoln ED035179 Lincolnweld 316/316L Submerged Arc SAW Welding Wire, 5/32 in, 55 lb Spool

LINCOLNWELD® 316/316L has a 2-3% molybdenum content which improves pitting corrosion resistance of the weld deposit, while the low carbon content reduces the possibility of carbide precipitation and intergranular corrosion.

Features

  • Designed to be used primarily with basic fluxes that recover nearly all of the wire chromium in the deposit
  • Low carbon content recommended where there is a risk of intergranular corrosion
  • The 2-3% molybdenum improves pitting corrosion resistance of the weld deposit
  • Low carbon content reduces the possibility of carbide precipitation and intergranular corrosion
  • Q2 Lot® - Certificate showing actual wire composition and calculated ferrite number (FN) available online

Lincoln ED035179 Lincolnweld 316/316L Submerged Arc SAW Welding Wire, 5/32 in, 55 lb Spool

LINCOLNWELD® 316/316L has a 2-3% molybdenum content which improves pitting corrosion resistance of the weld deposit, while the low carbon content reduces the possibility of carbide precipitation and intergranular corrosion.

Features

  • Designed to be used primarily with basic fluxes that recover nearly all of the wire chromium in the deposit
  • Low carbon content recommended where there is a risk of intergranular corrosion
  • The 2-3% molybdenum improves pitting corrosion resistance of the weld deposit
  • Low carbon content reduces the possibility of carbide precipitation and intergranular corrosion
  • Q2 Lot® - Certificate showing actual wire composition and calculated ferrite number (FN) available online

Includes
What's Included
  • (1) 55 lb Spool

Specifications
CONFORMANCE
CONFORMANCES SPECIFICATION CLASSIFICATION
AWS AWS A5.9 ER316, ER316L
ISO ISO 14343-B SS316L
ABS AWS A5.9 ER316, ER316L
CWB CSA W48 ER316, ER316L
MIL MIL-E-19933E AMD1 MIL-316L
MECHANICAL PROPERTIES
Flux Classification Yield Strength @ 0.2% Offset, MPa (ksi) Tensile Strength, MPa (ksi) Elongation, %
Lincolnweld® P2007™ Typical Result 390 (57) 559 (81) 39
WIRE COMPOSITION
Classification %C %Cr %Cu %Mn %Mo %N %Nb %Ni %P %S %Si Ferrite Number (Delong ©) Ferrite Number (WRC-1992 ©)
ER316L Requirement 0.03 max. 18.0 - 20.0 0.75 max. 1.0 - 2.5 2.0 - 3.0 Info. Only Info. Only 11.0 - 14.0 0.03 max. 0.03 max. 0.30 - 0.65 Info. Only Info. Only
Typical Result 0.01-0.02 18.5-19.1 0.03-0.13 1.4-1.8 2.2-2.6 0.03-0.04 0.01 max. 11.8-12.3 0.02 0.01 max. 0.32-0.40 8-12 7-11
TYPICAL OPERATING PROCEDURES
Diameter Wire Feed Speed, m/min (in/min) Voltage, volts Approx. Current, amps
5/64 in (2.0 mm) 2.0-6.1 (80-240) 24-30 190-500
3/32 in (2.4 mm) 1.5-5.3 (60-210) 26-32 195-575
1/8 in (3.2 mm) 0.9-2.8 (35-110) 28-34 200-700
5/32 in (4.0 mm) 0.8-1.9 (30-75) 30-36 320-775
LECO Diameter 5/32 in (4.0 mm)
LECO Package 55 lb Spool
Diameter (in) 5/32

Lincoln ED035179 Lincolnweld 316/316L Submerged Arc SAW Welding Wire, 5/32 in, 55 lb Spool

LINCOLNWELD® 316/316L has a 2-3% molybdenum content which improves pitting corrosion resistance of the weld deposit, while the low carbon content reduces the possibility of carbide precipitation and intergranular corrosion.

Features

  • Designed to be used primarily with basic fluxes that recover nearly all of the wire chromium in the deposit
  • Low carbon content recommended where there is a risk of intergranular corrosion
  • The 2-3% molybdenum improves pitting corrosion resistance of the weld deposit
  • Low carbon content reduces the possibility of carbide precipitation and intergranular corrosion
  • Q2 Lot® - Certificate showing actual wire composition and calculated ferrite number (FN) available online

Lincoln ED035179 Lincolnweld 316/316L Submerged Arc SAW Welding Wire, 5/32 in, 55 lb Spool

LINCOLNWELD® 316/316L has a 2-3% molybdenum content which improves pitting corrosion resistance of the weld deposit, while the low carbon content reduces the possibility of carbide precipitation and intergranular corrosion.

Features

  • Designed to be used primarily with basic fluxes that recover nearly all of the wire chromium in the deposit
  • Low carbon content recommended where there is a risk of intergranular corrosion
  • The 2-3% molybdenum improves pitting corrosion resistance of the weld deposit
  • Low carbon content reduces the possibility of carbide precipitation and intergranular corrosion
  • Q2 Lot® - Certificate showing actual wire composition and calculated ferrite number (FN) available online
