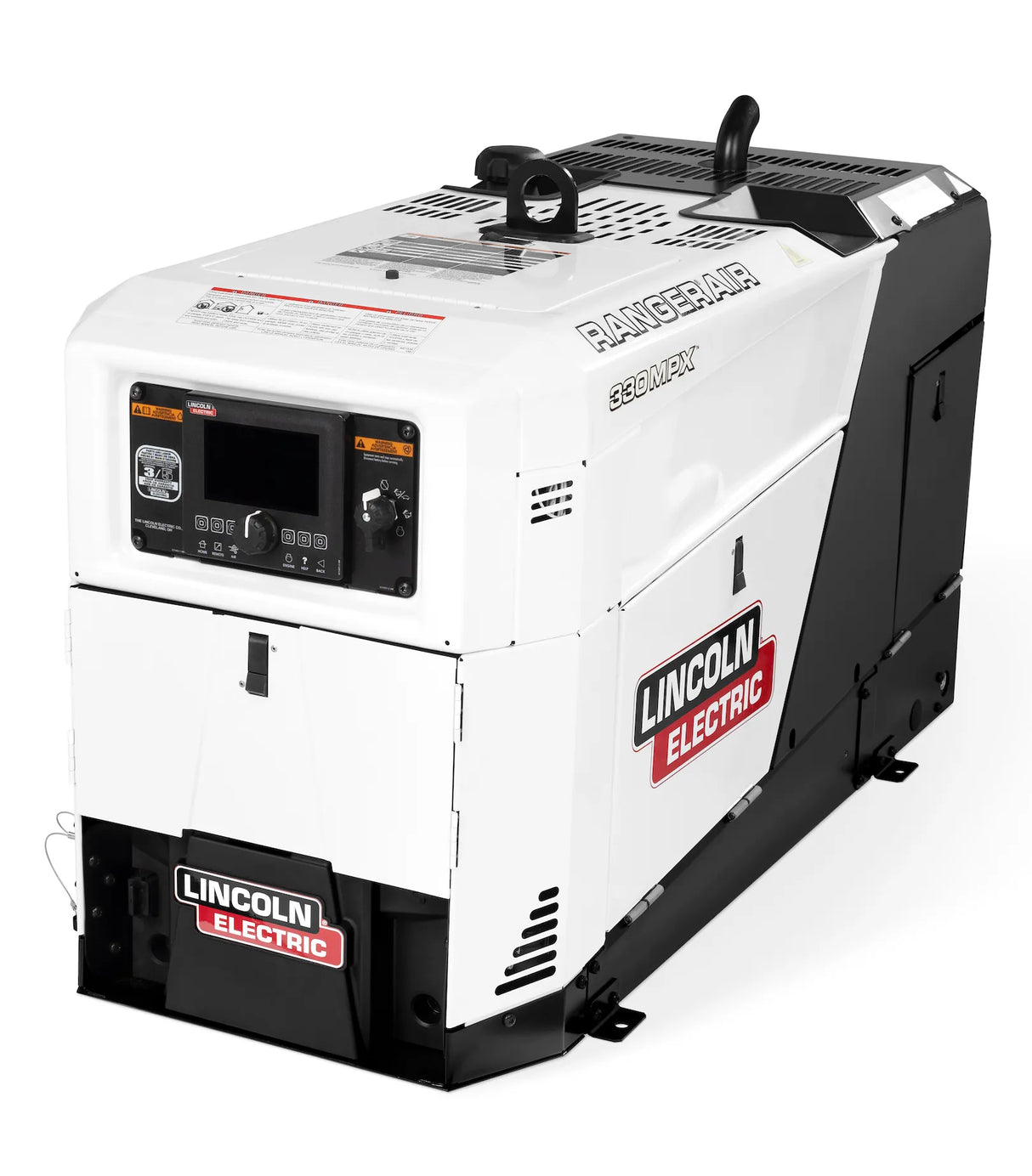

Lincoln Ranger Air 330MPX Multi-Function Engine Drive - K5239-1
The Lincoln Ranger Air 330MPX represents the pinnacle of multi-function engine drive technology, delivering five essential field operations in one compact, high-performance unit. This innovative powerhouse combines a robust air compressor, powerful generator, reliable battery jump assist, efficient battery charging system, and versatile multi-process welder to provide unprecedented versatility for professionals who encounter diverse challenges in remote locations. By integrating these critical functions into a single machine, the Ranger Air 330MPX significantly reduces equipment investment, minimizes transportation requirements, and maximizes operational efficiency across construction sites, field erection projects, and maintenance operations.
At the core of the Ranger Air 330MPX is a powerful 26.5 HP Kohler OHV Command Pro EFI engine with Electronic Throttle Body technology that delivers exceptional performance across all functions. The industrial-grade Vanair rotary screw air compressor produces an impressive 40 CFM @ 150 PSI with a maximum system pressure of 225 PSI, providing substantial capacity for pneumatic tools and equipment. The welding system delivers 330 amps of smooth, consistent arc performance across multiple processes including stick, TIG, MIG, and flux-cored applications. The clean 10,000 watts continuous auxiliary power safely operates sensitive electronics and demanding power tools, while the integrated battery services provide critical power support for vehicles and equipment in the field.
The Ranger Air 330MPX incorporates advanced technology that significantly reduces operational costs throughout its service life. The sophisticated variable engine speed control automatically adjusts output to match demand, minimizing fuel consumption during partial-load operation. The innovative auto stop/start system eliminates unnecessary idle time, further reducing fuel usage and engine wear. The intuitive digital user interface with Ready.Set.Weld technology makes setup quick and easy, while integrated maintenance alerts notify operators when service is needed, preventing costly repairs. The CrossLinc communication technology enables remote control without additional cables, enhancing productivity in large work areas. This thoughtful combination of multi-function capability, industry-leading performance, and cost-saving technology makes the Ranger Air 330MPX the ultimate solution for professionals who demand maximum versatility, reliability, and efficiency from their field equipment.
Key Features
- Five integrated functions including 40 CFM air compressor, 10kW generator, battery jump assist, battery charging, and 330-amp multi-process welding.
- Advanced 26.5 HP Kohler Electronic Fuel Injection engine with Electronic Throttle Body for optimal performance in diverse conditions.
- Industrial-grade Vanair rotary screw air compressor with 225 PSI maximum system pressure for demanding pneumatic applications.
- Ready.Set.Weld and Chopper Technology delivering superior arc characteristics across multiple welding processes.
- Intelligent variable engine speed and auto stop/start technology significantly reducing fuel consumption and maintenance costs.
- CrossLinc communication technology enabling remote control without additional control cables.
- Comprehensive digital user interface with maintenance alerts for simplified operation and preventative maintenance.
- Compact design maximizing available payload space for additional tools and equipment.
- Multiple safety features including compressor relief valve and high temperature shutdown protection.
Specifications
| Dimensions (H x W x D) | 26 in x 20 in x 48 in (660 mm x 508 mm x 1219 mm) |
| Net Weight | 565 lbs (256 kg) |
| Machines Processes | Stick (SMAW) Gouging (CAC-A) Flux-Cored (FCAW) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) |
| IEC Rating | 292A/31.7V/100% @ 104°F (40°C) |
| Output Range by Mode | CC-Stick: 35 - 330Amps, Touch Start TIG: 25 - 330Amps, CV-Wire: 16 - 27 Volts |
| Data Technologies | J1939 CAN |
| Machines Communication Technology | CrossLinc |
| Single Phase Auxiliary Output | 10,000 Watts Continuous, 120/240V |
| Auxiliary Output Frequency | 60 Hz |
| Receptacle Types | NEMA 5-20R NEMA 6-50R NEMA 14-50R |
| Engine Brand & Model | Kohler OHV Command Pro EFI Electronic Throttle Body ECH749 |
| Engine Description | 2 Cylinder Air-Cooled Gasoline Engine |
| Engine Horsepower | 26.5 |
| Engine Block Size & Displacement | 45 cu. in. (747 cc) |
| High Idle Operating Speed @ Rated Output | 3600 |
| Fuel Tank Size (US gal.) | 11 |
| Fuel Tank Size (L) | 41.6 |
| Oil Capacity (qts.) | 2.0 |
| Oil Capacity (L) | 1.9 |
| Air Compressor Brand/Model | Vanair |
| Air Compressor Description | Rotary Screw |
| Air Compressor Output | 40 CFM @ 150 PSI |
| Air Compressor Max System Pressure | 225 PSI |
| Air Compressor Protections | Safety Relief Valve High Temp Shutdown |
| Air Compressor Oil Capacity (US gal.) | 0.75 |
| Air Compressor Oil Capacity (L) | 2.84 |
| Typical Application | Construction Construction & Field Erection General Fabrication Maintenance & Repair Repair Welding Structural Fabrication Structural Welding |
| Warranty | 3 Years Parts and Labor - Engine warranted separately by engine manufacturer |
