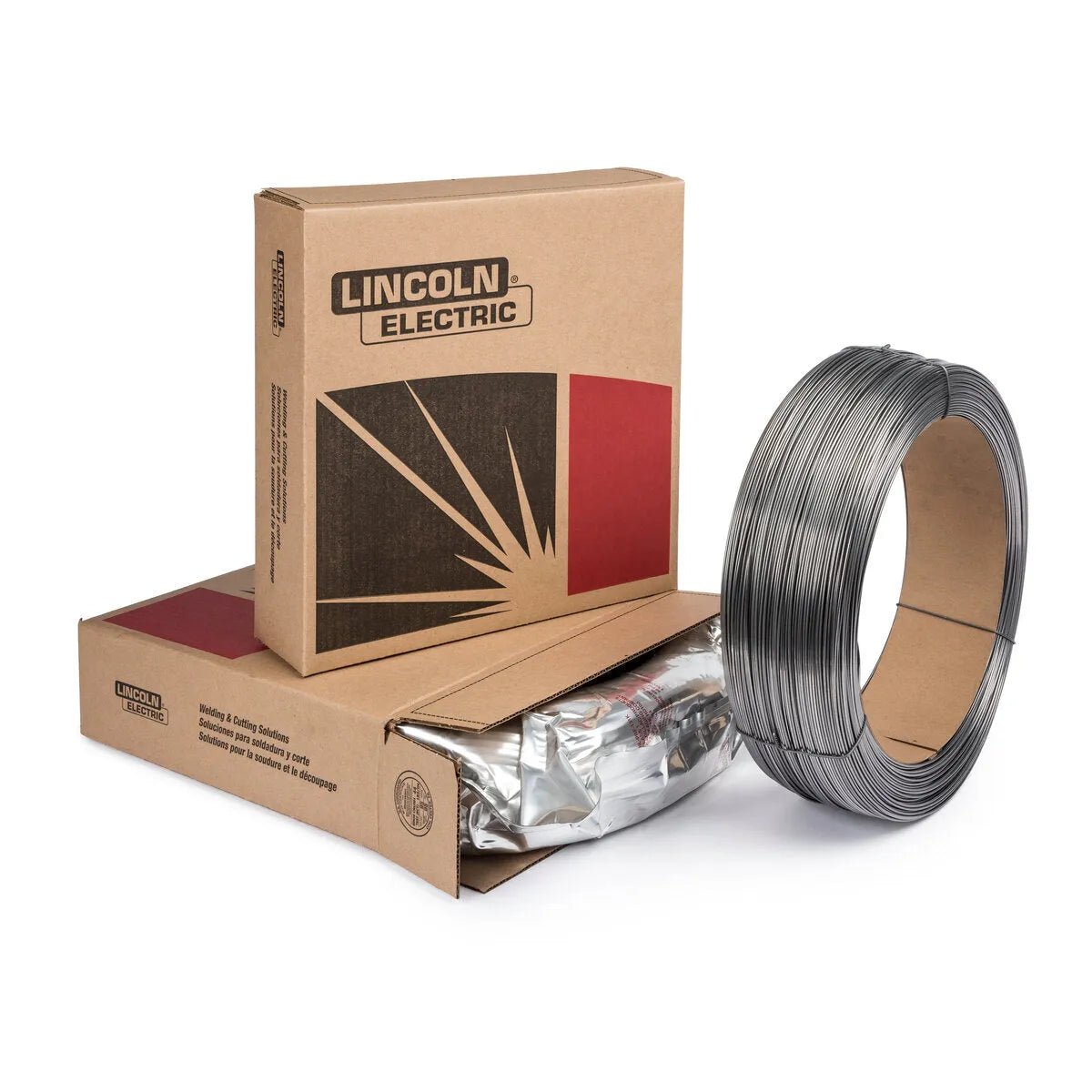

Lincoln ED032974 UltraCore 75C Flux-Cored FCAW-G Welding Wire, 1/16 in, 50 lb Coil

SKU: ED032974
$312.00
Financing / Leasing Available

Welding Equipment & Industrial Supply Financing

WeldingMart has partnered with Clicklease to offer fast, flexible financing for welding equipment and industrial supplies. Get the equipment you need with affordable monthly payments tailored to your budget.

Whether you're purchasing a new MIG welder, TIG welder, engine-driven welder, or welding accessories, our financing solutions help you equip your shop without large upfront costs. We offer lease-to-own options on trusted brands like Lincoln Electric, Miller Electric, and more.

Apply in minutes and get a decision in seconds:

  • No hard credit check
  • No lengthy paperwork
  • Fast approvals

Why Choose Lease-to-Own Welding Equipment?

Lease-to-own financing gives you the flexibility to grow your business while preserving cash flow.

Key benefits include:

  • Low upfront cost – Start using equipment without a large initial investment
  • Flexible terms – Choose payment plans that fit your budget
  • Access to latest technology – Stay competitive with modern welding equipment
  • Ownership options – Buy the equipment, upgrade, or return it at the end of the lease

You also have the option to purchase your equipment early, including within the first 12 months.

Tax Advantages

In many cases, lease payments for business-use equipment may be tax-deductible. This can reduce your overall cost and free up capital for additional tools, supplies, or labor.

(Consult your tax advisor for details.)

Apply in Minutes

Financing is available 24/7, so you can apply whenever it’s convenient.

  • Application takes about 4 minutes
  • Instant decision in most cases
  • Immediate access to eDocs
  • Order your equipment right away

If approved for more than your initial request, you can easily adjust your financing to include additional items.

Need Help?

Have questions about financing or lease-to-own options?

Contact the WeldingMart team — we’re here to help you find the right solution for your business. 877-532-9353.


UltraCore® 75C from Lincoln Electric is capable of producing low diffusible hydrogen levels and high deposition rates.
AWS / Classification: E70T-5C-JH4, E70T5-C1A4-CS1-H4
Overview

UltraCore 75C 1/16 inch welding wire is capable of producing low diffusible hydrogen levels and high deposition rates. It is recommended for both single or multiple pass welding in either semi-automatic or automatic applications. This product is manufactured with steel made and melted in the U.S.A. It complies to Buy America (BA), Buy American (BAA), Build America, Buy America (BABA), and American Iron & Steel (AIS) standards.

Features
  • High deposition in the flat and horizontal positions
  • H4 diffusible hydrogen levels
  • Designed for welding with 100% CO2 shielding gas
  • Premium arc performance and bead appearance
  • ProTech® foil bag packaging
  • This product is manufactured with steel made and melted in the U.S.A. It complies to Buy America (BA), Buy American (BAA), Build America, Buy America (BABA), and American Iron & Steel (AIS) standards.

Typical Applications

  • Highly restrained joints.
  • Hard to weld base materials.
  • Thick steel sections in structural fabrication.
  • Heavy Equipment
  • Mining

Welding Positions

  • Flat/Horizontal

Shielding Gas

  • 100% CO2

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.20E70T-5C-JH4
AWS AWS A5.36E70T5-C1A4-CS1-H4
CWB CSA W48E490T5-C1A4-CS1-H4 (E492T-5J-H4)
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)Charpy V-Notch, J (ft-lbs) @ -40°C (-40°F)
E70T-5C-JH4 Requirement 100% CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
E70T5-C1A4-CS1-H4 Requirement 100% CO2DC+ or DC-400 (58) min.480-660 (70-95)22 min.27 (20) min.
Typical Result, As-welded 100% CO2DC+440 (64)540-590 (78-85)2675-172 (55-127)28-173 (21-128)
Classification Shielding GasPolarity%C%Mn%P%S%SiDiffusible Hydrogen, mL/100g Weld Metal
E70T-5C-JH4 Requirement 100% CO2DC+0.12 max.1.75 max.0.03 max.0.03 max.0.90 max.4.0 max.
E70T5-C1A4-CS1-H4 Requirement 100% CO2DC+ or DC-0.12 max.1.75 max.0.030 max.0.030 max.0.90 max.4 max.
Typical Result 100% CO2DC+0.05-0.081.44-1.750.016 max.0.012 max.0.40-0.602-4
Diameter Shielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)Deposition Rate, kg/hr (lb/hr)Efficiency, %
1/16 in (1.6 mm) 100% CO2DC+19-25 (3/4-1)5.1 (200)29-342304.0 (8.7)3.1 (6.9)76-86
1/16 in (1.6 mm) 100% CO2DC+19-25 (3/4-1)6.4 (250)31-362705.0 (11.0)3.8 (8.5)76-86
1/16 in (1.6 mm) 100% CO2DC+19-25 (3/4-1)7.6 (300)32-372955.9 (13.1)4.5 (10.0)76-86
1/16 in (1.6 mm) 100% CO2DC+19-25 (3/4-1)8.9 (350)33-383356.9 (15.2)5.5 (12.1)76-86
1/16 in (1.6 mm) 100% CO2DC+19-25 (3/4-1)10.2 (400)33-383607.9 (17.4)6.3 (13.9)76-86
1/16 in (1.6 mm) 100% CO2DC+19-25 (3/4-1)12.7 (500)35-404159.9 (21.8)7.9 (17.5)76-86
5/64 in (2.0 mm) 100% CO2DC+25-32 (1-1 1/4)5.1 (200)29-342955.7 (12.7)4.8 (10.5)82-86
5/64 in (2.0 mm) 100% CO2DC+25-32 (1-1 1/4)6.4 (250)30-353457.2 (15.9)6.0 (13.2)82-86
5/64 in (2.0 mm) 100% CO2DC+25-32 (1-1 1/4)7.6 (300)32-373908.6 (19.0)7.1 (15.6)82-86
5/64 in (2.0 mm) 100% CO2DC+25-32 (1-1 1/4)8.9 (350)33-3842510.1 (22.3)8.5 (18.7)82-86
5/64 in (2.0 mm) 100% CO2DC+25-32 (1-1 1/4)10.2 (400)34-3946511.5 (25.3)9.9 (21.8)82-86
3/32 in (2.4 mm) 100% CO2DC+32 (1-3/8)3.2 (125)23-283355.5 (12.2)4.8 (10.7)87-90
3/32 in (2.4 mm) 100% CO2DC+32 (1-3/8)5.1 (200)27-324458.8 (19.3)7.6 (16.7)87-90
3/32 in (2.4 mm) 100% CO2DC+32 (1-3/8)6.4 (250)29-3450010.9 (24.1)9.6 (21.3)87-90
3/32 in (2.4 mm) 100% CO2DC+32 (1-3/8)7.6 (300)31-3659013.2 (29.2)11.8 (26.0)87-90
3/32 in (2.4 mm) 100% CO2DC+32 (1-3/8)8.3 (325)32-3760514.2 (31.4)12.8 (28.3)87-90
Note
⁽¹⁾ To estimate ESO, subtract 1/4 in. (6.0 mm) from CTWD.
LECO Diameter 1/16 in (1.6 mm)
LECO Package 50 lb Coil
Diameter (in) 1/16
Downloads
Includes
  • (1) 50 lb Coil
