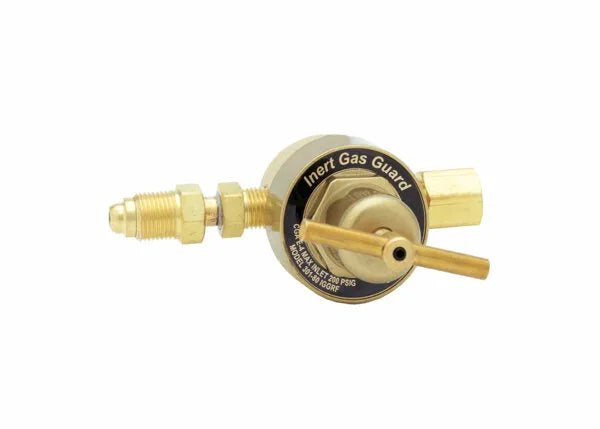

Harris 301-80-IGG-032 Inert Gas Guard Argon/Carbon Dioxide Regulator - 3000326
Model 301 inert gas guard regulator is a special regulator designed to correct surge and provide full flow control when added to existing flow control equipment. Model 301 IGGs will mount to flowmeter regulator or wire feeder. A feeder mount is available with a flowgauge.
Features
- Special inert gas guard regulator designed to eliminate surge
- Provides full flow control when added to existing flow control equipment
- Designed for gas-shielded welding
- Brass body and bonnet for longer service life
- Easy-to-operate brass T-screw adjusting handle
- No gauge
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
- Neoprene diaphragm for better pressure control
- UL® listed
- Mounts on flowmeter outlet
Specifications
Equipment
Adjusting Screw | Brass T-screw |
Body | Brass |
Bonnet | Brass-painted zinc |
Certification | CGA E-4 UL® listed |
Delivery Flow Range (SCFH) | 0 - 80 |
Diaphragm | Neoprene |
Duty | Heavy |
Gas / Gas Service | Argon Carbon Dioxide |
Gauges | 2 in. Steel dual scale |
Inlet Connection | 5/8 in. - 18 RH (M) |
Maximum Inlet Pressure (PSIG) | 200 |
Mounting Location | Flowmeter Outlet |
Outlet Connection | 5/8 in. - 18 RH (F) |
Seat | PTFE Teflon® |
Warranty
Warranty | 7 Years |
