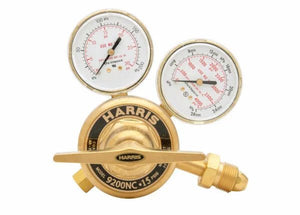

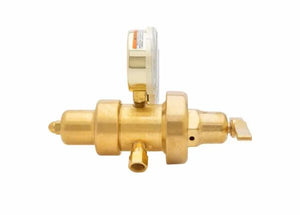

Harris 9200-50-580 Two Stage Argon/Helium/Nitrogen Regulator - 3302218
Model 9200 is a standard for general purpose laboratory, industrial and welding applications. This heavy duty model is designed for applications where a constant delivery pressure is required over a wide range of inlet pressures. Model 9200 features a neoprene diaphragm, self-reseating relief valve, one-piece encapsulated seat design with internal filter and Teflon® seat and T-screw bar handle.
Features
- For general purpose laboratory, industrial and welding applications
- Designed for use when constant delivery pressure is required over a wide range of inlet pressures
- Brass body and bonnet for longer service life
- Easy-to-operate brass T-screw bar adjusting handle
- 2.5 in. Brass dual scale easy-to-read gauges (psi/bar)
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
- Neoprene diaphragm for better pressure control
- Use for welding applications where neoprene diaphragms are acceptable
- Equipped with a tamper-proof, self-reseating, high pressure internal safety relief valve
Specifications
Equipment
Adjusting Screw | Brass T-screw bar |
Body | Brass |
Bonnet | Brass |
Certification | CGA E-4 |
Cv | 0.37 |
Delivery Pressure Gauge (PSIG) | 200 |
Delivery Pressure Range (PSIG) | 0 - 125 |
Diaphragm | Neoprene |
Duty | Heavy |
Equipped With | Tamper proof, self-reseating internal high pressure safety valve |
Gas / Gas Service | Argon Helium Nitrogen |
Gauges | 2.5 in. Brass dual scale (psi/bar) |
Inlet Connection | CGA 580 |
Maximum Inlet Pressure (PSIG) | 3000 |
Outlet Connection | 5/8 in. - 18 RH (F) |
Pressure Regulation PSIG/100 PSIG | 0.03 |
Seat | PTFE Teflon® |
Supply Pressure Gauge (PSIG) | 4000 |
Warranty
Warranty | 7 Years |
