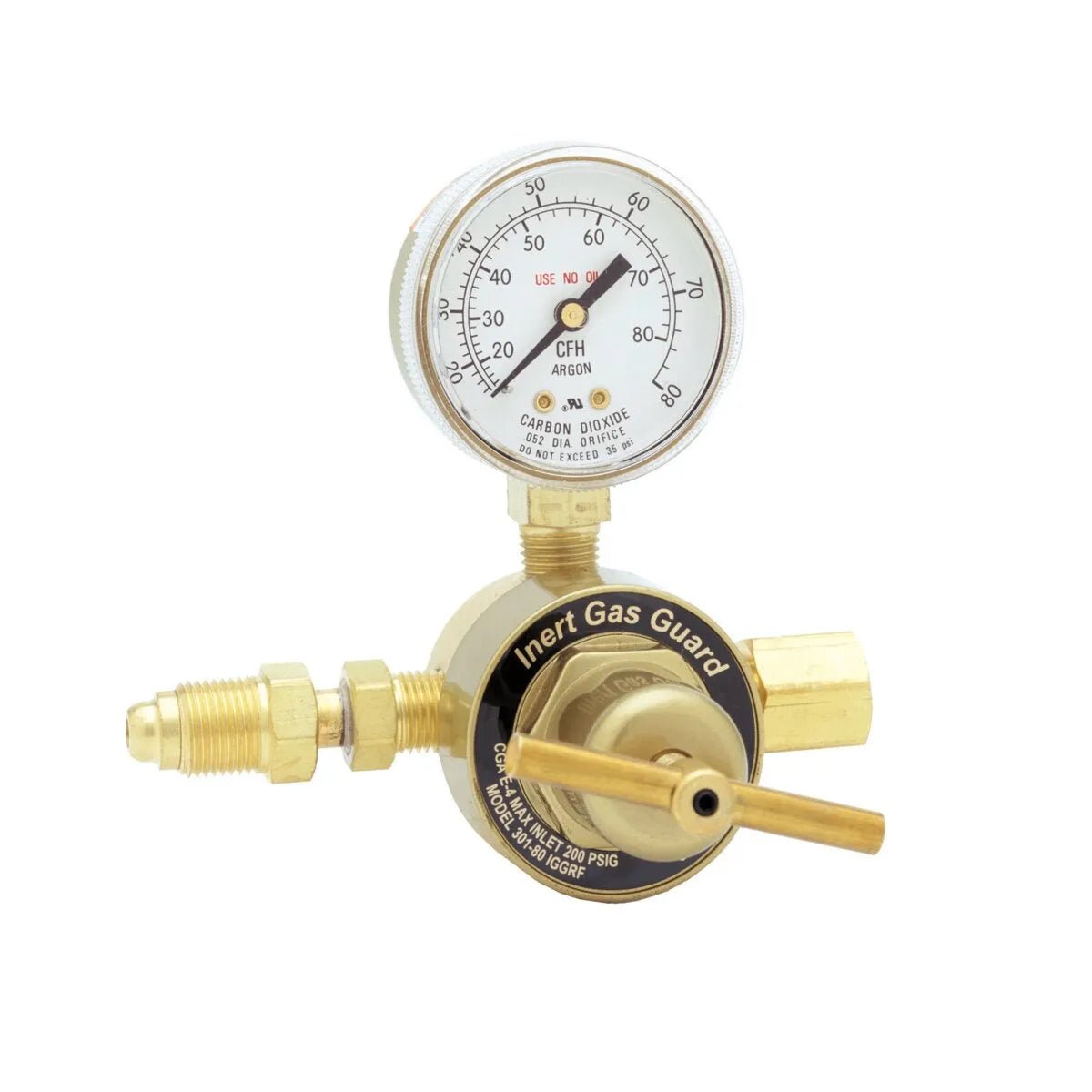

Harris Model 301-80-IGGRF-032 Argon/Carbon Dioxide Inert Gas Guard Regulator - 3000328
Model 301 inert gas guard Regulator is a special Regulator designed to correct surge and provide full flow control when added to existing flow control equipment. Model 301 IGGs will mount to flowmeter Regulator or wire feeder. A feeder mount is available with a flowgauge.
Features
⢠Special inert gas guard Regulator designed to eliminate surge
⢠Provides full flow control to 80 SCFH when added to existing flow control equipment
⢠Designed for gas-shielded welding
⢠Brass body and bonnet for longer service life
⢠Easy-to-operate brass T-screw adjusting handle
⢠2 in. Painted gold steel dual scale easy-to-read gauge (psi/cfh)
⢠One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
⢠Neoprene diaphragm for better pressure control
⢠UL listed
⢠Mounts on feeder inlet
Specifications
Equipment
Adjusting Screw | Brass T-screw |
Body | Brass |
Bonnet | Brass-painted zinc |
Certification | CGA E-4 ULĀ® listed |
Compensated PSIG | - |
Delivery Flow Gauge (SCFH) | 80 |
Delivery Flow Range (SCFH) | 0 - 80 |
Diaphragm | Neoprene |
Duty | Heavy |
Gas / Gas Service | Argon Carbon Dioxide |
Gauges | 2 in. Steel dual scale |
Inlet Connection | 5/8 in. - 18 RH (F) |
Maximum Inlet Pressure (PSIG) | 200 |
Mounting Location | Feeder Inlet |
Outlet Connection | 5/8 in. - 18 RH (M) |
Seat | PTFE TeflonĀ® |
Supply Pressure Gauge (PSIG) | 4000 |
Warranty
Warranty | 7 Years |
