Harris  |  SKU: 4300222

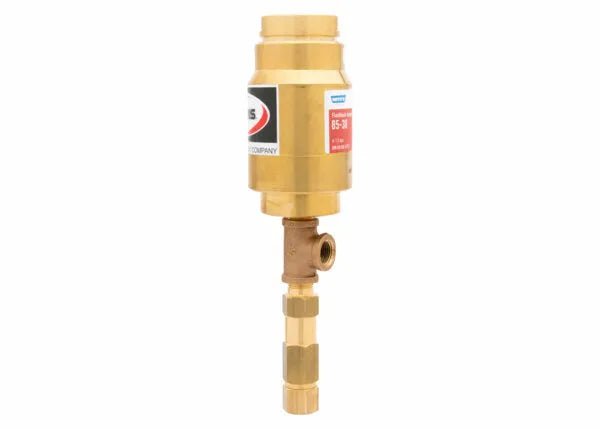

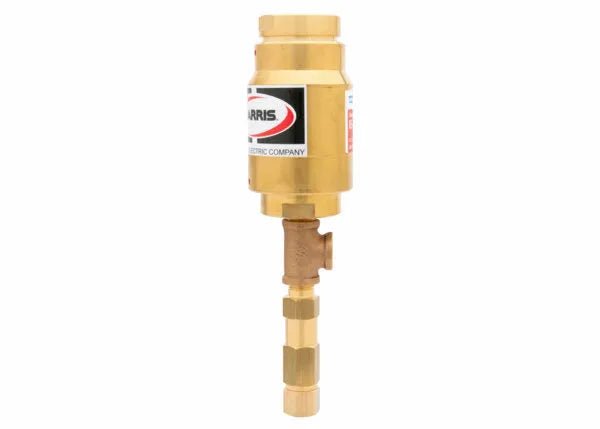

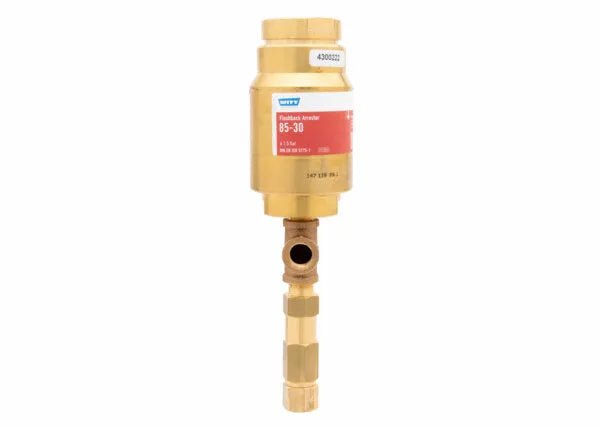

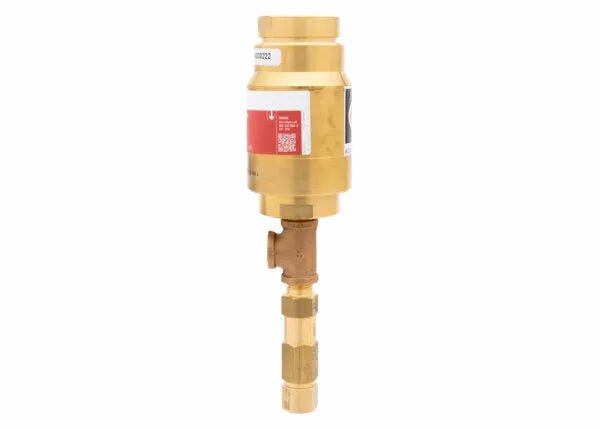

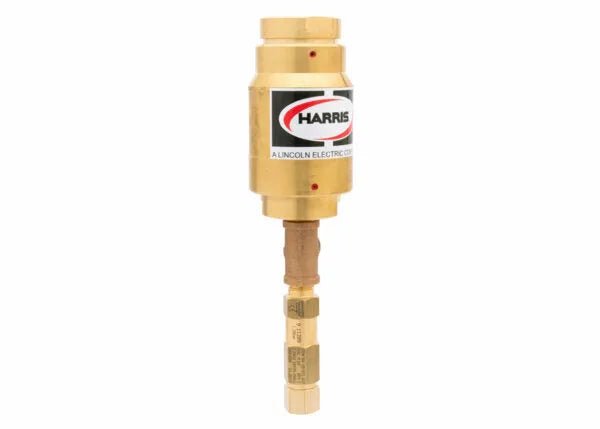

Harris Model 8530-A-1/2" Pipeline Dry-Type Flashback Arrestor Assembly - 4300222

$1,724.25 $1,915.83
Model 8530-A-1/2" pipeline dry-type flashback arrestor assembly for use with acetylene

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.




More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Harris Model 8530-A-1/2" Pipeline Dry-Type Flashback Arrestor Assembly - 4300222

Model 8530-A-1/2" for use with acetylene has a 750 SCFH flow, 1/2" NPT inlet/outlet connections and a 20 psig relief valve. This pipeline dry type flashback arrestor system is comprised of a flashback arrestor that incorporates ASME relief valves and check valves into its design. It meets the requirements of NFPA 51 in oxy-fuel gas piping systems. Unlike hydraulic flash arrestors, dry arrestors are virtually maintenance free, do not require fluid, take up less space and provides continuous safe operation in fuel gas distribution systems.

Features

  • High surface area Stainless Steel flash arrestor material extinguishes flashback
  • Temperature sensitive shut-off valve extinguishes sustained flashbacks
  • Check valve prevents reverse flow from forming explosive mixtures in the gas supply system
  • Can be mounted in any position
  • One year manufacturer's warranty

Specifications

Construction Brass and Stainless Steel
Equipped With ASME relief valve and check valves
Flow Capacity (SCFH) 750
Gas / Gas Service Acetylene
Outlet Connection 1/2" NPT (F)
Relief Valve (PSIG) 20 PSIG
