This outfit has the V-Series 2-tube cutting attachment design and thread. The fuel regulator cylinder connection is CGA 510. This outfit can cut up to 4 in., braze up to 3 in. copper tube and weld up to ½ in plate.
Overview
Harris V-Series Medium Duty Model 801 Ironworker Kit CGA 540/510 - 4400372

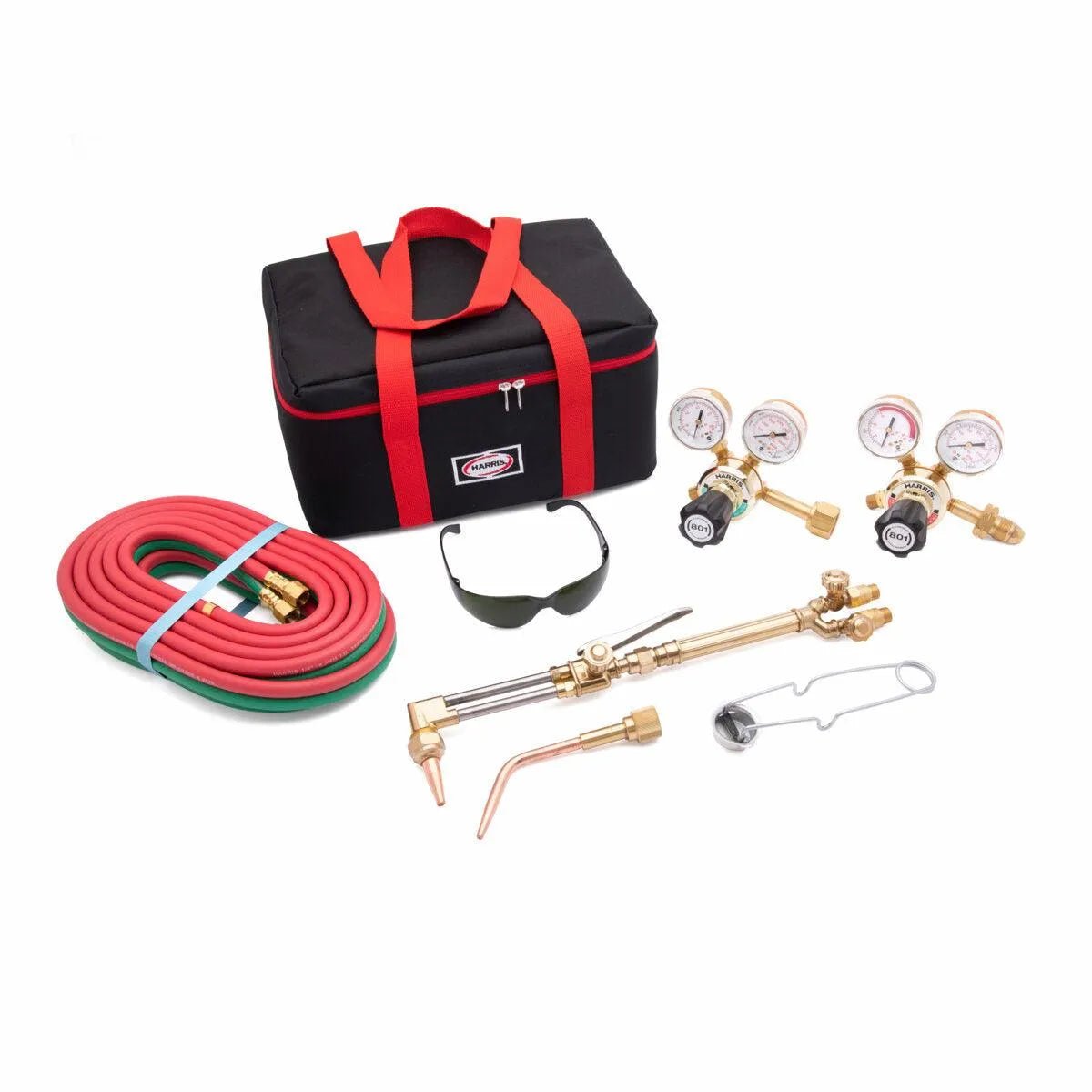

Harris Model 801 Deluxe Ironworker outfit contains quality equipment needed for cutting, brazing, and welding using oxygen and acetylene gases. The outfit can cut up 4 in. (101.6mm) and is supplied with a tip to cut up to 1 in. (25.4mm) plate. The kit can braze up to 3 in. (76.2) diameter copper tube and is supplied with a size tip for brazing copper up to 1 ½ in. (38.1mm) tube. The kit is capable of welding up to ½ in. (12.7mm) and is supplied with a tip that welds up to 1/16 in. (1.6mm) plate.

Features
  • Complete V-Series Ironworker Deluxe kit for most cutting and welding projects
  • Regulator oxygen and acetylene Harris Model 801 with easy-to-read dual scale 2 in. gauges, ergonomic plastic adjusting knob, neoprene diaphragms and our distinguished internal encapsulated seat filter. Oxygen Regulator that delivers up to 145 psi and acetylene Regulator delivers up to 15 psi.
  • Torch handle Harris Model Vh30 that has tube-within-a-tube construction and is equipped with external replaceable FlashGuard check valves.
  • Cutting attachment Harris Model Vh33 features a stainless-steel lever, an in-tube mixer, and threaded connections for easy repair.
  • Consumables included V3-101-1 cutting tip, V-W-1 mixer and 23A90-5 welding tip.
  • Accessories included - Shade 5 safety glasses (ANSI Z87.1 CE Weld);Handheld ignitor;1/4 in. x 20 ft. twin R-grade hose and Harris black and red insulated tool kit bag
Specifications
Cutting Attachment Model Number VH-13
Cutting Capacity Up to 4 in. (101.6mm) plate with optional tip(s)
Optional tip(s) sold separately
Cutting Tip Style - Acetylene-h3 (Size) V3-101-1
Duty Medium
Equipped With FlashGuard check valves - handle
Fuel Gas Regulator Model Number 801-15-510
Gas / Gas Service Acetylene
Gauges 2 in. Steel dual scale (psi/kPa) - Regulators
Hose Connection/Fittings BxB
Hose Size 1/4 in. x 20 ft.
Hose Type Twin Oxygen-Acetylene R-grade
Included Accessories Shade 5 safety glasses (ANSI Z87.1 CE Weld)
Handheld ignitor
1/4 in. x 20 ft. twin BxB R-grade hose
Harris black and red insulated tool kit bag
Mixer Model Number V-W-1
Mixer Type E-Equal or positive pressure
Oxygen Regulator Model Number 801-145-540
Recommended Items/Accessories Standard One-Piece Tip Cleaner - Model C-9 - PN 9000156
Deluxe Two-Piece Tip Cleaner - Model E-9 - PN 9000160
Seat PTFE Teflon - Regulators
Tank Connection CGA 540, CGA 510
Torch Handle Model Number VH31
Welding Capacity Up to 1/2 in. (12.7mm) plate with optional tip(s). Optional tips sold separately
Welding/Brazing Tip Model Number - Acetylene 23A90-5
Specifications
FeatureValue
Gas / GasService Acetylene
Cutting Attachment Harris - Model Number VH-13
Cutting Capacity Up to 4 in. (101.6mm) plate with optional tip(s); Optional tip(s) sold separately
Cutting Tip Style - Acetylene-H2 (Size) V3-101-1
Duty Medium
Equipped With FlashGuard® check valves - handle
Fuel Gas Regulator Harris - Model Number 801-15-510
Gauges 2 in. Steel dual scale (psi/kPa) - regulators
Hose Connection/Fittings BxB
Hose Size 1/4 in. x 20 ft.
Hose Type Twin Oxygen-Acetylene R-grade
Mixer Harris - Model Number V-W-1
Mixer Type E-Equal or positive pressure
Oxygen Regulator Harris - Model Number 801-145-540
Seat PTFE Teflon® - regulators
Tank Connection CGA 540, CGA 510
Torch Handle Harris - Model Number VH31
Welding Capacity Up to 1/2 in. (12.7mm) plate with optional tip(s). Optional tips sold separately
Includes
  • Harris - Model 801-15-510 Fuel Gas Regulator - 3002193
  • Harris - Model 801-145-540 Oxygen Regulator - 3002194
  • Harris - Model VH10 Torch Handle - 1400424
  • Harris - Model VH13 Cutting Attachment - 1300048
  • Harris - Model V-W1 MD Mixer Assembly - 9105213
  • Harris - Model V3-101-1 Cutting Tip - 1502083
  • Harris - Model 23A90-5 Welding Tip - 1600890
  • 1/4 in. x 20 ft. Twin B&B R-Grade Oxy-Acetylene Hose - 4300591
  • Safety Glasses Shade 5 - 4303629
  • Handheld Ignitor - 9004486
  • Harris - Insulated Tool Kit Bag - 8855094
  • Trilingual Kit Manual - 9505643
  • V-Series Tip Chart - 9500688
