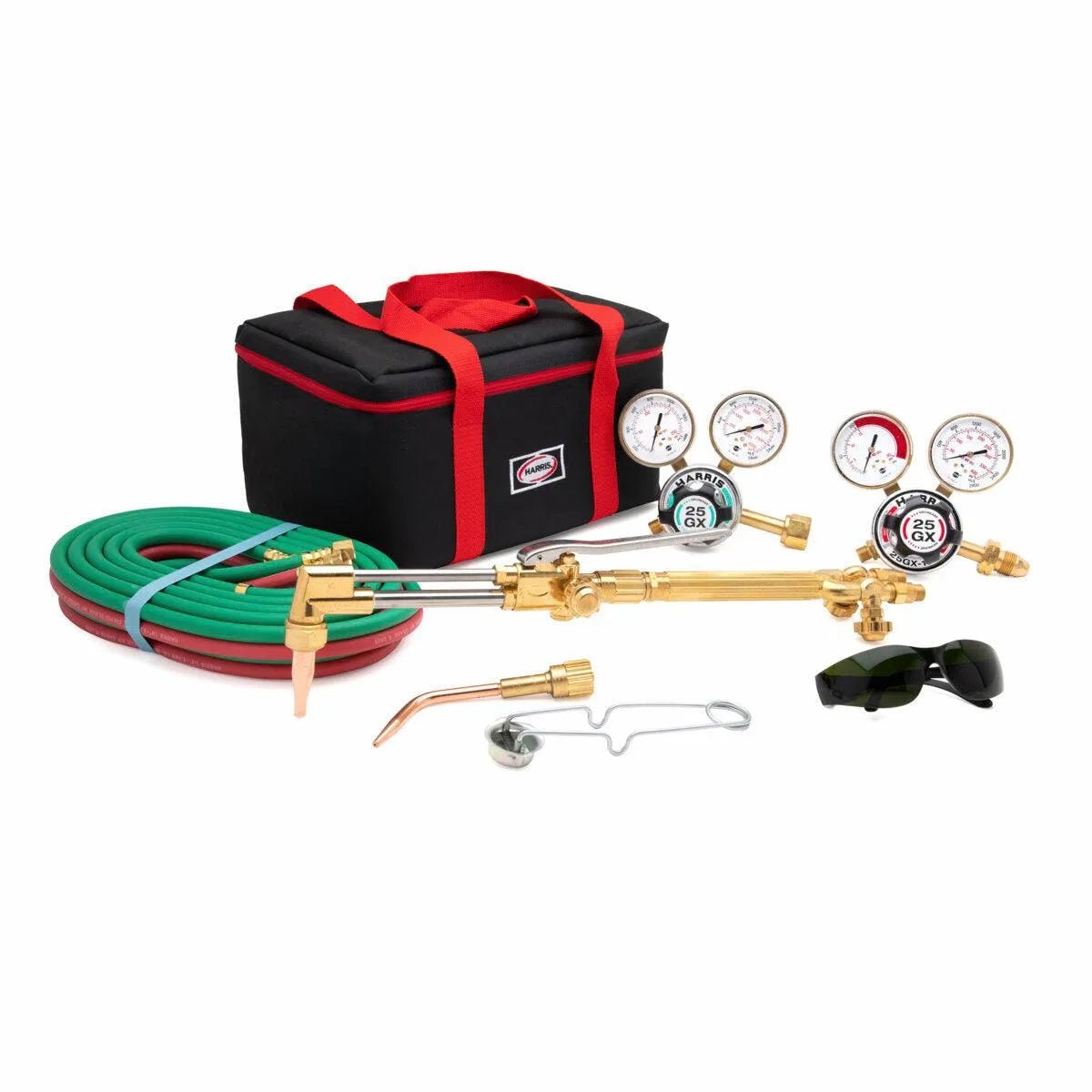

Harris VHD 25GX Deluxe Ironworker Acetylene Torch Kit for CGA 540/300 - 4400376
Harris 450 Deluxe Ironworker acetylene torch kit contains quality equipment needed for cutting, brazing, and welding using oxygen and acetylene gases. The outfit can cut up 8 in. (203.2mm) and is supplied with a tip to cut up to 1 in. (25.4mm) plate. The kit can braze up to 6 in. (152.4) diameter copper tube and is supplied with a size tip for brazing copper up to 1 ½ in. (38.1mm) tube. The kit is capable of welding up to 1 in. (25.4mm) and is supplied with a tip that welds up to 1/16 in. (1.6mm) plate.
Features
- Heavy Duty 2-tube design outfit to be used with oxygen and acetylene gases.
- Regulator oxygen and acetylene Harris Model 25GX with easy-to-read dual scale 2.5 in. gauges, ergonomic plastic adjusting knob, neoprene diaphragms and our distinguished internal encapsulated seat filter. Oxygen Regulator that delivers up to 145 psi and acetylene Regulator delivers up to 15 psi.
- Torch handle Harris Model VH31 that has tube-within-a-tube construction and is equipped with external replaceable FlashGuard check valves. This handle is the ideal choice for heavy heating applications.
- Cutting attachment Harris Model Vh34 features a stainless-steel lever, an in-tube mixer, and threaded connections for easy repair.
- Consumables included - V1-101-1 cutting tip, V-W mixer and 23A90-5 welding tip.
- Accessories included - Shade 5 safety glasses (ANSI Z87.1 CE Weld);Handheld ignitor;1/4 in. x 20 ft. twin R-grade hose and Harris black and red insulated tool kit bag
Specifications
| Cutting Attachment Model Number | Vh34 |
| Cutting Capacity | Up to 8 in. (203.2mm) plate with optional tip(s) Optional tip(s) sold separately |
| Cutting Tip Style - Acetylene-h3 (Size) | V1-101-1 |
| Duty | Heavy |
| Equipped With | FlashGuard check valves - handle |
| Fuel Gas Regulator Model Number | 25GX-15-300 |
| Gas / Gas Service | Acetylene |
| Gauges | 2.5 in. Steel dual scale - Regulators |
| Hose Connection/Fittings | BxB |
| Hose Size | 1/4 in. x 20 ft. |
| Hose Type | Twin Oxygen-Acetylene R-grade |
| Included Accessories | Shade 5 safety glasses (ANSI Z87.1 CE Weld) Handheld ignitor 1/4 in. x 20 ft. twin BxB R-grade hose Harris black and red insulated tool kit bag |
| Mixer Model Number | V-W |
| Mixer Type | E-Equal or positive pressure |
| Oxygen Regulator Model Number | 25GX-145-540 |
| Recommended Items/Accessories | Steel Gauge Guard - Red (Fuel) - PN 4300238 Steel Gauge Guard - Green (Oxygen) - PN 4300239 Standard Tip Cleaner - Model C-9 - PN 9000156 Two-Piece Tip Cleaner - Model E-9 - PN 9000160 |
| Seat | PTFE Teflon - Regulators |
| Tank Connection | CGA 540 CGA 300 |
| Torch Handle Model Number | VH31 |
| Welding Capacity | Up to 1/2 in. (12.7mm) plate with optional tip(s) Optional tips sold separately |
| Welding/Brazing Tip Model Number - Acetylene | 23A90-5 |
