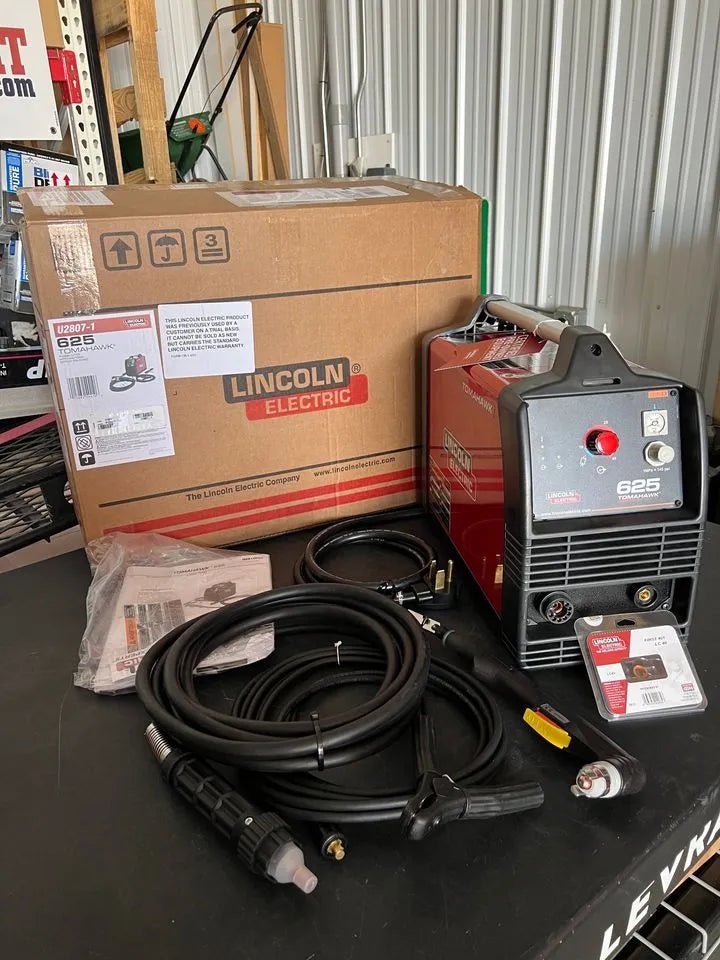

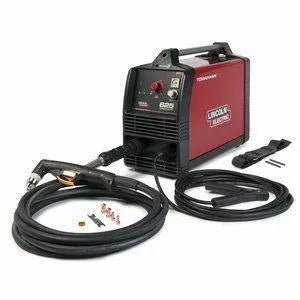

Lincoln Tomahawk 625 w/ Hand Torch Factory Demo Plasma Machine - U2807-1
The Lincoln Tomahawk 625 Factory Demo - U2807-1 is a lightweight and powerful plasma cutting system ideal for professionals who need a dependable tool for onsite work. Featuring a hand torch and designed for maximum portability, this demo unit performs like new and is perfect for HVAC, demolition, maintenance, and light construction tasks. Just connect compressed air, power up, and start cutting—all in one compact, carry-friendly system.
With its Continuous Output Control, the Tomahawk 625 lets you tailor the arc for different materials, while the Touch Start system ensures reliable arc initiation without high-frequency noise. Rapid Arc Restrike technology makes it easy to cut expanded metal or gapped surfaces, and the cool-running consumables are engineered for long life. The built-in Parts-in-Place system enhances safety by ensuring correct torch assembly. Plus, with engine drive compatibility, this plasma cutter can be powered by Lincoln's Ranger or Vantage systems for remote cutting jobs.
Key Features
- Factory Demo model offering high performance with verified reliability and savings.
- Portable design—lightweight and easy to carry to job sites or field operations.
- Continuous Output Control for adjusting arc focus based on material thickness.
- Touch Start system delivers consistent arc initiation without high frequency.
- Rapid Arc Restrike cuts through gaps and expanded metal with speed and precision.
- Engineered for cool operation with long consumable life, reducing maintenance costs.
- Parts-in-Place system confirms correct torch and consumable installation for safer use.
- Compatible with engine-driven power sources for cutting in remote locations.
Specifications
| Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) | 208/230/1/50/60 |
| Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) | 24A/89.6V/100% |
| Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle) | 29A/91.8V/60% |
| Phase 1: Rated Output #1C (Current/Voltage/Duty Cycle) | 40A/96.0V/35% |
| Phase 1: Input Current at Max Rated Output #1 (Current) | 36.8A |
| Dimensions (H x W x D) | 15.2 in x 8.5 in x 18.9 in (385 mm x 215 mm x 480 mm) |
| Net Weight | 34 lbs (15.42 kg) |
| Machines Processes | Plasma Gouging Plasma Cutting |
| Output Range | 10-40A |
| Plasma Machines Process | Cutting Gouging Marking |
| Torch Included | Yes |
| Gas Supply | Air or Nitrogen |
| Gas Pressure Required | 80 - 110 psi (6 - 7.5 Bar) |
| Recommended Cutting Capacity (Mild Steel) (in/ft) | 1/2 in @ 20 ipm |
| Recommended Cutting Capacity (Mild Steel) (mm/M) | 12.7 mm @ .51 m/min |
| Maximum Cutting Thickness (Mild Steel) (in/Ft) | 5/8 in @ 12 ipm |
| Maximum Cutting Thickness (Mild Steel) (mm/M) | 15.9 mm @ .30 m/min |
| Maximum Severance (Mild Steel) (in/Ft) | 3/4 in @ 5 ipm |
| Maximum Severance (Mild Steel) (mm/M) | 19.1 mm @ .13 m/min |
| Typical Application | Construction Automotive General Fabrication Marine Fabrication & Repair Structural Fabrication |
| Warranty | 3 Year on Machine, 1 Year on Torch |
