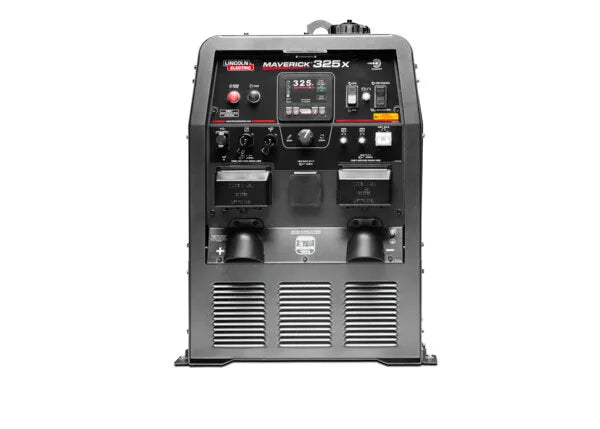

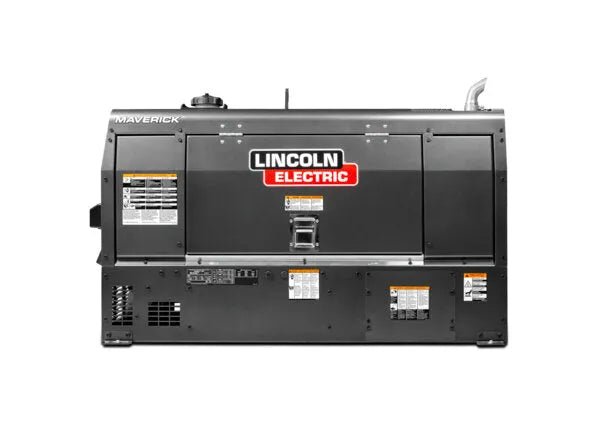

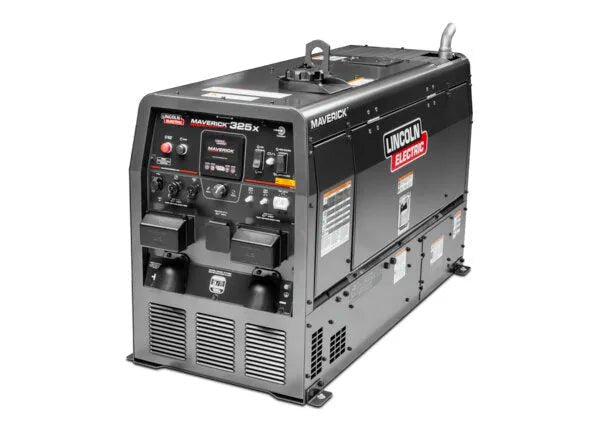

Lincoln K3581-1-RP1 Maverick 325X Ready Pak 1

Lincoln K3581-1-RP1 Maverick 325X Ready Pak 1

The Maverick 325X is an advanced engine-driven welder with the perfect combination of size, performance, and innovation. This best-in-class arc welding machine provides substantial power and promotes fuel savings with variable engine RPM and auto start/stop capabilities. In addition, the machine boasts an advanced user interface on a heavy-duty 4.6" weatherproof LCD screen. The machine also features CrossLinc technology, which allows the adjustment of machine output at the arc to promote productivity, site safety, and overall weld quality.

Experience professional-grade welding performance with the Lincoln Maverick 325X Ready Pak 1, the industry's most advanced compact diesel-powered welding generator delivering exceptional capabilities in a complete trailer-mounted package. This innovative system combines superior welding power with intelligent resource management and digital control technology, providing contractors and maintenance professionals with a comprehensive solution for demanding field applications. Engineered specifically for professional users requiring maximum performance with minimum footprint, the streamlined design delivers robust 325-amp welding output and 10kW auxiliary power in a trailer-ready configuration for immediate deployment to challenging jobsites. The advanced digital interface with weatherproof 4.6-inch LCD display represents a significant advancement in operator control and system monitoring, establishing a new benchmark for user experience in mobile welding equipment.

Designed for exceptional welding performance across multiple processes, the Maverick 325X delivers precise arc control for stick, TIG, MIG, and flux-cored applications with specialized output characteristics optimized for each welding method. The system provides dedicated support for direct-connect spool gun applications, enabling aluminum welding capability without additional interface modules or complex setup procedures. Enhanced with Lincoln's exclusive CrossLinc technology, the system enables remote parameter adjustment at the welding location without control cables, significantly improving productivity by eliminating trips to the power source while enhancing jobsite safety through reduced cable management requirements. The intelligent variable engine RPM functionality automatically adjusts engine speed based on welding output demand, substantially reducing fuel consumption and noise levels during operation—a critical advantage on noise-sensitive jobsites and extended projects requiring maximum operational efficiency.

Engineered for exceptional operational economy and reduced total cost of ownership, the Maverick 325X Ready Pak 1 incorporates advanced Auto-Stop/Start technology that automatically shuts down the engine during idle periods, significantly reducing fuel consumption, engine wear, and maintenance requirements. The digital control system provides comprehensive monitoring with maintenance reminders and PIN authorization capability, ensuring optimal performance while enabling supervisor control of machine usage and settings. Powered by a reliable 24.8 HP Kubota D902 three-cylinder water-cooled diesel engine meeting EPA Tier 4 Final emissions standards, the system delivers dependable performance in extreme environments with remarkably quiet operation at just 73.5 dB at idle and 79.6 dB under load. The complete Ready Pak 1 configuration includes an integrated trailer package, providing turnkey mobility for immediate deployment to remote locations. For contractors requiring professional welding capability with maximum efficiency in a complete mobile platform, the Lincoln Maverick 325X Ready Pak 1 represents the ultimate combination of performance, control, and operational economy in a field-ready welding generator package.

What's Included

• Weld Cable - Tweco Male & Open End (2/0, 350A, 60%) - 10 ft (3 m) | K2483-2
• EH-305HD Electrode Holder - 300A, 60% Duty Cycle | K909-7
• Maverick 325X (Kubota) | K3581-1
• Weld Cable - Tweco Male & 0.53 Lug (2/0, 350A, 60%) - 50 ft (15.3 m) | K2484-2
• GC-300 Work Clamp - 300A, 60% Duty Cycle | K910-1
• Weld Cable - Tweco Male & Female (2/0, 350A, 60%) - 50 ft (15.3 m) | K2485-2
• Insulated CT40FS Female Connector | K2487-1
• Fender and Light Kit for Welder Trailers | K2639-1
• Cable Rack for Welder Trailers | K2640-1
• Small Two-Wheel Welder Trailer | K2635-1



Key Features

• Professional-Grade Welding Output - Substantial 325-amp capacity delivers exceptional performance across stick, TIG, MIG, and flux-cored processes with specialized modes optimized for each application.
• Advanced Digital Control Interface - Durable 4.6-inch weatherproof LCD display provides comprehensive control of all system functions with intuitive process selection, maintenance scheduling, and secure PIN authorization.
• Integrated CrossLinc Remote Control - Exclusive technology enables parameter adjustment at the welding location without control cables, improving productivity, safety, and quality through reduced cable management and fewer trips to the power source.
• Intelligent Variable Engine RPM - Automatically adjusts engine speed based on welding demand, significantly reducing fuel consumption, emissions, and noise levels while extending service intervals.
• Enhanced Auto-Stop/Start System - Advanced engine management automatically shuts down during idle periods, substantially decreasing operational costs, environmental impact, and maintenance requirements.
• Superior Direct-Connect Spool Gun Capability - Seamless integration with aluminum welding equipment without additional interface modules, providing maximum application versatility for diverse fabrication requirements.
• Premium Kubota Water-Cooled Diesel Engine - Reliable 24.8 HP naturally aspirated D902 power plant delivers consistent performance in extreme conditions while meeting EPA Tier 4 Final emissions standards.
• Complete Trailer-Mounted Solution - Fully integrated Ready Pak 1 configuration provides turnkey mobility for immediate deployment to remote locations and challenging jobsites.



Specifications
