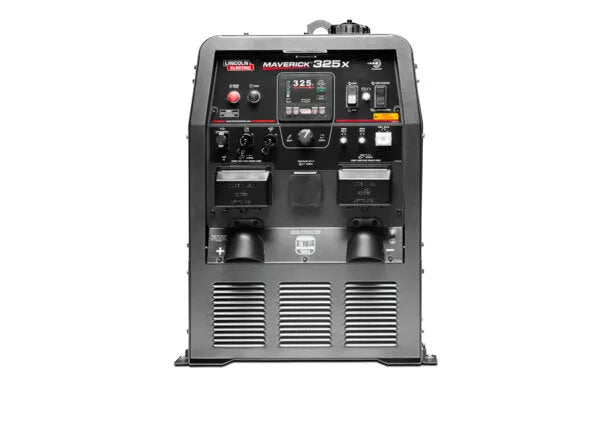

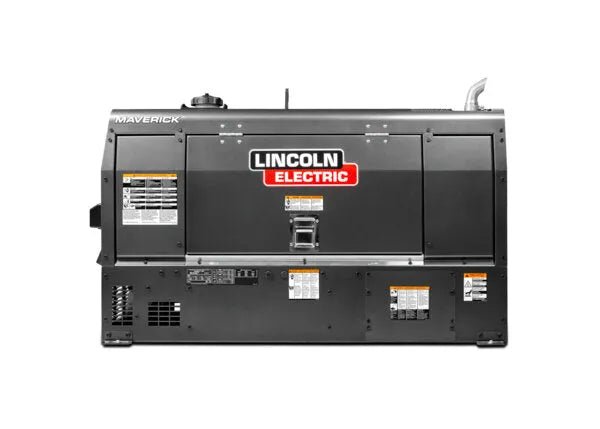

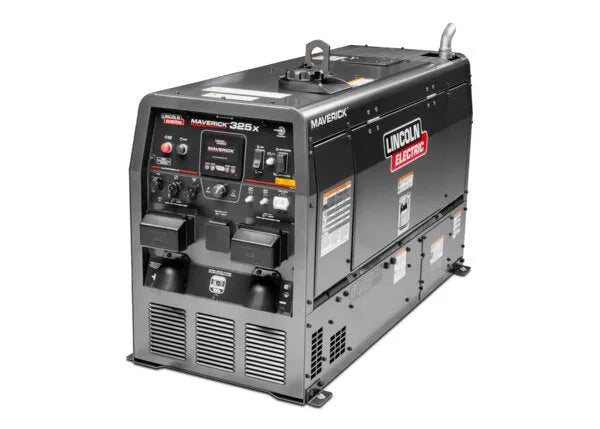

Lincoln K3581-1-RP3 Maverick 325X Ready Pak 3
The Maverick 325X is an advanced engine-driven welder with the perfect combination of size, performance, and innovation. This best-in-class arc welding machine provides substantial power and promotes fuel savings with variable engine RPM and auto start/stop capabilities. In addition, the machine boasts an advanced user interface on a heavy-duty 4.6" weatherproof LCD screen. The machine also features CrossLinc technology, which allows the adjustment of machine output at the arc to promote productivity, site safety, and overall weld quality.
Experience professional-grade welding performance with the Lincoln Maverick 325X Ready Pak 3, the industry's most advanced diesel-powered welding generator delivering exceptional capabilities in a complete trailer-mounted package with accessories. This comprehensive system combines superior welding power with intelligent resource management and digital control technology, providing contractors and maintenance professionals with a turnkey solution for demanding field applications. Engineered specifically for professional users requiring maximum performance with immediate deployment capability, the Ready Pak 3 configuration includes the robust 325-amp welding system with integrated trailer, fender and light kit, and cable management system—creating a complete mobile welding platform ready for transport to remote locations and challenging jobsites. The advanced digital interface with weatherproof 4.6-inch LCD display represents a significant advancement in operator control and system monitoring, establishing a new benchmark for user experience in mobile welding equipment.
Designed for exceptional welding performance across multiple processes, the Maverick 325X delivers precise arc control for stick, TIG, MIG, and flux-cored applications with specialized output characteristics optimized for each welding method. The system provides dedicated support for direct-connect spool gun applications, enabling aluminum welding capability without additional interface modules or complex setup procedures. Enhanced with Lincoln's exclusive CrossLinc technology, the system enables remote parameter adjustment at the welding location without control cables, significantly improving productivity by eliminating trips to the power source while enhancing jobsite safety through reduced cable management requirements. The intelligent variable engine RPM functionality automatically adjusts engine speed based on welding output demand, substantially reducing fuel consumption and noise levels during operation—a critical advantage on noise-sensitive jobsites and extended projects requiring maximum operational efficiency.
Engineered for exceptional operational economy and reduced total cost of ownership, the Maverick 325X Ready Pak 3 incorporates advanced Auto-Stop/Start technology that automatically shuts down the engine during idle periods, significantly reducing fuel consumption, engine wear, and maintenance requirements. The digital control system provides comprehensive monitoring with maintenance reminders and PIN authorization capability, ensuring optimal performance while enabling supervisor control of machine usage and settings. Powered by a reliable 24.8 HP Kubota D902 three-cylinder water-cooled diesel engine meeting EPA Tier 4 Final emissions standards, the system delivers dependable performance in extreme environments with remarkably quiet operation at just 73.5 dB at idle and 79.6 dB under load. The complete Ready Pak 3 configuration includes an integrated trailer package with fender kit, lighting system, and cable rack, providing turnkey mobility with complete accessory integration for immediate deployment to pipeline, construction, and field maintenance applications. For contractors requiring professional welding capability with maximum efficiency in a complete mobile platform, the Lincoln Maverick 325X Ready Pak 3 represents the ultimate combination of performance, control, and operational economy in a field-ready welding generator package.
Key Features
- Professional-Grade Welding Output - Substantial 325-amp capacity delivers exceptional performance across stick, TIG, MIG, and flux-cored processes with specialized modes optimized for each application.
- Advanced Digital Control Interface - Durable 4.6-inch weatherproof LCD display provides comprehensive control of all system functions with intuitive process selection, maintenance scheduling, and secure PIN authorization.
- Integrated CrossLinc Remote Control - Exclusive technology enables parameter adjustment at the welding location without control cables, improving productivity, safety, and quality through reduced cable management and fewer trips to the power source.
- Intelligent Variable Engine RPM - Automatically adjusts engine speed based on welding demand, significantly reducing fuel consumption, emissions, and noise levels while extending service intervals.
- Enhanced Auto-Stop/Start System - Advanced engine management automatically shuts down during idle periods, substantially decreasing operational costs, environmental impact, and maintenance requirements.
- Superior Direct-Connect Spool Gun Capability - Seamless integration with aluminum welding equipment without additional interface modules, providing maximum application versatility for diverse fabrication requirements.
- Premium Kubota Water-Cooled Diesel Engine - Reliable 24.8 HP naturally aspirated D902 power plant delivers consistent performance in extreme conditions while meeting EPA Tier 4 Final emissions standards.
- Complete Ready Pak 3 Solution - Fully integrated configuration includes trailer, fender and light kit, and cable rack providing turnkey mobility with comprehensive accessory integration for immediate deployment to remote locations.
Specifications
| Dimensions (H x W x D) | 36.1 in x 27.0 in x 65.0 in (917 mm x 686 mm x 1651 mm) |
| Net Weight | 1178 lbs (534 kg) |
| Machines Processes | Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) |
| Open Circuit Voltage | 80 Peak OCV at 3600 RPM |
| IEC Rating | 325A / 33V / 100% @ 104°F (40°C) |
| Output Range by Mode | Stick (SMAW): 35 - 400 Amps CV-Wire (GMAW, FCAW-S, FCAW-G): 13 - 40 Volts DC TIG (GTAW): 25 - 250 Amps Arc Gouging (CAC-A): 60 - 400 Amps |
| Rated Gouging Carbon Diameter | 5/16" (8.0 mm) |
| Machines Communication Technology | CrossLinc |
| Single Phase Auxiliary Output | 10,000 Watts Continuous, 120/240V |
| Auxiliary Output Frequency | 60 Hz |
| Receptacle Types | NEMA 5-20R NEMA 14-50R |
| Engine Brand & Model | Kubota D902 |
| Engine Description | 3 Cylinder Naturally Aspirated Water Cooled Diesel Engine |
| Engine Horsepower | 24.8 hp (18.5 kW) |
| Engine Block Size & Displacement | 54.8 cu. in (0.90 L) Bore x Stroke - 2.83 in x 2.90 in (72 mm x 73.6 mm) |
| Emissions Rating | US EPA Tier 4 Final |
| High Idle Operating Speed @ Rated Output | 3600 |
| Low Idle Operating Speed | 2500 |
| Sound Rating @23 ft. (7m) | Idle: 73.5 dB Max Load: 79.6 dB |
| Fuel Tank Size (US gal.) | 11.5 US gal. |
| Fuel Tank Size (L) | 50 L |
| Oil Capacity (qts.) | 3.9 qts. |
| Oil Capacity (L) | 3.7 L |
| Coolant Capacity (US gal.) | 0.9 US gal. |
| Coolant Capacity (L) | 3.3 L |
| Typical Application | Construction Cross Country Pipeline Construction & Field Erection Maintenance & Repair Oil & Gas Power Generation Structural Fabrication Structural Welding |
| Warranty | 3 Years Parts and Labor - Engine warranted separately by engine manufacturer |
