Harris  |  SKU: 3100090

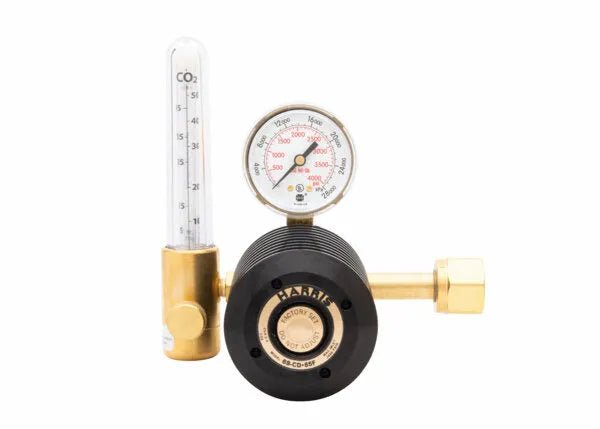

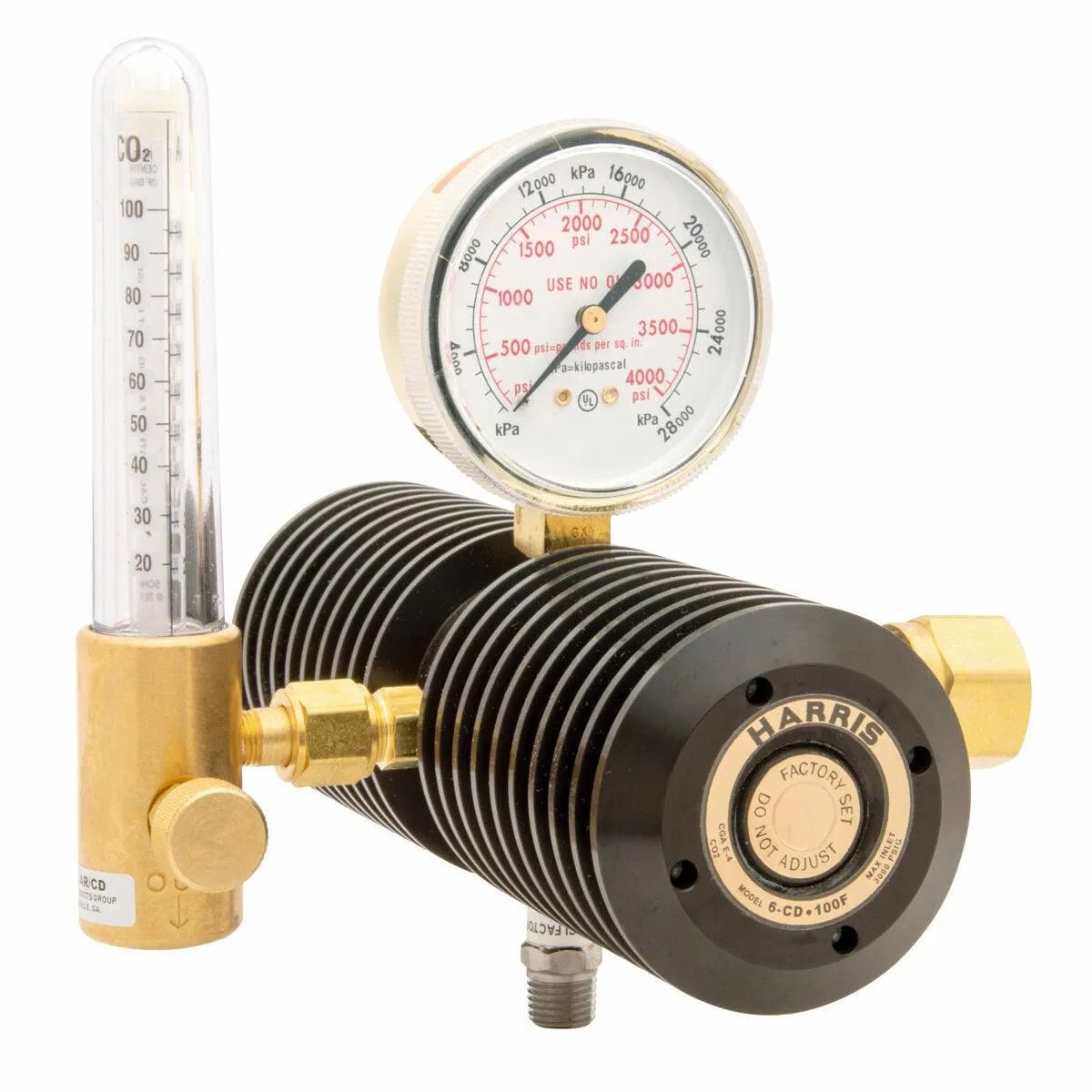

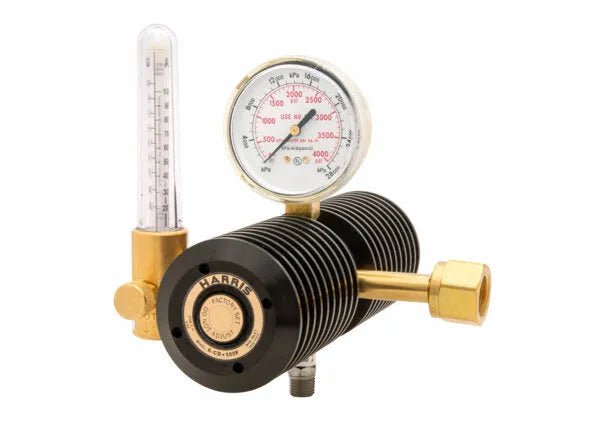

Harris Model 6-CD-100F-320 High-Capacity Two Stage Flowmeter Regulator - 3100090

$727.87 $1,025.14
Model 6-CD-100F-320 high-capacity two-stage flowmeter regulator for use with Carbon Dioxide (CO2))
Warranty: 7 Years
Certification: CGA E-4;UL® listed
Victor Cross Reference Model & Part #: SR 311, 100-320 - 0781-0353

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.




More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Harris Model 6-CD-100F-320 High-Capacity Two Stage Flowmeter Regulator - 3100090

Model 6CD is a multi-stage flowmeter Regulator designed specifically to deliver carbon dioxide (CO2) flow rates of up to 100 SCFH continuously without freeze-up. This multi-stage Regulator design spreads out the cooling effect of CO2 pressure reduction. The flowmeter includes a sensitive needle valve for fingertip control and durable, easy-to-read, flow tube and cover. The multi-finned black aluminum body design provides a high rate of heat transfer into the Regulator requiring no electrical power. It also features a 2.5 in. brass dual scale gauge and one-piece encapsulated seat design with internal filter and PTFE Teflon seat. The outlet connection is 5/8 in. - 18 (F).

Features

• Designed specifically for carbon dioxide (CO2) flow rates up to 100 SCFH without freeze-up
• Regulator is compensated at 50 PSIG
• Multi-finned aluminum black barstock body and black anodized aluminum bonnet design provides a high rate heat transfer into the Regulator
• Neoprene diaphragm for better pressure control
• 2.5 in. Brass dual scale easy-to-read gauges
• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
• Durable cover and easy-to-read flow tube
• Provides accurate flow-control to 100 SCFH
• Sensitive needle valve for fingertip control permits highly accurate flow settings
• Body design provides a high rate of heat transfer without electrical power and is UL listed

Harris Model 6-CD-100F-320 High-Capacity Two Stage Flowmeter Regulator - 3100090

Model 6CD is a multi-stage flowmeter Regulator designed specifically to deliver carbon dioxide (CO2) flow rates of up to 100 SCFH continuously without freeze-up. This multi-stage Regulator design spreads out the cooling effect of CO2 pressure reduction. The flowmeter includes a sensitive needle valve for fingertip control and durable, easy-to-read, flow tube and cover. The multi-finned black aluminum body design provides a high rate of heat transfer into the Regulator requiring no electrical power. It also features a 2.5 in. brass dual scale gauge and one-piece encapsulated seat design with internal filter and PTFE Teflon seat. The outlet connection is 5/8 in. - 18 (F).

Features

• Designed specifically for carbon dioxide (CO2) flow rates up to 100 SCFH without freeze-up
• Regulator is compensated at 50 PSIG
• Multi-finned aluminum black barstock body and black anodized aluminum bonnet design provides a high rate heat transfer into the Regulator
• Neoprene diaphragm for better pressure control
• 2.5 in. Brass dual scale easy-to-read gauges
• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
• Durable cover and easy-to-read flow tube
• Provides accurate flow-control to 100 SCFH
• Sensitive needle valve for fingertip control permits highly accurate flow settings
• Body design provides a high rate of heat transfer without electrical power and is UL listed

Harris Model 6-CD-100F-320 High-Capacity Two Stage Flowmeter Regulator - 3100090

Model 6CD is a multi-stage flowmeter Regulator designed specifically to deliver carbon dioxide (CO2) flow rates of up to 100 SCFH continuously without freeze-up. This multi-stage Regulator design spreads out the cooling effect of CO2 pressure reduction. The flowmeter includes a sensitive needle valve for fingertip control and durable, easy-to-read, flow tube and cover. The multi-finned black aluminum body design provides a high rate of heat transfer into the Regulator requiring no electrical power. It also features a 2.5 in. brass dual scale gauge and one-piece encapsulated seat design with internal filter and PTFE Teflon seat. The outlet connection is 5/8 in. - 18 (F).

Features

• Designed specifically for carbon dioxide (CO2) flow rates up to 100 SCFH without freeze-up
• Regulator is compensated at 50 PSIG
• Multi-finned aluminum black barstock body and black anodized aluminum bonnet design provides a high rate heat transfer into the Regulator
• Neoprene diaphragm for better pressure control
• 2.5 in. Brass dual scale easy-to-read gauges
• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
• Durable cover and easy-to-read flow tube
• Provides accurate flow-control to 100 SCFH
• Sensitive needle valve for fingertip control permits highly accurate flow settings
• Body design provides a high rate of heat transfer without electrical power and is UL listed

Harris Model 6-CD-100F-320 High-Capacity Two Stage Flowmeter Regulator - 3100090

Model 6CD is a multi-stage flowmeter Regulator designed specifically to deliver carbon dioxide (CO2) flow rates of up to 100 SCFH continuously without freeze-up. This multi-stage Regulator design spreads out the cooling effect of CO2 pressure reduction. The flowmeter includes a sensitive needle valve for fingertip control and durable, easy-to-read, flow tube and cover. The multi-finned black aluminum body design provides a high rate of heat transfer into the Regulator requiring no electrical power. It also features a 2.5 in. brass dual scale gauge and one-piece encapsulated seat design with internal filter and PTFE Teflon seat. The outlet connection is 5/8 in. - 18 (F).

Features

• Designed specifically for carbon dioxide (CO2) flow rates up to 100 SCFH without freeze-up
• Regulator is compensated at 50 PSIG
• Multi-finned aluminum black barstock body and black anodized aluminum bonnet design provides a high rate heat transfer into the Regulator
• Neoprene diaphragm for better pressure control
• 2.5 in. Brass dual scale easy-to-read gauges
• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
• Durable cover and easy-to-read flow tube
• Provides accurate flow-control to 100 SCFH
• Sensitive needle valve for fingertip control permits highly accurate flow settings
• Body design provides a high rate of heat transfer without electrical power and is UL listed
