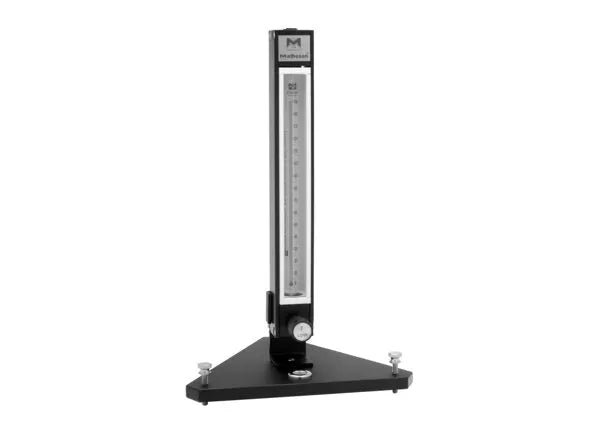

Harris Model SG1050-2112 Flowmeter - 5400718
Model SG1050 flowmeter provides the most accurate indication and precise control of gases available for a wide range of applications. All SG1050 flowmeter glass metering tubes have integral float guides to ensure a guaranteed ±5% of full scale accuracy. The meters are available in a range of 150mm reference indicating scales.
Features
- Precision tapered, fluted metering tube
- Standard front panel mounting requires minimum hardware for easy installation and quick access
- Simplified, direct acting, non-rotating compression plug for quick and easy tube sealing.
- Single tube unit.
- Calibrated for air.
- Stainless Steel end blocks with Viton seals
- Utility valve on inlet
- 1/8" NPT female inlet and outlet connections
- 10-270 SCCM flow tube (capacity) air
