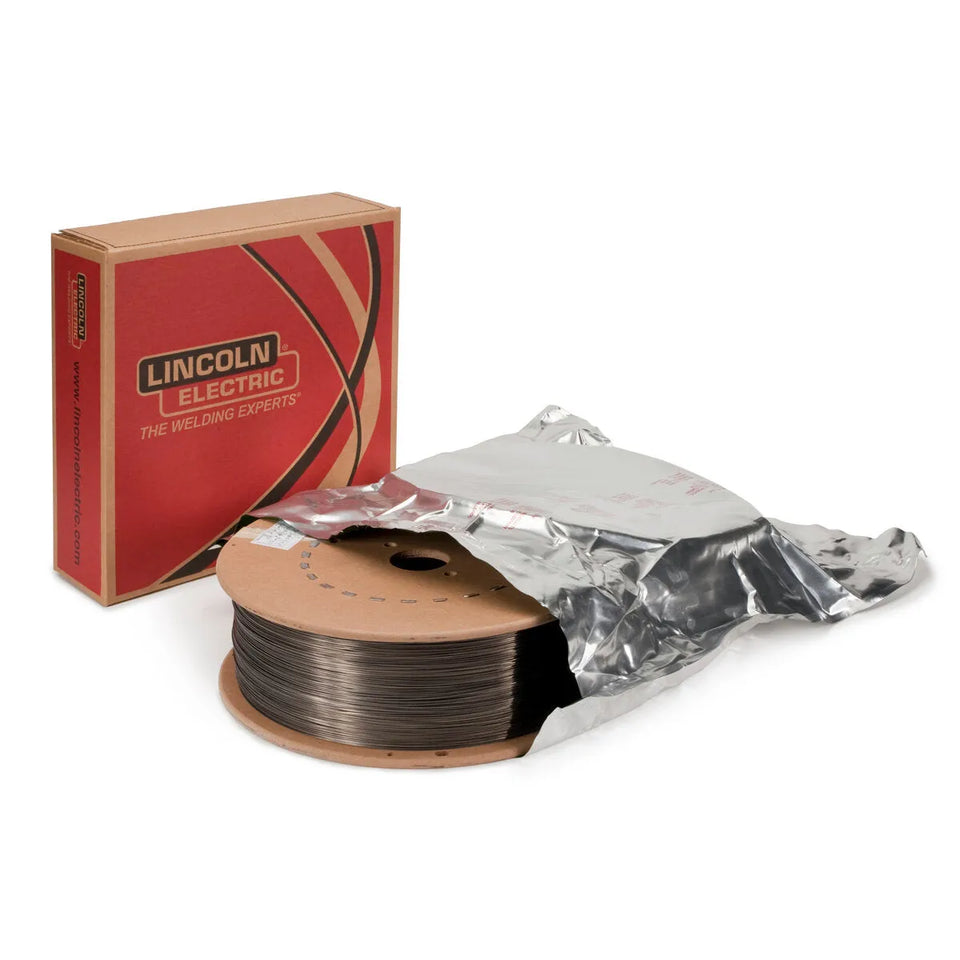

Lincoln ED031852 UltraCore 712A80 Flux-Cored FCAW-G Welding Wire, 1/16 in, 50 lb Spool

SKU: ED031852
$263.70 $293.00
Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.

More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.
UltraCore® 712A80 is Lincoln Electric's best running E71T-12 product because of its superior arc characteristics and high impacts in a variety of applications.
AWS / Classification: E71T-12M-JH8, E71T1-M21A4-CS2-H8
Overview
Lincoln ED031852 UltraCore 712A80 Flux-Cored FCAW-G Welding Wire, 1/16 in, 50 lb Spool

UltraCore® 712A80 is specifically optimized for use with high Argon mixed gas. With desirable arc characteristics and operability, UltraCore® 712A80 provides an excellent solution for offshore, tank, pressure vessel fabrication, and other industries looking for an excellent running E71T-12 wire with high impacts to meet a variety of applications. This product is manufactured with steel made and melted in the U.S.A. It complies to Buy America (BA), Buy American (BAA), Build America, Buy America (BABA), and American Iron & Steel (AIS) standards.

Features
  • This product is manufactured with steel made and melted in the U.S.A. It complies to Buy America (BA), Buy American (BAA), Build America, Buy America (BABA), and American Iron & Steel (AIS) standards.
  • Capable of producing weld deposits with impact toughness exceeding 27 J (20 ft·lbf) at -40°C (-40°F)
  • Designed for welding with 75-80% Argon/balance CO2 shielding gas
  • Premium arc performance and bead appearance
  • ProTech® foil bag packaging

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.20E71T-12M-JH8, E71T-1M-JH8, E71T-9M-JH8
AWS AWS A5.36E71T1-M21A4-CS2-H8
ABS ABS - Part 24YSA H10
CWB CSA W48E491T1-M21A4-CS1-H8 (E491T-9MJ-H8), E491T1-M21A4-CS2-H8 (E491T-12MJ-H8)
DNV-GL DNV - 2.9IV YMS H10
LR LR - Chapter 114YS H10
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -40°C (-40°F)
E71T-12M-JH8 Requirement 75-80% Ar, balance CO2DC+400 (58) min.480-620 (70-90)22 min.27 (20) min.
E71T-1M-JH8 Requirement 75-80% Ar, balance CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
E71T-9M-JH8 Requirement 75-80% Ar, balance CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
E71T1-M21A4-CS2-H8 Requirement M21-ArCDC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
Typical Result, As-welded 75% Ar, 25% CO2DC+500-570 (72-82)570-620 (82-89)22-2936-165 (26-122)
Classification Shielding GasPolarity%B%C%Mn%P%S%SiDiffusible Hydrogen, mL/100g Weld Metal
E71T-12M-JH8 Requirement 75-80% Ar, balance CO2DC+0.12 max.1.60 max.0.03 max.0.03 max.0.90 max.8.0 max.
E71T-1M-JH8 Requirement 75-80% Ar, balance CO2DC+0.12 max.1.75 max.0.03 max.0.03 max.0.90 max.8.0 max.
E71T-9M-JH8 Requirement 75-80% Ar, balance CO2DC+0.12 max.1.75 max.0.03 max.0.03 max.0.90 max.8.0 max.
E71T1-M21A4-CS2-H8 Requirement M21-ArCDC+0.12 max.1.60 max.0.030 max.0.030 max.0.90 max.8 max.
Typical Result 75% Ar, 25% CO2DC+0.0038-0.0060.03-0.061.36-1.530.015 max.0.012 max.0.32-0.362-6
Diameter Shielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)Deposition Rate, kg/hr (lb/hr)Efficiency, %
0.045 in (1.1 mm) 75-80% Ar / balance CO2DC+25 (1)4.4 (175)20-251401.8 (4.0)1.6 (3.5)86-88
0.045 in (1.1 mm) 75-80% Ar / balance CO2DC+25 (1)5.7 (225)21-261502.3 (5.1)2.0 (4.5)86-88
0.045 in (1.1 mm) 75-80% Ar / balance CO2DC+25 (1)7.0 (275)22-271652.8 (6.3)2.5 (5.5)86-88
0.045 in (1.1 mm) 75-80% Ar / balance CO2DC+25 (1)8.3 (325)22-271903.4 (7.4)2.9 (6.5)86-88
0.045 in (1.1 mm) 75-80% Ar / balance CO2DC+25 (1)8.9 (350)23-282053.6 (8.0)3.2 (7.0)86-88
0.045 in (1.1 mm) 75-80% Ar / balance CO2DC+25 (1)10.2 (400)24-292304.1 (9.1)3.6 (8.0)86-88
0.045 in (1.1 mm) 75-80% Ar / balance CO2DC+25 (1)11.4 (450)25-312454.7 (10.3)4.1 (9.0)86-88
0.045 in (1.1 mm) 75-80% Ar / balance CO2DC+25 (1)12.1 (475)26-322654.9 (10.8)4.3 (9.5)86-88
0.045 in (1.1 mm) 75-80% Ar / balance CO2DC+25 (1)13.3 (525)27-332805.4 (12.0)4.7 (10.4)86-88
0.052 in (1.3 mm) 75-80% Ar / balance CO2DC+25 (1)3.8 (150)20-251502.0 (4.5)1.8 (3.9)86-88
0.052 in (1.3 mm) 75-80% Ar / balance CO2DC+25 (1)4.4 (175)21-261652.4 (5.2)2.1 (4.6)86-88
0.052 in (1.3 mm) 75-80% Ar / balance CO2DC+25 (1)5.1 (200)22-271902.7 (6.0)2.4 (5.2)86-88
0.052 in (1.3 mm) 75-80% Ar / balance CO2DC+25 (1)5.7 (225)23-282153.1 (6.7)2.7 (5.9)86-88
0.052 in (1.3 mm) 75-80% Ar / balance CO2DC+25 (1)6.4 (250)24-292353.4 (7.5)2.9 (6.5)86-88
0.052 in (1.3 mm) 75-80% Ar / balance CO2DC+25 (1)7.6 (300)25-302554.1 (9.0)3.5 (7.8)86-88
0.052 in (1.3 mm) 75-80% Ar / balance CO2DC+25 (1)8.3 (325)27-312754.4 (9.7)3.8 (8.5)86-88
0.052 in (1.3 mm) 75-80% Ar / balance CO2DC+25 (1)8.9 (350)28-322954.7 (10.5)4.1 (9.1)86-88
0.052 in (1.3 mm) 75-80% Ar / balance CO2DC+25 (1)11.4 (450)29-343306.1 (13.5)5.3 (11.7)86-88
1/16 in (1.6 mm) 75-80% Ar / balance CO2DC+25 (1)3.8 (150)21-262002.9 (6.3)2.5 (5.5)86-88
1/16 in (1.6 mm) 75-80% Ar / balance CO2DC+25 (1)4.4 (175)22-272153.3 (7.4)2.9 (6.4)86-88
1/16 in (1.6 mm) 75-80% Ar / balance CO2DC+25 (1)5.1 (200)22-282353.8 (8.4)3.3 (7.3)86-88
1/16 in (1.6 mm) 75-80% Ar / balance CO2DC+25 (1)5.7 (225)24-292654.3 (9.5)3.7 (8.2)86-88
1/16 in (1.6 mm) 75-80% Ar / balance CO2DC+25 (1)6.4 (250)25-302854.8 (10.5)4.2 (9.2)86-88
1/16 in (1.6 mm) 75-80% Ar / balance CO2DC+25 (1)7.6 (300)26-313155.7 (12.6)5.0 (11.0)86-88
1/16 in (1.6 mm) 75-80% Ar / balance CO2DC+25 (1)8.3 (325)27-323356.2 (13.7)5.4 (11.9)86-88
1/16 in (1.6 mm) 75-80% Ar / balance CO2DC+25 (1)8.9 (350)28-333656.7 (14.7)5.8 (12.8)86-88
1/16 in (1.6 mm) 75-80% Ar / balance CO2DC+25 (1)10.2 (400)29-344157.6 (16.8)6.6 (14.6)86-88
Note
⁽¹⁾ To estimate ESO, subtract 1/4 in. (6.0 mm) from CTWD.
LECO Diameter 1/16 in (1.6 mm)
LECO Package 50 lb Spool
Diameter (in) 1/16
Includes
  • (1) 50 lb Spool
