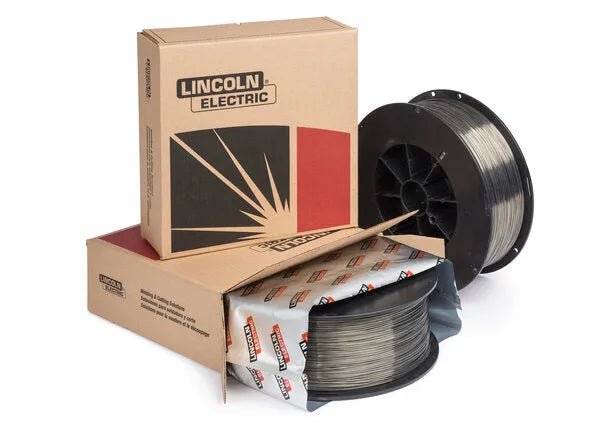

Lincoln ED034856 UltraCore 81Ni1M-H Plus Flux-Cored FCAW-G Welding Wire, 0.052 in, 33 lb Spool

SKU: ED034856
$219.13 $230.67
Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.

More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.
UltraCore® 81Ni1M-H Plus from Lincoln Electric is capable of superior toughness at-60°F
AWS / Classification: E81T1-Ni1M-JH4, E81T1-M21A8-Ni1-H4
Overview
Lincoln ED034856 UltraCore 81Ni1M-H Plus Flux-Cored FCAW-G Welding Wire, 0.052 in, 33 lb Spool

Innovative design capable of superior toughness at-60°F

Features
  • Innovative design capable of superior toughness at-60°F
  • Designed to meet AWS strength and toughness requirements in both as-welded and stress-relieved conditions
  • Designed for welding with 75-80% Argon/Balance CO 2 shielding gas
  • H4 diffusible hydrogen levels
  • ProTech® foil bag packaging
  • Designed to accomodate applications requiring Nickel content of 1% max

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.29 E81T1-Ni1M-JH4
AWS AWS A5.36 E81T1-M21A8-Ni1-H4, E81T1-M21P4-Ni1-H4
ABS ABS - Part 2 4YQ460SA H5
CWB CSA W48 E551T1-M21A5-Ni1-H4 (E551T1-Ni1M-JH4)
DNV-GL DNV - 2.9 IV Y46MS H5
LR LR - Chapter 11 4Y46S H5
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -40°C (-40°F)Charpy V-Notch, J (ft-lbs) @ -50°C (-60°F)Charpy V-Notch, J (ft-lbs) @ -62°C (-80°F)
E81T1-Ni1M-JH4 Requirement 75-80% Ar, balance CO2DC+470 (68) min.550-690 (80-100)19 min.27 (20) min.
E81T1-M21A8-Ni1-H4 Requirement M21-ArCDC+470 (68) min.550-690 (80-100)19 min.27 (20) min.
E81T1-M21P4-Ni1-H4 Requirement M21-ArCDC+470 (68) min.550-690 (80-100)19 min.27 (20) min.
Typical Result, As-welded 75% Ar, 25% CO2DC+480-610 (70-88)560-670 (82-96)20-2992-123 (68-91)32-170 (24-125)37-41 (28-30)
Typical Result, 1 hour @ 620°C (1150°F) 75% Ar, 25% CO2DC+470-510 (68-74)570-610 (83-88)26-2956-148 (42-109)
Classification Shielding GasPolarity%B%C%Cr%Mn%Mo%Ni%P%S%Si%VDiffusible Hydrogen, mL/100g Weld Metal
E81T1-Ni1M-JH4 Requirement 75-80% Ar, balance CO2DC+0.12 max.0.15 max.1.75 max.0.35 max.0.80 - 1.100.030 max.0.030 max.0.80 max.0.05 max.4 max.
E81T1-M21A8-Ni1-H4 Requirement M21-ArCDC+0.12 max.0.15 max.1.75 max.0.35 max.0.80 - 1.100.030 max.0.030 max.0.80 max.0.05 max.4 max.
E81T1-M21P4-Ni1-H4 Requirement M21-ArCDC+0.12 max.0.15 max.1.75 max.0.35 max.0.80 - 1.100.030 max.0.030 max.0.80 max.0.05 max.4 max.
Typical Result 75% Ar, 25% CO2DC+0.004-0.0070.05-0.070.06 max.1.09-1.470.02 max.0.80-0.990.020 max.0.015 max.0.33-0.500.01 max.1.6-4
Diameter Shielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)Deposition Rate, kg/hr (lb/hr)Efficiency, %
0.045 in (1.1 mm) 75% Ar, 25% CO2DC+19 (3/4)4.4 (175)24 - 281201.8 (3.9)1.5 (3.4)85-87
0.045 in (1.1 mm) 75% Ar, 25% CO2DC+19 (3/4)6.4 (250)25 - 291402.5 (5.6)2.2 (4.8)85-87
0.045 in (1.1 mm) 75% Ar, 25% CO2DC+19 (3/4)7.6 (300)26 - 301553.1 (6.8)2.6 (5.8)85-87
0.045 in (1.1 mm) 75% Ar, 25% CO2DC+19 (3/4)8.9 (350)27 - 311703.6 (7.9)3.1 (6.8)85-87
0.045 in (1.1 mm) 75% Ar, 25% CO2DC+25 (1)10.2 (400)28 - 321854.1 (9.0)3.5 (7.8)85-87
0.045 in (1.1 mm) 75% Ar, 25% CO2DC+25 (1)11.4 (450)28 - 322004.6 (10.1)4.0 (8.8)85-87
0.045 in (1.1 mm) 75% Ar, 25% CO2DC+25 (1)12.7 (500)29 - 332205.1 (11.3)4.4 (9.8)85-87
0.052 in (1.3 mm) 75% Ar, 25% CO2DC+19 (3/4)3.8 (150)24 - 281502.1 (4.7)1.7 (3.8)81-84
0.052 in (1.3 mm) 75% Ar, 25% CO2DC+19 (3/4)5.1 (200)25 - 291702.9 (6.3)2.4 (5.2)81-84
0.052 in (1.3 mm) 75% Ar, 25% CO2DC+19 (3/4)6.4 (250)26 - 301953.5 (7.8)3.0 (6.5)81-84
0.052 in (1.3 mm) 75% Ar, 25% CO2DC+25 (1)7.6 (300)27 - 312154.3 (9.4)3.6 (7.9)81-84
0.052 in (1.3 mm) 75% Ar, 25% CO2DC+25 (1)8.9 (350)28 - 322405.0 (11.0)4.2 (9.2)81-84
1/16 in (1.6 mm) 75% Ar, 25% CO2DC+19 (3/4)3.8 (150)25 - 291902.9 (6.4)2.4 (5.3)83-87
1/16 in (1.6 mm) 75% Ar, 25% CO2DC+19 (3/4)4.4 (175)25 - 292053.4 (7.5)2.9 (6.3)83-87
1/16 in (1.6 mm) 75% Ar, 25% CO2DC+19 (3/4)5.1 (200)26 - 302203.9 (8.5)3.3 (7.2)83-87
1/16 in (1.6 mm) 75% Ar, 25% CO2DC+19 (3/4)5.7 (225)26 - 302304.4 (9.6)3.7 (8.1)83-87
1/16 in (1.6 mm) 75% Ar, 25% CO2DC+19 (3/4)6.4 (250)27 - 312454.8 (10.6)4.1 (9.1)83-87
1/16 in (1.6 mm) 75% Ar, 25% CO2DC+25 (1)7.6 (300)27 - 312755.8 (12.7)4.9 (10.9)83-87
1/16 in (1.6 mm) 75% Ar, 25% CO2DC+25 (1)8.3 (325)28 - 322906.3 (13.8)5.4 (11.9)83-87
1/16 in (1.6 mm) 75% Ar, 25% CO2DC+25 (1)8.9 (350)28 - 323006.7 (14.8)5.8 (12.8)83-87
Note
⁽¹⁾ To estimate ESO subtract 1/4 in. (6.0 mm) from CTWD
LECO Diameter 0.052 in (1.3 mm)
LECO Package 33 lb Spool
Diameter (in) 0.052
Includes
  • (1) 33 lb Spool
