Harris  |  SKU: 1601114

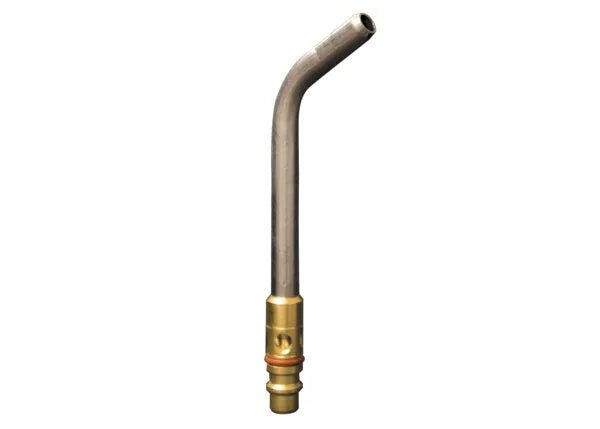

Harris Model HA-14i Inferno Quick Connect Swirl Heating Tip - 1601114

$98.00 $143.45
Model HA-14i Inferno® soldering/brazing quick connect swirl heating tip for use with acetylene

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.




More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Harris Model HA-14i Inferno Quick Connect Swirl Heating Tip - 1601114

Model HA-14i Inferno air-fuel quick connect swirl tip has a specially-designed insert that delivers reliable swirl combustion performance every time. It provides a consistently hotter flame that will engulf and wrap around the work-piece for maximum efficiency. It is constructed from thick and strong 304 Stainless Steel tube stock designed to be durable and long-lasting. The tip works and integrates with today's existing quick-connect air-fuel handles allowing contractors to simply and quickly connect to their existing torch handles using acetylene.

Features

  • Quick connect swirl tip with A-hose connections for brazing and soldering with air/acetylene
  • Constructed from thick and strong 304 Stainless Steel tube stock and brass for longer service life
  • The unique swirl combustion design provides a consistent, hotter flame that engulfs and wraps around the work-piece for maximum efficiency
  • Every tip is tested twice - once to ensure the perfect orifice and again to ensure the flame quality
  • The exacting manufacturing standards used to develop this tip ensures the optimal delivery of fuel gas resulting in the perfect flame
  • Designed to work and integrate with existing quick-connect air fuel handles for efficiency and increased productivity
  • Tips are configured to produce reliable and repeatable flame performance and are evaluated using thermal photography techniques
  • Use with air-fuel/acetylene
  • Marked with Harris logo and tip size for easy identification
  • One year warranty

Specifications

Equipment

Compatible Handle Model Number HQA-4, HQB-4
Construction 304 Stainless Steel, Brass
Copper Tube Capacity - Acetylene - Brazing 1 1/2 in. - 3 in. (38.10mm - 76.20mm)
Copper Tube Capacity - Acetylene - Soft Solder 2 in. - 5 in. (50.80mm - 127.00mm)
Duty Light
Gas / Gas Service Acetylene
Gas Flow M3/hr. 0.36 @ 0.9 BAR
Gas Flow SCFH 12.60 @ 14 PSI
Recommended Items/Accessories Standard One-piece Tip Cleaner - Model C-9 - PN 9000156
Quick Connect Adaptor - Model HTA - PN 4300676 (Converts HAS-400 handle to quick connect)
Style Quick connect swirl
Tip Size / Number 1/2 in. (12.70mm) / 14i
Typical Application HVAC/R & Plumbing, Brazing, Soldering, Heating, Copper plumbing tubes, Maintenance

Warranty

Warranty 1 Year
