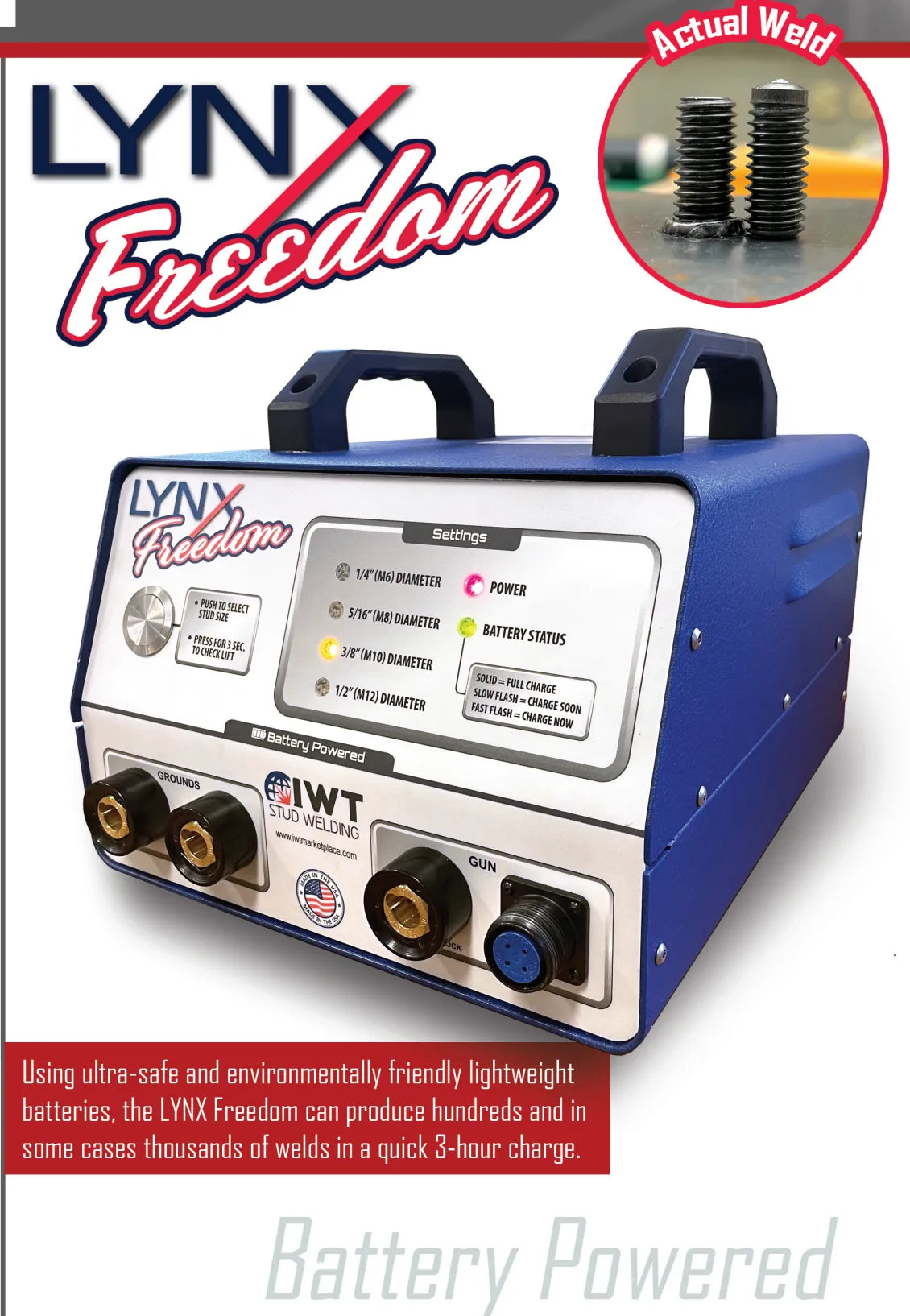

IWT LYNX Freedom Battery System (1/2” capacity) - 1-IWT500057
The LYNX Freedom is a 34lb portable arc stud welder that is completely powered from ultra-safe LIFEPO4 batteries. The system can produce hundreds and in some cases thousands of welds from a single charge. The Freedom features a unique single-button interface to simply cycle through pre-programmed weld times. The system includes an IWT-A3 arc gun, two ground cables, changing tools, 4 collets, a 110/220VAC charger, and military grade carrying case.
- Weld Range: #10 through ½" Weld Studs 900amps, 6 Welds per Minute
- Welding Process: Drawn Arc with ferrules
-
Welds per Charge:
- 1500, 3/16" (or #10) welds
- 1000, %"welds
- 750, 5/16"welds
- 300, 3/8" welds
- 150, ½" welds
- Charging Input Voltage: 115VAC, 10amp 50/60Hz
- Weight and Dimensions: 30lbs 12" X 14" X 8"
