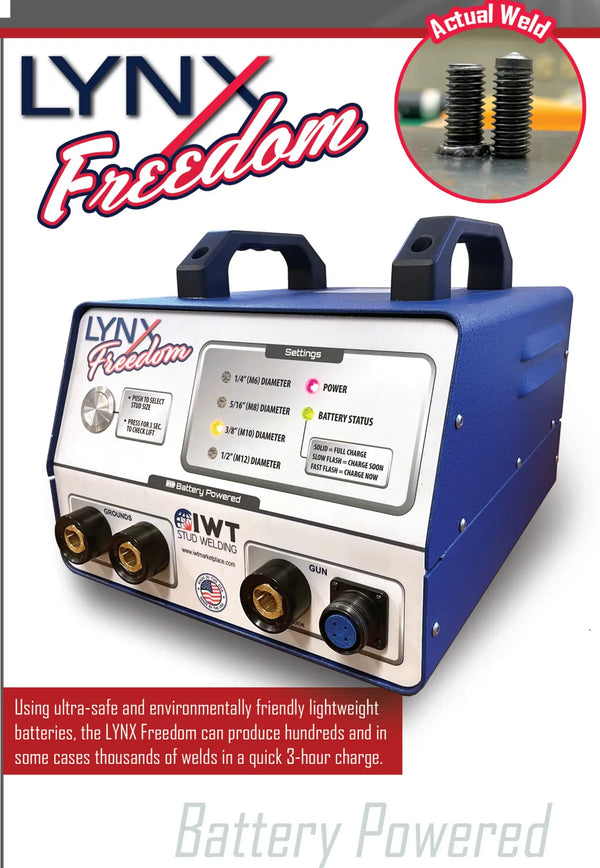

The ITW LYNX Freedom is a 34lb portable arc stud welder that is completely powered from ultra-safe LIFEPO4 batteries. The system can produce hundreds and in some cases thousands of welds from a single charge. The Freedom features a unique single-button interface to simply cycle through pre-programmed weld times, making it incredibly easy to operate for portable stud welding applications.
The system includes an IWT-A3 arc gun, two ground cables, changing tools, 4 collets, a 110/220VAC charger, and military grade carrying case for complete portability and protection in demanding field environments.
Key Features
- Portable 34lb arc stud welder powered by ultra-safe LIFEPO4 batteries.
- Unique single-button interface to cycle through pre-programmed weld times.
- Weld range: #10 through 1/2" weld studs at 900 amps, 6 welds per minute.
- Drawn arc welding process with ferrules.
- Welds per charge: 1500 welds for 3/16" (or #10), 1000 welds for 1/4", 750 welds for 5/16", 300 welds for 3/8", 150 welds for 1/2".
- Charging input voltage: 115VAC, 10 amp 50/60Hz.
- Compact dimensions: 12" x 14" x 8", weighing 30 lbs.
- IWT-A3 arc gun included.
- Two ground cables included.
- Changing tools and 4 collets included.
- 110/220VAC charger included.
- Military grade carrying case for durability and portability.
