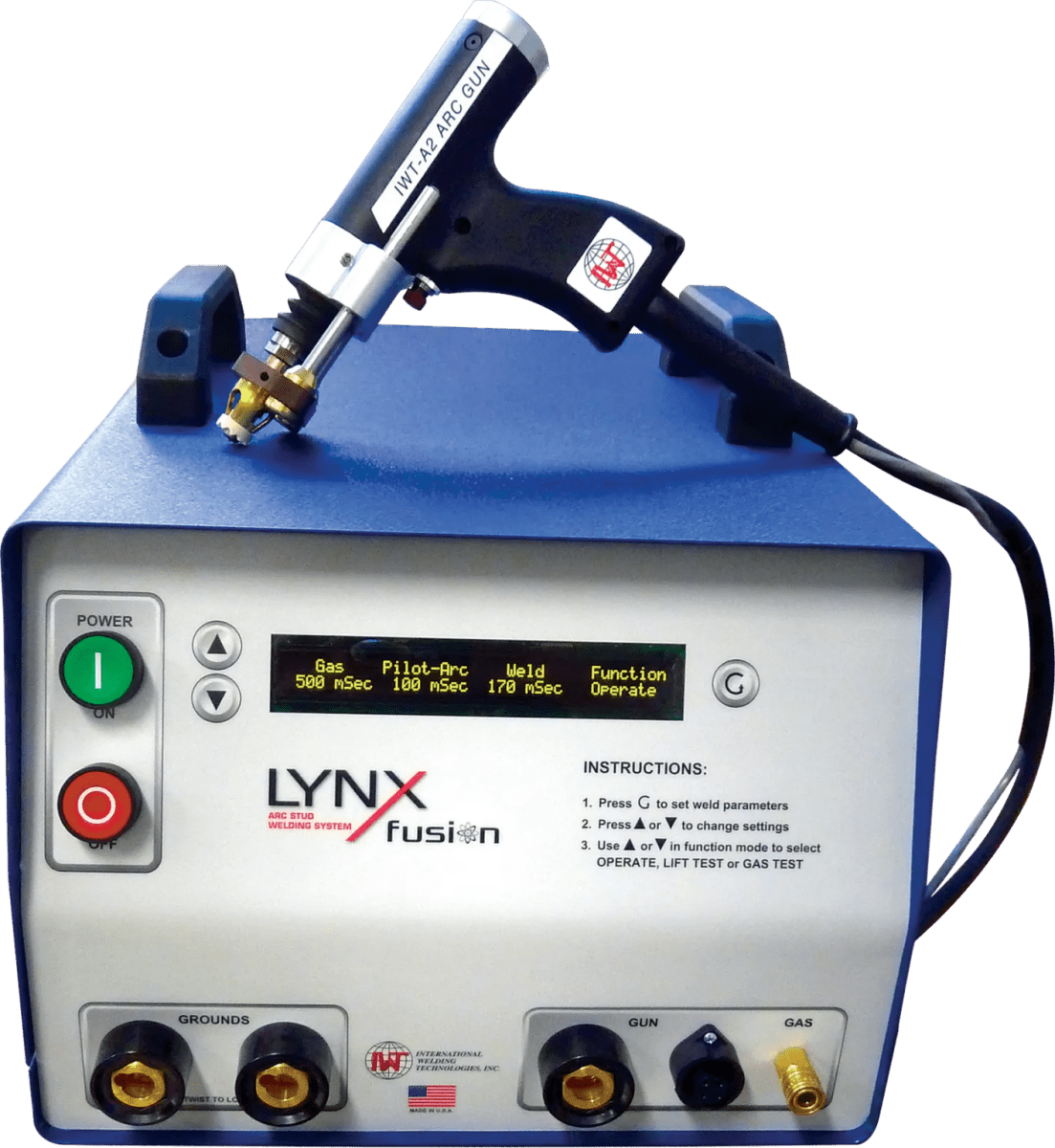

IWT LYNX Fusion 600 (3/8” Capacity) - 1-IWT500055F600
The LYNX Fusion 600 is a 600amp arc stud welder best suited for welding arc studs to heavy gauge steels where more weld penetration is needed. This system can also be equipped with a gas foot for short cycle arc stud welding to thinner gauge steels. Its bright OLED display has a multitude of features while offering a simple three button user interface. The system includes choice of gun, two ground cables, changing tools, and three collets.
Welding Process:
Arc and short cycle with ferrules or inert shielding gas
Output:
600 Amps Adjustable gas flow, Adjustable pilot arc, Adjustable weld time
Input:
3 phase 208-230VAC 50/60 hertz, 60 amps
3 phase 400-480VAC 50/60 hertz, 40 amps
3 phase 575 50/60 hertz, 30 amps
Weld Range:
3/8", 6 welds per minute
5/16", 12 weld per minute
1/4", 20 welds per minute
Enclosure Weight and Dimension: 90lbs 14"W X 10"H X 20"L Thunder blue with large lifting handles Heavy duty Dinse welding connector
Gun: IWT-A2 with 20ft of #2 welding cable Heavy duty Dinse@ welding connector Amphenol@ control connector Easily adjustable lift -no tools required
Grounds: Dual ground with 20ft of #2 cable
