Lincoln Electric  |  SKU: K5802-1

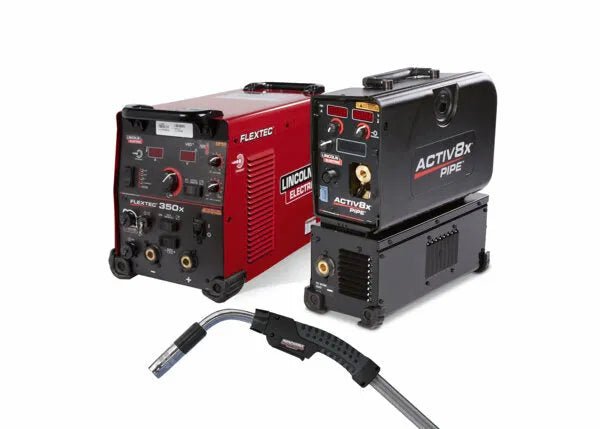

Lincoln Flextec 350X PowerConnect (Tweco) / Activ8X Pipe One-Pak - K5802-1

$16,617.15
The ideal solution for field welding STT® root passes on pipe when portability is needed.

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.



More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Lincoln Flextec 350X PowerConnect (Tweco) / Activ8X Pipe One-Pak - K5802-1





Perfectly tuned for pipe welding applications, the Activ8X Pipe Wire Feeder is the ideal field solution for GMAW and FCAW welding applications out on the pipeline. With weld processes specifically optimized for cross-country pipe welding, the Activ8X Pipe allows you to take Lincoln Electric's industry-leading root-to-cap weld processes – including STT and Pulsed MIG – out to the field. In addition, the rugged and compact design provides durability to withstand the harshest conditions, from mud to rain and extreme heat or cold, delivering the reliability you need to perform in the toughest welding applications.

The Flextec 350X PowerConnect One-Pak allows for compatibility with multiple input voltages from 200-600V, 1 or 3-phase. Also fully compatible with generator power. The Flextec 350X expands the system flexibility with Stick and TIG capability.




Key Features





  • Waveform controlled STT - Field arc for full penetration, complete fusion, open root passes on pipe
  • No control cables needed
  • No sense lead needed
  • Portable, compact package
  • CV DC+ only for solid wire and metal core wire
  • Simple setup
  • Easy to use with 4 memory locations
  • 8" diameter spool capacity
  • Additional weld and work power leads required




Specifications





Product Weights & Dimensions
Dimensions (H x W x D) 17 in x 13 in x 24 in (432 mm x 330 mm x 609 mm)
Net Weight 154 lbs (69.9 kg)
General Specification
Machines Processes MIG (GMAW)
Pulsed MIG (GMAW-P)
GMAW-STT
Number of Operators per Machine 1
Input Voltage 200-600V/1/3/50/60
Input Current 3 Phase 350A/34V/60%,208-220/220-230/380-415/460/575,45/40/23/19/15
1 Phase 350A/34V/60%, 380-415/460/575, 39/32/26
1 Phase 300A/32V/60%, 200-208/220-230,62/56
Input Hertz 50,50/60,60
Input Phase 1,1/3,3
Input Power 3 Phase, 200-208/220-230/380-415/460/575 - 50/60 Hz
1 Phase, 380-415/460/575 - 50/60 Hz
1 Phase, 200-208/220-230 - 50/60 Hz
Output Range 3 Phase 200-600V: 5-425A Max OCV 80V DC
1 Phase 380-575V: 5-425A Max OCV 80V DC
1 Phase 200-230V: 5-350A Max OCV 67V DC
Machine Technologies & Connections
Output Range by Mode 5-425A
Data Technologies USB
Machines Communication Technology analog
digital
CrossLinc
Wire Feeder Supply Voltage 40VDC
Amphenol Pins (type of connector) 5
12
14
Application
Typical Application Cross Country Pipeline
LPG & LNG Storage Vessels
Pipeline & Offshore
Piping
Power Generation
Process Piping
Shipbuilding
Warranty
Warranty 3 Years

Lincoln Flextec 350X PowerConnect (Tweco) / Activ8X Pipe One-Pak - K5802-1
