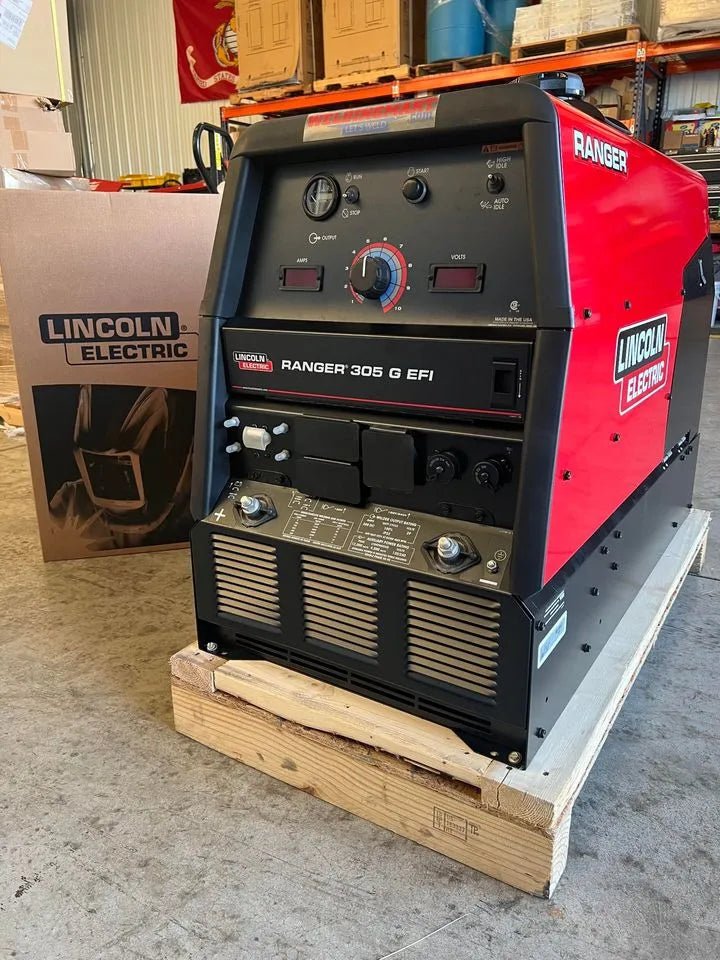

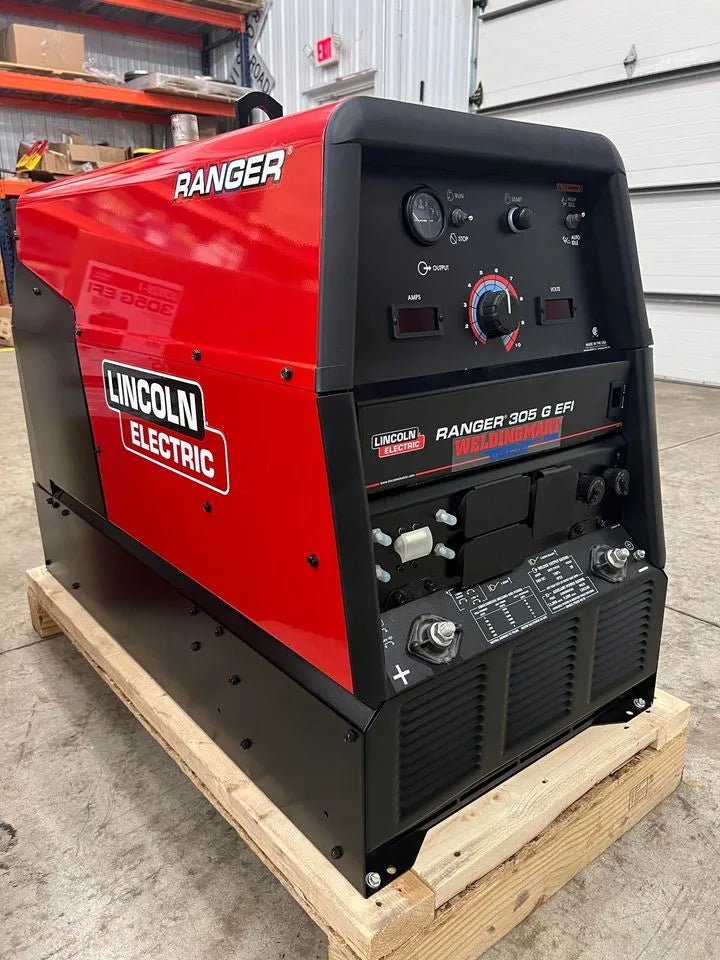

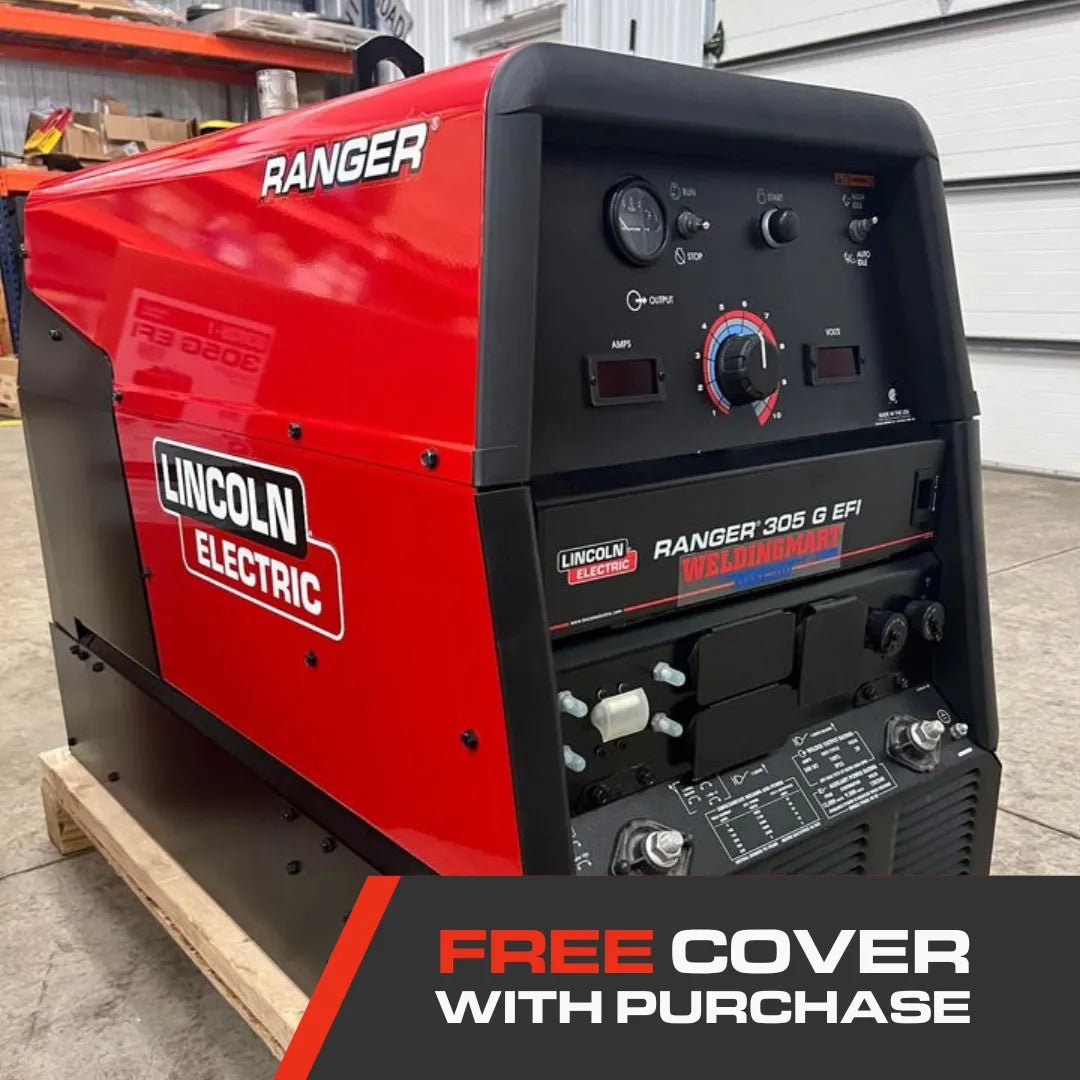

Lincoln Factory Demo Ranger 305 G EFI Engine Driven Welder (Kohler) U3928-1
Compare to New - K3928-1
Fully 3 Year Factory Warranty
Transform your jobsite productivity with the Lincoln Ranger 305 G EFI - the ultimate portable welding station engineered for professional welders who demand versatility and performance in challenging environments. This powerful engine-driven welder delivers exceptional multi-process capabilities including stick welding, downhill pipe welding, Touch Start TIG, MIG, and flux-cored wire applications, making it the ideal solution for construction sites, maintenance operations, and field repairs. The advanced Electronic Fuel Injection (EFI) system ensures reliable cold-weather starting without choke adjustments while significantly reducing fuel consumption compared to standard carbureted models.
The Ranger 305 G EFI features industry-leading digital weld meters that provide precise amperage and voltage monitoring for exceptional weld quality control. With its robust 12-gallon fuel capacity, this professional-grade welder delivers extended runtime between refueling, maximizing productivity on remote jobsites. The integrated electric fuel pump technology effectively prevents vapor lock during high-altitude operation, ensuring consistent performance regardless of working conditions. Experience unmatched welding versatility and generator power in a single compact unit designed for the most demanding welding professionals.
Powered by a premium Kohler 25 HP EFI gasoline engine, the Ranger 305 G EFI sets new standards for engine-driven welder performance and efficiency. The Electronic Fuel Injection system provides instant cold-weather starting without choke adjustments while delivering up to 15% fuel savings compared to conventional carbureted engines. The electric fuel pump ensures reliable operation at high altitudes, eliminating vapor lock issues common in mountainous environments. This advanced engine technology combines with Lincoln Electric's legendary welding performance to create the most versatile portable welding power source available for professional contractors, pipeline operations, and maintenance crews.
The Ranger 305 G EFI stands alone as North America's only compact gasoline welder rated at 29V for 300 amps of stick or CV welding capability. This exceptional multi-process performance supports general purpose stick welding, downhill pipe applications, TIG welding, and wire feed processes including MIG with both CO2 and mixed gas shielding. The system accommodates CV wire welding with electrodes up to 5/64 inch (2.0 mm) diameter, providing the versatility needed for diverse welding applications across construction, fabrication, and repair environments. Lincoln Electric's proprietary Chopper Technology delivers superior arc characteristics with easy starts, smooth arc action, minimal spatter, and optimal bead appearance across all welding processes.
Beyond its exceptional welding capabilities, the Ranger 305 G EFI functions as a powerful AC generator with 12,000 watts peak and 9,500 watts continuous output, making it the ideal power source for job site tools, equipment, and auxiliary welding systems. The consistent 120V/240V AC power remains stable regardless of welding output settings, providing reliable electricity for running lights, grinders, drills, and even Lincoln Electric Invertec inverter welders for expanded process capabilities. With its rugged construction and components rated for operation in extreme 104°F (40°C) environments, the Ranger 305 G EFI delivers the dependable performance, versatility, and durability that professional welders demand for challenging field applications.
Features
- Kohler Gasoline Engine - 25 HP EFI (Electronic Fuel Injection) for easier starts in cold weather and lower fuel use!
- Multi-Process Welding - Excellent DC multi-process welding for general purpose stick, downhill pipe (stick), TIG, cored-wire, MIG (CO2 and mixed gas) and arc gouging.
- Digital Weld Meters - makes it easy to precisely pre-set Your procedures and monitor actual welding output.
- Superior Arc Performance - Lincoln Chopper Technology provides easy starts, a smooth arc, low spatter and excellent bead appearance.
Specifications
| Dimensions (H x W x D) | 30 in x 21.5 in x 42.3 in (762 mm x 546 mm x 1073 mm) |
| Net Weight | 510 lbs (231 kg) |
| Machines Processes | Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) |
| Max Rating | 305A / 29V / 100% @ 104°F (40°C) |
| Output Range by Mode | CC-Stick: 20– 305 A Downhill Pipe (CC): 40-300 A Touch Start TIG: 20 – 250 A CV-Wire: 14 – 29 V Arc Gouging: 90 – 300 A |
| Rated Gouging Carbon Diameter | 5/32 in (4.0 mm) |
| Single Phase Auxiliary Output | 9,500 Watts Continuous, 120/240V |
| Auxiliary Output Frequency | 60 Hz |
| Receptacle Types | NEMA 5-20R NEMA 14-50R |
| Engine Brand & Model | Kohler OHV Command ECH740 |
| Engine Description | 2 Cylinder Air-Cooled Gasoline Engine |
| Engine Horsepower | 25 HP |
| High Idle Operating Speed @ Rated Output | 3600 |
| Fuel Tank Size (US gal.) | 12 |
| Fuel Tank Size (L) | 45.4 |
| Oil Capacity (qts.) | 2.0 |
| Oil Capacity (L) | 1.9 |
| Typical Application | Construction Construction & Field Erection General Fabrication Maintenance & Repair Repair Welding Structural Fabrication Structural Welding |
| Warranty | 3 Years Parts and Labor - Engine warranted separately by engine manufacturer |
