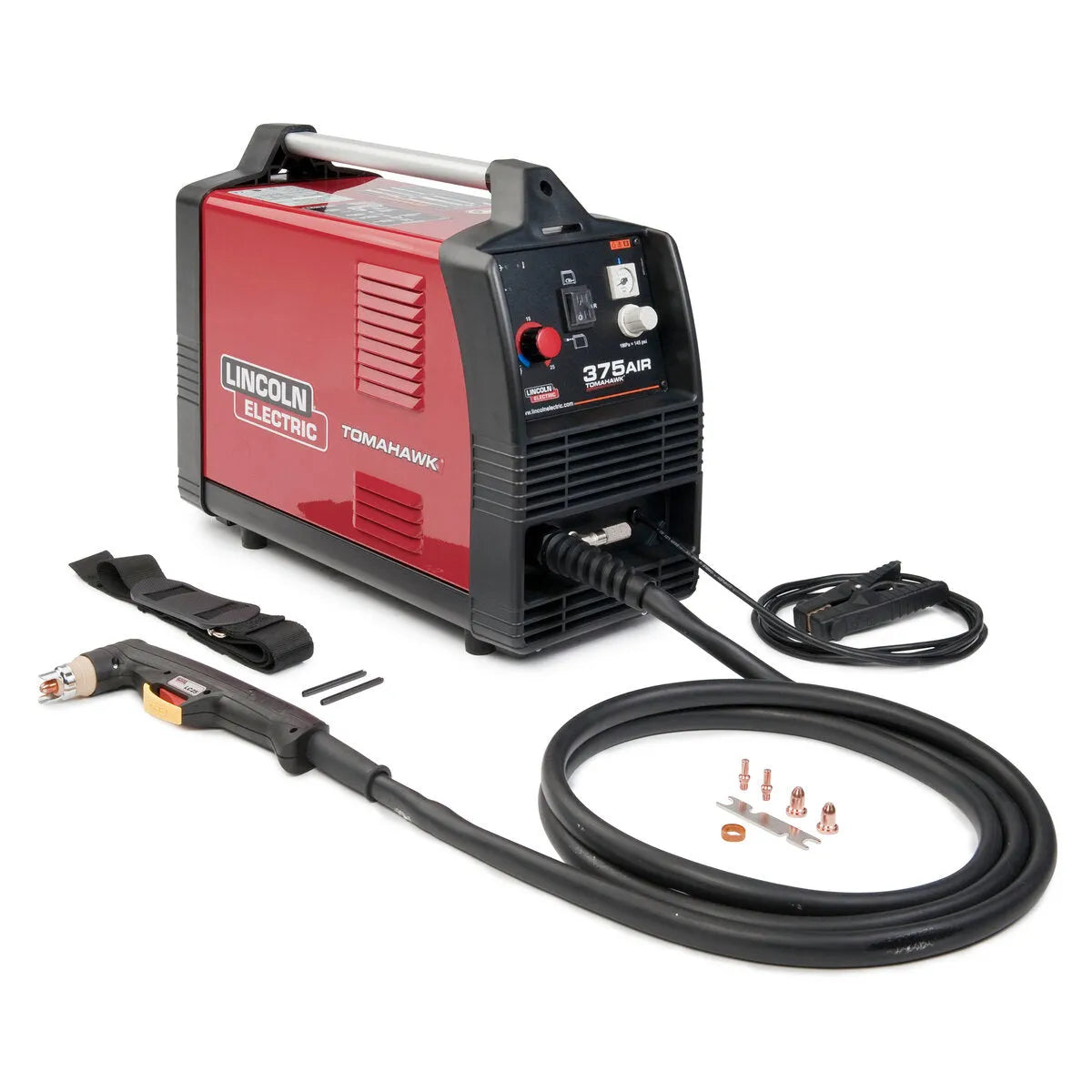

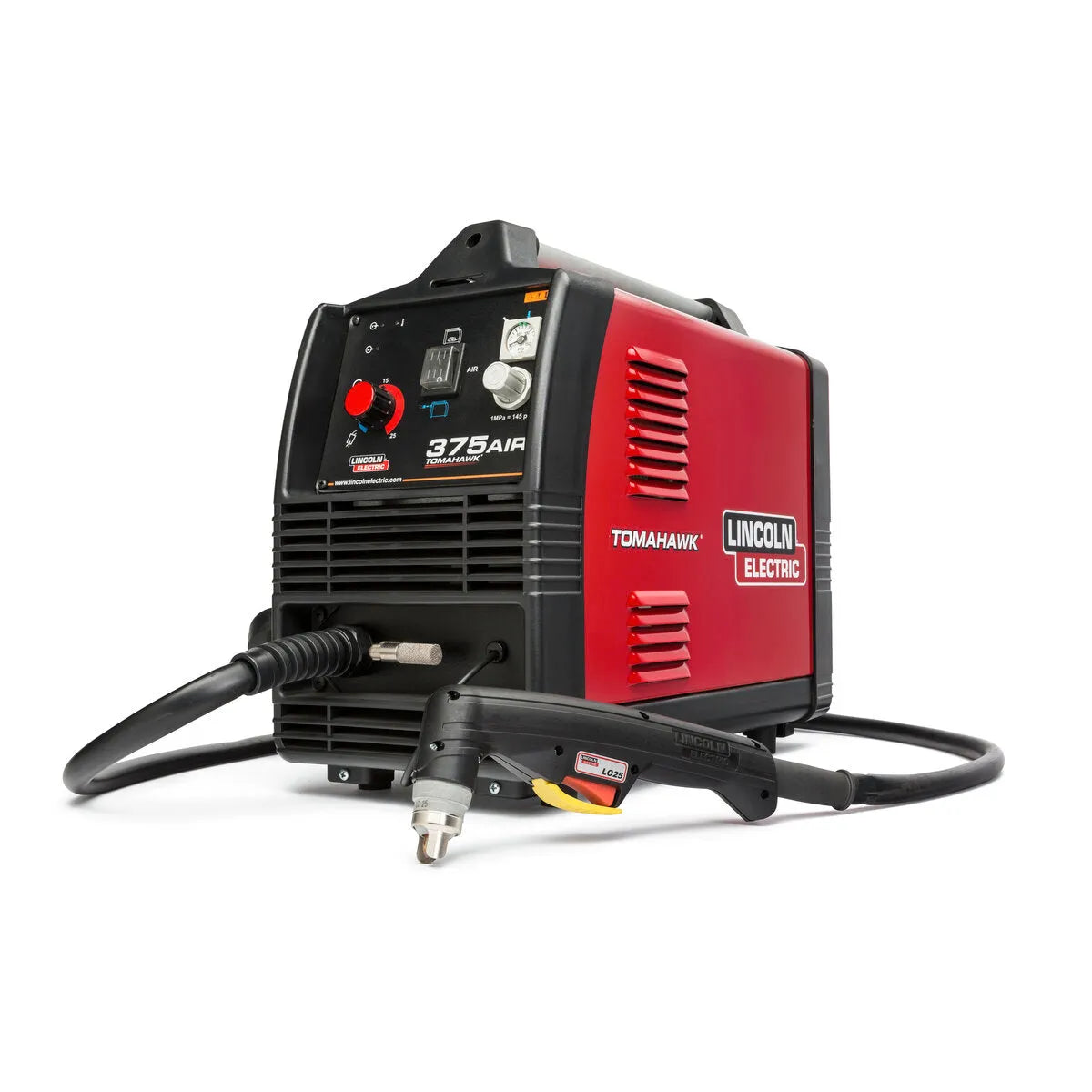

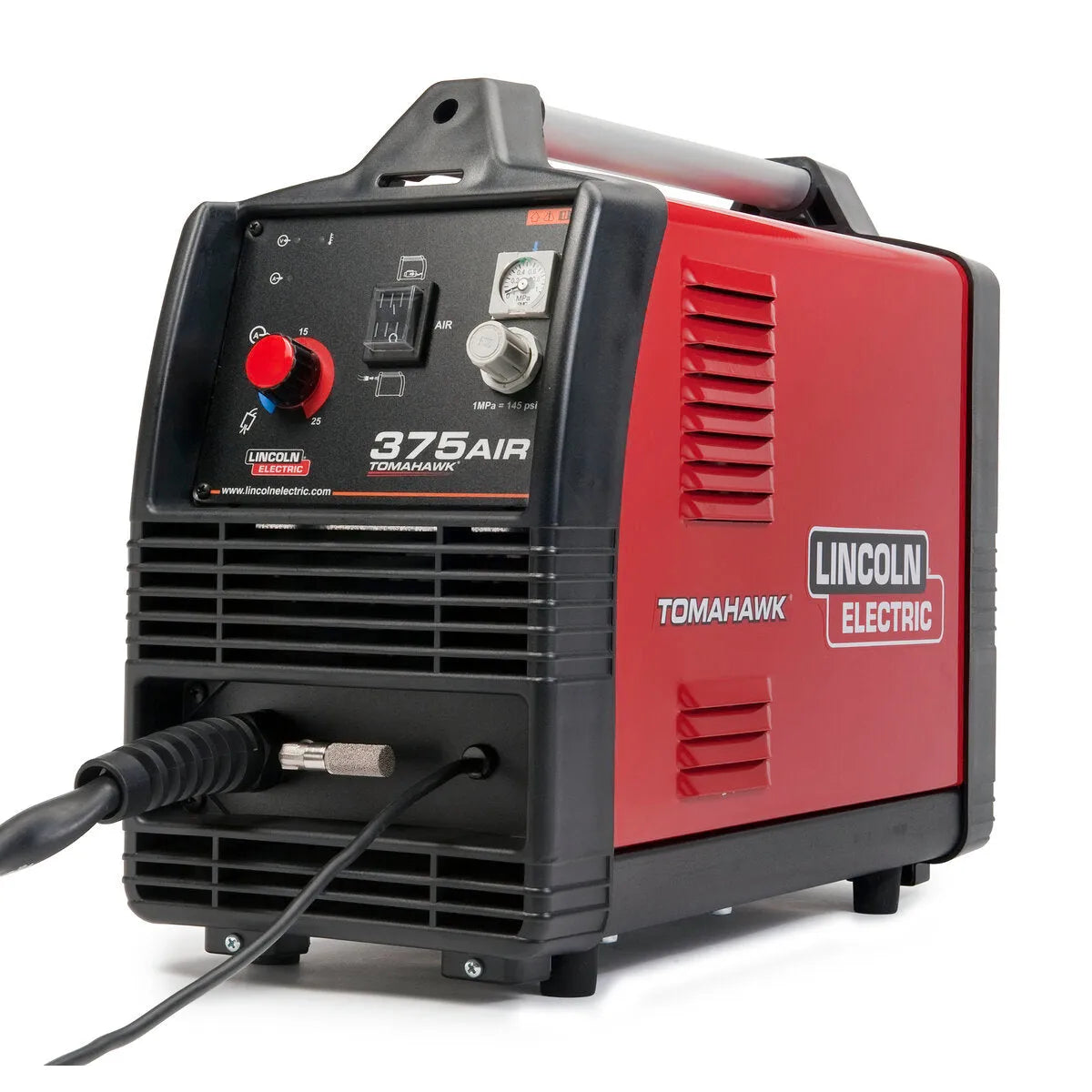

Lincoln Tomahawk 375 Air Plasma Cutter - K2806-1
The Tomahawk 375 Air plasma cutting system arrives ready to go for fast and precise cutting. With the 375 Air, forget the grinder – pick up the torch and cut in seconds.
The Tomahawk 375 Air plasma cutting system delivers exceptional portability with its integrated air compressor, enabling operation in environments where external compressed air is not available. This innovative design allows users to cut metal virtually anywhere without the need for additional equipment or air sources. The system features continuous output control that allows operators to focus the arc for different material thicknesses, ensuring optimal cutting performance across a range of applications. The reliable Touch Start System provides consistent plasma arc initiation without high frequency, while the Rapid Arc Restrike capability enables fast cutting through gaps and expanded metal without interruption.
Designed with user convenience and efficiency in mind, the Tomahawk 375 Air includes a front panel purge control that makes it easy to set the airflow rate without initiating the plasma arc. The advanced electrode and nozzle design ensures cool operation and extended consumable life, saving users money in the long run by reducing replacement costs. Safety is enhanced with the innovative Parts-in-Place system that detects the correct installation of consumables and torch, preventing operational issues and potential hazards. For remote location work, the Tomahawk 375 Air is fully engine drive compatible, allowing users to power the system from select Lincoln Electric Ranger or Vantage models, making it the ideal solution for field work, maintenance operations, and construction sites where standard power sources may not be readily available.
Features
- Ultimate Portability – Internal air compressor enables operation in environments where external compressed air is not available
- Continuous Output Control – Focus the arc for different material thickness
- Touch Start System – Reliable plasma arc initiation without high frequency
- Rapid Arc Restrike – Fast cutting through gaps, even expanded metal

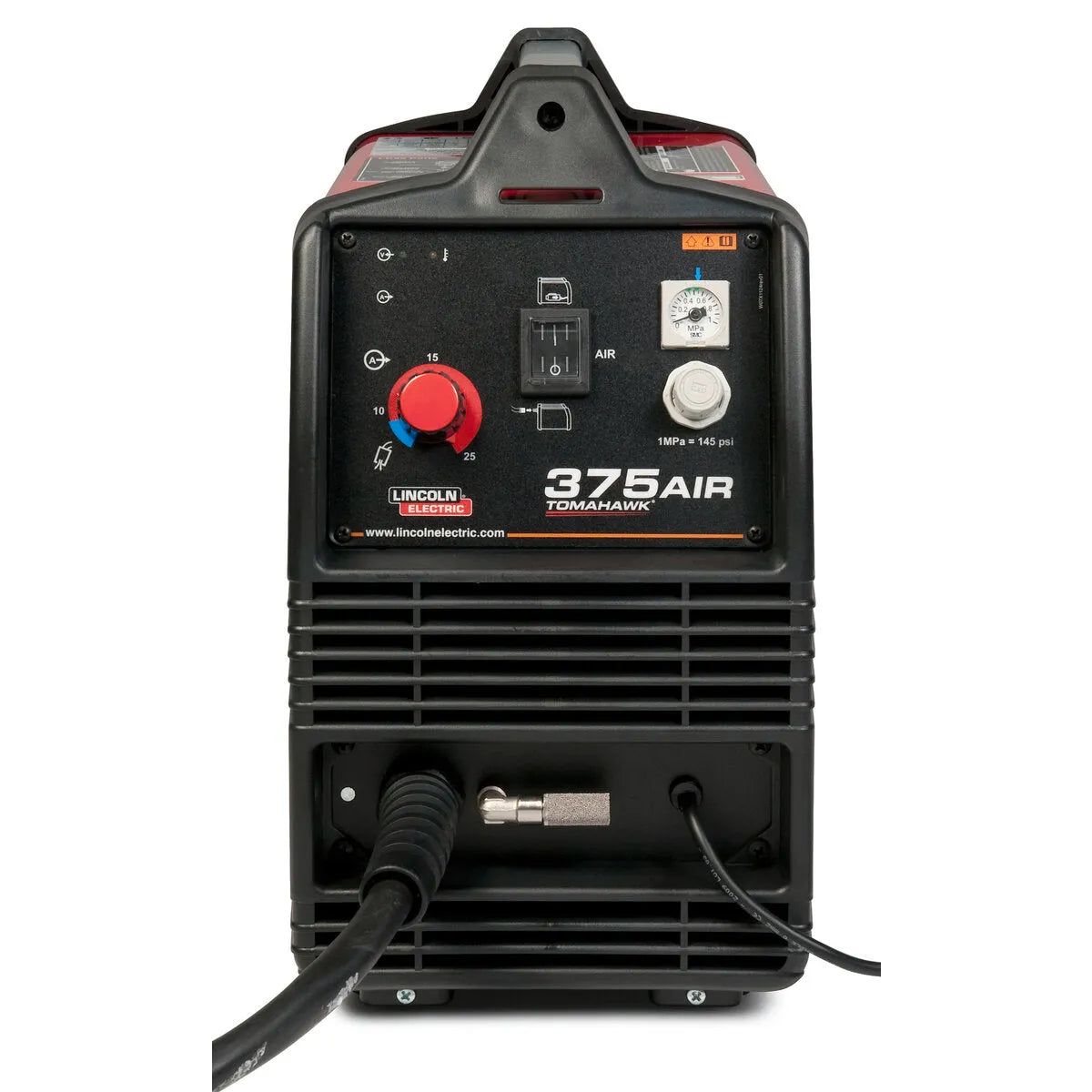

- Front Panel Purge Control – Makes it easy to set the airflow rate without initiating the plasma arc
- Cool Operation, Long Consumable Life - New electrode and nozzle design save you money in the long run
- Added Safety – Our Parts-in-Place system detects the correct installation of consumables and torch
- Engine Drive Compatible – Select a Lincoln Electric Ranger or Vantage to power your Tomahawk in remote locations
Specifications
| Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) | 208/230/1/60 |
| Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) | 13A/85.2V/100% |
| Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle) | 18A/87.2V/60% |
| Phase 1: Rated Output #1C (Current/Voltage/Duty Cycle) | 25A/90V/35% |
| Phase 1: Input Current at Max Rated Ouput #1 (Current) | 21.7A |
| Dimensions (H x W x D) | 15.2 in x 8.5 in x 18.9 in (385 mm x 215 mm x 480 mm) |
| Net Weight | 40 lbs (18 kg) |
| Machines Processes | Plasma Cutting |
| Output Range | 10-25A |
| Torch Included | Yes |
| Gas Supply | Air or Nitrogen |
| Gas Pressure Required | 80 - 110 psi (6 -7.5 Bar) |
| Recommended Cutting Capacity (Mild Steel) (in/ft) | 5/16 in. @22 ipm |
| Recommended Cutting Capacity (Mild Steel) (mm/M) | 7.9 mm. @ .56 m/min |
| Maximum Cutting Thickness (Mild Steel) (in/Ft) | 3/8 in. @ 14 ipm |
| Maximum Cutting Thickness (Mild Steel) (mm/M) | 9.5 mm. @ .36 m/min |
| Maximum Severance (Mild Steel) (in/Ft) | 1/2 in. @ 5 ipm |
| Maximum Severance (Mild Steel) (mm/M) | 12.7 mm. @ .13 m/min |
| Typical Application | Construction Automotive General Fabrication |
| Warranty | 3 Year on Machine, 1 Year on Torch |
