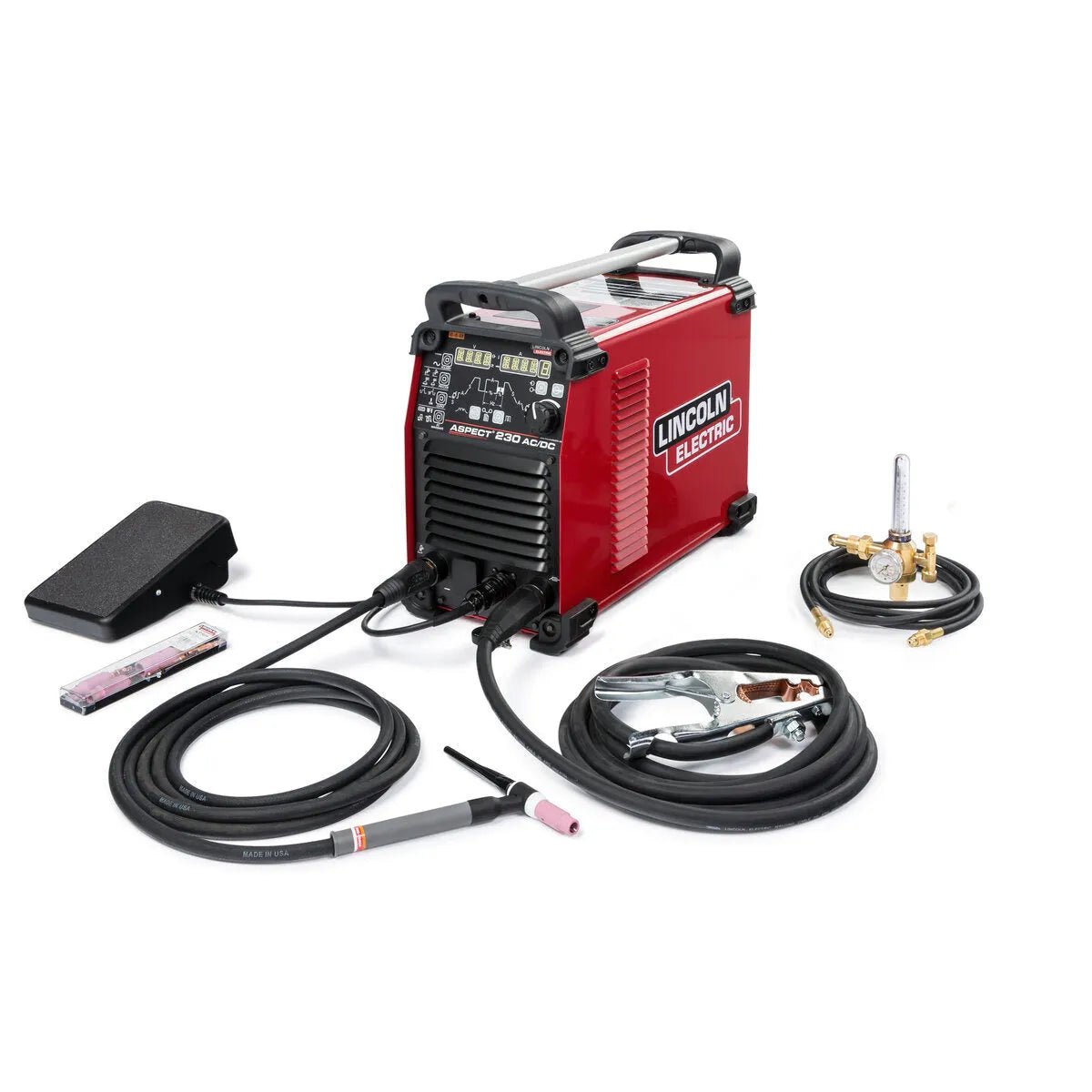

Lincoln Aspect 230 AC/DC Air-Cooled One-Pak - K4341-1
The Lincoln Aspect 230 AC/DC Air-Cooled One-Pak - K4341-1 is a premium inverter-based TIG welding system designed for both AC and DC applications. Optimized for professional performance, this welder offers exceptional arc control, advanced waveforms, a full sequencer, and pulse features that deliver superior welds across a wide variety of materials. Customizable settings and memory storage allow users to tailor welding parameters precisely to their applications, making the Aspect 230 a flexible and powerful solution for any shop or field environment.
With an impressive 230 amps of output, the Aspect 230 is capable of TIG welding materials up to 1/4 inch thick. Despite its robust capabilities, it remains lightweight and portable, making it easy to transport between jobsites or around the shop. Operators can save critical weld setup information in up to nine memory locations, ensuring consistency and reducing downtime between projects. The inclusion of Intellistart technology automatically adjusts arc starts to suit material thickness, providing softer starts for thin metals and hotter starts for thicker sections. Optional AC Auto Balance technology simplifies aluminum welding by automatically adjusting the cleaning-to-penetration ratio for optimal results.
Designed for ultimate flexibility, the Aspect 230 features PowerConnect technology, allowing automatic adjustment to input voltages ranging from 120V to 460V without manual intervention. Whether welding in a fabrication shop, on a construction site, or in a maintenance environment, the Aspect 230 AC/DC delivers professional-grade results, repeatable performance, and the dependability expected from Lincoln Electric.
Key Features
- Exceptional arc response and stability for superior TIG and Stick weld quality.
- Highly customizable welding controls, including waveform selection, pulse parameters, and sequencer functionality.
- PowerConnect technology automatically adapts to input voltages between 120V and 460V.
- Intellistart technology adjusts arc start characteristics based on material thickness for optimized starts.
- Memory settings allow saving up to nine custom weld configurations for faster setup and repeatability.
- Portable and lightweight design supports easy transport between shop and field locations.
- Optional AC Auto Balance simplifies aluminum welding by delivering the ideal cleaning and penetration mix automatically.
- Delivers up to 230 amps of output, enabling TIG welding of materials up to 1/4 inch thick.
Specifications
| Dimensions (H x W x D) | 16.5 in x 9.7 in x 19.9 in (419 mm x 246 mm x 506 mm) |
| Net Weight | 78.6 lbs (35.653 kg) |
| Input Voltage | 120-460 |
| Input Current | 120V: 21A 208/230/460V: 11A/10A/5A |
| Input Hertz | 50/60 |
| Input Phase | 1/3 |
| Input Power | 120/1/50/60-460/1/3/50/60 |
| Mode Icon | CC |
| Output Range | 120V: 2-150A TIG 208/230/460V: 2-230A |
| Polarity | AC/DC |
| Warranty | 3 Years |
