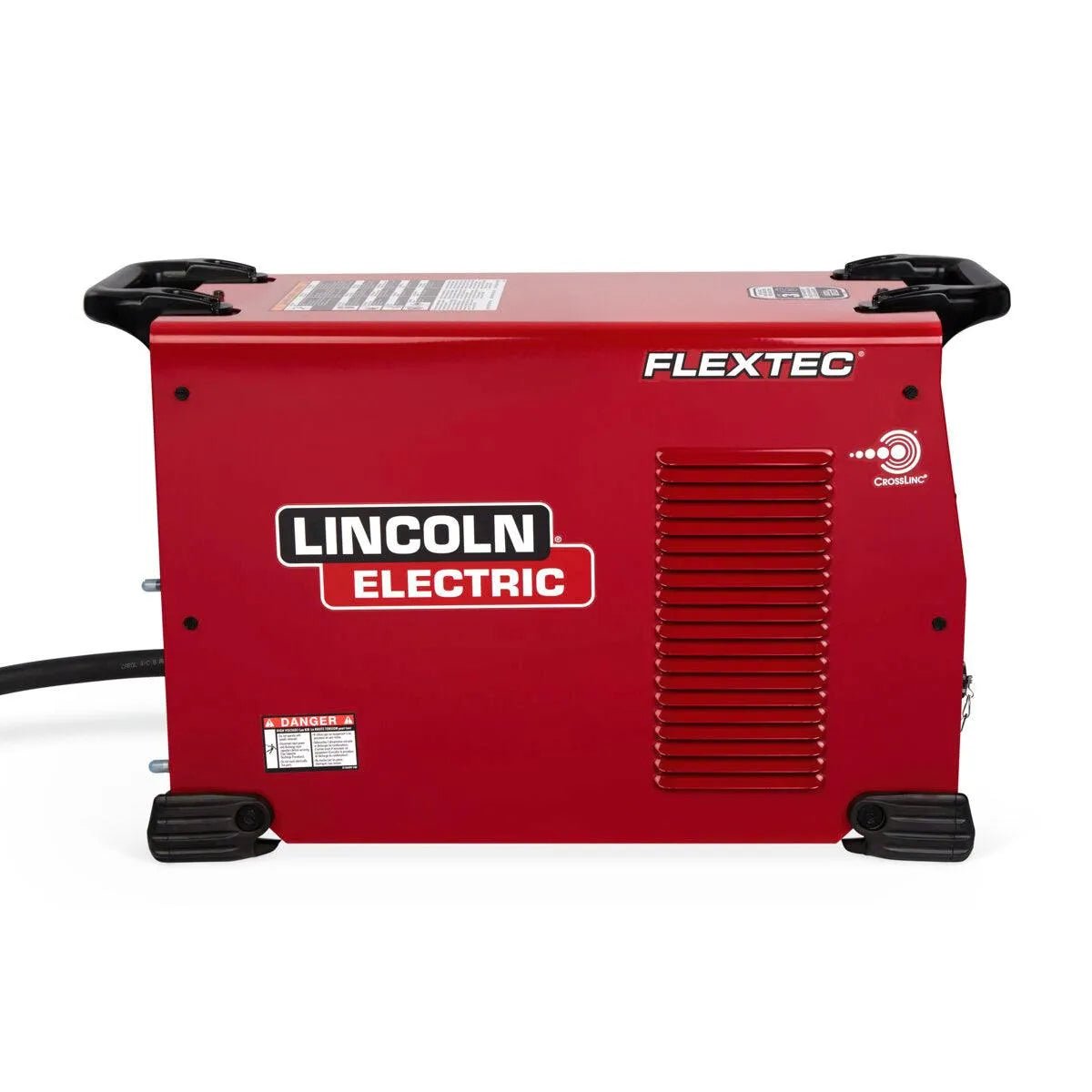

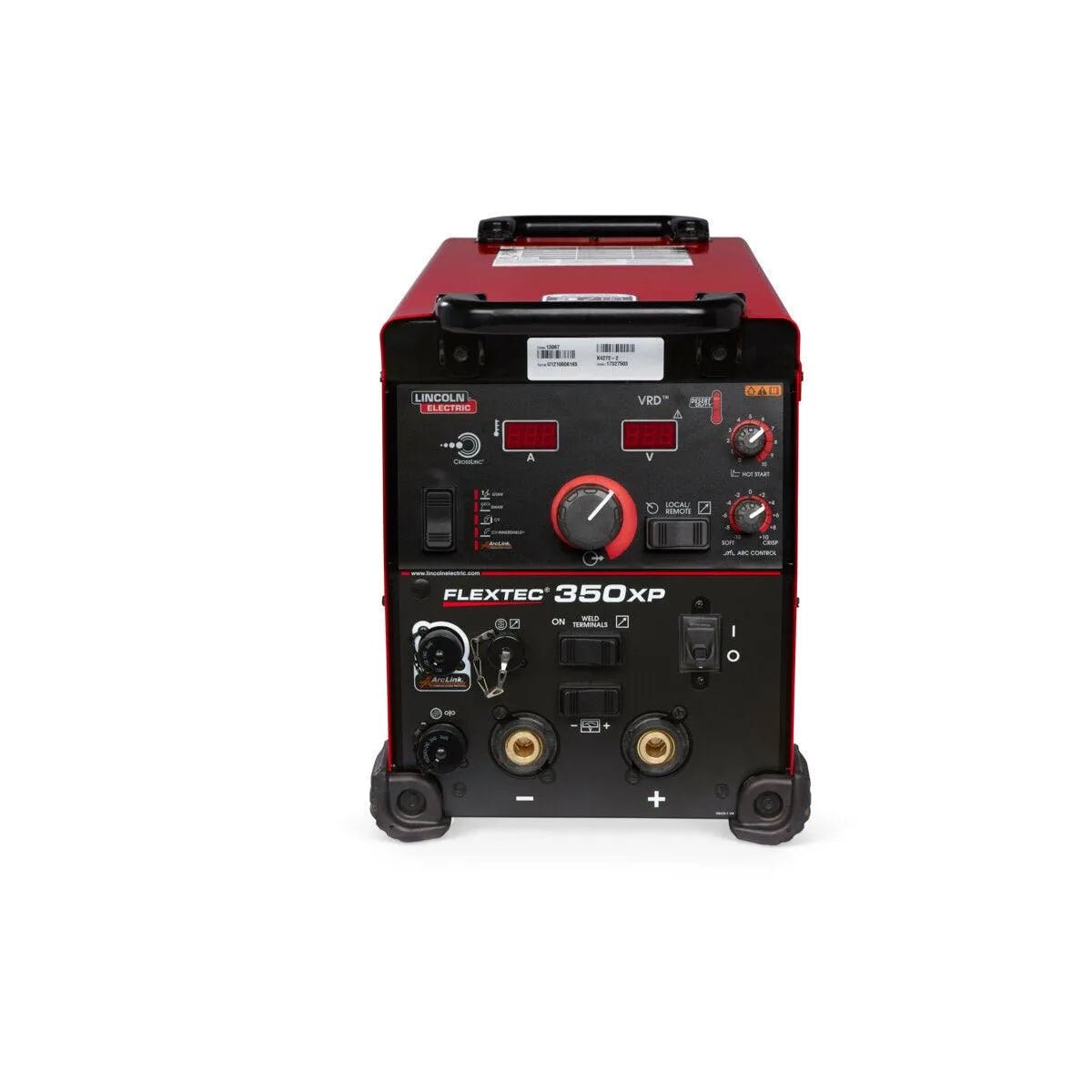

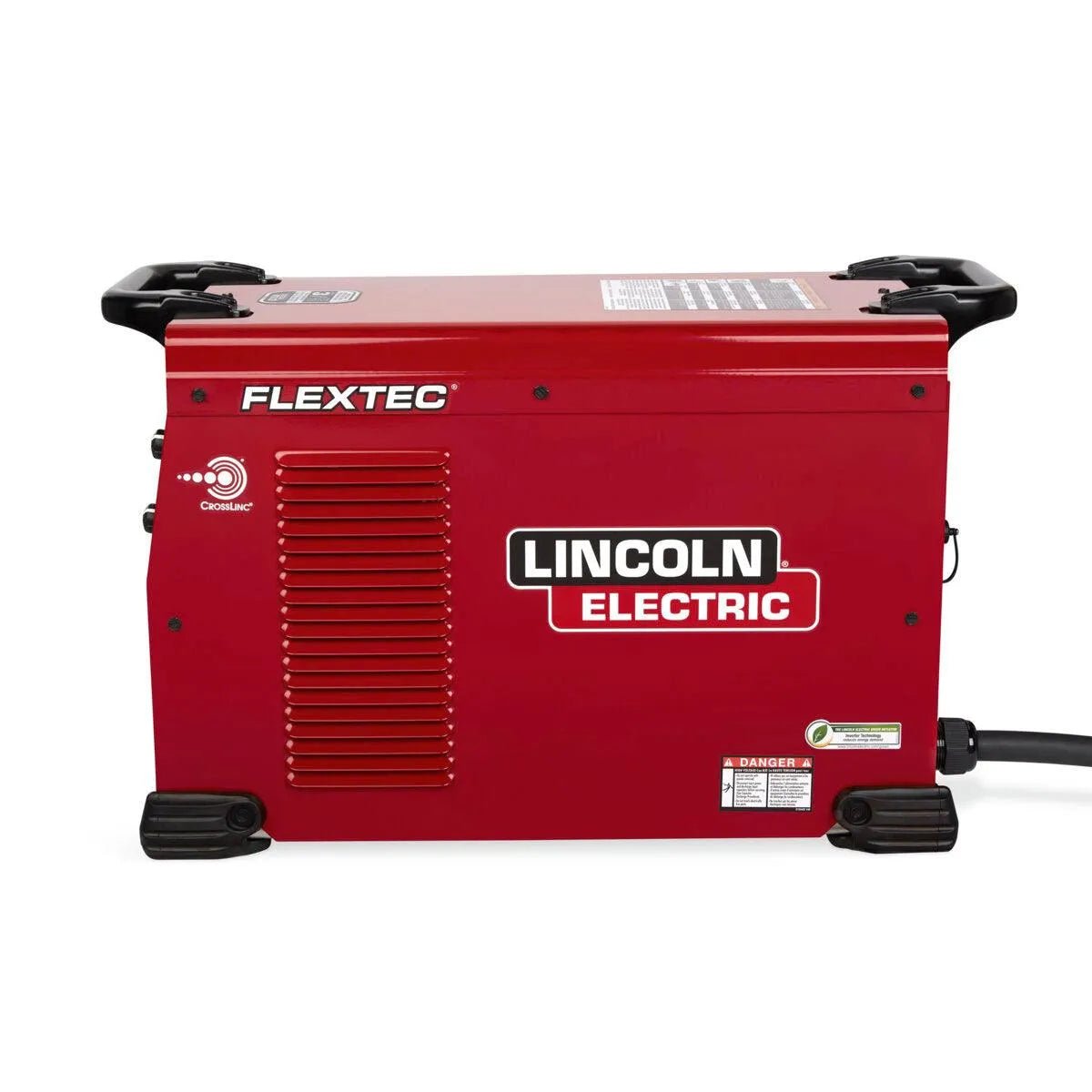

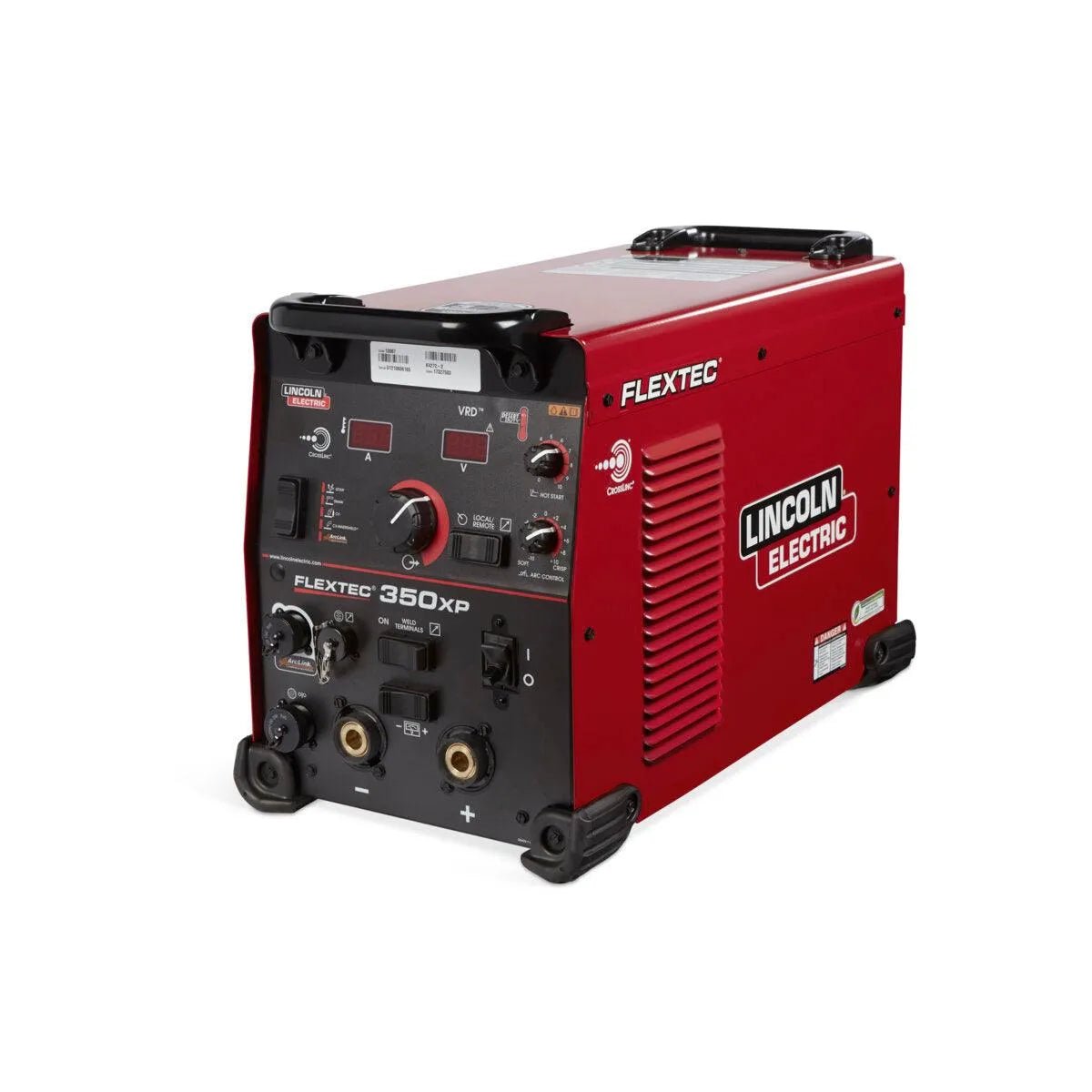

Lincoln Flextec 350XP Tweco - K4272-2
The Lincoln Flextec 350XP Tweco model builds upon the exceptional capabilities of the 350X Construction platform while delivering enhanced functionality for advanced welding applications. This versatile multi-process power source combines portability with expanded process capabilities, including Pulsed MIG functionality when paired with compatible ArcLink digital wire feeders such as the Power Feed 84. The system's comprehensive connectivity options support most Lincoln Electric wire feeders, allowing operators to leverage the full spectrum of arc welding processes for diverse applications.
At the core of the Flextec 350XP is Lincoln Electric's innovative CrossLinc Technology, which enables remote control over welding output parameters using standard weld cables when paired with compatible CrossLinc accessories. This advanced communication system eliminates the need for separate control cables, significantly reducing jobsite clutter while minimizing setup and maintenance time. The streamlined operator panel features intuitive controls that simplify configuration procedures, allowing welders to quickly establish optimal settings for various applications and materials.
Engineered for reliability in challenging environments, the Flextec 350XP features components designed to run cool for extended operational life in high-temperature settings. The inclusion of Tweco style welding output connections provides quick, secure coupling of welding cables, enhancing setup efficiency and connection reliability in field applications. With its expanded connectivity supporting 14-pin analog, 5-pin digital ArcLink, CrossLinc, and across-the-arc wire feeders, the Flextec 350XP delivers exceptional versatility for construction, fabrication, shipbuilding, and other demanding industrial applications.
Key Features
- Pulsed MIG capabilities when paired with compatible ArcLink digital wire feeders for enhanced weld quality.
- CrossLinc Technology enabling remote control functionality without additional control cables for streamlined operations.
- Comprehensive connectivity supporting 14-pin analog, 5-pin digital ArcLink, CrossLinc, and across-the-arc wire feeders.
- Streamlined operator panel with intuitive controls minimizing setup time and simplifying operation.
- Components engineered to run cool ensuring extended operational life in high-temperature environments.
- Convenient Tweco style welding output connections providing quick, secure coupling of welding cables.
- Multi-process capability supporting Stick, TIG, MIG, Flux-Cored, and carbon arc gouging applications.
- Portable design facilitating easy transport and deployment in diverse field locations.
- Rugged construction ensuring reliable performance in demanding industrial environments.
Specifications
| Dimensions (H x W x D) | 17 in x 13 in x 23 in (432 mm x 330 mm x 584 mm) |
| Net Weight | 82 lbs (37.1 kg) |
| Machines Processes | Stick (SMAW) Flux-Cored (FCAW) TIG (GTAW) MIG (GMAW) Pulsed MIG (GMAW-P) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) |
| Input Voltage | 380/460/575/3/50/60 |
| Input Current | 23/20/21, 18/17/17 |
| Input Hertz | 50,50/60,60 |
| Input Phase | 3 |
| Input Power | 380/460/575/3/50/60 |
| Output Range | 5-425A |
| Polarity | DC |
| Output Range by Mode | 5-425 |
| Rated Gouging Carbon Diameter | 1/4 in (6.5 mm) |
| Data Technologies | USB |
| Machines Communication Technology | CrossLinc ArcLink |
| Wire Feeder Supply Voltage | 40VDC |
| Amphenol Pins (type of connector) | 5 12 14 |
| Work Lead Connector Type | Tweco |
| Typical Application | Construction Cross Country Pipeline Construction & Field Erection General Fabrication Heavy Fabrication Maintenance & Repair Marine Fabrication & Repair Offshore Oil & Gas Petrochemical Pipeline & Offshore Power Generation Repair Welding Shipbuilding Structural Fabrication Structural Welding |
| Warranty | 3 Years |
