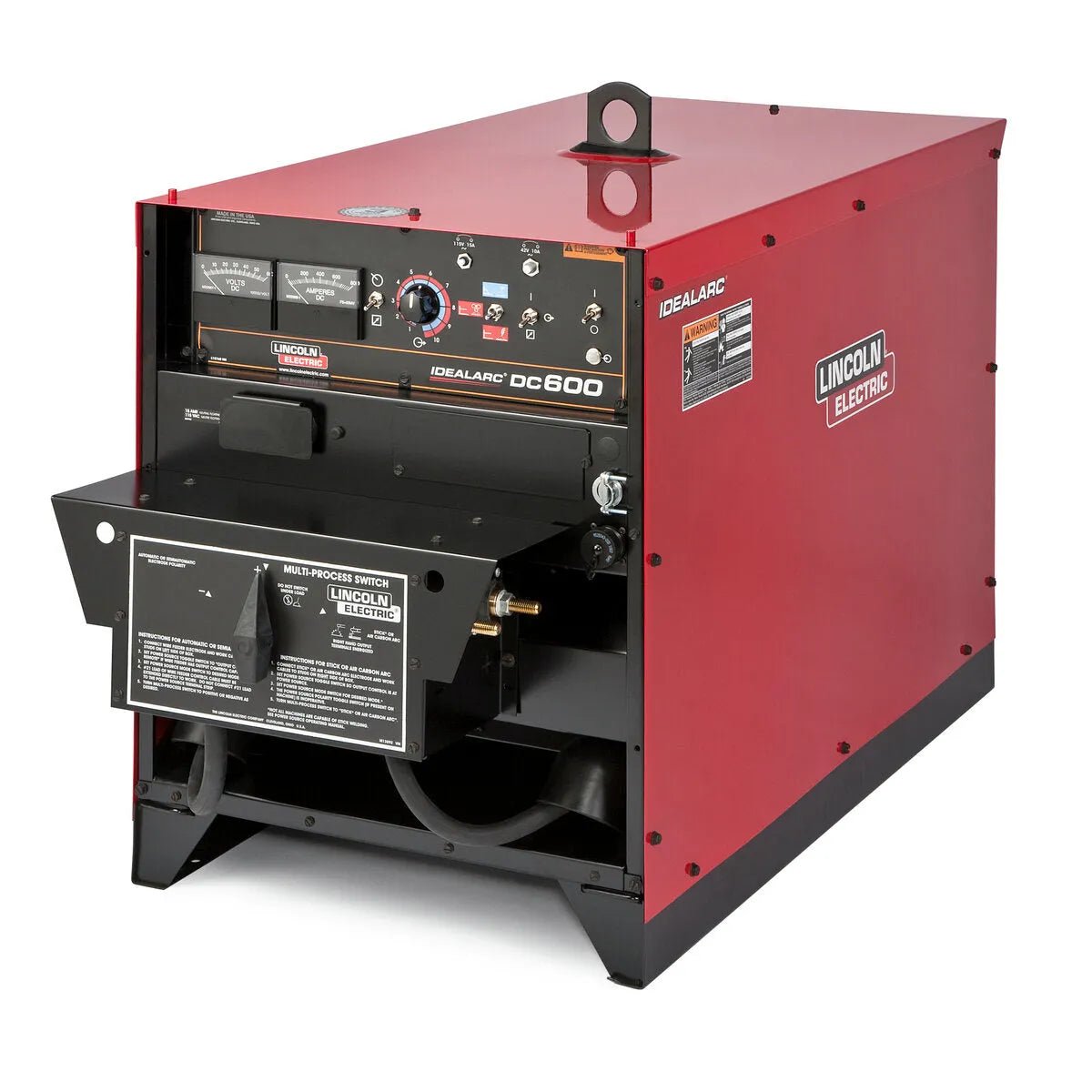

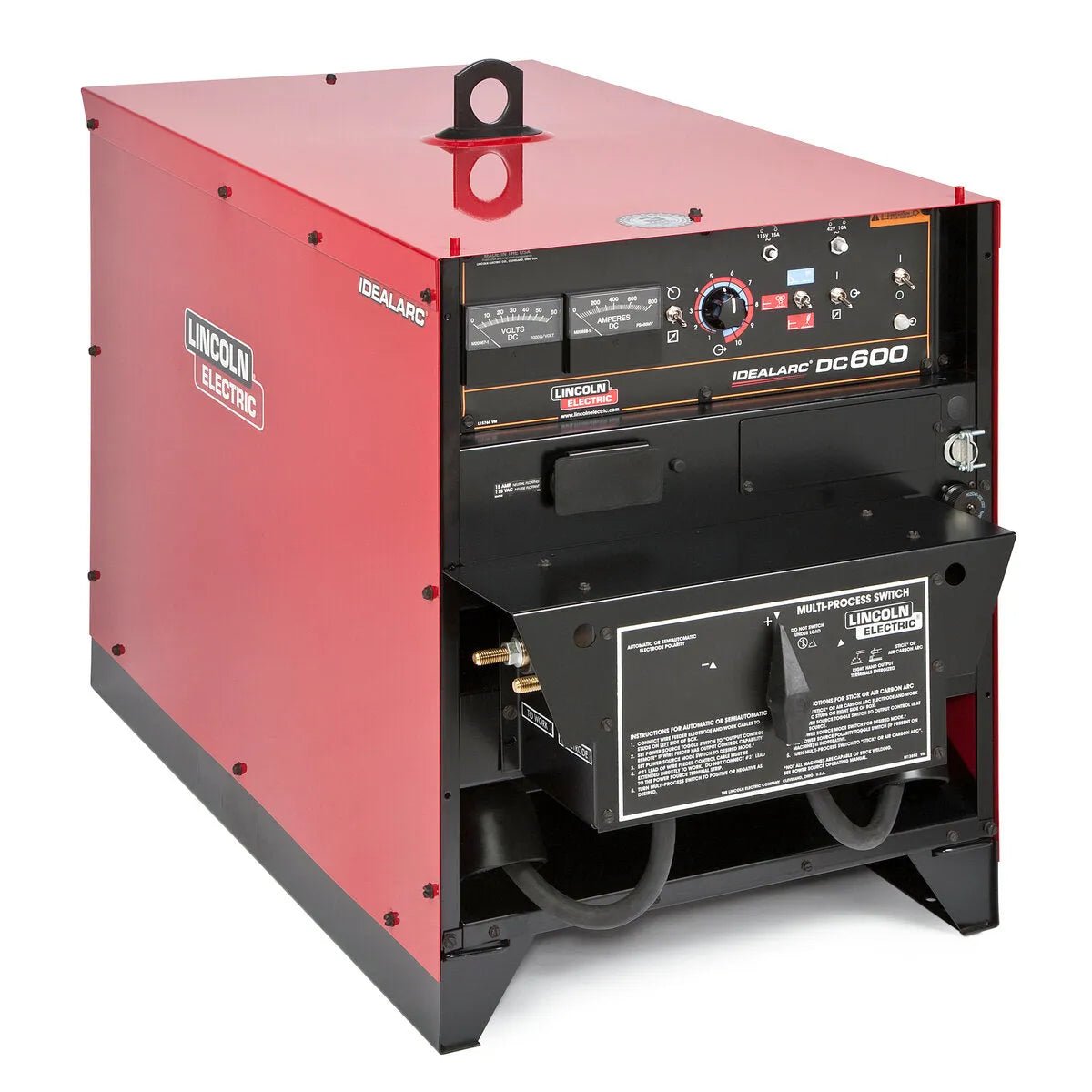

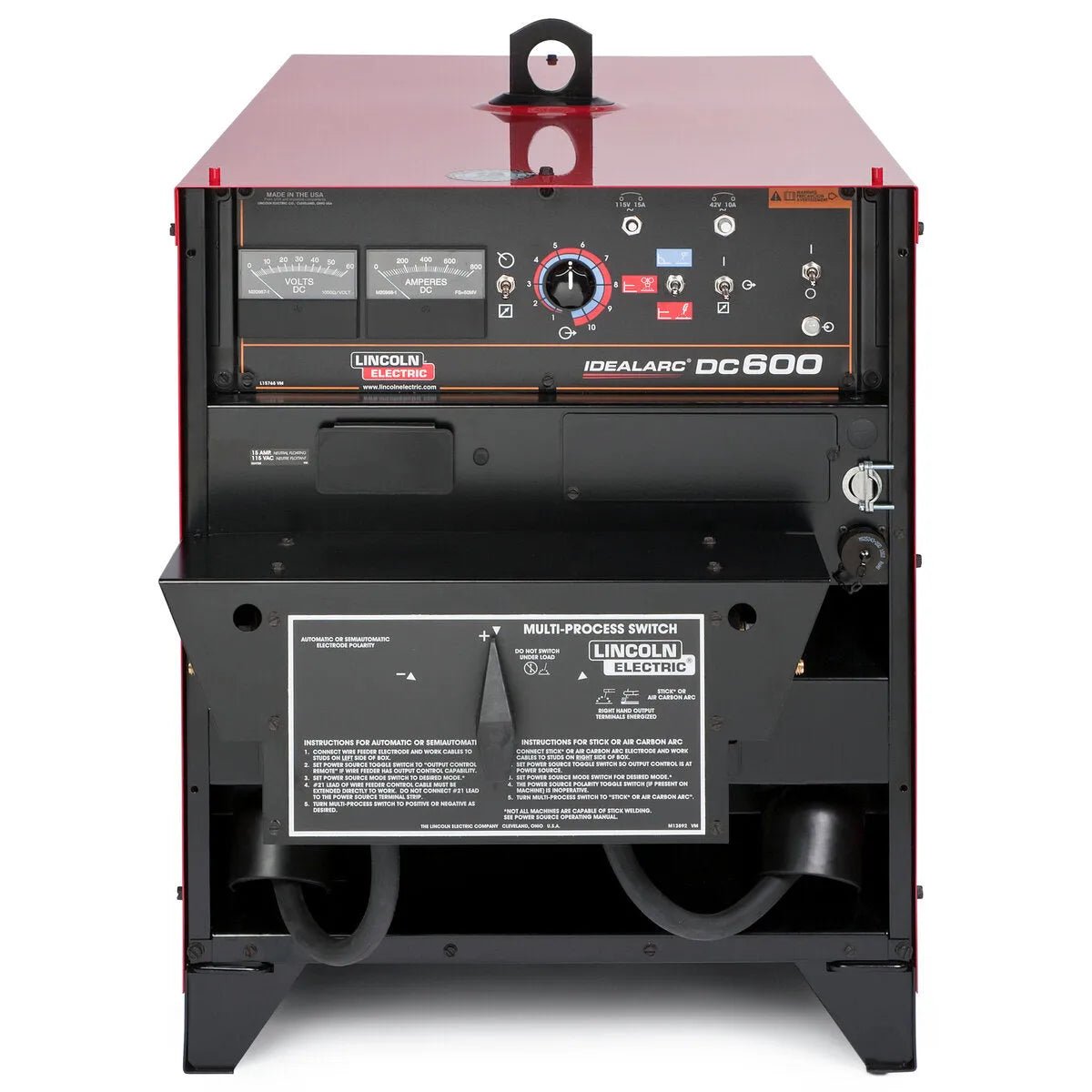

Lincoln Idealarc DC600 Multi-Process Welder with Multi-Process Switch - K1288-18
The Lincoln Idealarc DC600 Multi-Process Welder with Multi-Process Switch combines industrial-grade construction with enhanced process flexibility for demanding shop applications. This robust system features a 100% duty cycle output rating, ensuring continuous operation in high-production environments. The traditional SCR rectifier technology delivers the superior arc characteristics that professional welders value, resulting in consistently high-quality welds across various materials and thicknesses.
This enhanced K1288-18 model incorporates a dedicated Multi-Process Switch that significantly improves operational efficiency by allowing rapid transitions between welding processes. The intuitive control panel features full-range output voltage adjustment and standard analog meters for precise parameter monitoring. For workplace convenience, the unit includes a 115V auxiliary power receptacle that powers shop tools directly at the welding station, eliminating the need for additional power sources.
Practical design considerations are evident in the DC600's compact footprint and flat-top case, which allows for installation under workbenches or stacking configurations up to three units high. Internal components receive comprehensive protection against moisture and corrosive environments, ensuring reliability in harsh industrial conditions. Lincoln's confidence in the system's durability is demonstrated by their seven-year warranty on the power rectifier, making the DC600 with Multi-Process Switch an exceptional value for operations requiring versatile, dependable welding capabilities.
Key Features
- Dedicated Multi-Process Switch for effortless transitions between welding modes.
- 100% duty cycle output rating ensuring continuous operation in demanding production environments.
- Traditional SCR rectifier technology delivering superior arc characteristics and weld quality.
- Full range output voltage control for precise parameter adjustment across multiple processes.
- Standard analog ammeter and voltmeter providing immediate visual feedback on welding conditions.
- Integrated 115V, 15-amp duplex auxiliary power receptacle for powering shop tools at the work station.
- Space-efficient flat-top case design with compact footprint allowing installation under workbenches.
- Stackable configuration capability (up to three units high) for maximizing available floor space.
- Enhanced protection for windings and rectifiers against moisture and corrosive environments.
- Industry-leading seven-year warranty on the power rectifier for long-term investment protection.
Specifications
| Dimensions (H x W x D) | 30.75 in x 22.25 in x 39 in (781 mm x 567 mm x 988 mm) |
| Net Weight | 552 lbs (250.4 kg) |
| Machines Processes | Stick (SMAW) Gouging (CAC-A) Flux-Cored (FCAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) Submerged Arc (SAW) |
| Number of Operators per Machine | 1 |
| Input Voltage | 220/230/240,460 |
| Input Current | 108/54A |
| Input Hertz | 60 |
| Input Phase | 3 |
| Input Power | 230/460/3/60 |
| Output Range | CV:70A/13V - 780A/44V CC:90A/24V - 780A/44V |
| Machines Communication Technology | analog |
| Wire Feeder Supply Voltage | 115VAC 42VAC |
| Amphenol Pins (type of connector) | 14 |
| Work Lead Connector Type | Lug |
| Typical Application | Construction Mining Construction & Field Erection General Fabrication Heavy Fabrication Marine Applications Offshore Shipbuilding Structural Fabrication |
| Warranty | 3 Years |
