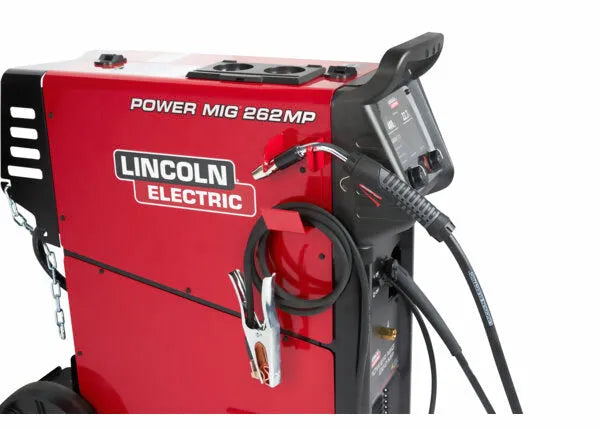

7% Instant Drill Baby Drill RebateLincoln POWER MIG 262MP Multi-Process Welder Aluminum One-Pak (Push-Pull Gun) - K5638-1
The Lincoln POWER MIG 262MP Aluminum One-Pak with Push-Pull Gun represents the pinnacle of aluminum welding technology in a versatile multi-process platform. This premium system combines a robust 300 Amp output capacity with Lincoln's advanced Push-Pull Gun technology, specifically engineered to deliver unparalleled aluminum feeding performance for professional applications requiring the highest levels of precision and consistency. While optimized for aluminum excellence, the system maintains complete multi-process functionality including MIG, Pulsed MIG, Stick, Flux-Cored, and TIG processes, making it an exceptionally versatile solution for diverse fabrication requirements.
The system's sophisticated digital control interface features a vibrant 7-inch color LCD display that transforms the operator experience through enhanced communication and intuitive navigation. Lincoln's groundbreaking Ready.Set.Weld, ArcFX, and Weld Set Memory technologies provide unprecedented precision and consistency across all welding processes, while the specialized aluminum pulse technology delivers superior results on both 4XXX and 5XXX series aluminum. The Push-Pull Gun configuration represents Lincoln's premium aluminum feeding solution, virtually eliminating the feeding issues commonly associated with soft aluminum wire by synchronizing wire drive motors at both the feeder and gun to maintain precise tension control.
The POWER MIG 262MP features Lincoln's rugged MAXTRAC industrial wire drive system working in harmony with the Push-Pull Gun technology to ensure flawless wire feeding performance even in the most demanding aluminum applications. While this One-Pak configuration comes equipped with the premium Push-Pull Gun solution, the system maintains compatibility with all three aluminum feeding methods, offering maximum flexibility as application requirements evolve. This comprehensive package, combined with specialized stick settings optimized for 6010 and 6011 cellulosic electrodes, makes the POWER MIG 262MP Aluminum One-Pak with Push-Pull Gun the definitive solution for professional welders across automotive, fabrication, education, and maintenance applications where premium aluminum welding capability is essential.
Key Features

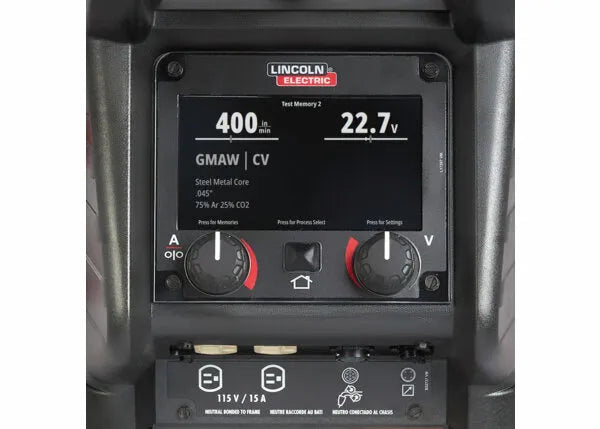

- 7-Inch Color Display - Enhances communication between operator and machine.
- Aluminum Pulse Process - Welds 4XXX and 5XXX series aluminum for superior quality welding.
- Multi-Process Capable - Welds MIG, flux-cored, stick, TIG, and pulsed MIG.
- Stick Settings for 6010 + 6011- Superior performance with cellulosic electrodes.
- 300 Amp Max Output- Perfect for autobody, light fabrication, education, and more.
- Memory Recall- Easily save and access memories with the enhanced UI.
- Synergic Control - Set weld procedures with one control.

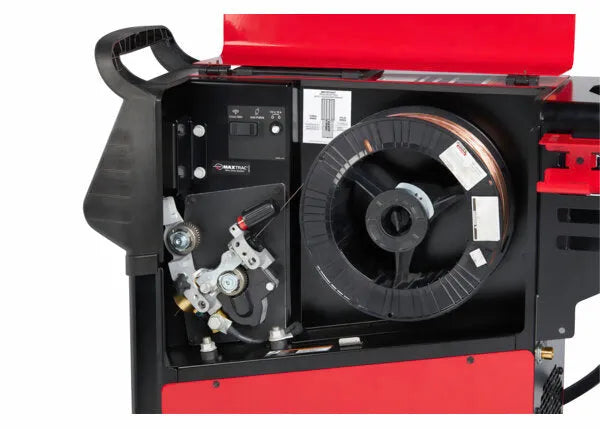

- Rugged MAXTRAC Industrial Wire Drive - Allows for constant wire feed speed and consistent welds.
- 3 Ways to Feed Aluminum - Electronics built in for all three methods using a Push Gun, Spool Gun or a Push-Pull Gun.
Specifications
| Dimensions (H x W x D) | 37.5 in x 18 in x 37.5 in (947.42 mm x 457.2 mm x 952.5 mm) |
| Net Weight | 265.8 lbs (120.5 kg) |
| Machines Processes | Stick (SMAW) Flux-Cored (FCAW) TIG (GTAW) MIG (GMAW) Pulsed MIG (GMAW-P) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) |
| Open Circuit Voltage | 90V |
| Input Voltage | 208/230/460/575 |
| Input Current | 49.1/44/22.1/17.6 |
| Input Hertz | 60 |
| Input Phase | 1 |
| Input Power | 208/230/460/575/1/60 |
| Mode Icon | CC/CV |
| Output Range | 5-300A |
| Polarity | DC |
| Amphenol Pins (type of connector) | 12 |
| Typical Application | Automotive General Fabrication Heavy Equipment Maintenance & Repair |
| Warranty | 3 Years |
